24 Volt 400 Watt XYD-6D Electric Motor with 11 Tooth #25 Chain Sprocket and Mounting Bracket (Blemished)
24 Volt 400 Watt XYD-6D Electric Motor with 11 Tooth #25 Chain Sprocket and Mounting Bracket (Blemished) is backordered and will ship as soon as it is back in stock.
Free Shipping
Free Shipping
- US domestic ship to addresses only.
- Does not include expedited shipping services.
Key Features
- BLEMISHED ITEM; this item has a broken connector
- 11 tooth #25 chain bracket
- Bracket included
- Left or right rotation by reversing wires
- XYD-6D motor
- 2600 RPM
Description
Description

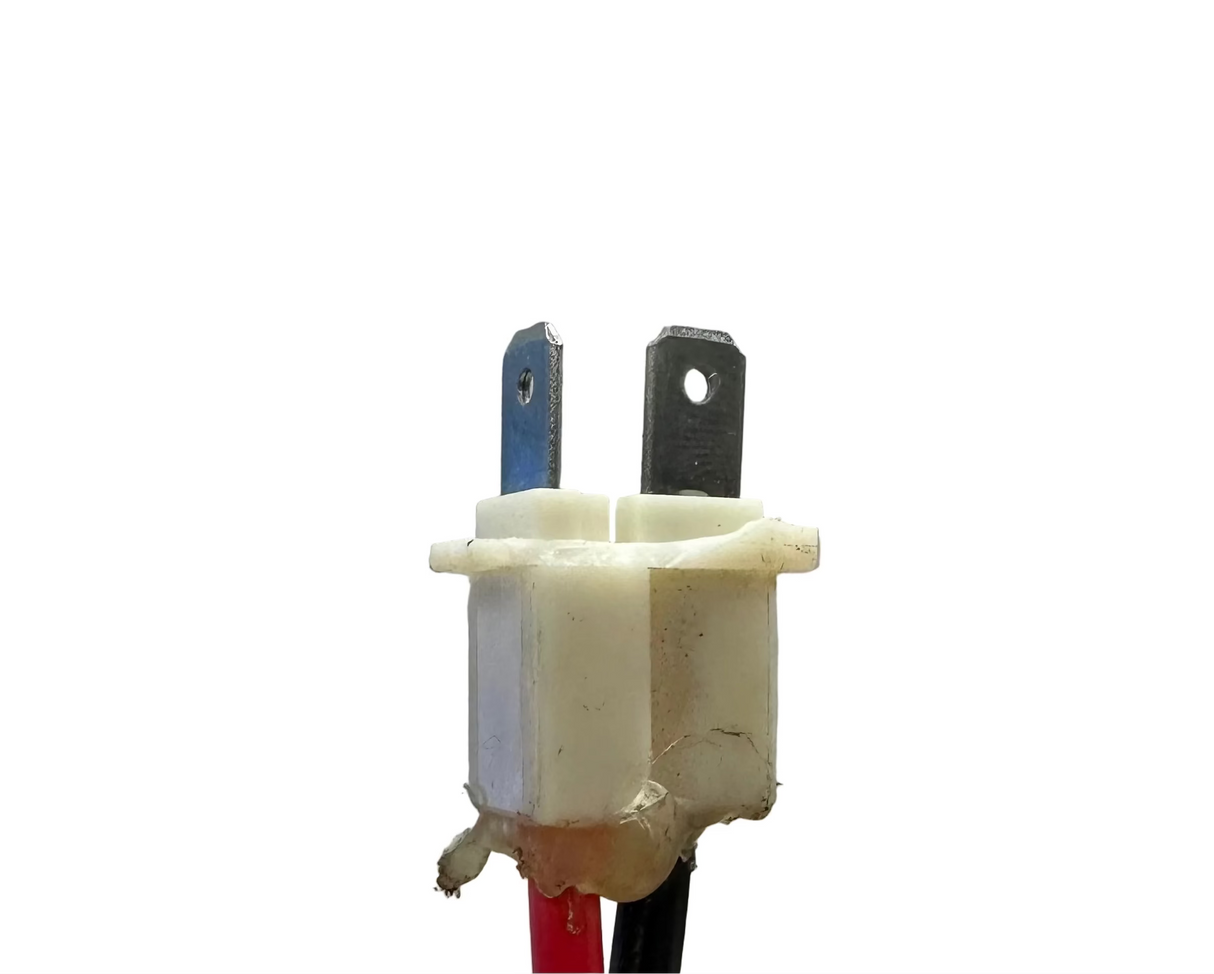

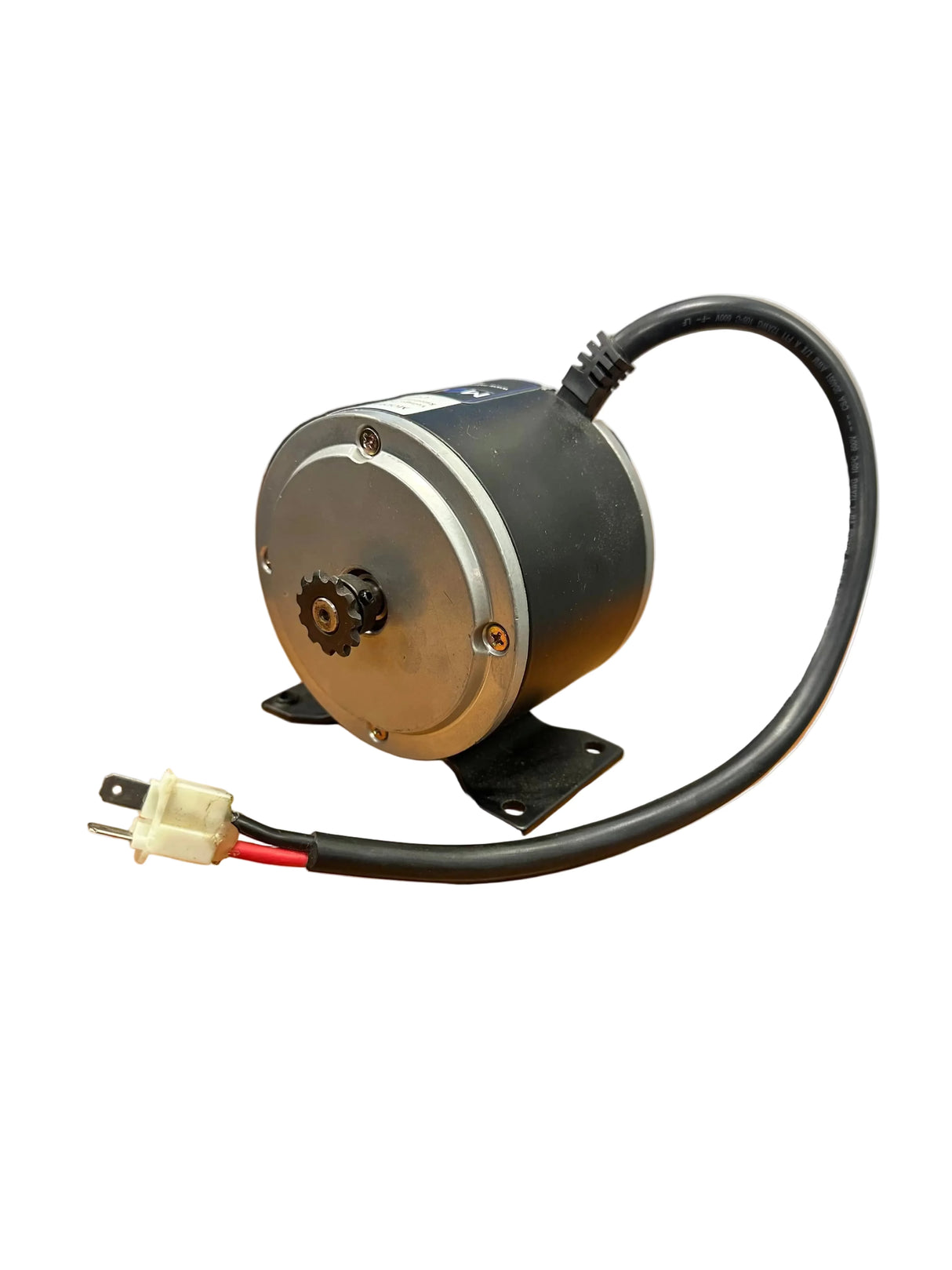

BLEMISHED ITEM; this item has a broken connector, but still functions as intended.

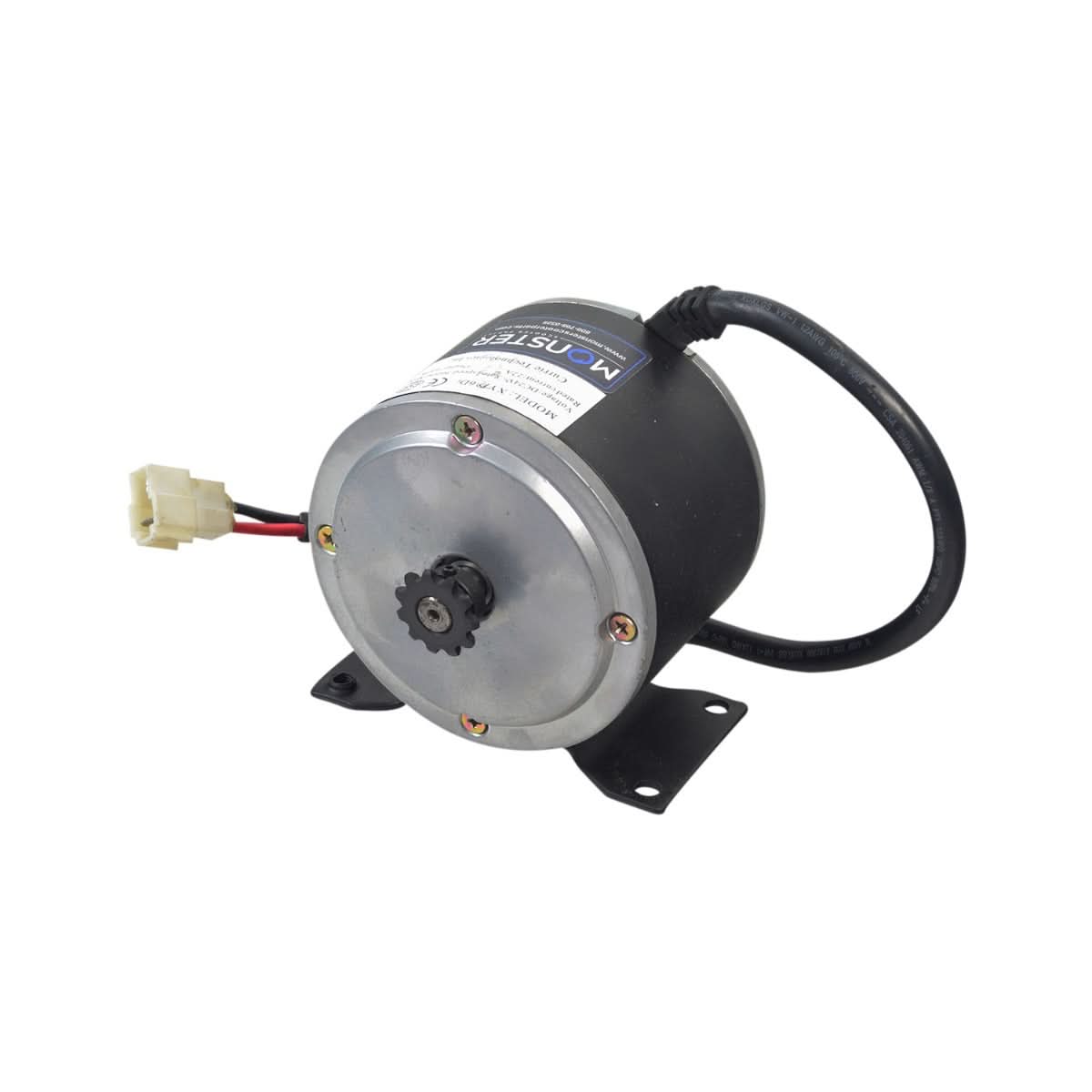

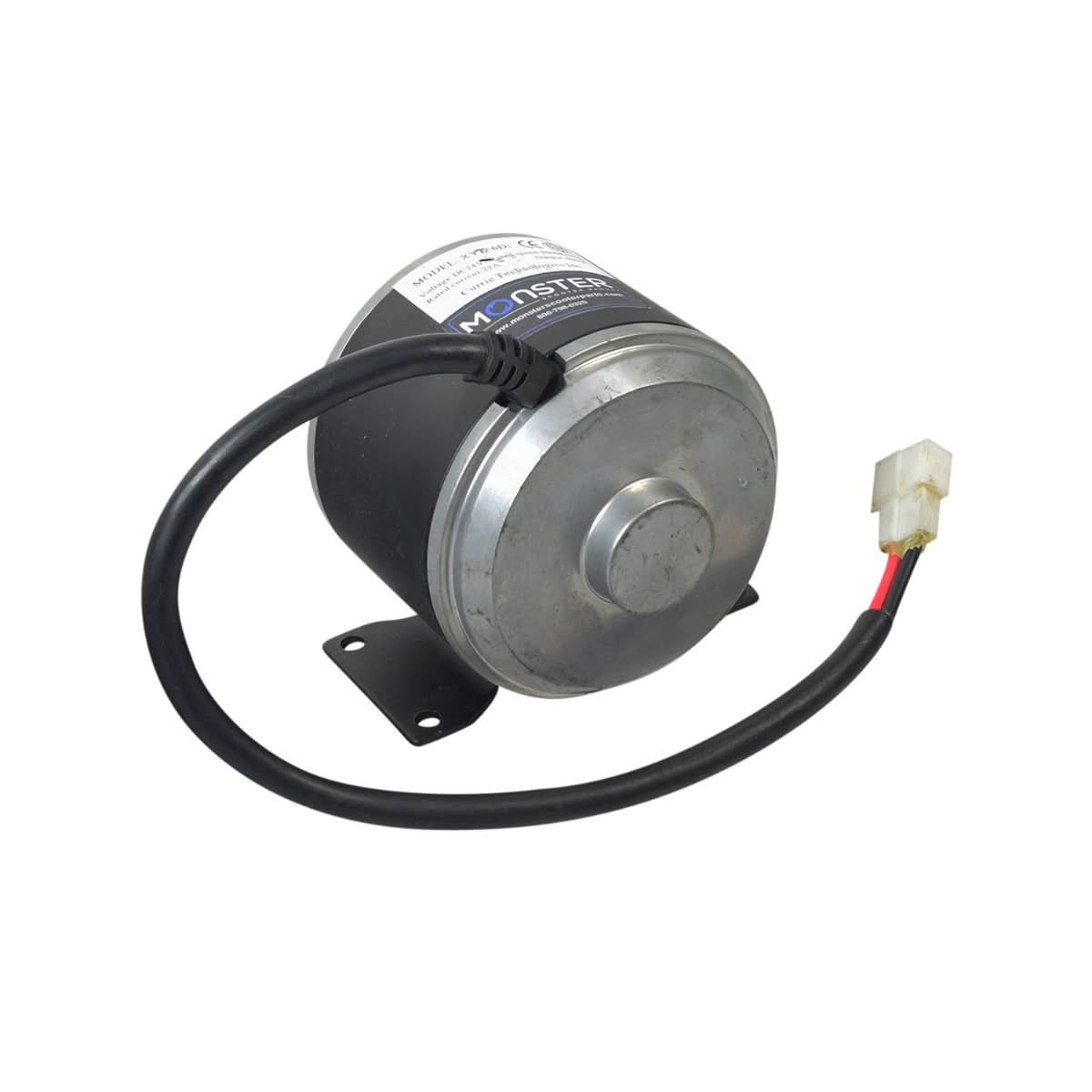

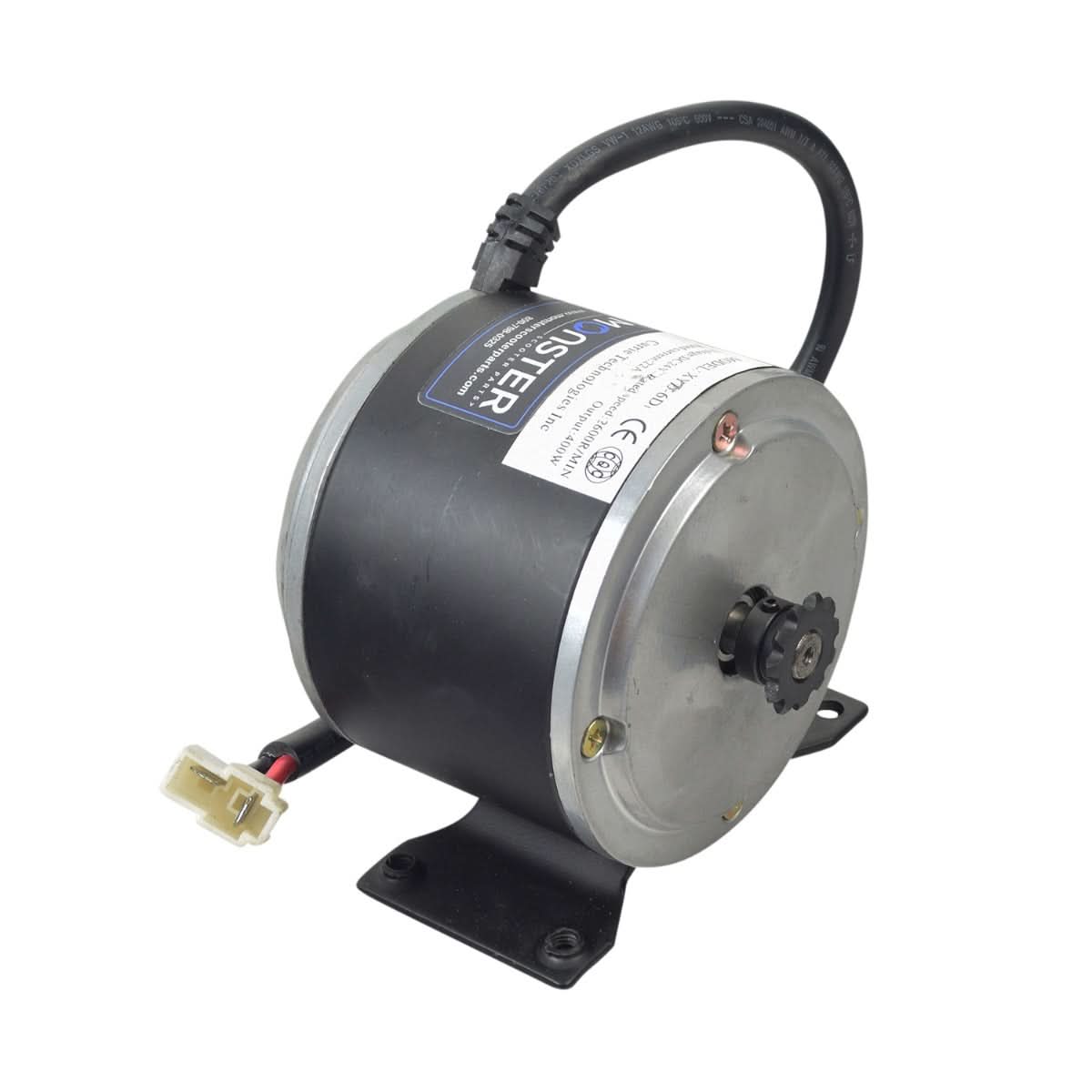

24 volt 400 watt XYD-6D electric motor with an 11 tooth #25 chain bracket from Currie Technologies. This is the motor that was used on the chain drive versions of the Schwinn 400 and IZIP 400 electric scooters.
This motor uses a universal mounting bracket, and it can be used on most 24 volt electric scooters factory equipped with 200 watt to 400 watt motors.
Note: This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires.
Currie Technologies: SD-4007-2
⚠ WARNING California Residents: Proposition 65 Warning
Reviews (0)
Reviews (0)
Specifications
Specifications
Model: XYD-6D Motor
Type: Brush
Voltage: 24 volt DC
Rated Speed: 2600 RPM
Rated Current: 22 amp
Sprocket: 11 tooth #25 chain sprocket
Output: 400 Watts
Case Length: 3-13/16" (97 mm)
Case Diameter: 3-15/16" (100 mm)
Drive Shaft Length: 3/8" (10 mm)
Drive Shaft Diameter: 3/8" (10 mm)
Bolt Hole Distance (Cross Bracket): 3-3/4" (95 mm)
Bolt Hole Distance (Adjacent): 1-5/8" (42 mm)
