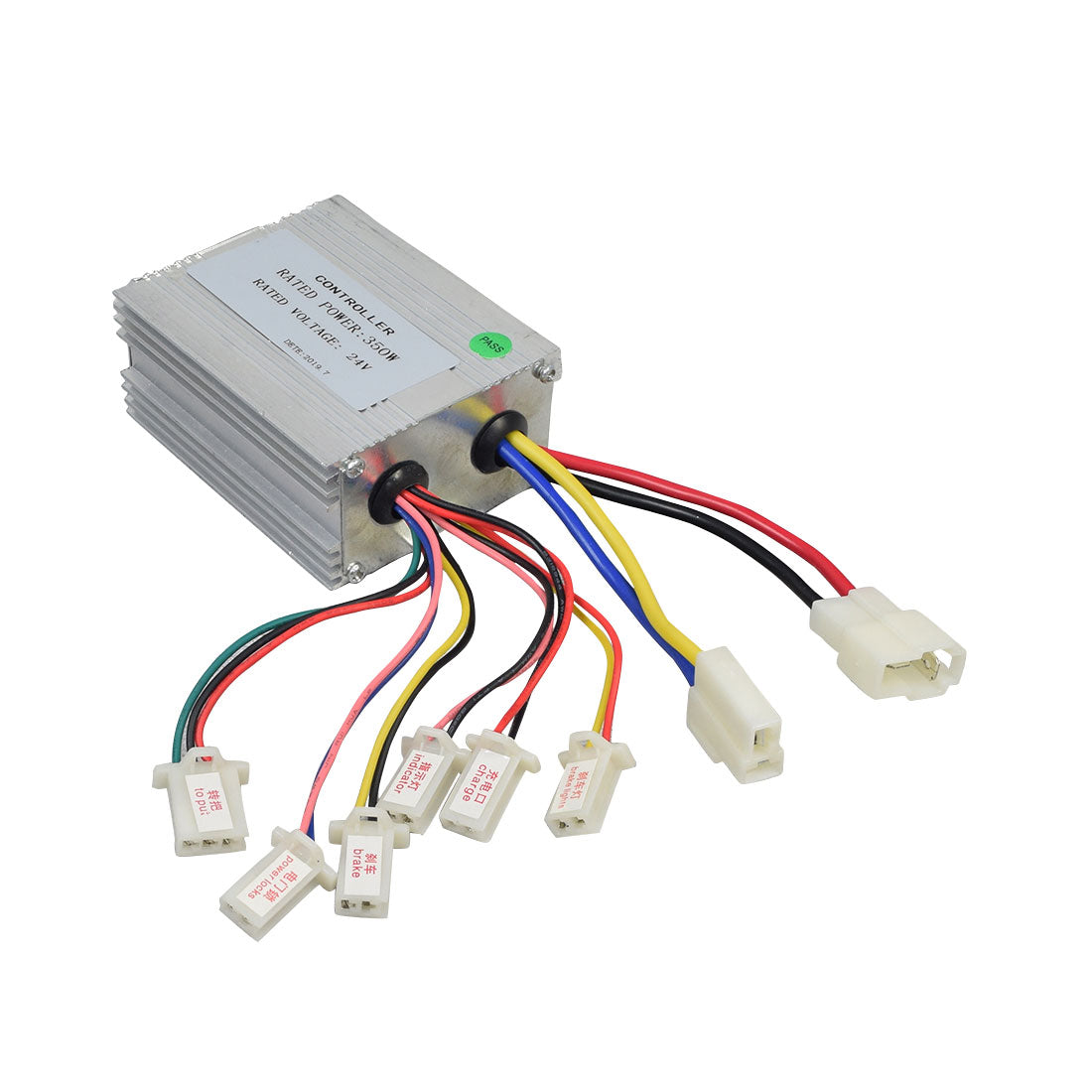

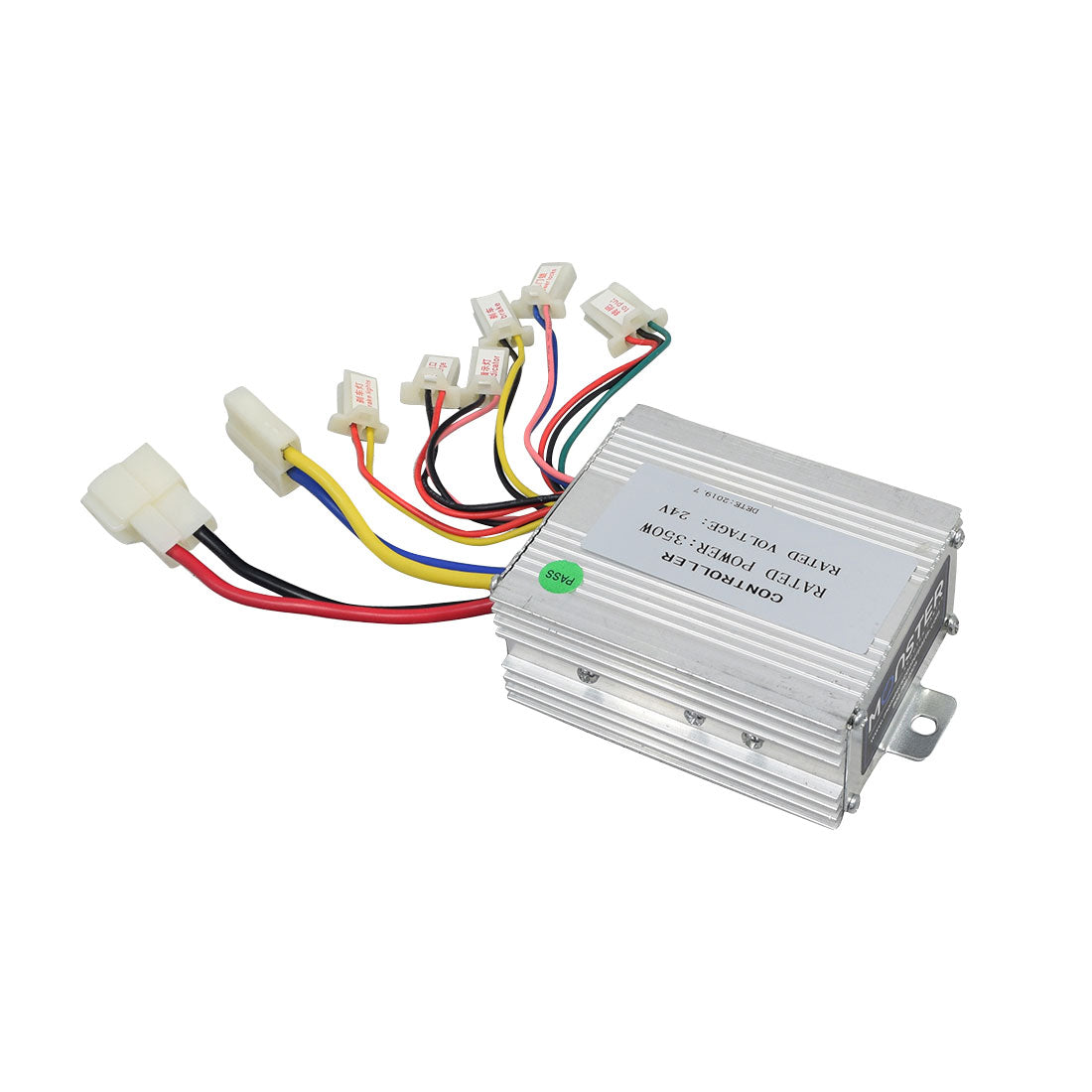

24 Volt 350 Watt Universal Speed & Voltage Controller

A great controller at an excellent price; our 24 volt 350 watt universal scooter speed & voltage controller comes with very common wiring connections found on electric scooters. Depending on your make and model, you might need to cut and splice a few of the wires.

This controller is very similar to, and is fully compatible with the CT-811B9 controller. Any scooter or e-bike that came with the CT-811B9 can use this controller as a perfect replacement.

Includes the eight following connectors:

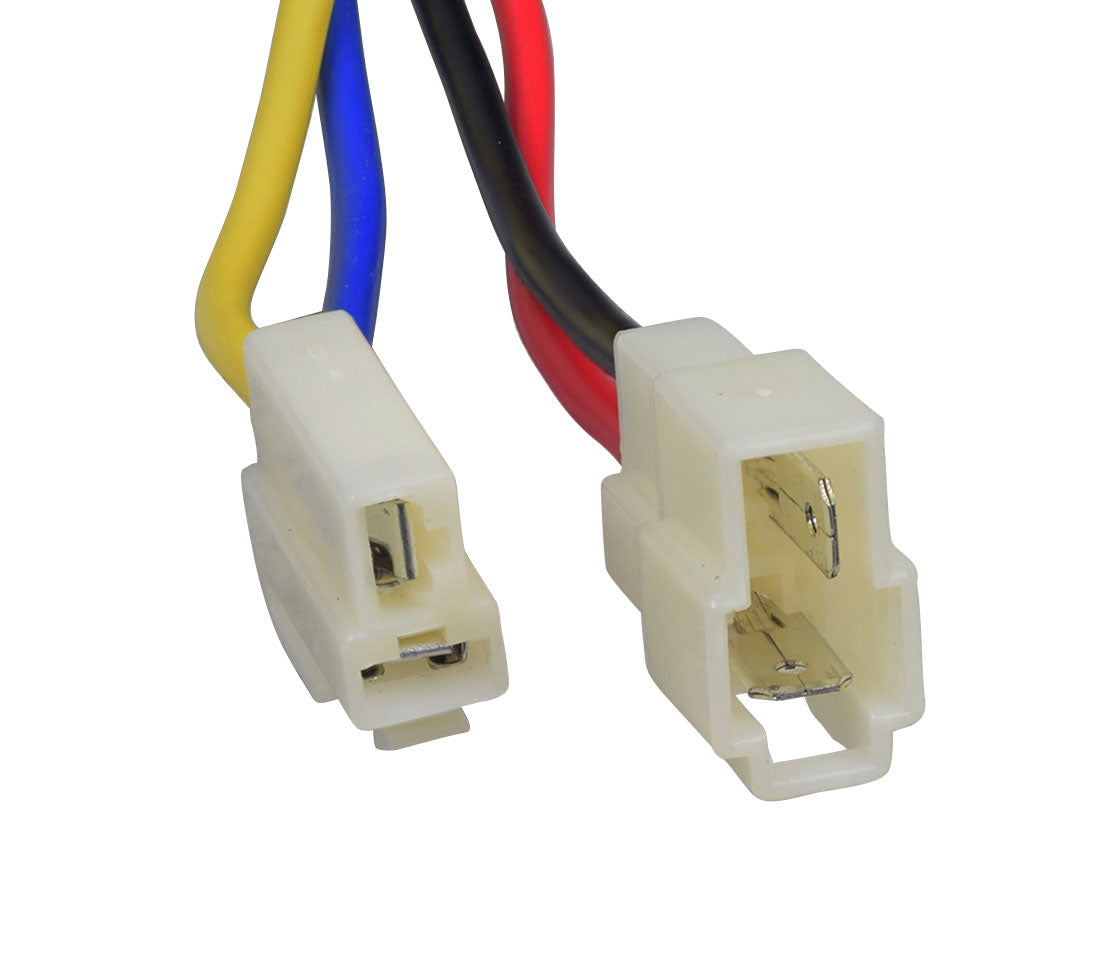

1. Motor

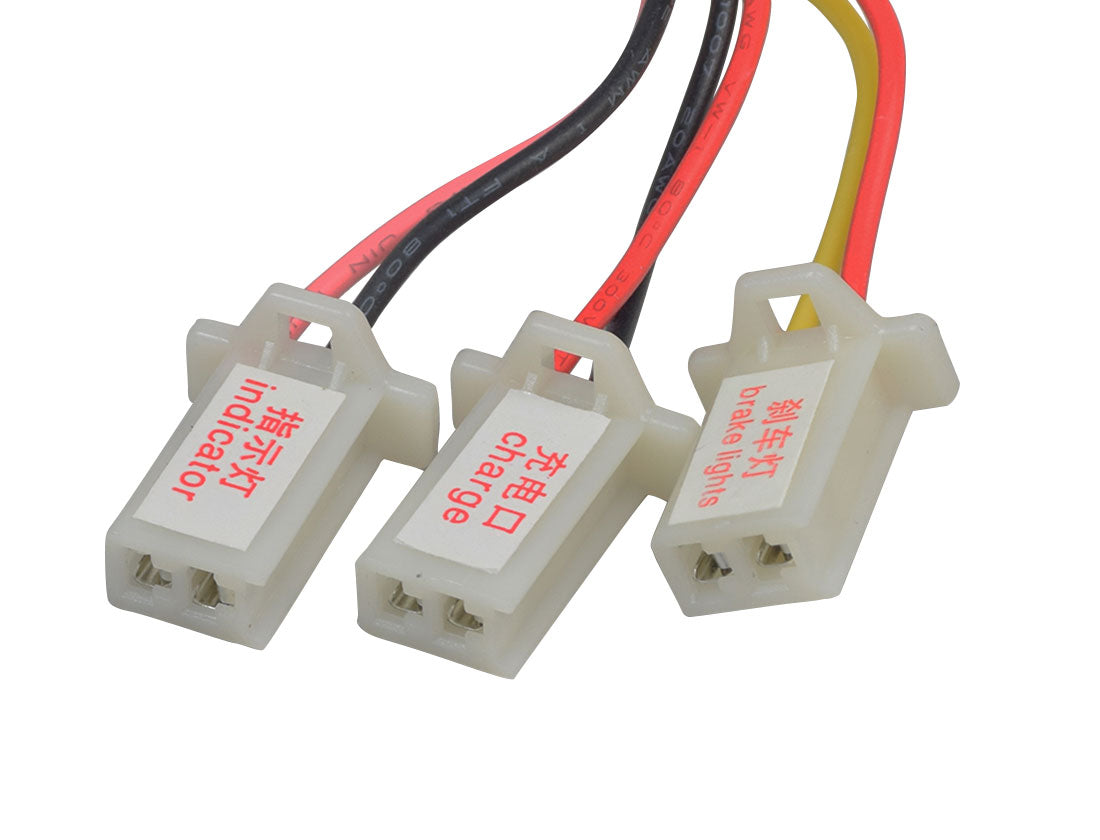

2. Power Indicator

3. Power

4. Charger

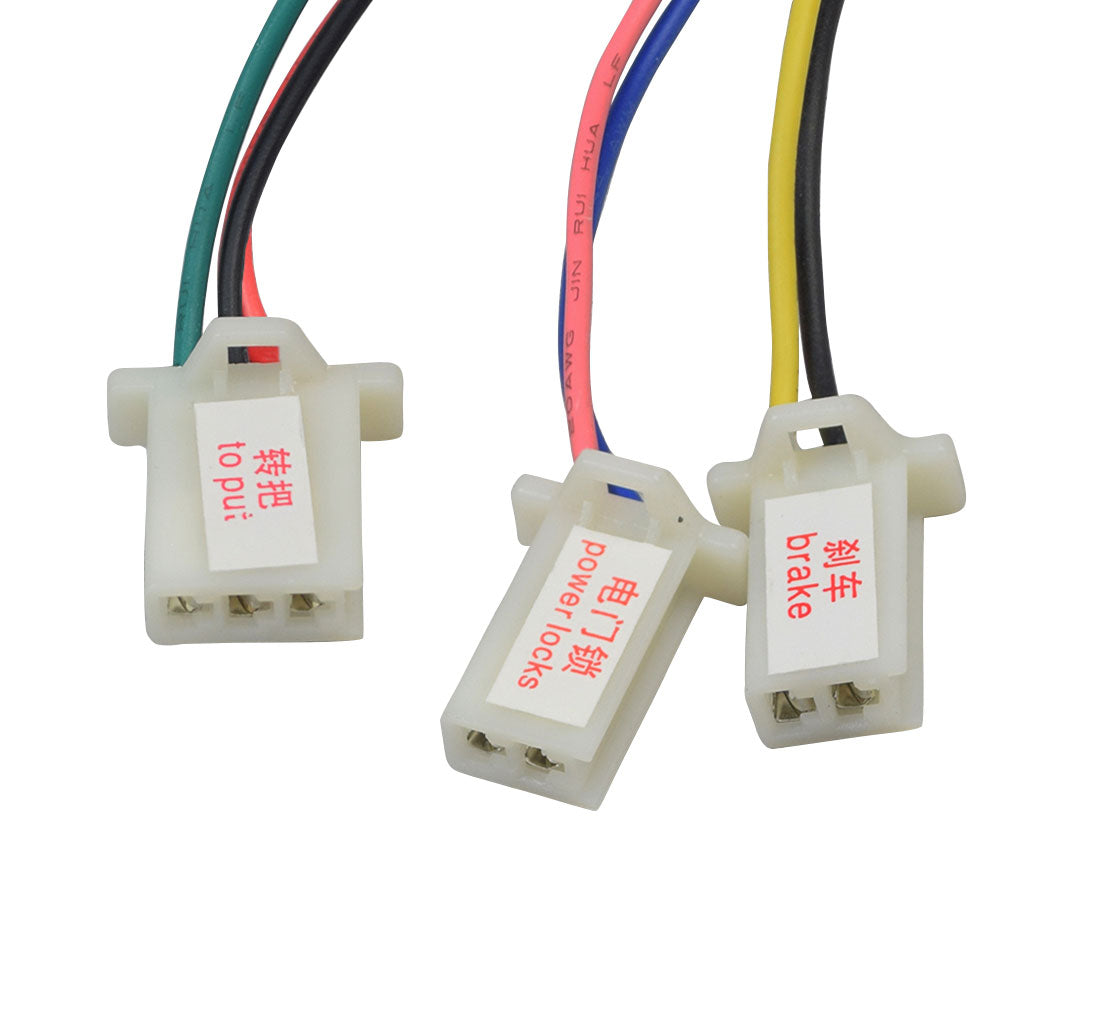

5. Brake

6. Brake & Speed Controller

7. Lock Connector

8. Hand throttle connector

Note: All scooter controllers require a switch, (joined to the "Lock" connector on the controller wires), in order to complete the electrical circuit.

PLEASE NOTE:
Due to the delicate nature of voltage controllers, and the care that must be taken when making wiring connections, it is Monster Scooter Parts company policy that all voltage and speed controller sales are final. Please ensure you are comfortable making delicate wiring connections and cutting and splicing wires prior to ordering. Our entire return policy can be viewed at the link below:

Monster Scooter Parts Return Policy

⚠ WARNING California Residents: Proposition 65 Warning

Voltage: 24 Volts

Current: 20 Amps maximum

Power: 350W

Under Voltage Protection: 20.5 Volts

Electric Charger Suitability: 3.0 Amps or less

Dimensions: 82mm x 76mm x 35mm
