163cc 5.5 Hp Motor Sports & Utility Engine

PLEASE NOTE:
This engine is no longer available and has been replaced by our 196cc 6.5 Hp Motor Sports & Utility Engine.

This 163cc 5.5 HP motor sports and utility engine is manufactured by Jiangdong, Model JF168. This engine is a direct replacement for the 196cc mini bike engine used on Baja Motorsports mini bike products.

This EPA and CARB certified mini bike engine is a single cylinder air cooled engine ideal for lightweight applications, including mini bikes and custom projects.

This engine is widely used on mini bikes, pit bikes, and generators, and is compatible with the Baja Motorsports mini bike lineup of the Baja Heat, Baja Mini Baja, and the Baja Warrior.

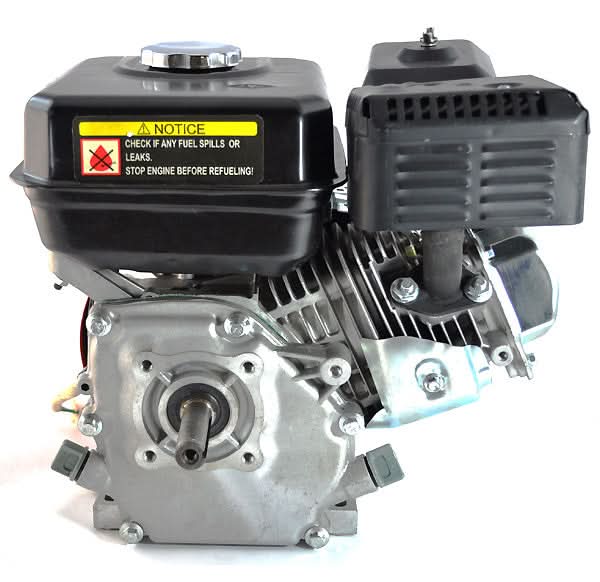

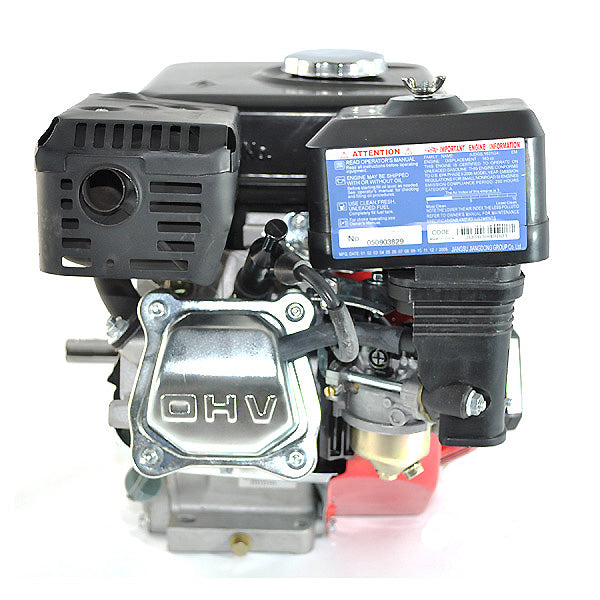

This engine includes the manual pull start, air filter, carburetor, fuel tank, muffler, and spark plug as shown.

This JF168 163cc engine comes with four through holes for mounting on the engine base. The holes are 3/8" in clear inside diameter and create a center to center distance rectangular mounting pattern of 6-3/8" x 3-1/8".

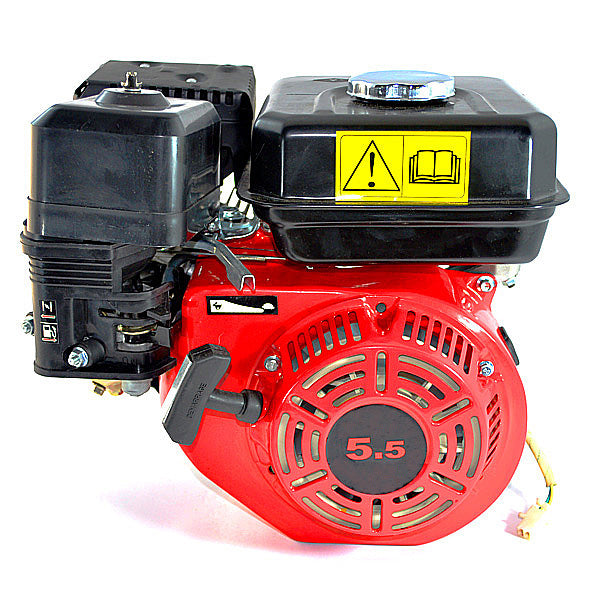

NOTE: Colors of our stocked engine differ from the image above. This engine comes with a red pull start and black fuel tank. All other components have the same color as the image.

Please see our category pages for specific 163cc 5.5 HP JF168 engine parts.

PLEASE NOTE:
This engine is compatible with many applications using OEM engines that visually look like the detailed picture on the item page. Please ensure this engine will provide the form, fit, and function needed on your custom scooter, go kart, or portable utility product prior to ordering.

It is Monster Scooter Parts company policy that all engine sales are final. Our entire return policy can be viewed at the link below:

Monster Scooter Parts Return Policy

Baja Motorsports: 165-043

⚠ WARNING California Residents: Proposition 65 Warning

Engine type: 4-stroke, 25º inclined, single cylinder air-cooled
Displacement (cc): 163
Compression Ratio: 8.5: 1
Max. Output (HP/rpm): 5.5/3600
Max. Torque (N.m/rpm): 10.8/2500
Ignition system: Non-contact Transistorized Ignition (TCI)
Start Mode: Recoil and Electric Start
Air cleaner: Semi-dry, oil bath, dual, double silent and cyclone type
Fuel Tank Capacity (L): 3.6
Fuel Consumption (g/HP-hour): 290
Engine Oil Capacity (L): 0.6
Dimensions (L X W X H (mm)): 387 x 330 x 360
Net weight (lbs.): 15
Output Shaft Diameter (in.): 3/4"
Output Shaft Length (in.): 2-1/4"
