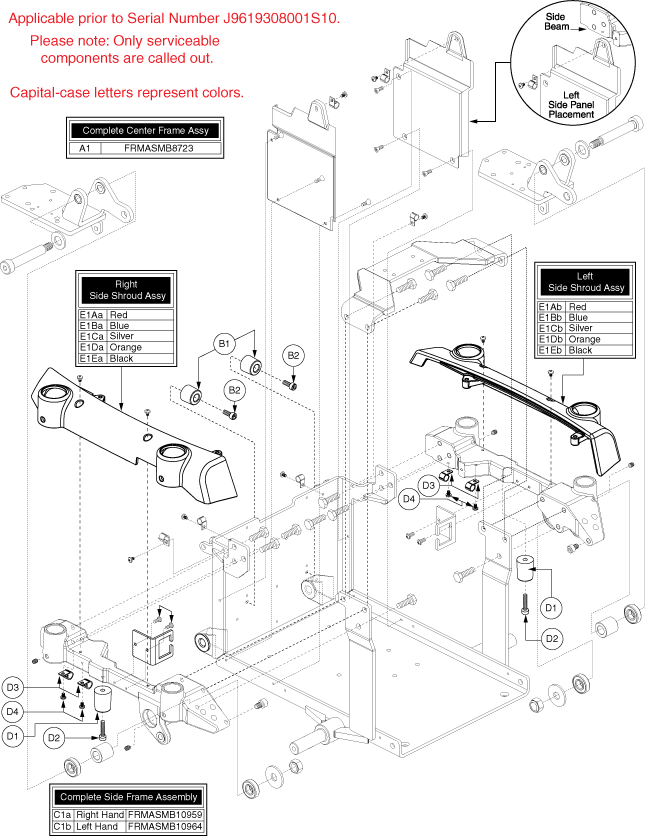

FRAME, ASSY, CENTER FRAME SECTION, QUANTUM6000, E-1059-042
Pride Mobility
SCREW, SOCKET HEAD, M6X1.0 X 16, ISO 4762, CL 12.9, BZ (USE SCRSHCS1153) (SCRSHCS1001)
FRAME, ASSY, RIGHT FORGED SIDE FRAME SECTION, RED, QUANTUM6000Z, D-1065-016
FRAME, ASSY, LEFT FORGED SIDE FRAME SECTION, RED, QUANTUM6000Z, D-1065-017
Pride Mobility
BUMPER,BLACK,RUBBER,6.5MM ID X 25MM OD X 32MM TH,SHORE 90 A,B-1056-062 (DWR1056B062)
Pride Mobility
SCREW, SOCKET HEAD, M6X1.0 X 25, ISO 4762, CL 8.8, BZ (SCRSHCS1132)
Pride Mobility
CLAMP,CABLE,BLACK,NYLON,.38" DIAMETER,P-CLIP,C-1059-042 (CLPCBLC1028)
Pride Mobility
SCREW, PAN HEAD, TYPE H, M4X0.7 X 6, FT, ISO 7045, CL 4.8, BZ (SCRPPH1304)
SHROUD, ASSY, RED, SIDE FRAME, RIGHT
SHROUD, ASSY, BLUE, SIDE FRAME, RIGHT
SHROUD, ASSY, SILVER, SIDE FRAME, RIGHT
SHROUD, ASSY, ORANGE, SIDE FRAME, RIGHT
SHROUD, ASSY, BLACK, SIDE FRAME, RIGHT
SHROUD, ASSY, RED, SIDE FRAME, LEFT
SHROUD, ASSY, BLUE, SIDE FRAME, LEFT
SHROUD, ASSY, SILVER, SIDE FRAME, LEFT
SHROUD, ASSY, ORANGE, SIDE FRAME, LEFT
SHROUD, ASSY, BLACK, SIDE FRAME, LEFT
