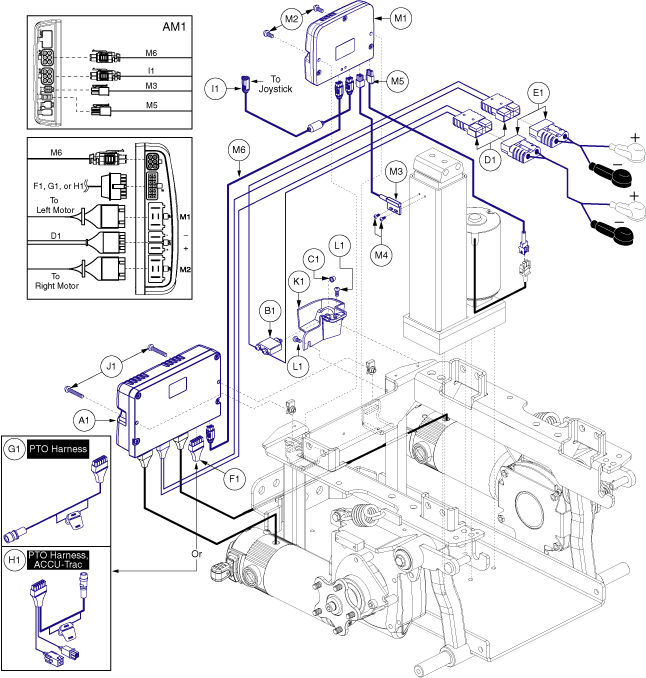

Quantum Q6 Edge 2.0 - Electronics / Modules - Q- Logic 3 - Pwr Elevate – Monster Scooter Parts

Save up to 10% on every order!

$5 Off Orders $50+ (coupon code: FIVE)

$10 Off Orders $100+ (coupon code: TEN)

800-798-0325 Help Center

Pos.

MPN

Details

A1

CTL143978

Pride Mobility

POWER MODULE, Q-LOGIC 3,120 AMP (CTL143978)

$879.99

B1

ELE1705477

70 Amp Circuit Breaker with Right Angle Screw Terminals, featuring a white electrical device with a visible screw and close-up details of a metal nut and label.

Monster Scooter Parts

70 Amp Circuit Breaker with Right Angle Screw Terminals (ELE1705477)

$46.19

C1

INDPART2420

Monster Scooter Parts

Battery Box Breaker Button Cover for the Go-Go Elite (INDPART2420)

$3.29

D1

DWR1062H003

Monster Scooter Parts

Battery Harness to Controller for the Quantum Q6 Edge (DWR1062H003)

$137.49

E1

DWR1502H005

Monster Scooter Parts

Battery Harness with Fuseable Link for the Quantum Q6 Edge (DWR1502H005)

$98.99

F1

DWR1265H027

Q-Logic Harness Run Plug for the Jazzy 614 and J6 Power Chairs, featuring a close-up of the black and white plastic plug with white text detailing its specifications.

Monster Scooter Parts

Q-Logic Harness Run Plug for the Jazzy 614 and J6 Power Chairs (DWR1265H027)

$8.79

G1

DWR1265H021

Pride Mobility

ELECTRONIC,HARNESS,POWER TAKE OFF(PTO)/INHIBIT,CURTIS (DWR1265H021)

$64.89 ~~$68.08~~

H1

DWR1265H050

Pride Mobility

ELECTRONIC,MOTOR DECODER/POWER TAKE OFF(PTO)/INHIBIT,Q-LOGIC (DWR1265H050)

$118.79 ~~$128.54~~

I1

HAR144005

Pride Mobility

HARNESS, BUS EXTENSION CABLE, Q-LOGIC 3, 0.410 METER, MALE/FEMALE (HAR144005)

$96.79

J1

SCRPPH1390

Pride Mobility

SCREW, PAN HEAD, TYPE H, M5X0.8 X 35, ISO 7045, CL 4.8, BZ (SCRPPH1390)

$3.29

K1

DWR1062D078

Pride Mobility

SHROUD,BREAKER MOUNT,BLACK,MOLDED ABS,D-1062-078 (DWR1062D078)

$5.49 ~~$6.20~~

L1

SCRPPH1036

Close-up of the M4-.7 X 8MM Black Zinc Screw (DWR1354D001), showing its precise threading and black zinc coating, essential for various Pride Mobility and Jazzy power chair assemblies.

Monster Scooter Parts

M4-.7 X 8MM Black Zinc Screw (DWR1354D001)

$2.25 ~~$2.99~~

M1 - M6

ELE167720

Pride Mobility

ELECTRONIC,ASSY,CURTIS ACTUATOR MODULE & MOUNTING HARDWARE,Q6EDGE,POWERSEAT THRU JOYSTICK (ELE167720)

$538.99 ~~$756.94~~

M1

CTL143983

Pride Mobility

ACTUATOR MODULE, Q-LOGIC 3, AM1, 1 ACTUATOR, (CURTIS: 17963700-1009) (CTL143983)

$439.99 ~~$632.15~~

M2

SCRPPH1153

M4-.7x20 mm Pan Head Phillips Machine Screw (SCRPPH1153), featuring a black cross-head top, designed for securing components on devices like the Q6 Edge power chair and Revo scooter.

Pride Mobility

M4-.7x20 mm Pan Head Phillips Machine Screw (SCRPPH1153)

$0.84 ~~$0.99~~

M3

DWR1265H016

Pride Mobility

ELECTRONIC,HARNESS,POWER SEAT INHIBIT,CURTIS,TRU-BALANCE TILT 2,H-1265-016 (DWR1265H016)

$96.79

M4

SCRPPH1290

Pride Mobility

SCREW, PAN HEAD, TYPE I CROSS RECESSED, 4 (.112)-40 X 0.25, ASME B18.6.3, BLK (SCRPPH1290)

$3.29

M5

DWR1265H017

Pride Mobility

ELECTRONIC,HARNESS,POWER SEAT,TRU-BALANCE TILT 2,H-1265-017 (DWR1265H017)

$21.99

M6

HAR143994

Pride Mobility

HARNESS, BUS EXTENSION CABLE, Q-LOGIC 3, 0.3 METER, FEMALE / FEMALE, (CURTIS: 17881361-01-02) (HAR143994)

$104.49 ~~$109.79~~

N1

ELE1700789

Programmed SD Card for Quantum Q6 Edge & Q6 Edge 2.0, & Q6 Edge 3 Power Chairs, featuring white text on a black background, compatible with expandable 4-Key Q-Logic 3 Controllers.

Pride Mobility

Programmed SD Card for Quantum Q6 Edge & Q6 Edge 2.0, & Q6 Edge 3 Power Chairs with Expandable 4-Key Q-Logic 3 Controllers (ELE1700789)

$38.49

O1

ELE1700826

Pride Mobility

SERVICEABLE ASSEMBLY, SD CARD, Q-LOGIC 3, Q6EDGE 2, 6MPH LINIX MOTORS ACCU TRAC, POWER POSITIONING (ELE1700826)

$32.99

P1

ELE1700841

SERVICABLE ASSEMBLY, SD CARD, Q-LOGIC 3, Q6EDGE 2, UK 4MPH LINIX MOTORS, POWER POSITIONING

---
