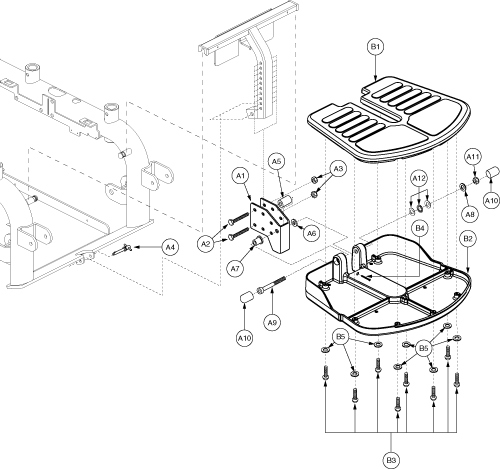

Quantum Q1121 - Footrest Platform - Grid Style - 11.62

FOOT PLATFORM, ASSY, GRID STYLE, 11.62"D, W/MOUNTING BRACKET, JAZZY1101/1121

MOUNTING BRACKET, ASSY, FOOT PLATFORM, JAZZY1101/1121

FOOT PLATFORM MOUNTING BRACKET, C-1101-010

SCREW, HHCS, BLACK ZINC, M6-1.0 X 40MM, GRADE 10.9

Pride Mobility

NUTNJAM1021 - Black Zinc Nylock Jam Nut, M6-1.0

QUICK RELEASE PIN, 6MM DIA X 38.1MM GRIP LENGTH, W/"T" HANDLE, B-1101-014

SPACER, STEEL, 0.328" ID X 0.50" OD X 1.00" TH, B-1010-090

Monster Scooter Parts

WASNYLN1066 - Footrest Platform Black Washer for the Jazzy 600

FOOT PLATFORM MOUNTING SLEEVE, FLANGE, STEEL, B-1000-458

SPACER, STEEL, 0.328" ID X 0.50" OD X 0.076" TH, B-1000-459

Pride Mobility

SCRSHCS1170 - Black Zinc Socket Head Screw, M8 x 1.25 x 80, ISO 4762, CL 12.9 for Quantum 6000 & 600 Power Chairs

CAP, VINYL, 0.50" ID, FITS 0.50" - 0.5625" OD, 0.50" H, (MCMASTER CARR: 9753K44)

Monster Scooter Parts

NUTNJAM1020 - M8-1.25x6.5 Black Lock Nut

BEARING, BALL THRUST, STAINLESS STEEL, 0.3125" ID X 0.625" OD X 0.193" TH, (MCMASTER-CARR: 6655K34)

FOOT PLATFORM, ASSY, GRID STYLE, 11.62"D, W/MAT & HARDWARE, E-1000-105

MAT, FOOT PLATFORM, 11.62"D, GRID STYLE, E-1000-103

FOOT PLATFORM BASE, ALUMINUM, 11.62"D, GRID STYLE, E-1000-104

Pride Mobility

SCRSETS1090 - Black Zinc Set Screw, 3/8-24 x 1.50" with Nylon Patch

Pride Mobility

WASSAE1008 - Black Zinc Steel Flat Washer, 0.188 ID x 0.438 OD x 0.049 Thick, ASTM F844
