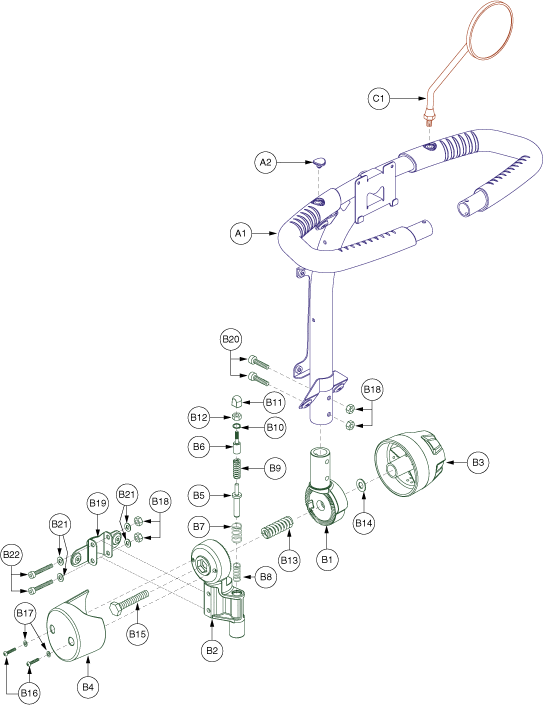

TILLER, ASSY, DELTA, COMPLETE, VICTORY 9-10
Monster Scooter Parts
Delta Tiller for the Pride Victory 9 & 10 (FRMASMB11383)
TILLER, WELDMENT, W/GRIP OVERMOLDS, SC610/SC710, E-9966-044
Pride Mobility
PLUG,BLACK,RUBBER,MIRROR MOUNT,VICTORY 9-10,B-9966-042 (DWR9966B042)
Pride Mobility
TIEDOWN STRAP, 200 LG, PLASTIC, BLACK, SPEC NO. 2106329-2-50-175-V2 (PLSTIE1004)
Monster Scooter Parts
Tiller Adjustment Assembly for the Pride Victory 10 (SC610/SC710) (FRMASMB11384)
KNUCKLE, UPPER, TILLER ADJUSTMENT, FOR 9"-10" 3/4 WHEEL, D-9966-010
KNUCKLE, LOWER, TILLER ADJUSTMENT, FOR 9"-10" 3/4 WHEEL, D-9966-011
Pride Mobility
Tiller Adjustment Knob for the Pride Victory 9 & Victory 10 (DWR9966C038)
COVER, BLACK, TILLER PIVOT, VICTORY 9-10, C-9966-039
PIN, BLACK, ZINC, TILLER LOCK, LOWER, B-9966-014
PIN, TILLER LOCK, UPPER, VICTORY 9-10, B-9966-047
SPRING, TILLER LOCK, LOWER, OUTER, VICTORY 9-10, B-9966-045
SPRING, TILLER LOCK, LOWER, INNER, VICTORY 9-10, B-9966-046
SPRING, MUSIC WIRE, TILLER LOCK, UPPER, VICTORY 9-10, B-9966-036
RETAINING RING, INTERNAL, BLACK ZINC, .500"
BUTTON, NYLON, 11MM ID X 17MM OD X 2MM TH, TILLER LOCK PIN, M6 INSERT, FOR 9"-10", B-9966-016
Pride Mobility
NUT, HEX, THIN, M6X1, ISO 4035, CL 04, BZ (NUTJAM1041)
SPRING, MUSIC WIRE, 3/8" X 1 1/2", TILLER, REVO, 13.72MM OD X 25.4MM FREE LENGTH, A-9998-023
SPACER, WHITE, NYLON, 12MM ID X 22MM OD X 2.5MM TH, SPINDLE, A-9940-005
SCREW, HHCS, BLACK ZINC, M10-1.5 X 50MM, GRADE 12.9
SCREW, PAN HEAD, TYPE H, M4X0.7 X 10, FT, ISO 7045, CL 4.8, BZ (USE SCRPPH1163)
WASHER, FLAT, BLACK ZINC, 4.3MM ID X 9MM OD X 1MM THK
MOUNTING BRACKET, LOWER TILLER SHROUD, VICTORY 9-10, C-9966-052
Pride Mobility
SCREW, SOCKET HEAD, M6X1 X 40, ISO 4762, CL 12.9, BZ (SCRSHCS1111)
