Pride Sundancer (SC202) - Tiller - Sk-93799 - Prior

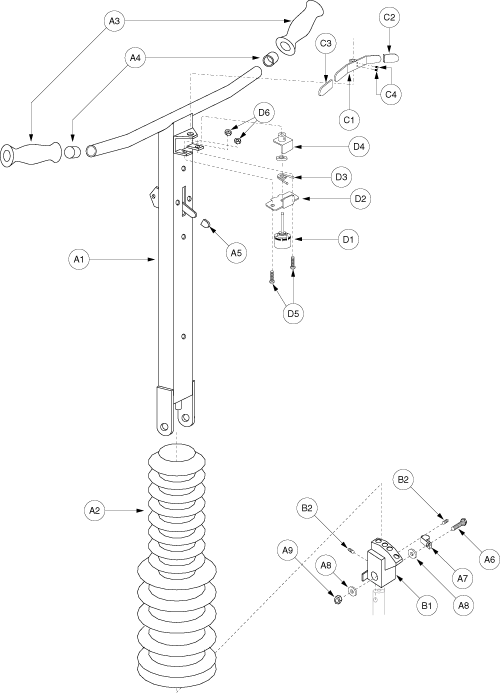

TILLER, ASSY

TILLER, FRAME, T

TILLER, BOOT, RUBBER, LEGEND

HANDLE, GRIP, RUBBER, HANDLE BAR, SMOOTH

CAP, END, PLASTIC

HANDLE, COVER, TILLER LOCK LEVER

SCREW, HHCS, BLACK ZINC, M8-1.25 X 58MM, G5

Pride Mobility

CLAMP, CABLE,WHITE,7/16" (CLPCBLC1003)

WASHER, NYLON, 11/32"ID X 1"OD X 1/8"TH

NUT, NYLOCK, BLACK ZINC, M8-1.25

TILLER, BLOCK ASSY

TILLER, ADJUSTMENT WEDGE

Pride Mobility

SCREW, SET,ELMR,1/4-28 X 1/4" (SCRSETS1009)

LEVER, ASSY, THROTTLE CONTROL, STANDARD PARTS

LEVER, THROTTLE CONTROL, STANDARD, RAW

HANDLE, COVER, FORWARD

HANDLE, COVER, REVERSE

ELECTRONIC, ASSY, THROTTLE POT W/BRKT

ELECTRONIC, THROTTLE POT, 5K, (ETI SYSTEMS RV4NAYSJ502A)

BRACKET, MOUNTING, T-POT

SPRING, RAW, TENSION, T-POT

LEVER, POTENTIOMETER, POWDER METAL, SMF-4040, C-1005-015

SCREW, PPH, BLACK ZINC, 6-32 X 0.50", G2

NUT, NYLOCK, 6-32

Pride Mobility

SCREW, SET, CONE POINT, M4X0.7 X 5, ISO 4027, 45H, STL, BZ (SCRSETS1010)

Pride Mobility

WASHER, FLAT, NYLON, .375 ID X .625 OD X .125 THK (WASNYLN1004)

ELECTRONIC, HARNESS, THROTTLE POT, 5", 5K, W/ROCKER SWITCH
