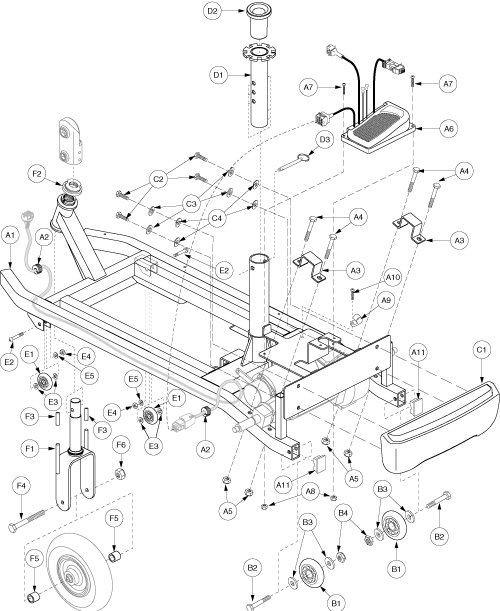

FRAME, ASSY, REVO
FRAME, WELDMENT, BODY, REVO
GROMMET, RUBBER, OD 1", ID 1/2", GROOVE 3/32"
BRACKET, AXLE MOUNT, BLACK, POWDER COAT, REVO, A-9998-005
SCREW, HHCS, M8-1.25 X 55MM
CONTROLLER, 40AMP, PRODUCTION READY-REVO PROGRAM
SCREW, PPH, M4 X .7T X 20MM
NUT, NYLOCK, ZINC, M 4.5 X .75T
SCREW, PPH, M4 X 12MM, SELF-TAP
END CAP, RECTANGULAR, MOLDED, BLACK ABS, B-9998-019
MOTOR, ASSY, TRANSAXLE/MOTOR/BRAKE, MAIN, ASI, MK15-19.7
FREEWHEEL, ASSY, RELEASE LEVER, REVO
Pride Mobility
TIEDOWN STRAP, 200 LG, PLASTIC, BLACK, SPEC NO. 2106329-2-50-175-V2 (PLSTIE1004)
WHEEL, ASSY, ANTI-TIP, REVO
Monster Scooter Parts
Anti-Tip Wheel for the Jazzy Elite HD, Pride Flash, & Quantum Rival Power Chairs (WHLATIP1005)
SCREW, HHCS, M8-1.25 X 65MM
WASHER, FLAT, ZINC, M8 X 16MM X 1.0TH
BUMPER, ASSY, REAR, REVO
BUMPER, REAR, POLYURETHANE, REVO, E-9998-015
SCREW, HHCS, ZINC, M6 x 1 x 15MM
WASHER, FLAT, M6 X 1.2MM
WASHER, LOCK, BLACK, M6 X 10MM OD
SEAT POST, ASSY, REVO
SEAT POST, WELDMENT, 7.75"H X 1.50"DIA, CHROME, D-9998-008
SEAT POST, BUSHING, 1.000" ID X 1.310" OD X 2.112" TH X 2.00" FOD X 0.312"FTH, UPPER, A-5000-043
Monster Scooter Parts
3/8" x 3-3/8" Quick Release Seat Pin for Pride and Jazzy Rear Basket Assemblies
WHEEL, ASSY, ANTI-TIP, REVO
WHEEL, ANTI-TIP, SC100
BOLT, SHOULDER, M6 X 26MM
WASHER, NYLON, 7MM ID X 11MM OD X 1.4MM TH
WASHER, FLAT, M5 ID X 11MM OD
FORK, ASSY, REVO
FORK, WELDMENT, REVO, D-9998-005
KIT, BEARING/RACE, MFGR GLOBAL FAB TECH
DAMPERER, 35MM X 10MM ID X 11MM OD, NOISE
SCREW, HHCS, BLACK ZINC, M8-1.25 X 90MM
SPACER, 0.43 OD X 0.34 ID, 1.25MM THK, BEARING, FRONT TIRE, A-9998-008
Monster Scooter Parts
M8-1.25x7.65 Black Lock Nut (NUTNYLK1011)
