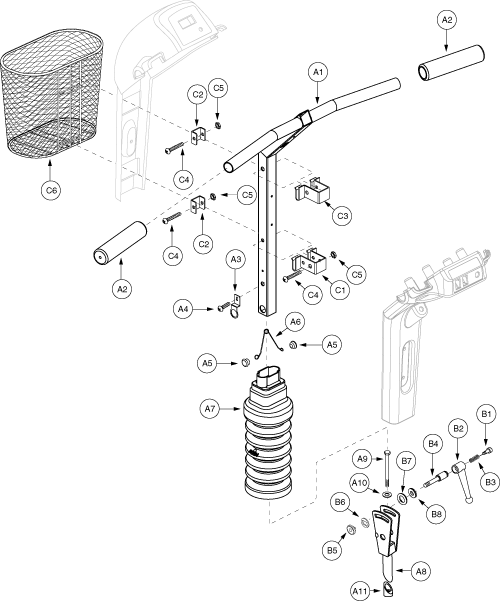

ASSY, TILLER, TILTING, VICTORY
TILLER, TILTING, WELDMENT, TEFLON COATED, 18-3/4"W X 18-1/2"L
GRIP, HAND, FOAM, BLACK, SMOOTH, 5-1/2"L
BRKT, RESRTAINT, SLIDE WASHER, TILTING TILLER, SC160/170
SCREW, PRH, ZINC, M4 X 15MM, SHEET METAL
BUTTON, PUSH, FOLDING PRESS, SC-150
SPRING, COMPRESSION, STEEL
BOOT, TILLER, 6 RING, SQUARE TOP
CONNECTOR, WEDGE, TEFLON COATED, TILLER, TILTING
SCREW, HHCS, M8-1.25 X 120MM, CHROME
WASHER, FLAT, M8 X 2MM
NUT, TAPER, M8 X 1.25
HANDLE, ASSY, LOCKING, TILLER, VICTORY
BOLT, SHOULDER, M4 X 14MM, .7T
LEVER, TILLER LOCK, SHUTTLE
SPRING, RAW, 5/8" ID X 1" LONG, 4 TURN
BOLT, INNER, LEVER, TILT, LOCKING TEETH, M8 - 1.25T X 44MM
NUT, SLIDE, M8 X 1.25T, C-9590-024
WASHER, WHITE, NYLON 6/6, 26.9MM OD X 2MM THK, SLIDE
WASHER, NYLON, M8 X 19MM OD X 3.5MM TH
WASHER, FLAT, ZINC, M8 X 22MM OD X 2MM TH
BASKET ASSY, TILLER, SC 160/170
BRACKET, LOWER, BASKET, (CL: 110514)
BRACKET, INSERT, (CL: 110515)
BRKT, UPPER, BASKET, PE COATED, LINE INDUSTRIES
SCREW, PPH, ZINC, M6-1.0 X 35MM, (CL: 6S10602S)
BASKET, 10 1/4"L X 14"W X 9"D, TILLER, LINE, ROUND
