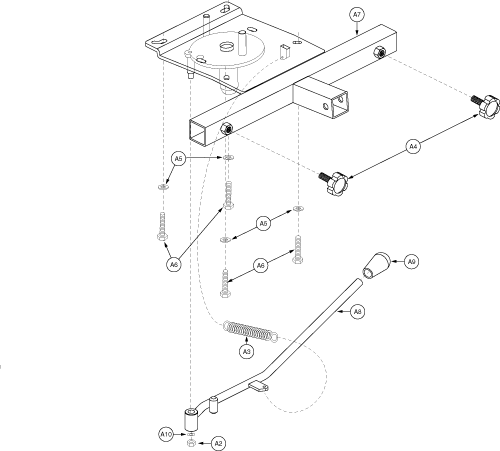

Pride Rally (SC151) - Seat Frame - Molded Seat - Base Frame
Pos.
MPN
Details
A1 - A10
FRMASMB5355

SEAT FRAME, ASSY, SPM SEAT, 8 POSITION CLOVER, CARELINE MODELS

---
A1
SCRHHCS1057

SCREW, HHCS, ZINC, M6-1.0 X 40MM

---
A2
NUTNYLK1019
M6-1.0 Black Lock Nut (NUTNYLK1019) for Pride, Jazzy, Jet, and Quantum scooters, featuring a black metal nut with a central hole, essential for various scooter assemblies.

Monster Scooter Parts

M6-1.0 Black Lock Nut (NUTNYLK1019)

$0.99
View details
A3
DWR9550A022

SPRING, SEAT RELEASE LEVER, METRIC, VICTORY XL 3 WHEEL, VICTORY XL 3 WHEEL

---
A4
PLSKNCP1012

KNOB, PLASTIC, SEAT ARM ADJUST, SC150

---
A5
WASSTND1031

WASHER, FLAT, ZINC, 1/4"ID X 5/8"OD

---
A6
SCRHHCS1027
Close-up of a 1/4-20x1.75 Hex Head Bolt (SCRHHCS1027), grade 5, zinc-plated, showing its hexagonal head and threaded body, suitable for various applications like basket brackets and seat levers.

Monster Scooter Parts

1/4-20x1.75" Hex Head Bolt (SCRHHCS1027)

$0.60 $0.79
View details
A7
DWR4700E004

SEAT FRAME, SEAT PLATE, WELDMENT, TAPERED SLOT CLOVER, VICTORY/RALLY (CARELINE#C41016), E-4700-004

---
A8
DWR9550C029

LEVER, SEAT RELEASE, 313MM L, WELDMENT, VICTORY XL 3, C-9550-029

---
A9
DWR9660C028

LEVER, SEAT RELEASE, BLACK, POLYETHYLENE, C-9660-028

---
A10
WASNYLN1058

WASHER, NYLON, 6MM ID X 12.5MM OD X 1.5MM TH

---
