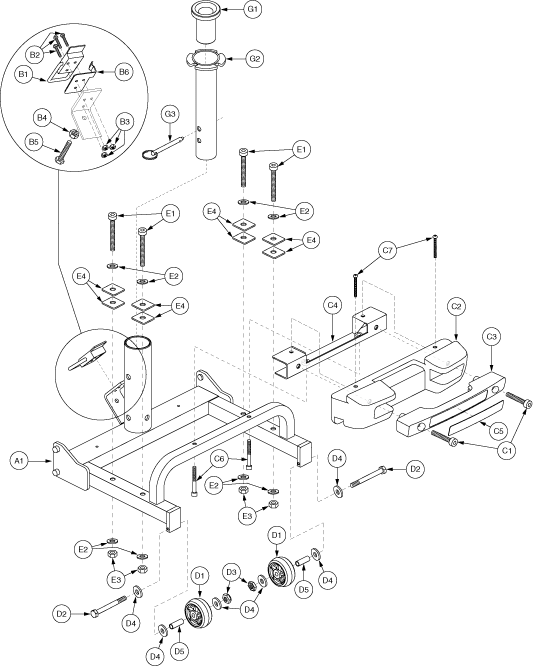

Pride Dash (SC41) - Frame - Rear


Pos.
MPN
Details
A1 - F1
FRMASMB5128

FRAME, ASSY, REAR, SC40

---
A1
DWR9955E011

FRAME, REAR WELDMENT, SC40, {E-9955-011}

---
A2
DWR9930B016

FREEWHEEL, HANDLE, YELLOW, SUNDANCER 2001, B-9930-016

---
A3
SCRSETS1057

SCREW, SET, BLACK, M4-.7 X 12MM

---
A4
DWR9905A015

SPACER, 8.20MM OD X 4.20MM ID X 3MM THK, BRAKE LEVER, A-9905-015

---
B1 - B6
FRMASMB5153

HOOK, ASSY, LOCK-UP, GO-GO, C-1030-028

---
B1
DWR9905B022

FRAME, MECHANISM, HOOK LOCK UP, SC50, SONIC, B-9905-022

---
B2
SCRPPH1137

SCREW, PPH, SILVER, ZINC, M4-.7 X 15MM

---
B3
NUTNYLK1020

NUT, NYLOCK, ZINC, M4-.7

---
B4
NUTJAM1015

Monster Scooter Parts

M8-1.25 Black Jam Nut (NUTJAM1015)

$4.39
View details
B5
SCRHHCS1127

SCREW, HHCS, ZINC, M8-1.25 X 25MM, GRADE 8.8

---
B6
DWR9905B034

LATCH, RETAINER, CATCH, SC50/3000, B-9905-034

---
C1 - C7
FRMASMB5129

BUMPER, ASSY, REAR, SC40

---
C1
SCRSHCS1015

Pride Mobility

M6-1.0 X 30 mm Black Zinc Machine Screw (SCRSHCS1015)

$0.79
View details
C2
DWR9955E006

BUMPER, REAR, MOLDED, SC40, E-9955-006

---
C3
DWR9955C011

HAND GRIP, HANDLE, BLACK, NYLON, REAR BUMPER, SC40, C-9955-011

---
C4
DWR9955D011

BRACKET, BUMPER, REAR, SC40, D-9955-011

---
C5
DWR9955A008

DECAL, DECAL PLATE, SC40 {A-9955-008}

---
C6
SCRSHCS1069

SCREW, SHCS, BZ, M6-1.0 X 35 MM

---
C7
SCRPPH1103
View details
D1 - D5
WHLASMB1547

Monster Scooter Parts

Anti-Tip Wheel Assembly for Go-Go, Pride, and Vive Mobility Scooters (WHLASMB1547)

$17.99
View details
D1
WHLATIP1008

WHEEL, ANTI-TIP, BLACK, URETHANE, 2" DIAMETER, C-9955-020

---
D2
SCRHHCS1363

Monster Scooter Parts

Footrest Assembly Screw for the Jazzy 610 (SCRHHCS1363)

$1.69
View details
D5
DWR9955A019

SLEEVE, BLACK, ZINC, M8 ID X 10MM OD X 23.5 MM L, ANTI TIP, A-9955-019

---
E1 - E4
HDWASMB1045
View details
E1
SCRSHCS1066

SCREW, SHCS, BLACK ZINC, M8-1.25X40MM

---
E2
WASSTND1102
View details
E3
NUTNYLK1011

Monster Scooter Parts

M8-1.25x7.65 Black Lock Nut (NUTNYLK1011)

$0.18 $0.33
View details
E4
DWR9955B020

SPACER, TRANSAXLE MOUNTING, B-9955-020

---
F1
DRVASMB1487

MOTOR, ASSY, MAIN TRANSAXLE/MOTOR/BRAKE, CCL, (PM802-T06)

---
G1 - G3
FRMASMB5168

SEAT POST, ASSY, UPPER, 2 HOLE, GO-GO, C-1030-029

---
G1
DWR5000A043

SEAT POST, BUSHING, 1.000" ID X 1.310" OD X 2.112" TH X 2.00" FOD X 0.312"FTH, UPPER, A-5000-043

---
G2
DWR9955C010

SEAT POST, WELDMENT, UPPER, 2 HOLE, SC40, C-9955-010

---
G3
PINCOTD1006

Monster Scooter Parts

3/8" x 3-3/8" Quick Release Seat Pin for Pride and Jazzy Rear Basket Assemblies

$4.99
View details
