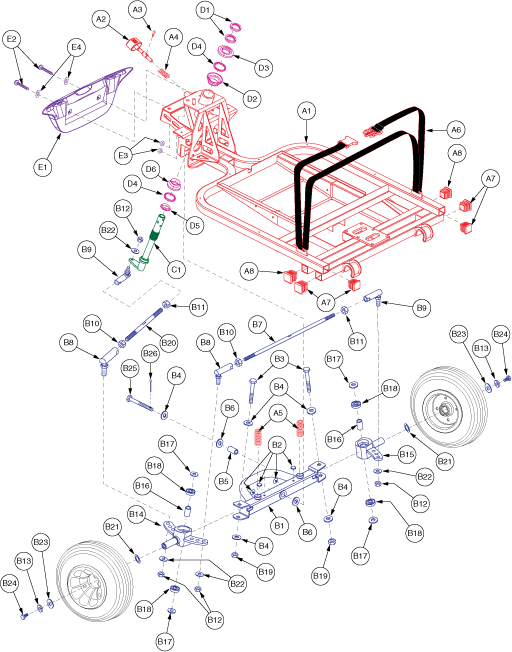

FRAME, ASSY, FRONT, W/STEEL BODIED SHOCKS, SC4401
Pride Mobility
FRAME,FRONT WELDMENT,SC4401,E-9565-012 (DWR9565E012)
PLUNGER, LOCK-UP, W/KNOB, TILLER, SC4401, B-9565-022
Pride Mobility
Tiller Lock Knob Screw for Go-Go, Mega-Motion, & Pride Travel Mobility Scooters (SCRSHCS1127)
SPRING, 15.5MM FL X 0.90MM WIRE DIA X 10.80MM OD X RATE: 2.46N/MM, (LEE SPRING: LCM-090F-3), B-9983-044
SPRING, STEEL, MUSIC WIRE, WIRE DIAMETER, .162", 1.21" OD
Monster Scooter Parts
58" Battery Strap for the Pride Celebrity X (SC4001/SC4401) (DWR9565C047)
CAP, END, BLACK, PLASTIC, FOR SQUARE TUBE, C-1005-045
Pride Mobility
CAP,END,PLASTIC,BLACK,22MM ID SQUARE TUBING,B-9565-080 (DWR9565B080)
Monster Scooter Parts
Front Axle Assembly for the Pride Celebrity X (SC4401) (FRMASMB8686)
AXLE, WELDMENT, CORVEL RAVEN, POWDER COAT, E-9565-013
BEARING, CAP, SC3400, B-9940-010
SCREW, HHCS, BLACK ZINC, M12-1.75 X 69MM, GRADE 8.8
WASHER, FLAT, BLACK ZINC, M12 X 26MM OD X 2MM TH
SPACER, ZINC, 12MM ID X 15MM OD X 40MM TH, FRONT AXLE
SPACER, WHITE, NYLON, 16MM ID X 27MM OD X 1MM TH, FRONT AXLE, A-9940-006
TIE ROD, MAIN, LEGEND 4, SC3400, C-9940-004
Monster Scooter Parts
M8-1.25 Tie Rod Nut for 4-Wheel Go-Go & Pride Scooters
Monster Scooter Parts
M8-1.25 Tie Rod Nut for 4-Wheel Go-Go & Pride Scooters
Monster Scooter Parts
M8-1.25x7.65 Black Lock Nut (NUTNYLK1011)
WASHER,LOCK,ZINC,M8 X 15MM OD X 2MM TH
FRAME, WELDMENT, SPINDLE, LEFT, SC3400, C-9940-007
FRAME, WELDMENT, SPINDLE, STEERING, HEAVY DUTY, C-9940-008
SPACER, ZINC, 12.4MM ID X 16MM OD X 19MM TH, SPINDLE
SPACER, WHITE, NYLON, 12MM ID X 22MM OD X 2.5MM TH, SPINDLE, A-9940-005
BEARING, BALL, 12MM ID X 28MM OD X 8MM THK, (6001Z)
NUT, NYLOCK, BLACK ZINC, M12-1.75T
TIE ROD, SHORT, LEGEND 4, SC3400, B-9940-003
WASHER, WAVY, BLACK ZINC, 0.64" ID X 0.865" OD
WASHER, FLAT, BLACK ZINC, M8 X 16MM OD X 1.0MM THK
WASHER, FLAT, ZINC, M8 X 22MM OD X 2MM TH
Pride Mobility
SCREW,HHCS,ZINC,M8-1.25 X 25MM,GRADE 10.9 (SCRHHCS1279)
SCREW, HHCS, BLACK ZINC, M12 X 1.75, W/COTTER PIN HOLE
PIN, COTTER, HAIRPIN, 18-8 STAINLESS, .073"D, 1-7/16"L
STEERING STEM, ASSY, SC4401
STEERING STEM, WELDMENT, BLACK ZINC, C-9565-015
Monster Scooter Parts
Headset Steering Bearing Kit for Go-Go and Pride Mobility Scooters (HDWASMB1000)
WASHER, LOCK, 1 ", FRONT FORK, B-1020-037
HEAD CUP, UPPER, CHROME, B-1020-036
CONE HEAD, UPPER, CHROME, C-1020-029
RETAINER, BALL
CONE HEAD, LOWER, CHROME, B-1020-034
HEAD CUP, LOWER, CHROME, B-1020-035
BUMPER, ASSY, FRONT, SC4401
BUMPER, FRONT, SELF SKINNING FOAM, SC4401, E-9565-034
SCREW, BHSCS, BLACK ZINC, M6-1.0 X 20MM
WASHER, FLAT, BLACK ZINC, M6, STANDARD
