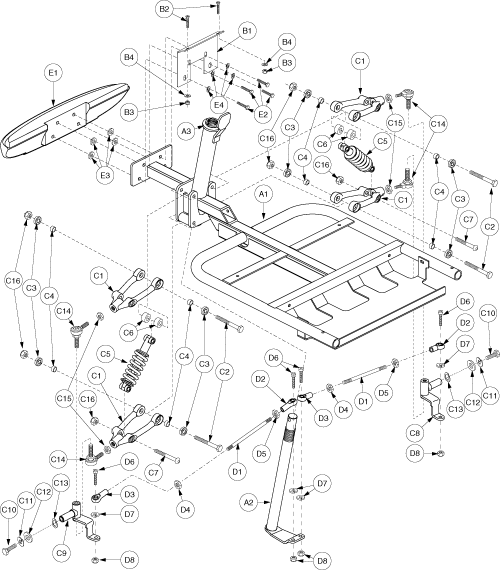

FRAME, ASSY, FRONT, CELEBRITY 2000, 4 WHEEL
FRAME, WELDMENT, FRONT, SC440 2000, E-9700-017
WELDMENT, STEERING STEM, SC4400, D-9700-009
Monster Scooter Parts
Headset Steering Bearing Kit for Go-Go and Pride Mobility Scooters (HDWASMB1000)
BRACKET, ASSY, FRONT, PLASTIC MOUNT, CELEBRITY 2000
MOUNTING BRACKET, FRONT, PLASTIC, CELEBRITY 2000, C-9700-030
Pride Mobility
SCREW, TRUSS HEAD, TYPE I CROSS RECESSED, 10 (.190)-32 X .625, ASME B18.6.3, BZ (SCRPTH1015)
NUT, NYLOCK, 10-32
WASHER, STANDARD, #10
AXLE, ASSY, CELEBRITY 2000
FRAME, ARM, PIVOTING A, SUSPENSION, C-9700-008
SCREW, HHCS, ZINC, 5/16-18 X 3-1/2", G5
Pride Mobility
BEARING,BALL,8MM ID X 22MM OD X 7MM TH,608ZZ (BRGSLV1002)
SPACER, STEEL, 0.354"ID X 0.472"OD X 0.280"TH
SPRING,SHOCK COIL,NON-ADJUSTABLE,BLACK,5.00" L,0.586" STROKE
SPACER, NYLON, 0.32"ID X 0.75"OD X 0.25"TH
SCREW, BHSCS, 5/16-18 X 2.75"
FRAME, WELDMENT, SPINDLE, RIGHT, C-9700-020
FRAME, WELDMENT, SPINDLE, LEFT, C-9700-019
WASHER, LOCK, ZINC, 3/8"ID X 9/16"OD X 1/8"T
WASHER, USS, 5/16"
BALL JOINT, 3/8-24, 1-1/4"L, RH THREADM W/GREASE FITTING, CHROME PLATED
NUT, HEX, ZINC, 3/8"-24, RH
TIE ROD, ASSY, CELEBRITY 2000
TIE ROD, 5/16-24 X 5"
TIE ROD END, 5/16-24, THREADED, RIGHT HAND
TIE ROD END, 5/16"-24, LEFT HAND THREAD
NUT, JAM, 5/16-24, LEFT HAND THREAD
NUT, 5/16-24
SCREW, SHCS, 5/16-18 X 1 1/4" BO
WASHER, HIGH COLLAR LOCK
BUMPER, FRONT, CELEBRITY 2000
BUMPER, FRONT, POLYURETHANE, CELEBRITY 2000, E-9700-004
SCREW, HHCS, ZINC, 1/4-20 X 0.750", GRADE 5
Pride Mobility
WASHER,FLAT,ZINC,1/4"ID X 9/16"OD X 1/16"T (WASSTND1001)
WASHER, LOCK, ZINC, 1/4"
