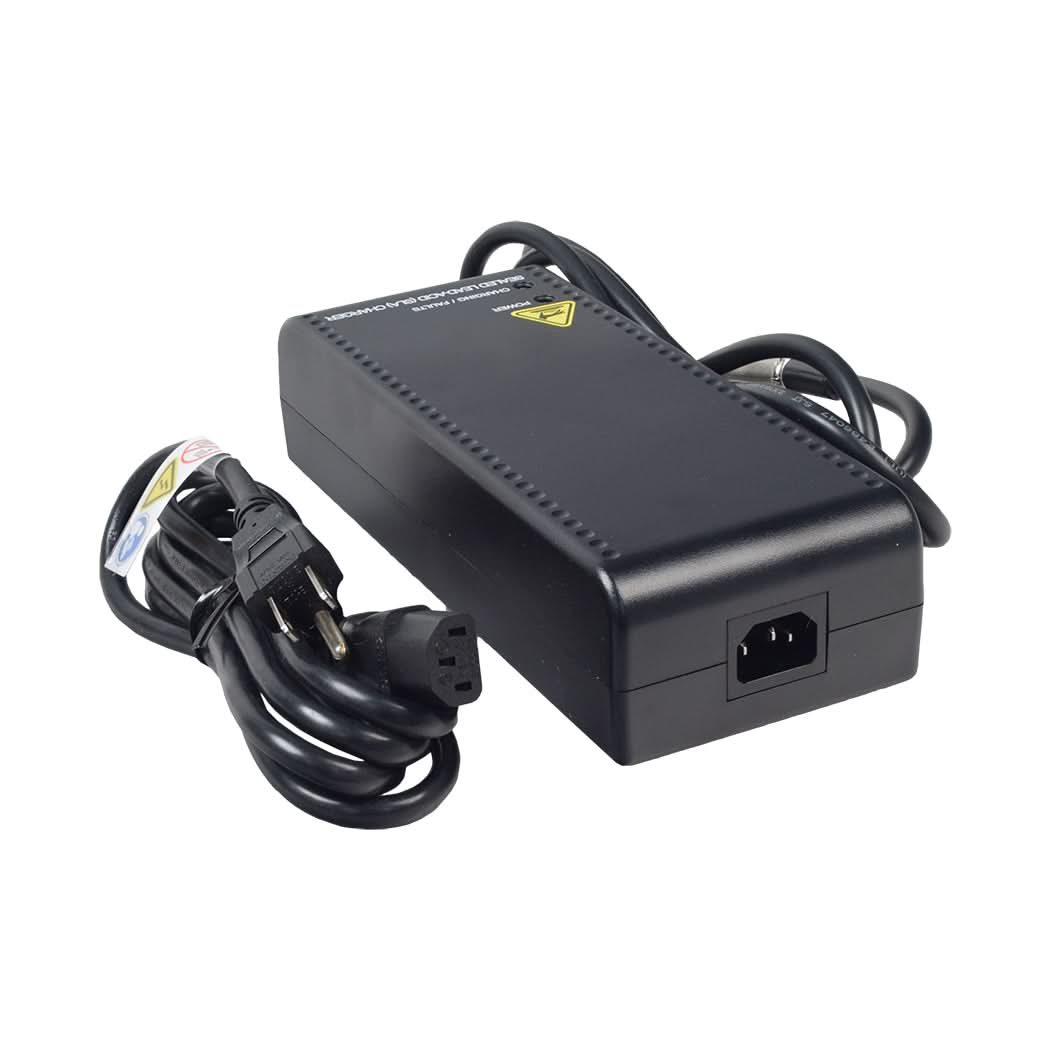

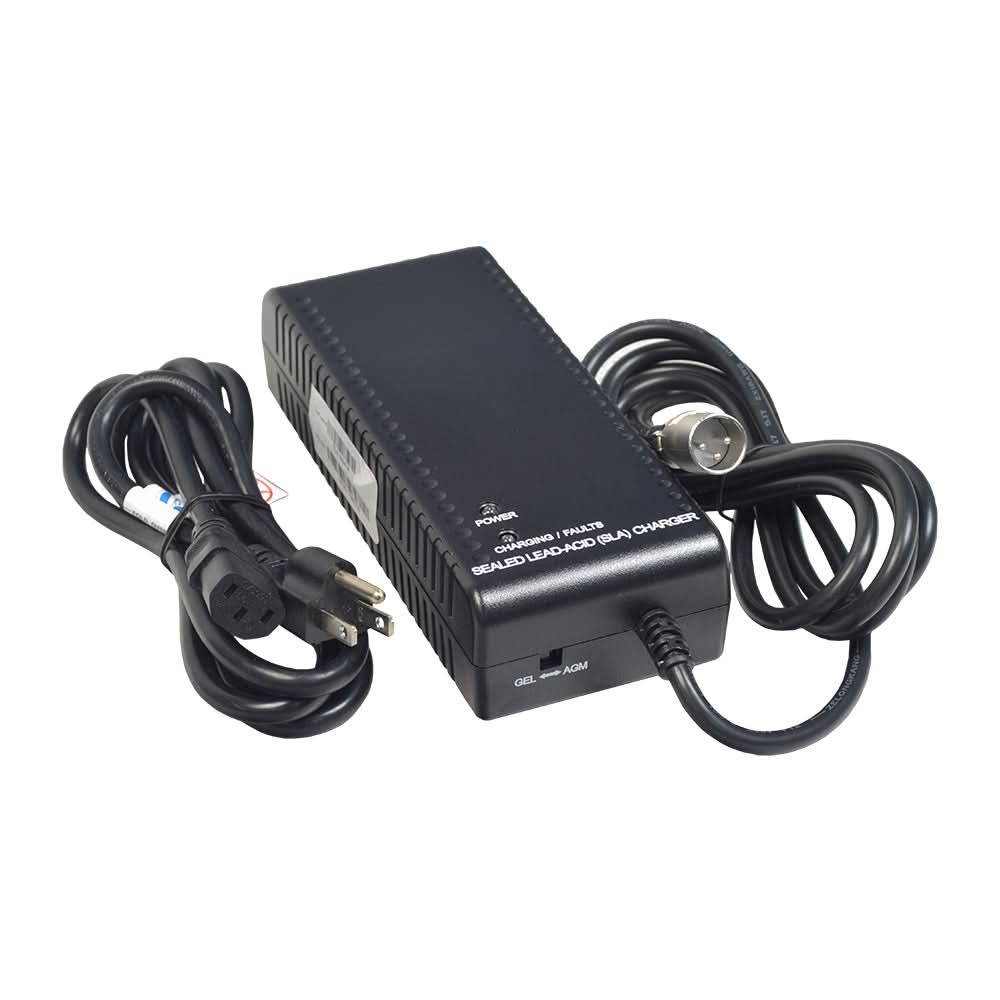

24 Volt 8.0 Amp XLR Battery Charger for Pride Raptor & Baja Raptor 2 Mobility Scooters

This 24 volt 8.0 amp XLR battery charger for the Pride Raptor and Baja Raptor 2 mobility scooters is no lightweight. This charger for sealed lead-acid (SLA) batteries is made by Universal Power Group (UPG), a very respected manufacturer of top-quality batteries and chargers for the medical and mobility industry.

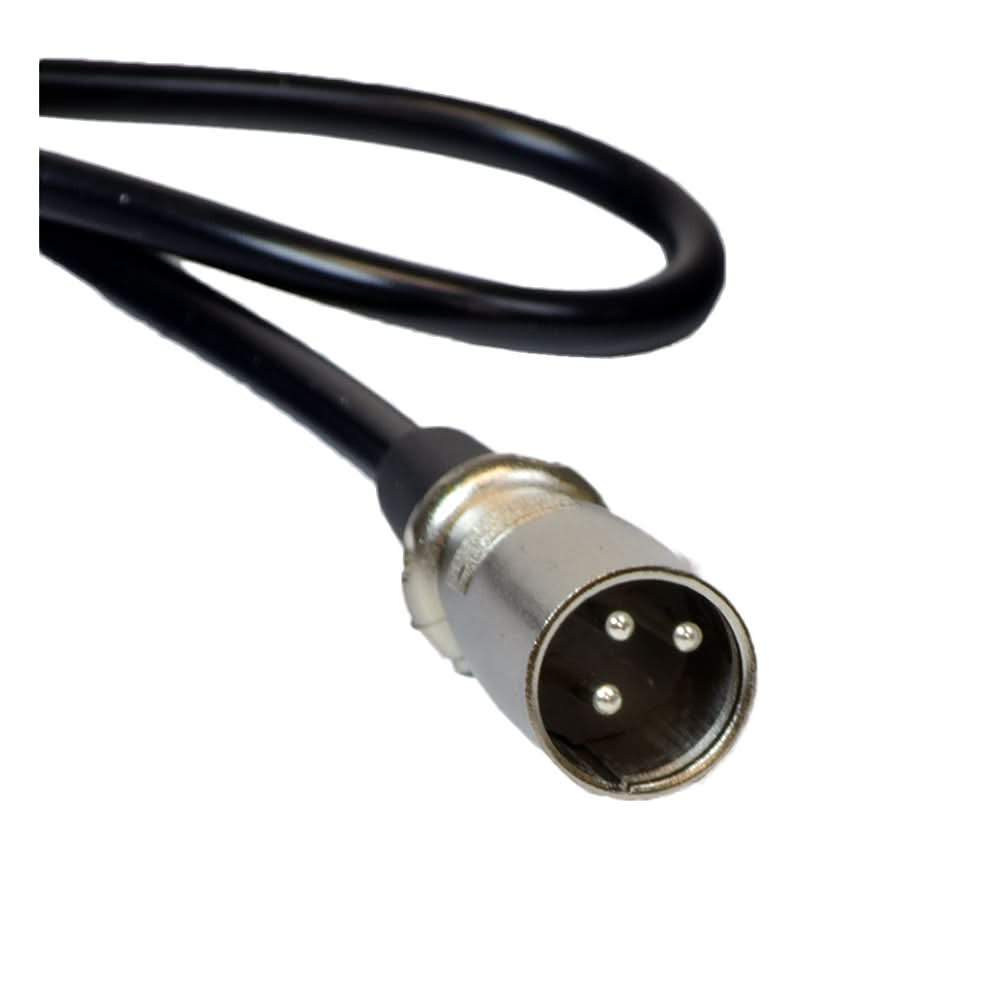

The 24 volt 8.0 amp XLR connector battery charger from UPG is suitable for the 17 Ah batteries or larger that are used on mobility scooters and power chairs equipped with an off-board charging female XLR socket. They use a convenient automatic shut off when the charging cycle is complete. Note that your charging time may vary depending on how depleted or drained down your battery is.

This battery charger features an automatic shut off when battery charging is complete. In addition, the selector switch must be set to Gel or AGM depending on the battery type to be charged.

• Short Circuit Protection - Prevents damage caused when operating in a short circuit condition for an indefinite period of time. The charger is "self-recovering" when the fault condition is removed.
• Reverse Polarity Protection - Prevents damage when positive and negative polarities are connected in reverse.
• Fully Automatic Operation - Safely charges and maintains a full charge. The final stage of charging is the float mode and the battery may remain connected indefinitely. In this mode, the charger maintains fully charged condition.
• Designed to Prevent Over Charging - Automatically switches to Float Mode.
• Complete 3-Stage Process - Bulk Charge, Absorption, Maintenance/Float.
• Low Voltage Protection - When the battery voltage is below a preset value, the charger will not start charging.
• LED Display - Displays indicate the charging status: power on, charging, charged.
• Lightweight - Switch mode chargers are very much lighter than linear chargers.

Note: As a built-in safety feature, the battery charger will not operate if the existing battery has less than 9 volts of power.

Underwriters Laboratories (UL) Listed. Dry location use only.

Warranty Information:
Monster Scooter Parts is proud to announce a full 1 year warranty on this battery charger, covering defects in material and workmanship for a period of 1 year (12 months) from the date of receipt. Our full warranty policy can be viewed at the following link:

Monster Scooter Parts Warranty Policy



Universal Power Group (UPG): 71625

⚠ WARNING California Residents: Proposition 65 Warning

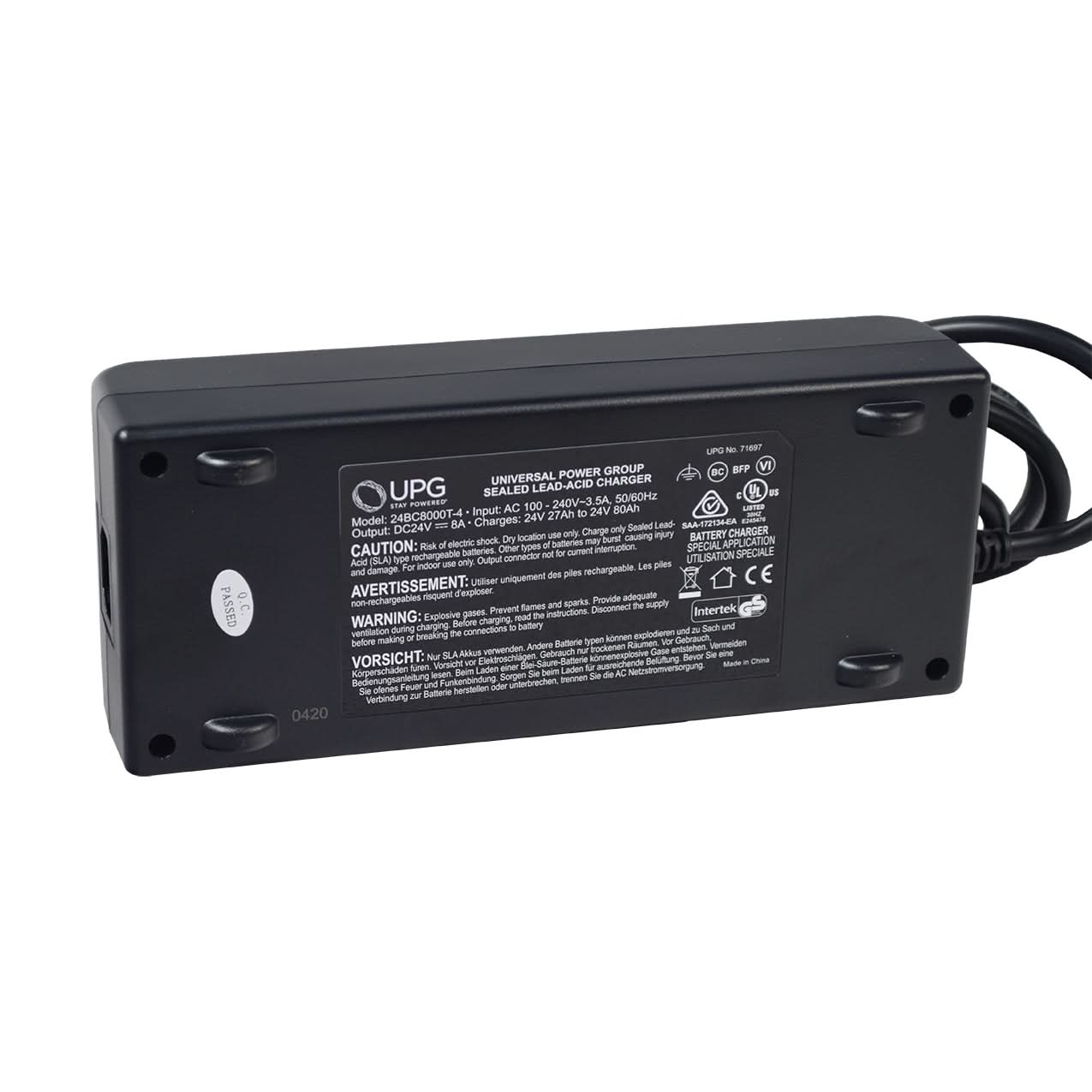

UPG Model Number: 24BC8000T-4
UPG Part Number: 71625
Voltage: 24 volts
Amperage: 8.0 amps (8000 mA)
Weight: 4 lbs.

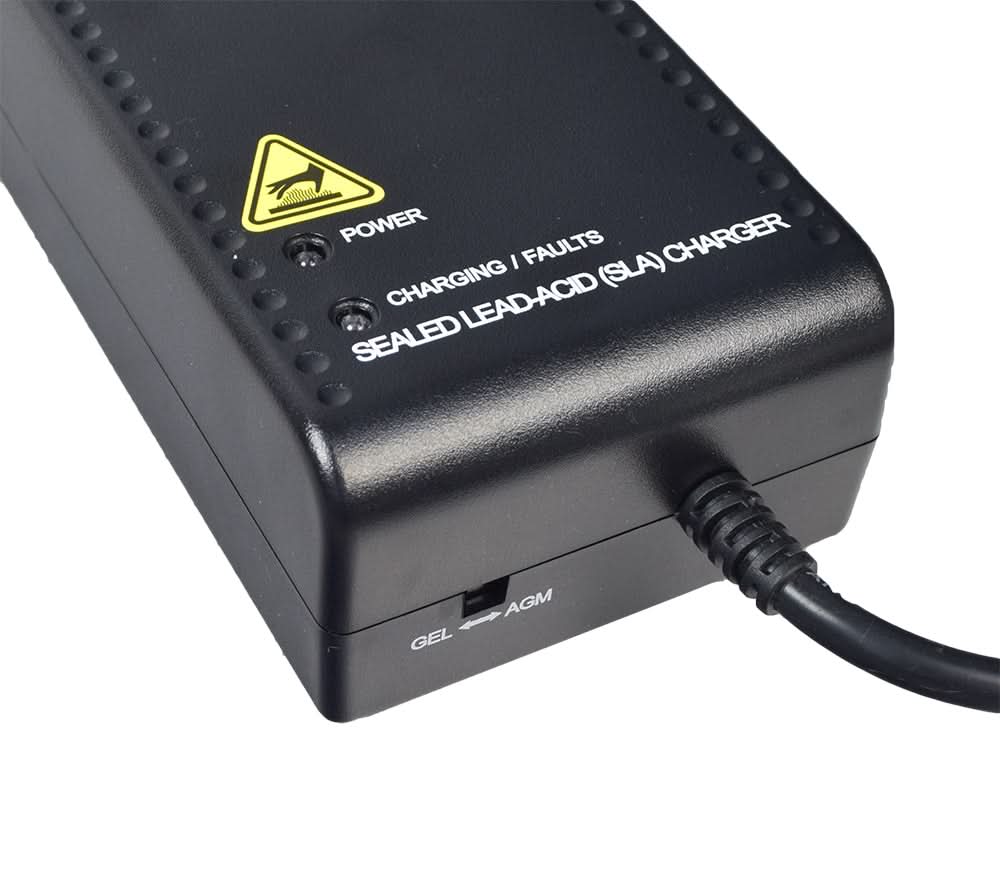

LED Indicators:

RED Power LED on:
AC Power Present

RED Power LED on, RED Charging LED on:
Charging Stage

RED Power LED on, GREEN Charging LED on:
Charging Complete
