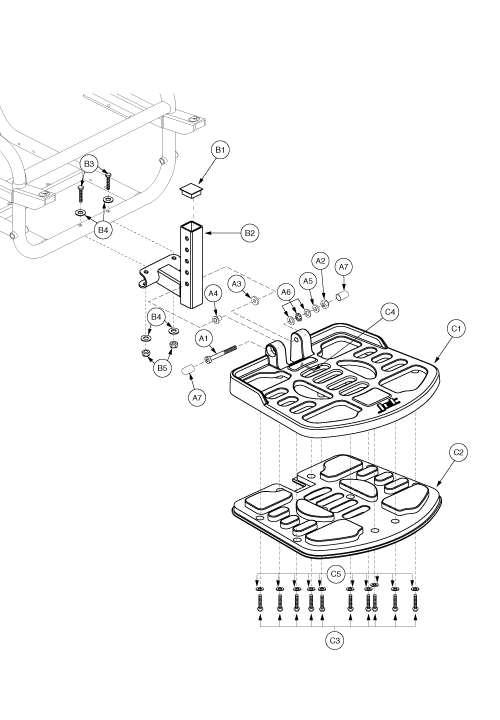

FOOT PLATFORM, ASSY, W/RUBBER MAT, JET2
Pride Mobility
SCREW, SOCKET HEAD, M8X1.25 X 80, ISO 4762, CL 12.9, BZ (SCRSHCS1170)
Monster Scooter Parts
Footrest Platform Black Washer for the Jazzy 600 (WASNYLN1066)
FOOT PLATFORM MOUNTING SLEEVE, FLANGE, STEEL, B-1000-458
SPACER, STEEL, 0.328" ID X 0.50" OD X 0.076" TH, B-1000-459
BEARING, BALL THRUST, STAINLESS STEEL, 0.3125" ID X 0.625" OD X 0.193" TH, (MCMASTER-CARR: 6655K34)
CAP, VINYL, 0.50" ID, FITS 0.50" - 0.5625" OD, 0.50" H, (MCMASTER CARR: 9753K44)
MOUNTING BRACKET, ASSY, FOOT PLATFORM, JET2
FOOT PLATFORM MOUNTING BRACKET WELDMENT, JET2, C-1051-011
Monster Scooter Parts
M8-1.25x45 mm Hex Head Machine Bolt (SCRHHCS1220)
WASHER, FLAT, BLACK ZINC, 8MM ID, METRIC
Monster Scooter Parts
M8-1.25x7.65 Black Lock Nut (NUTNYLK1011)
FOOT PLATFORM BASE, ASSY, JET STYLE, 10.50"D, W/RUBBER MAT & HARDWARE, E-1052-006
