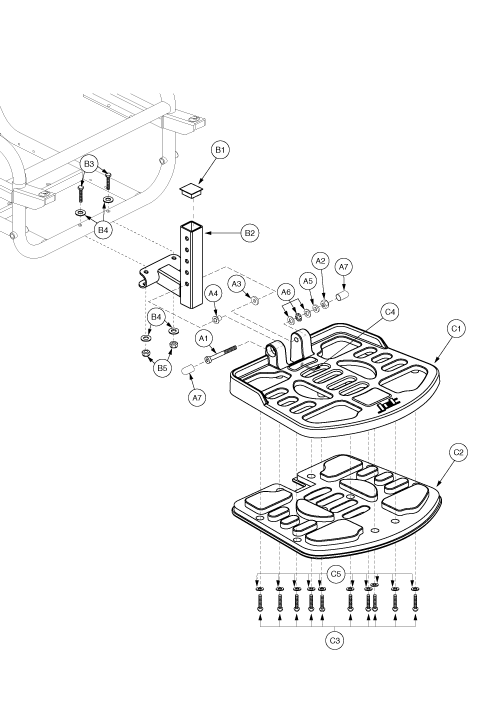

Jet 10 Ultra - Footrest Platform

FOOT PLATFORM, ASSY, W/RUBBER MAT, JET2

Pride Mobility

SCRSHCS1170 - Black Zinc Socket Head Screw, M8 x 1.25 x 80, ISO 4762, CL 12.9 for Quantum 6000 & 600 Power Chairs

Monster Scooter Parts

NUTNJAM1020 - M8-1.25x6.5 Black Lock Nut

Monster Scooter Parts

WASNYLN1066 - Footrest Platform Black Washer for the Jazzy 600

FOOT PLATFORM MOUNTING SLEEVE, FLANGE, STEEL, B-1000-458

SPACER, STEEL, 0.328" ID X 0.50" OD X 0.076" TH, B-1000-459

BEARING, BALL THRUST, STAINLESS STEEL, 0.3125" ID X 0.625" OD X 0.193" TH, (MCMASTER-CARR: 6655K34)

CAP, VINYL, 0.50" ID, FITS 0.50" - 0.5625" OD, 0.50" H, (MCMASTER CARR: 9753K44)

MOUNTING BRACKET, ASSY, FOOT PLATFORM, JET2

Pride Mobility

PROECAP1012 - Black Plastic End Cap, 1" Square, 11GA

FOOT PLATFORM MOUNTING BRACKET WELDMENT, JET2, C-1051-011

Monster Scooter Parts

SCRHHCS1220 - M8-1.25x45 mm Hex Head Machine Bolt

WASHER, FLAT, BLACK ZINC, 8MM ID, METRIC

Monster Scooter Parts

NUTNYLK1011 - M8-1.25x7.65 Black Lock Nut

FOOT PLATFORM BASE, ASSY, JET STYLE, 10.50"D, W/RUBBER MAT & HARDWARE, E-1052-006
