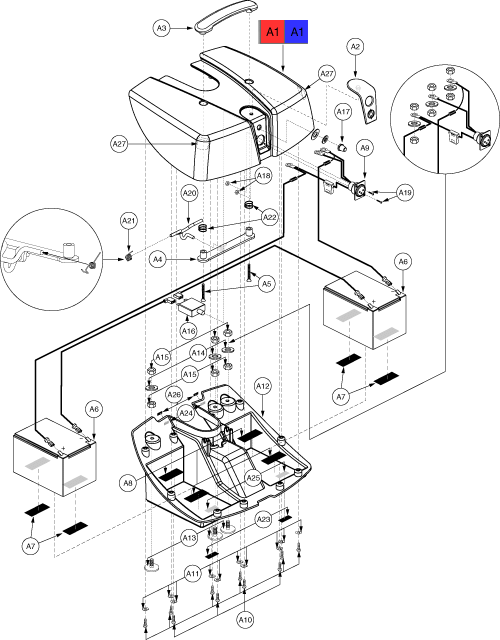

Jazzy Z-Chair - Electronics / Battery Box - Battery Box

BATTERY, ASSY, BOX, RED, GO CHAIR, E-1030-015

BATTERY, ASSY, BOX, BLUE, GO CHAIR, E-1030-015

BATTERY, BOX, TOP, RED, E-1030-013

BATTERY, BOX, TOP, BLUE, E-1030-013

COVER, CHARGER PORT, C-9975-008

BATTERY, HANDLE, BLACK, NYLON, BATTERY BOX, C-9975-007

HANDLE, BATTERY BOX LOCK, BLACK, ZINC, B-9975-008

SCREW, SHFH, BLACK ZINC, M6-1.0 X 30MM, GRADE 10.9

Universal Power Group

12 Ah 12 Volt UB12120 AGM Scooter Battery

REUSABLE FASTENER, HOOK, 3"L X 1"W, W/ADHESIVE BACK

REUSABLE FASTENER, LOOP, 3"L X 1"W, W/ADHESIVE BACK

ELECTRONIC, HARNESS, OFFBOARD CHARGER/BATTERY BREAKER

SCREW, PPH, BLACK ZINC, M4-.7 X 15MM

Monster Scooter Parts

Hub Assembly Washer Lock for the Jazzy Select (WASLOCK1045)

BATTERY, BOX, BLACK, BOTTOM, E-9975-006

BATTERY, CONTACT, PAD, A-9955-004

WASHER, FLAT, M6, STANDARD

NUT, JAM, ZINC, M6-1.0

Monster Scooter Parts

20 Amp (20A) 32VDC 125/250VAC Push-Button Reset Circuit Breaker with 1/4" Tab Terminals

Monster Scooter Parts

INDPART2420 - Waterproof Breaker Weather Cap Boot Cover with M11-1.0 Nut for Battery Box Push-Button Reset Circuit Breakers

NUT, NYLOCK, ZINC, M3-.5

SCREW, PFH, BLACK ZINC, M3-.5 X 12MM

BATTERY, BOX, LOCK-UP, LATCH-CATCH WELDMENT, B-9975-005

SPRING, BATTERY BOX, SILVER, ZINC, B-9975-012

SPRING, BATTERY BOX, SILVER, ZINC, .687"ID X .781"OD X .690" FREE LENGTH, RATE:10", WIRE DIAMETER: 0.047, B-9975-013

Pride Mobility

VELLOOP1000 - 25.5 W x 25.5 L Black Adhesive Backed Loop Fabric Fastener, Spec No. 2003992

FASTENER, 1/2"W 1"L W/ADHESIVE BACK, REUSABLE, LOOP

Pride Mobility

VELHOOK1000 - 1" x 1" Reusable Hook Fastener with Adhesive Back

FASTENER, 1/2"W 1"L W/ADHESIVE BACK, REUSABLE, HOOK

FOAM, 1 X 3/16", NEOPRENE/EPDM/SBR FOAM RUBBER, {MCMASTER:8694K73}
