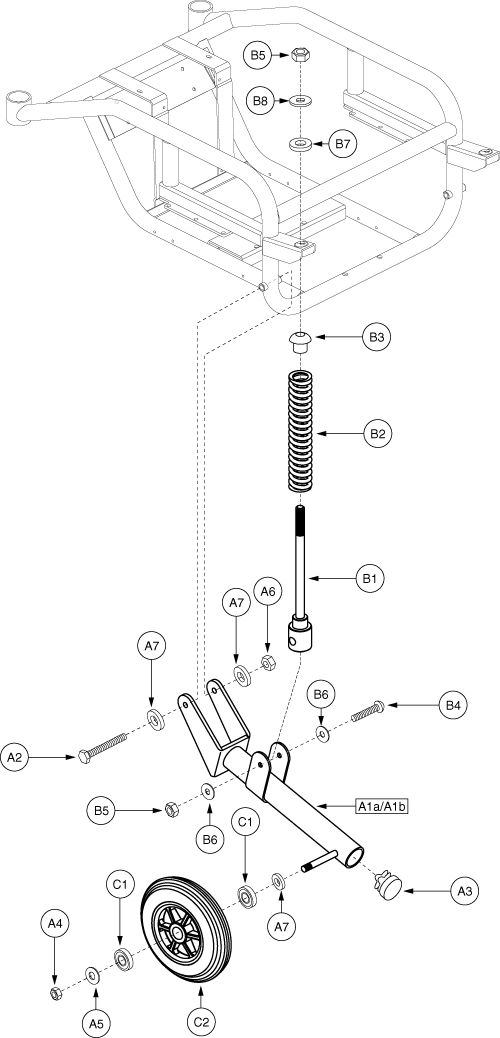

ANTI-TIP, ASSY, JAZZYSELECT14, RIGHT
ANTI-TIP, ASSY, JAZZYSELECT14, LEFT
FORK, HEIGHT ADJ, ANTI-TIP, 8MM WHEEL SHAFT, RIGHT
FORK, HEIGHT ADJ, ANTI-TIP, 8MM WHEEL SHAFT, LEFT
Pride Mobility
SCREW,HHCS,BLACK ZINC,M8-1.25 X 60MM,GRADE 8.8,PARTIAL THREAD (SCRHHCS1080)
END CAP, PLASTIC, 1" DIA, FITS 12 GAUGE TUBE
WASHER, FLAT, 6MM ID X 13MM OD X 1MM TH
WASHER, ZINC,8MM ID X 14MM OD X 1MM THK
STRUT, ASSY, SUSPENSION, JAZZYSELECT14
STRUT, BLACK ZINC, FRONT, B-1051-033
SPRING, SILVER, 5.00" FL X 0.915" OD X 0.162" WIRE DIA X RATE: 1440 LBS/IN, B-1051-034, (LEE SPRING: LHL1000B-11)
PIVOT BALL, LOWER, JET SERIES
SCREW, BHSCS, BLACK ZINC, M8-1.25 X 45MM
Monster Scooter Parts
M8-1.25x7.65 Black Lock Nut (NUTNYLK1011)
WASHER, FLAT, BLACK ZINC, 8.4MM ID X 16MM OD X 1.2MM TH
Pride Mobility
WASHER,DAMPER,POLYURETHANE,0.330" ID X 0.90" OD X 0.130" TH,5/16",A-1010-012 (WASDAMP1000)
Pride Mobility
WASHER,FLAT,BLACK ZINC,10.3MM ID X 24MM OD X 3MM TH,SERRATED,B-1005-033 (WASSTND1138)
Monster Scooter Parts
6" Front Anti-Tip Wheel Assembly for Jazzy, Jet, and Quantum Power Chairs
Pride Mobility
BEARING,BALL,8MM ID X 22MM OD X 7MM TH,608ZZ (BRGSLV1002)
WHEEL, ANTI-TIP, 6", MOLDED
