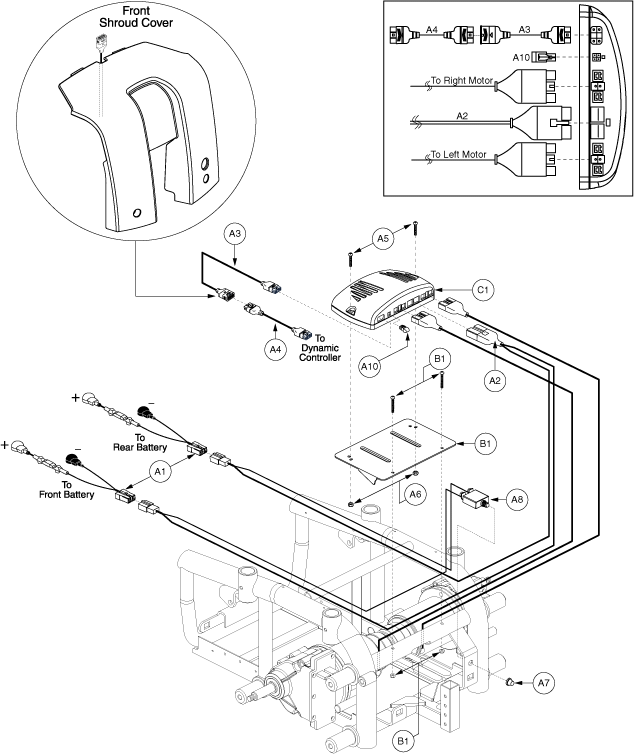

Pos.

MPN

Details

A1 - C1

ELEASMB5855

Pride Mobility

ELECTRONIC,ASSY,SHARK,50 AMP,200W MOTORS,JAZZY614HD (ELEASMB5855)

$802.99 ~~$1,127.74~~

A1

DWR1061H001

Battery Harness for the Jazzy 614, 614HD, & Quantum Q614 featuring a black cable, red and black wires, and connectors for replacing worn-out parts in power chairs.

Pride Mobility

Battery Harness for the Jazzy 614, 614HD, & Quantum Q614 (DWR1061H001)

$101.19

A2

DWR1061H002

Main Battery Harness for Jazzy 614, 614HD, EVO 614, EVO 614HD & Quantum Q614 Power Chairs, shown in a close-up view with multiple connectors and intricate wiring for battery connection.

Monster Scooter Parts

Main Battery Harness for Jazzy 614, 614HD, EVO 614, EVO 614HD & Quantum Q614 Power Chairs (DWR1061H002)

$72.75 ~~$96.99~~

A3

DWR1160H008

640mm Dynamic Bus Cable for Jazzy Power Chairs, featuring one male and one female black connector, designed for connection between the joystick bus cable and control module.

Dynamic

640mm Dynamic Bus Cable for Jazzy Power Chairs (DWR1160H008)

$68.19

A4

DWR1111H204

1.5 Meter Bus Cable for Dynamic Joysticks, featuring black cable with grey male connectors on both ends, suitable for power chairs from brands like Jazzy, Pride, and Shoprider.

Dynamic

1.5 Meter Bus Cable for Dynamic Joysticks (GSM80233/MBC-DYNSBC/1133165/63300042/DWR1111H204/2361-00300-06)

$48.99

A5

SCRPPH1103

Pride Mobility

SCREW, PAN HEAD, TYPE H, M4X0.7 X 25, FT, ISO 7045, CL 4.8, BZ (SCRPPH1103)

$3.29

A6

NUTNYLK1065

Pride Mobility

NUT, LOCK, M4X0.7, ISO 10511, CL 04, BZ, PVTP (NUTNYLK1065)

$3.29

A7

INDPART2148

Monster Scooter Parts

Circuit Breaker Cover for the Pride Revo (SC64) (INDPART2148)

$6.59

A8

ELECBRK1029

40 Amp Circuit Breaker with Straight Screw Terminals (Standard) shown close-up, highlighting the black and silver electrical components, including bolts, screws, and button details, designed for mobility scooters and power chairs.

Monster Scooter Parts

40 Amp Circuit Breaker with Straight Screw Terminals (Standard) (ELECBRK1029)

$37.99

A9

PLSTIE1001

Pride Mobility

TIEDOWN STRAP, 95 LG, PLASTIC, BLACK, SPEC NO. 2106329-1.5-22-130-V2 (PLSTIE1001)

$3.29

A10

DWR1116H017

Close-up of a 4-Pin Run Plug for Jazzy and Quantum Power Chairs, highlighting its detailed connector prongs.

Monster Scooter Parts

4-Pin Run Plug for the Jazzy and Quantum Power Chairs (DWR1116H017)

$34.09

B1

FRMASMB12468

MOUNTING BRACKET,ASSY,POWER MODULE W/HARDWARE,JAZZY614

---

C1

ELEASMB5849

50 Amp DK-PMB50 Dynamic Shark Power Module (Controller) for Jazzy 614, 614 HD, and Merits P327 Power Chair, showcasing multiple ports on a sleek black electronic device.

Dynamic

50 Amp DK-PMB50 Dynamic Shark Power Module (Controller) for the Jazzy 614 and 614 HD and the Merits Merits Super Vision (P327) Power Chair (ELEASMB5849)

$478.99
