Invacare TDX5 Parts

Invacare TDX5 Parts
View as

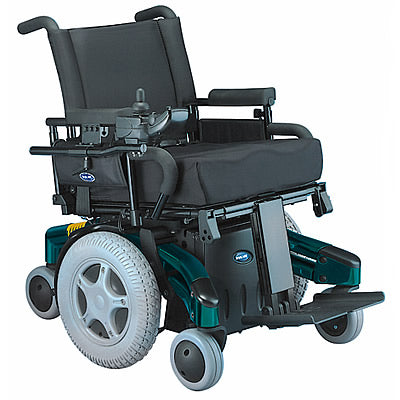

This page lists replacement parts for the Invacare TDX5 power chair. We carry battery packs, chargers, tires and tubes, drive and caster wheel assemblies, SPJ+ joysticks and bus cables, motor brushes, armrest pads, a headrest mounting kit and hardware.

The TDX5 requires either two 12-volt Group 24 or two 12-volt 22NF batteries; the packs listed here are 24 volt Group 24 (75 Ah) UB12750 and 22NF (55 Ah) UB12550 packs, with 24 volt 8.0 amp XLR chargers. Tires come in 14"x3" (3.00-8) and 12-1/2"x2-1/4" sizes. For casters, choose the 6"x2" assembly set for the TDX3, TDX4 and TDX5 (1122067) or the 6"x2" flat-free deep profile assembly (1110715). The headrest mounting kit (1124685) is for TDX series chairs with Contoura back seats. The model number and serial are on a label on the frame, usually under the seat. As an authorized Invacare dealer, we supply genuine OEM Invacare parts, with compatible alternatives on select items. Can't find your part? Contact us with your model number and a photo of the old part, and our team will help track it down.
