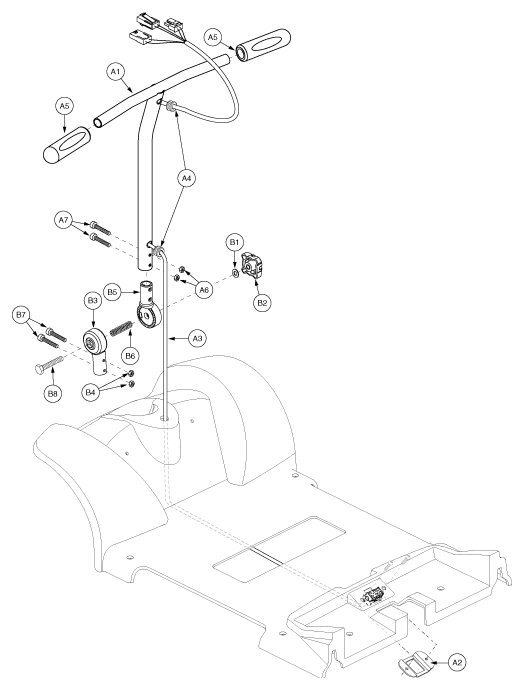

Go-Go Travel Vehicle 4-Wheel (SC44) - Frame Assembly - Tiller - S6211904001c30 - Subsequent


Pos.
MPN
Details
A1 - A7
FRMASMB7665

TILLER, ASSY, SC44, S-DRIVE READY

---
A1
DWR9970E011

TILLER, WELDMENT, EXTENDED, S-DRIVE READY, SC44, E-9970-011

---
A2
DWR9955B021

BRACKET, FRONT-TO-REAR CABLE, ZINC, SC40/45, B-9955-021

---
A3
DWR9976H001

ELECTRONIC, HARNESS, FRONT TO REAR, SC44U, H-9976-001

---
A4
DWR9955B022

GROMMET, BLACK, RUBBER, M10 ID X 22 MM OD X 6.5 MM THK, B-9955-022

---
A5
DWR9905C015

Monster Scooter Parts

Hand Grip for Go-Go, Mega Motion, and Pride Mobility Scooters (DWR9905C015)

$7.99
View details
A7
SCRSHCS1069

SCREW, SHCS, BZ, M6-1.0 X 35 MM

---
B1 - B8
FRMASMB3749

TILLER, ASSY, PIVOT, UPPER AND LOWER, SC50 SONIC

---
B1
DWR9998A016

SPACER, NYLON, 11MM ID X 20MM OD X 1.5MM THK

---
B2
DWR9998B010

TILLER, KNOB, ADJUSTMENT, REVO, B-9998-010

---
B3
DWR9905C003

TILLER, KNUCKLE, ADJUST, BOTTOM, C-9905-003

---
B4
NUTNYLK1019

Monster Scooter Parts

M6-1.0 Black Lock Nut (NUTNYLK1019)

$0.99
View details
B5
DWR9905C004

TILLER, KNUCKLE, ADJUST, TOP, C-9905-004

---
B6
SPGRAW1004

SPRING, MUSIC WIRE, 3/8" X 1 1/2", TILLER, REVO, 13.72MM OD X 25.4MM FREE LENGTH, A-9998-023

---
B7
SCRSHCS1111

Pride Mobility

SCREW, SOCKET HEAD, M6X1 X 40, ISO 4762, CL 12.9, BZ (SCRSHCS1111)

$3.29
View details
B8
SCRHHCS1364

SCREW, HHCS, BLACK ZINC, M10-1.5 X 60MM, GRADE 8.8

---
