Control Solutions  |  SKU: A05-0047  | Amigo: 10260  | Control Solutions: CS1204L

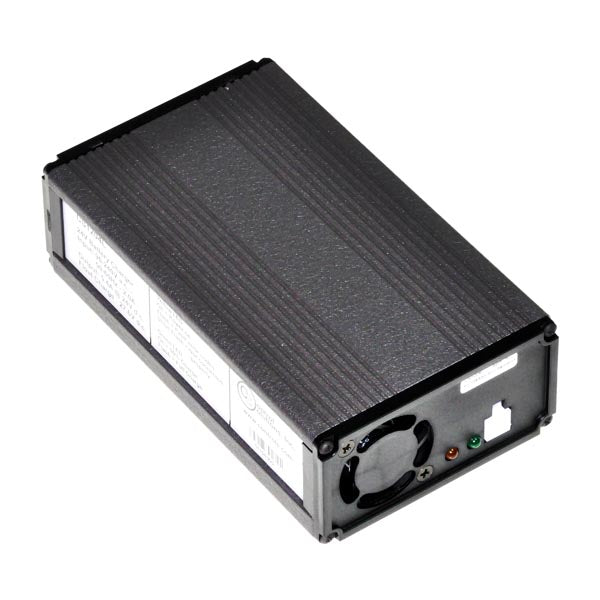

24 Volt 6.0 Amp CS1204L On-Board Battery Charger for Amigo Mobility Scooters and Power Chairs

$101.95

This item has a 30 day warranty. Warranty Policy

Free Shipping

  • US domestic ship to addresses only.
  • Does not include expedited shipping services.
Key Features
  • LEDs show battery charging status
  • On-board style charger
  • 6.0 amps of charging power
  • Manufactured by Control Solutions, Inc.

Description

This 24 volt 6 amp low inhibit on-board battery charger is compatible with many Amigo mobility scooters and power chairs including the Amigo SmartShopper, ValueShopper, and newer versions of the Amigo eXcite with serial numbers of AMI0064453 and subsequent.

Please note that this onboard charger is identical to the charger included with the 24 Volt 6.0 Amp On-Board Battery Charger for the Amigo eXcite (AMI0042795 to AMI0064452). The only difference is that this item (item no. A05-0047) does not includes the wiring harnesses necessary to connect this charger to older models of the Amigo eXcite, while the 24 Volt 6.0 Amp On-Board Battery Charger for the Amigo eXcite (AMI0042795 to AMI0064452) (item no. A05-0045) includes the wiring harnesses needed to connect the charger to older models.

This CS1204L battery charger, manufactured by Control Solutions, Inc., is a heavy-duty battery charger which utilizes an internal microprocessor to add key features and monitor battery conditions to ensure batteries are fully charged without overcharging.

The CS1204L battery charger provides an effective and intelligent solution for charging and maintaining lead-acid batteries. Protection against short circuits, voltage surges, reversed battery polarity, and over temperature are provided to ensure long battery life and safe operation.

Another intelligent feature built into this battery charger is the front panel LEDs which display charging status and diagnostic error codes.

  • 130 Watt constant output power. Batteries charge in approximately 1/2 the time as 6 Amp rated conventional battery chargers
  • LED indication of improper battery connection, charge timeout, and over-temperature conditions
  • Float charge voltage is temperature compensated. Maintains a full charge in all temperature conditions without damaging batteries
  • Active low charging output signal to disable motor drive during charging
  • Constant voltage (not pulsed) to reduce battery heating and increase battery life
  • Accurate float charge voltage allows charger to be left connected to batteries indefinitely to maintain full charge


  • Amigo: 10260
    Control Solutions: CS1204L

    ⚠ WARNING California Residents: Proposition 65 Warning

    Reviews (0)

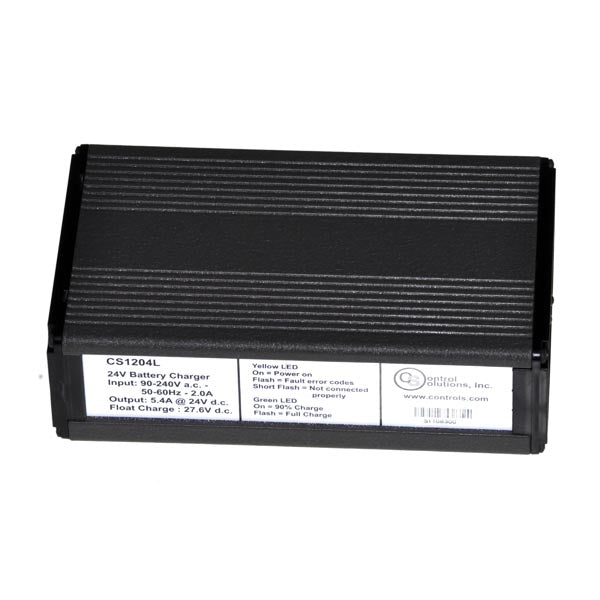

    Specifications

    Model No.: CS1204L
    Input: 90-240 Volts AC
    Output: 5.4 Amps @ 24 Volts DC
    Max Current: 6.0 Amps
    Float Charge: 27.6 Volts DC

    Yellow LED:
    On = Power on
    Flash = Fault error codes
    Short Flash = Not properly connected

    Green LED:
    On = 90% charge
    Flash = Full charge
