24 Volt 6.0 Amp CS1204L On-Board Battery Charger with Wiring Harnesses for Older Versions of the Amigo eXcite Power Chair

24 volt 6 amp on-board battery charger for the Amigo eXcite (serial numbers AMI0042795 to AMI0064452 only).

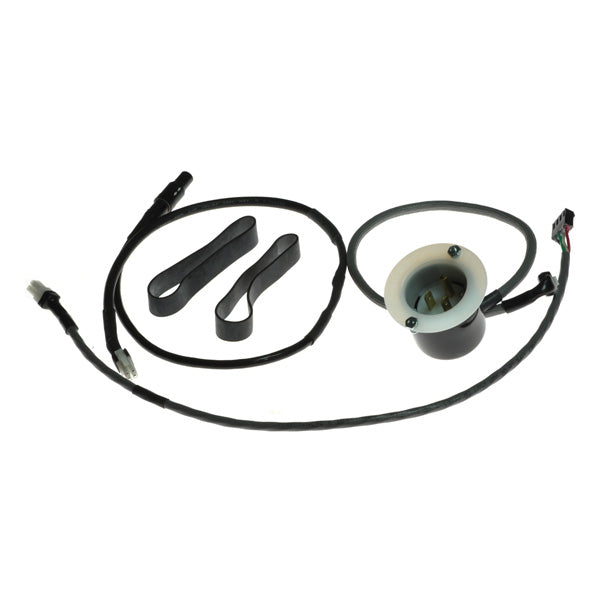

Includes wiring harnesses and mounting straps.

Please note that the included onboard charger is identical to the 24 Volt 6.0 Amp On-Board Battery Charger for the Amigo eXcite (AMI0064453 and subsequent). The only difference is that this item (item no. A05-0045) includes the wiring harnesses necessary to connect this charger to older models of the Amigo eXcite, while the 24 Volt 6.0 Amp On-Board Battery Charger for the Amigo eXcite (AMI0064453 and subsequent) (item no. A05-0047) does not.

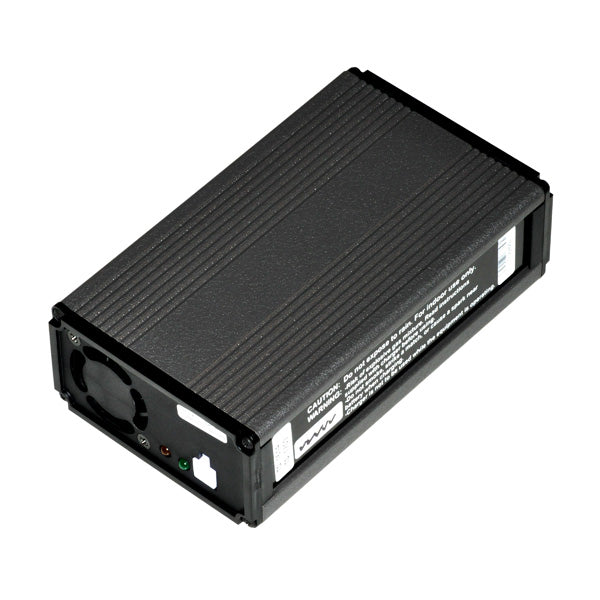

This CS1204L battery charger, manufactured by Control Solutions, Inc., is a heavy-duty battery charger which utilizes an internal microprocessor to add key features and monitor battery conditions to ensure batteries are fully charged without overcharging.

The CS1204L battery charger provides an effective and intelligent solution for charging and maintaining lead-acid batteries. Protection against short circuits, voltage surges, reversed battery polarity, and over temperature are provided to ensure long battery life and safe operation.

Another intelligent feature built into this battery charger is the front panel LEDs which display charging status and diagnostic error codes.

130 Watt constant output power. Batteries charge in approximately 1/2 the time as 6 Amp rated conventional battery chargers

LED indication of improper battery connection, charge timeout, and over-temperature conditions

Float charge voltage is temperature compensated. Maintains a full charge in all temperature conditions without damaging batteries

Active low charging output signal to disable motor drive during charging

Constant voltage (not pulsed) to reduce battery heating and increase battery life

Accurate float charge voltage allows charger to be left connected to batteries indefinitely to maintain full charge

Amigo: 9625
Control Solutions: CS1204L

⚠ WARNING California Residents: Proposition 65 Warning

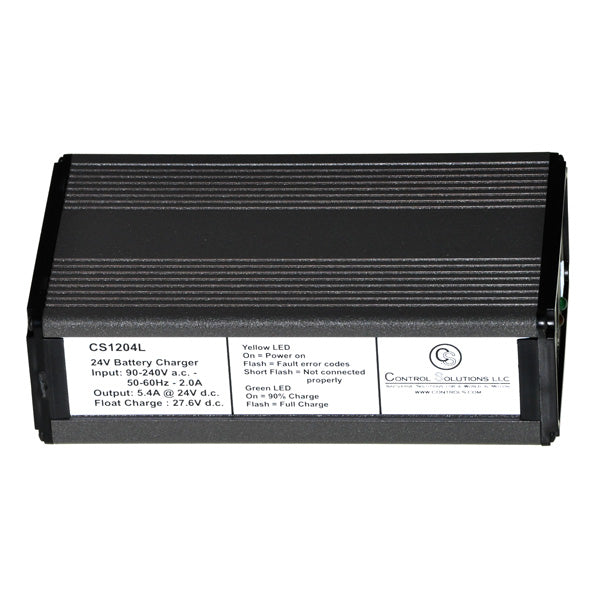

Model No.: CS1204L
Input: 90-240 Volts AC
Output: 5.4 Amps @ 24 Volts DC
Max Current: 6.0 Amps
Float Charge: 27.6 Volts DC

Yellow LED:
On = Power on
Flash = Fault error codes
Short Flash = Not properly connected

Green LED:
On = 90% charge
Flash = Full charge
