Monster Scooter Parts  |  SKU: X98-0891-001  | Baja Motorsports: 165-171

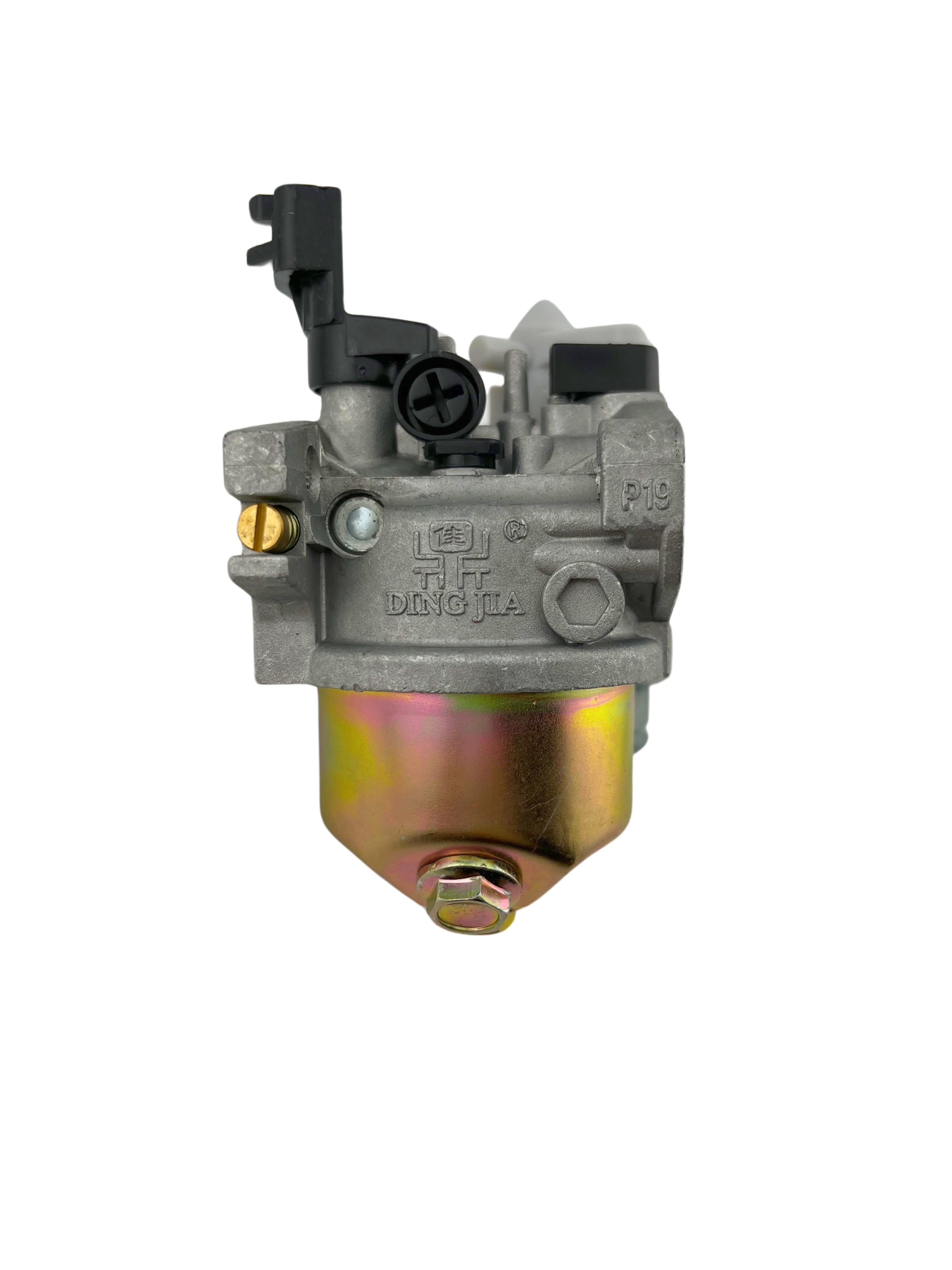

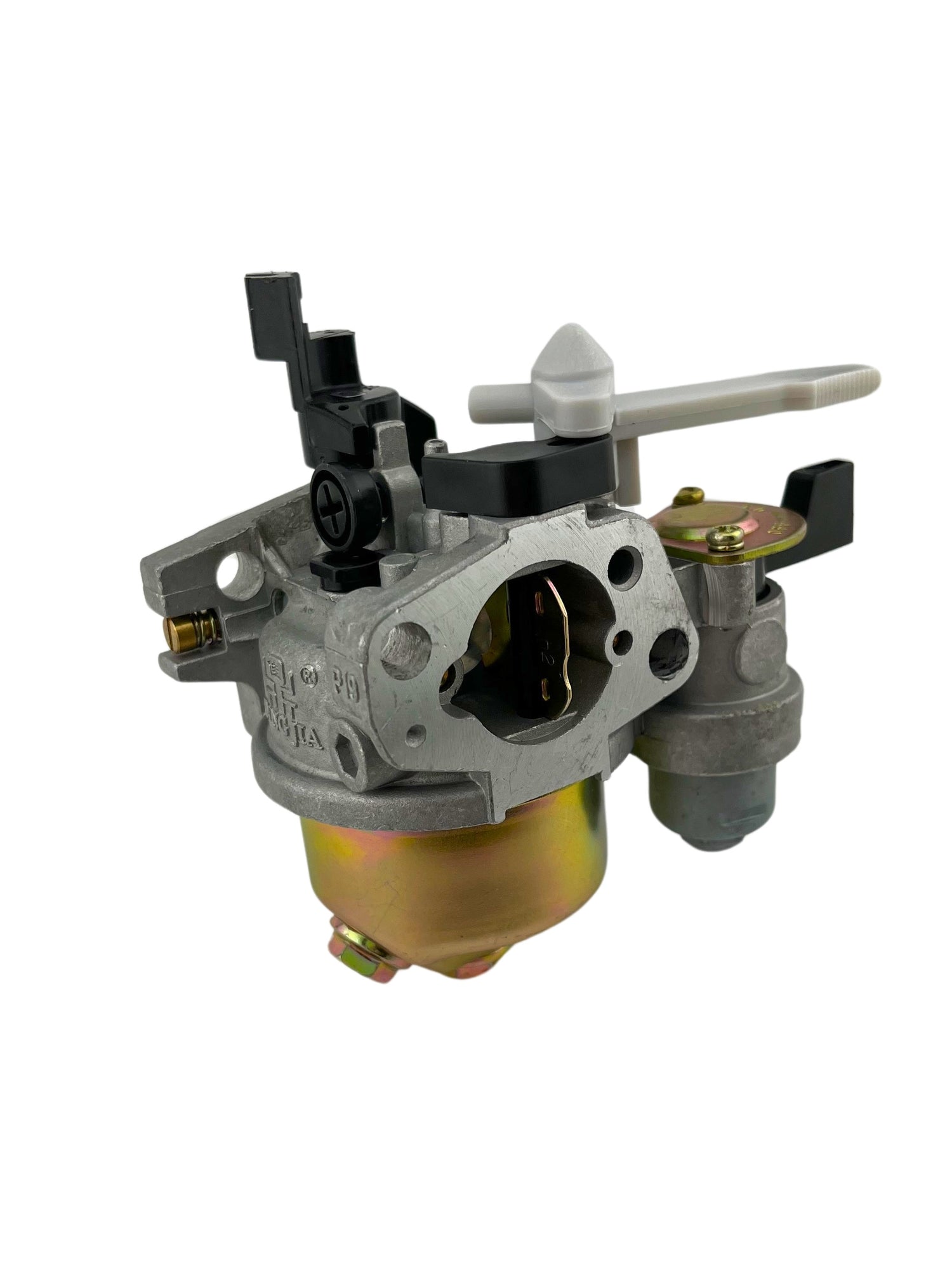

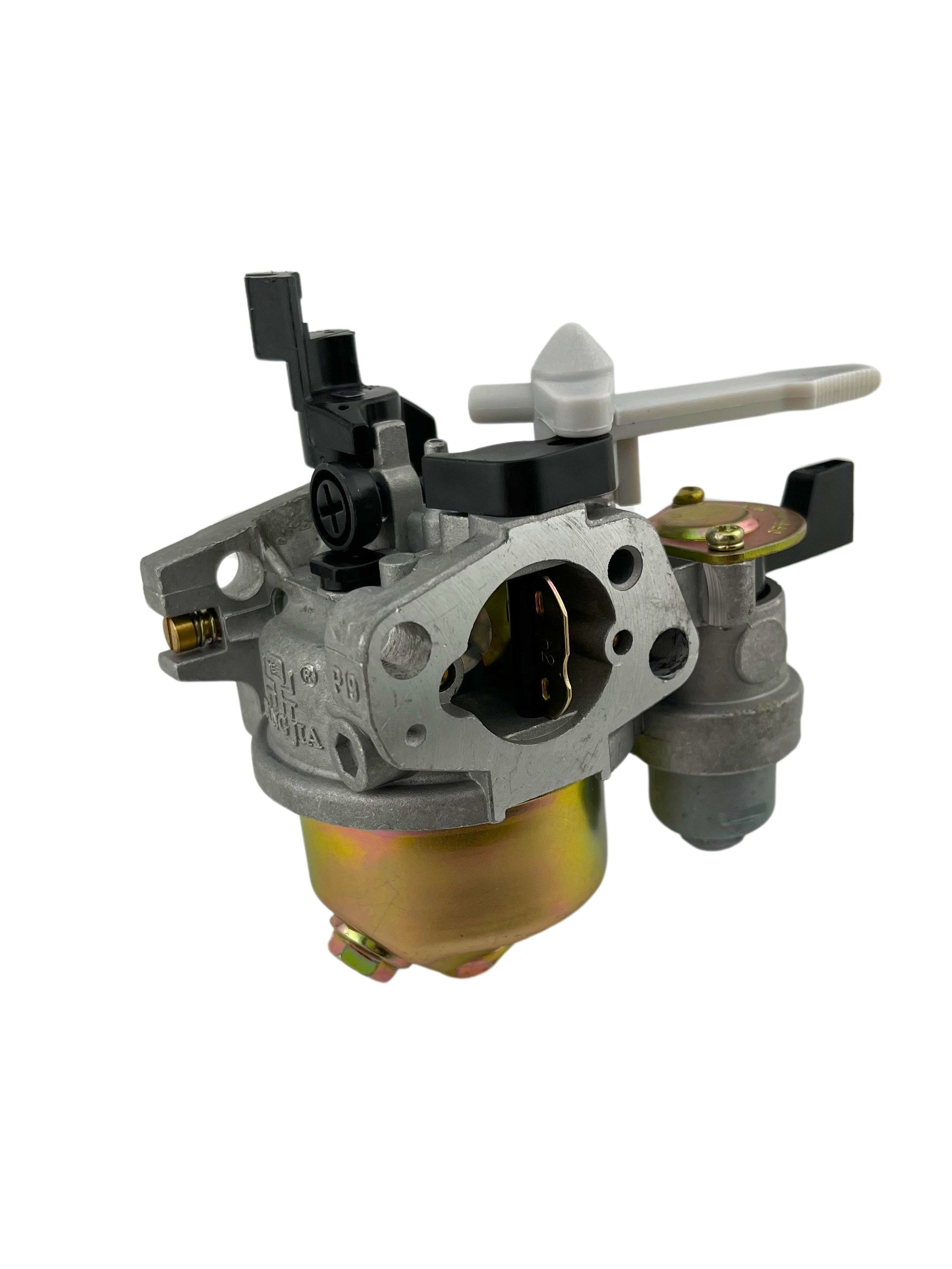

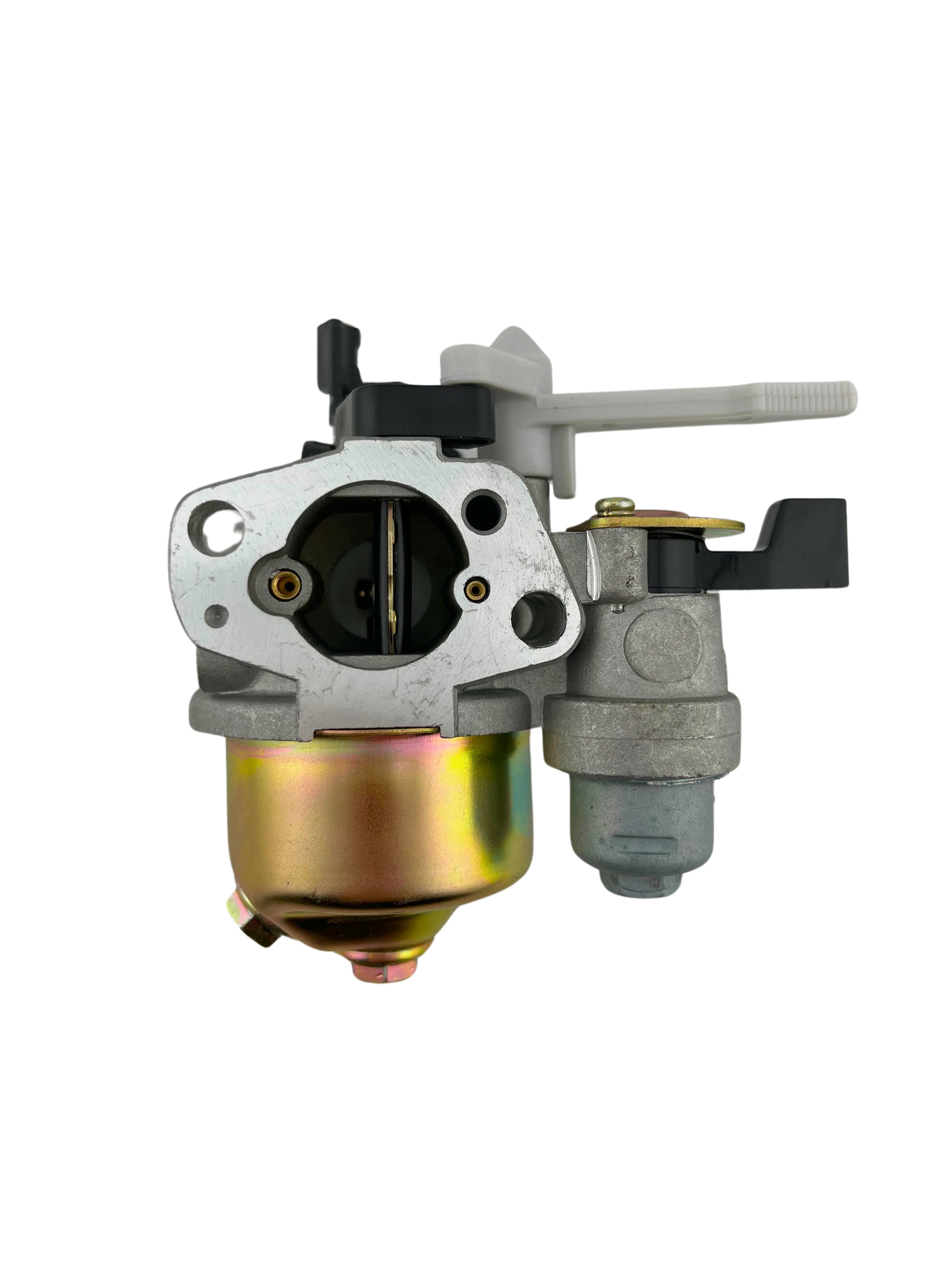

Carburetor with 24 mm Air Intake for 163cc 5.5 Hp & 196cc 6.5 Hp Engines

$26.99

Filter

Free Shipping

  • US domestic ship to addresses only.
  • Does not include expedited shipping services.
Key Features
  • 24 mm intake
  • For or 163cc 5.5 Hp & 196cc 6.5 Hp engines
  • Works on mini bike, go-kart, & utility engines
  • With optional standard Filter, optional High Performance Filter, or without any optional air filter

Description

This carburetor is compatible with 196cc, 200cc, and 212cc mini bike, pit bike, and go-kart engines, and is equipped with a manual choke, and fuel shut off valve. We recommend replacement of the carburetor gasket when replacing the carburetor, as it is easily ripped and torn when removing the old carburetor. The gasket can be found at the link below:

Carburetor Gasket & Insulator with 24 mm Air Intake for 163cc 5.5 Hp & 196cc 6.5 Hp Engines

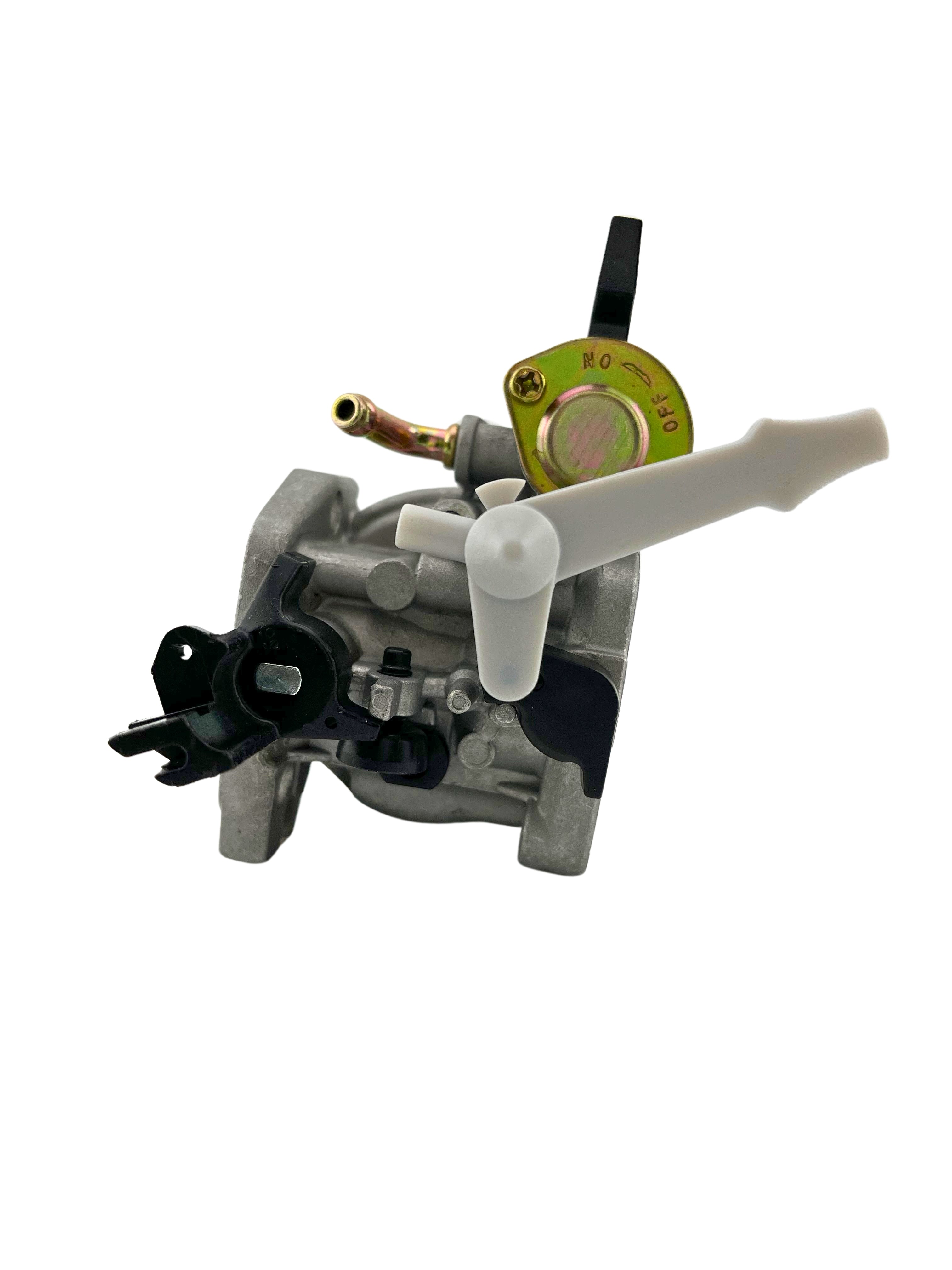

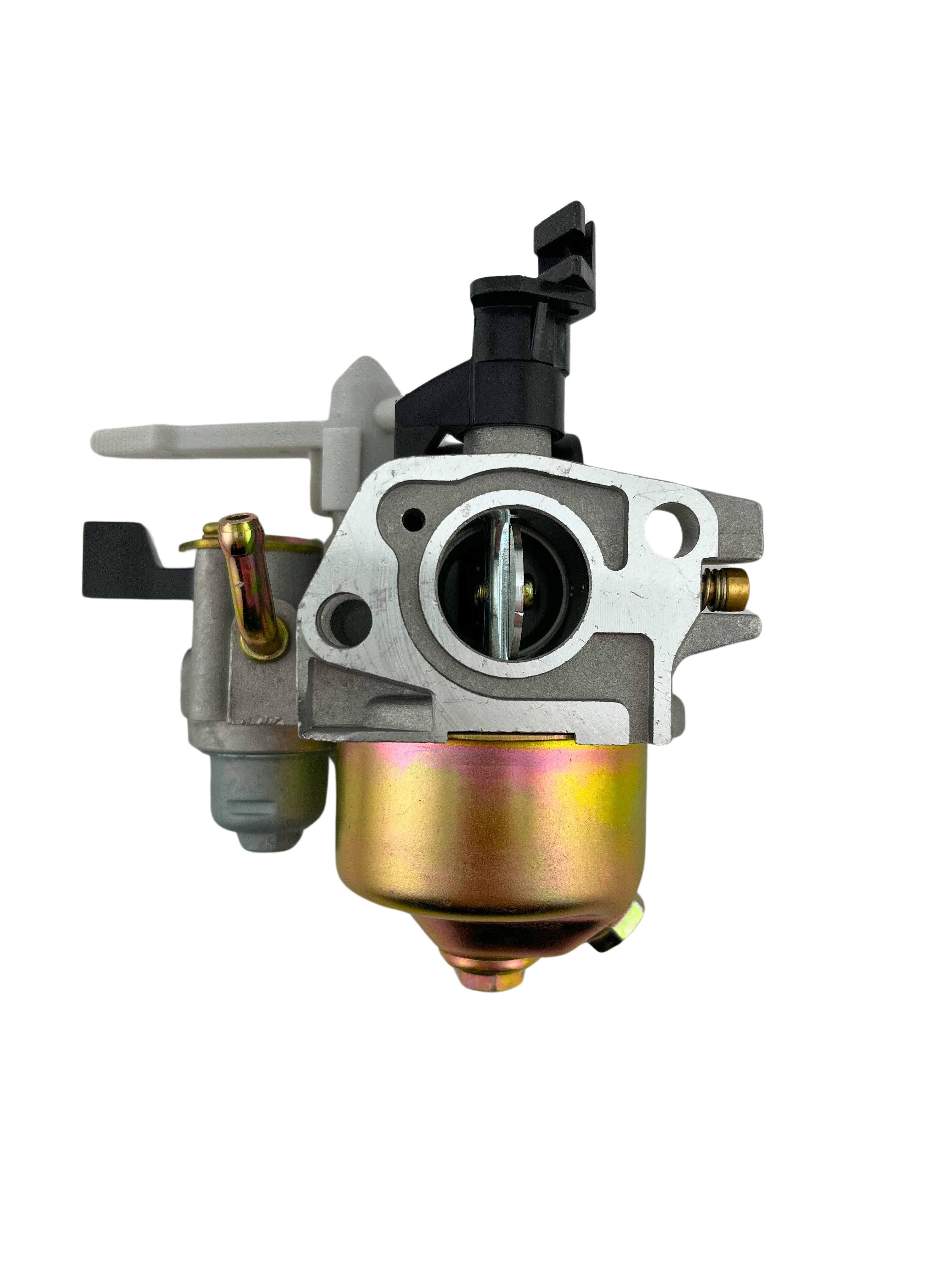

Our carburetor with 24 mm air intake for 163cc 5.5 Hp & 196cc 6.5 Hp engines is a high-performance manual choke carburetor that is a perfect replacement carb for many applications. It is the same carb on 163cc 5.5 HP model JF168 engines and 196cc 6.5 HP model JF200 engines.

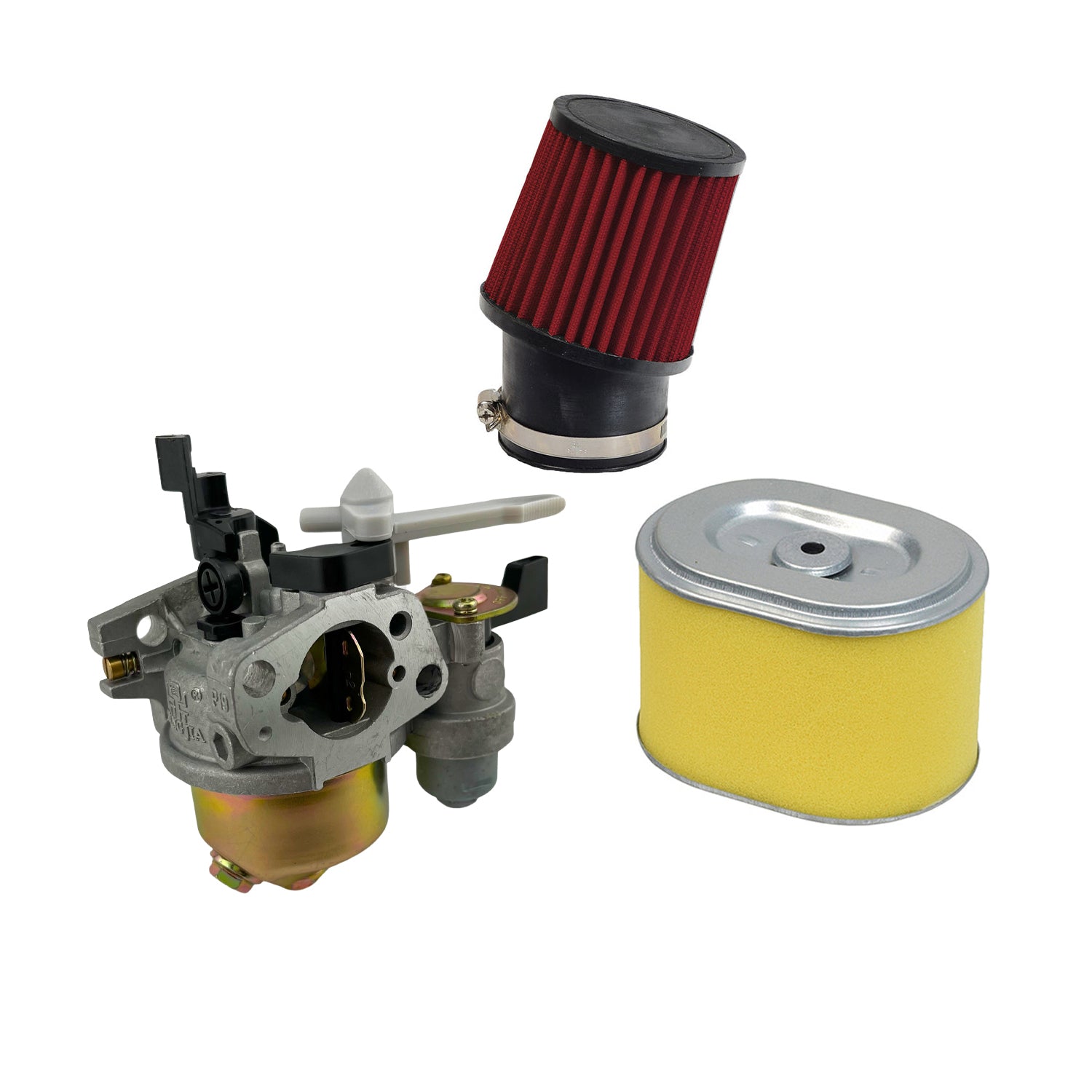

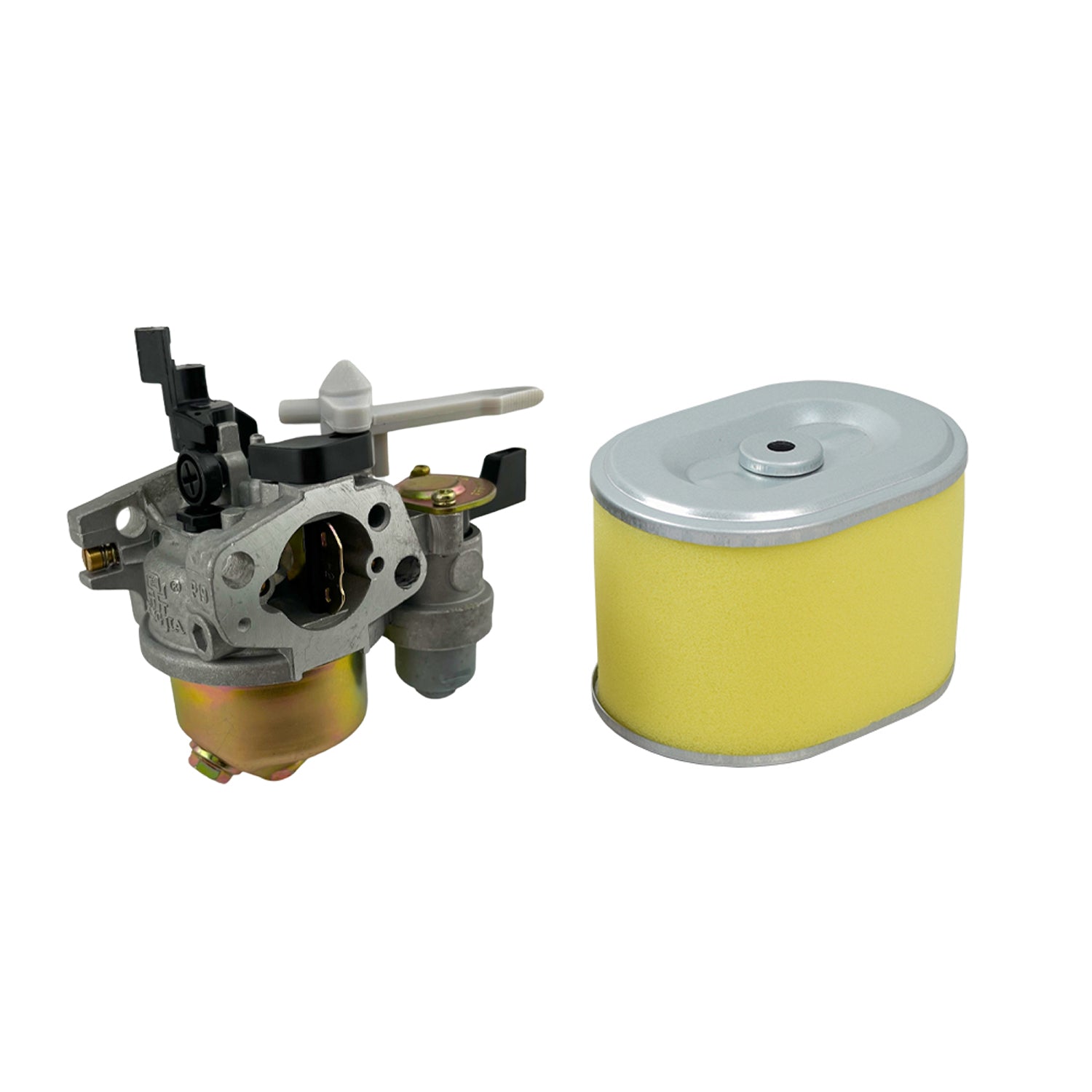

Because a carburetor works best when the air that flows into it is clean, we offer this fine carb with an optional standard air filter, or with a high performance air filter to keep the dust and crud out, or without any optional filter at all. Whether you only need the carb or if you prefer one of the carb & filter combinations, we are sure that our easily-installed carburetor with 24 mm air intake will enhance your engine's performance. This carburetor is compatible with 196cc, 200cc, and 212cc mini bike, pit bike, and go-kart engines, and is equipped with a manual choke, and a fuel shut off valve.

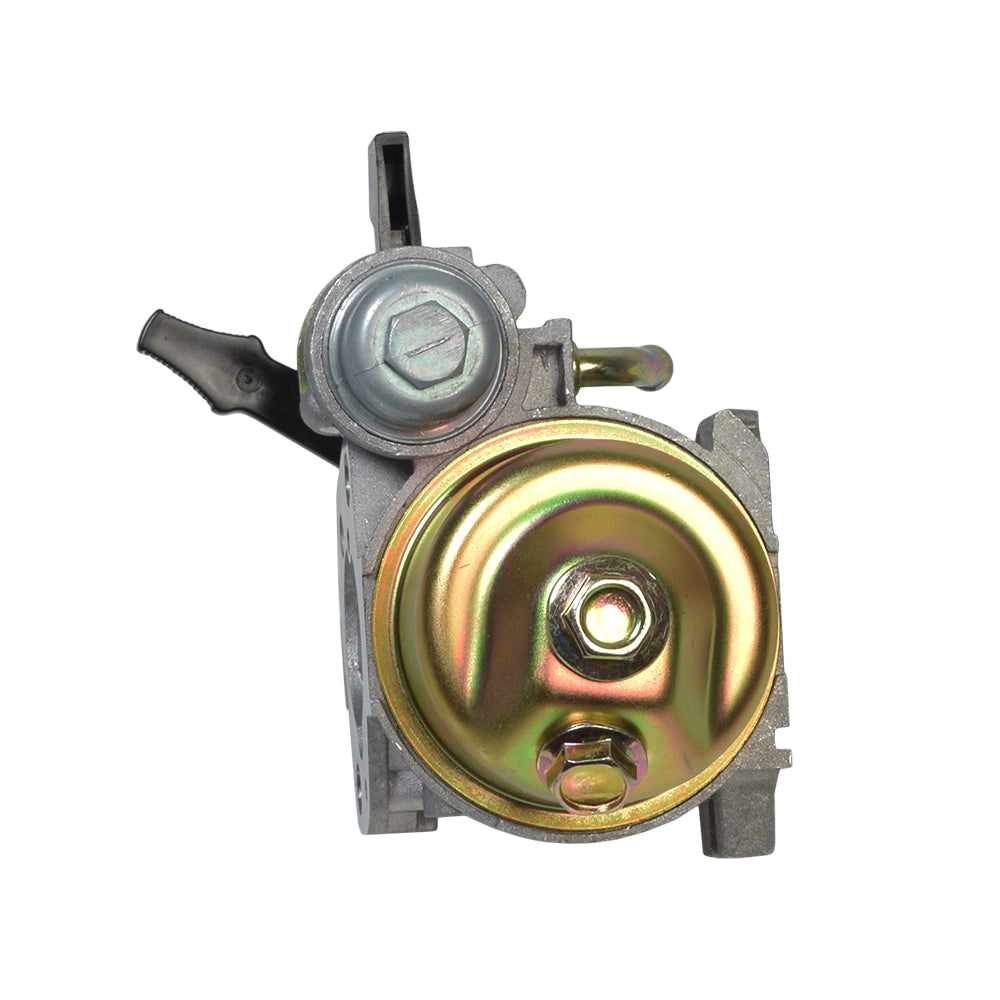

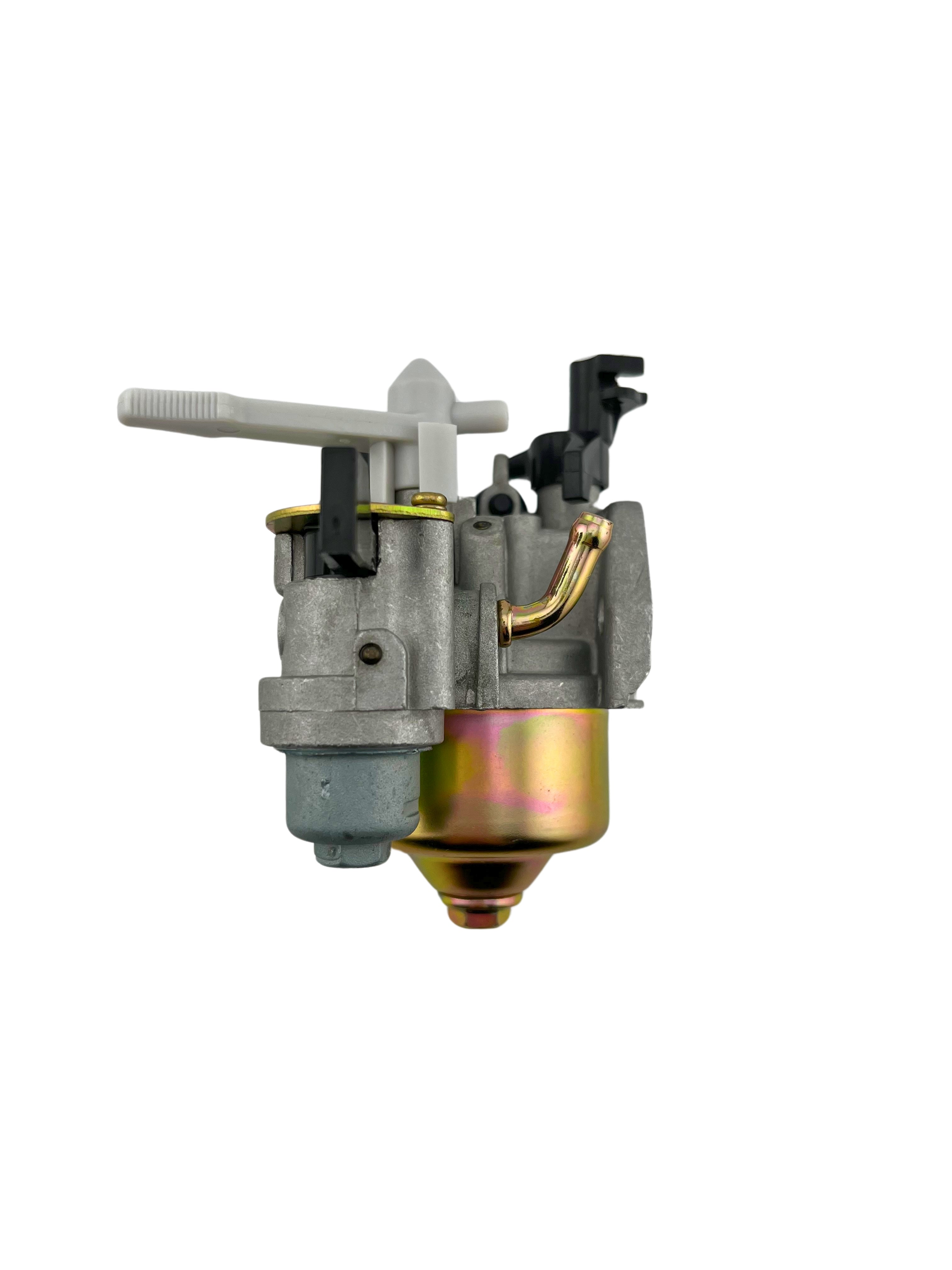

The carburetor has a water trap feature that prevents water condensation from getting into your carb and freezing overnight. The trap is the small reservoir directly under the fuel cut-off switch, and it allows the carb to be periodically cleaned of water, ice, and other carb-clogging gunk.

If cold weather running isn't an issue, you may want our 6.5 Hp GX200 Carburetor. It's the same carburetor, just without the auxiliary water trap.

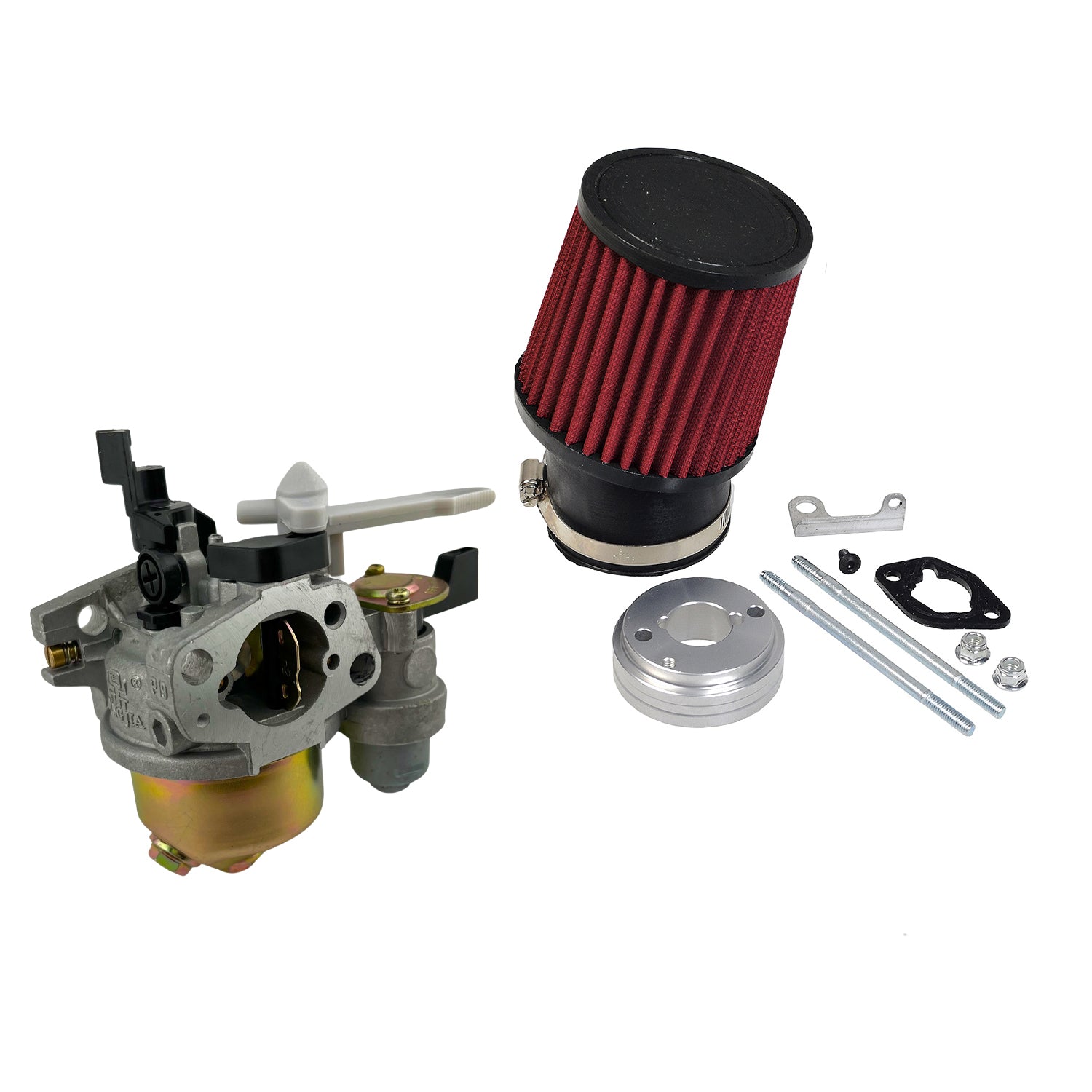

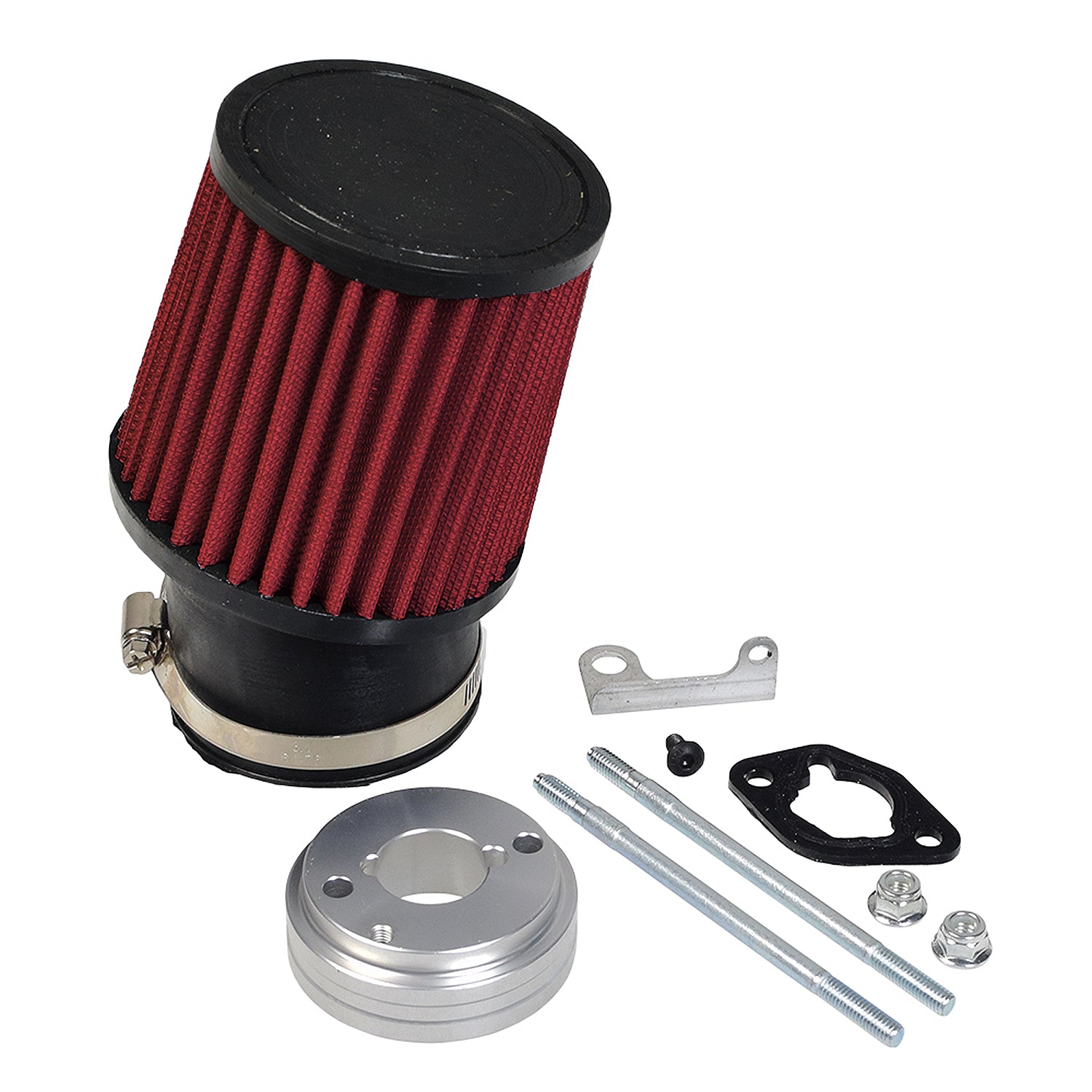

High Performance Filter Note: The optional high performance filter assembly includes a stack. This is the large machined alloy ring with a beveled inside diameter that fits into the rubber base of the filter. When mounting this filter assembly, always make sure that the wider end of the hole is inside of the filter and the smaller or narrower end of the hole is on the carburetor side. When properly mounted, the stack functions as a venturi, smoothing the air flow into the carburetor and likewise smoothing the engine's running.

We recommend replacement of the carburetor gasket when replacing the carburetor, as it is easily ripped and torn when removing the old carburetor. The gasket can be found at the link below:

Carburetor Gasket & Insulator with 24 mm Air Intake for 163cc 5.5 Hp & 196cc 6.5 Hp Engines

Baja Motorsports: 165-171

⚠ WARNING California Residents: Proposition 65 Warning

Reviews (1)

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
T
Tim W

my minibike don't start anymore I tried to rebuild the carburetor but no luck so I ordered this one I instilled it with two pulls it started very happy

Specifications

Engine Intake Inner Diameter: 19 mm
Air Intake Inner Diameter: 24 mm
Overall Depth: 5.4 cm
Overall Width: 8 cm
Overall Height: 10.5 cm
Center to Center Mounting Hole Distance: 43 mm
Mounting Holes Diameter: 6 mm
Choke: Manual Fuel Line Length: 16 cm +/-
Fuel Line Inner Diameter: 5 mm
Fuel Line Outer Diameter: 8 mm
Drain: No
Fuel Shutoff: Yes

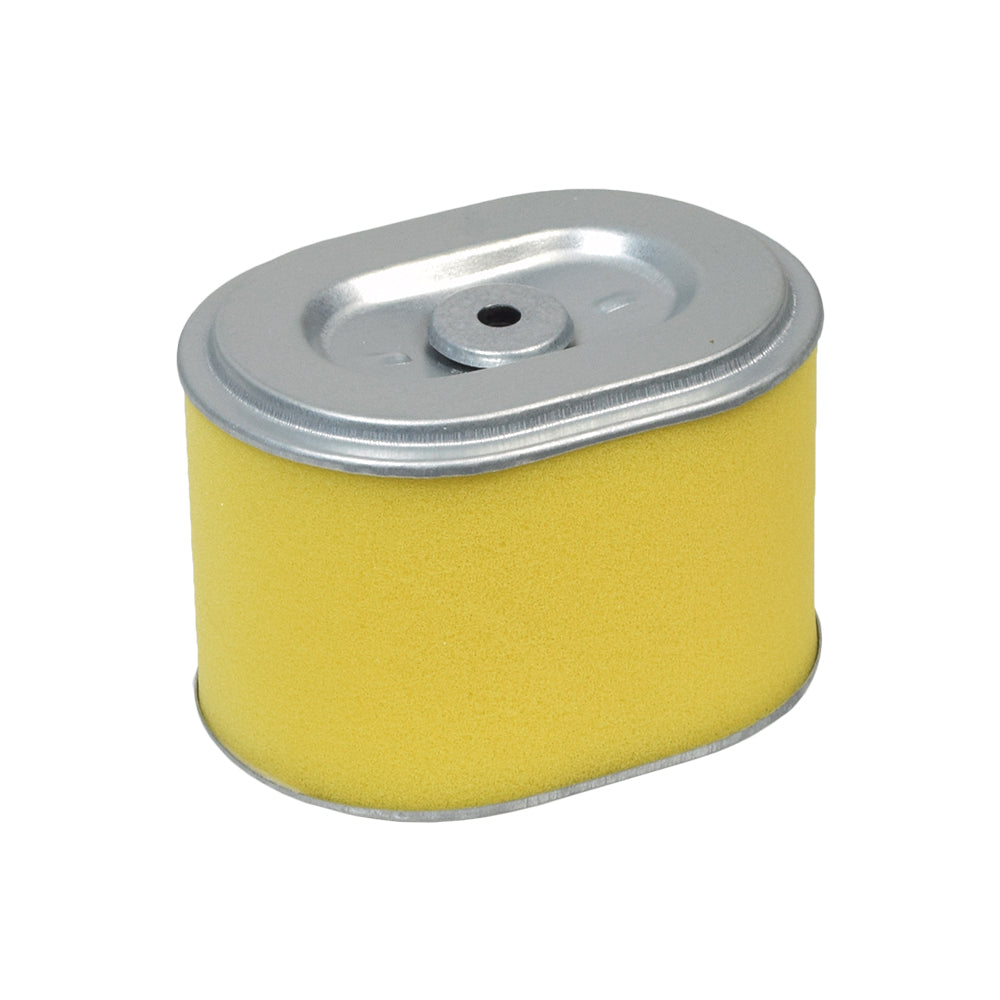

Standard Filter:
Length: 100 mm
Width: 75 mm
Height: 70 mm

High Performance Filter:
Overall Diameter at Widest Point: 95 mm
Overall Diameter at Top: 85 mm
Rubber Intake Inner Diameter: 60 mm
Rubber Intake Outer Diameter: 74 mm
Overall Height: 160 mm
