Monster Scooter Parts | SKU:
X98-0836

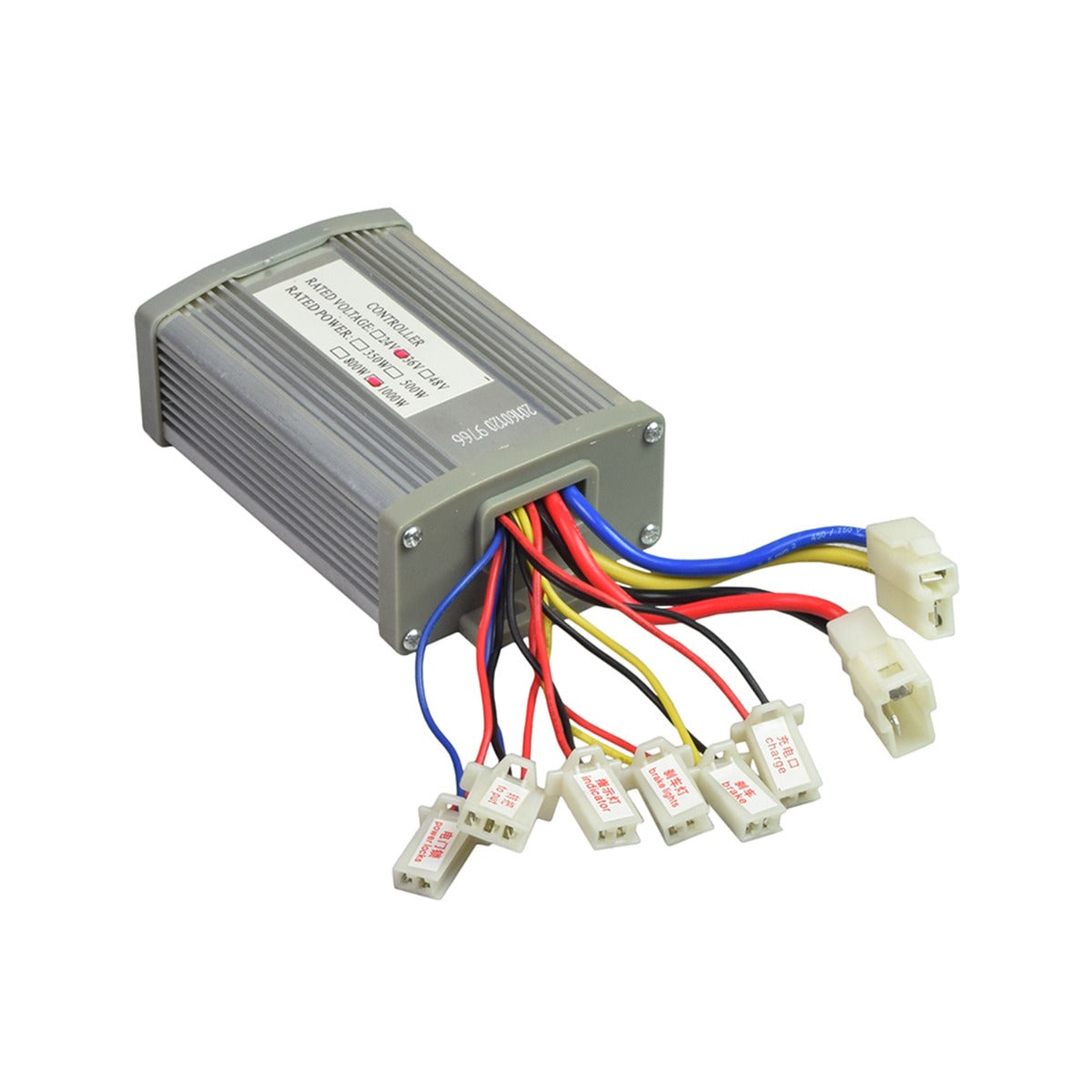

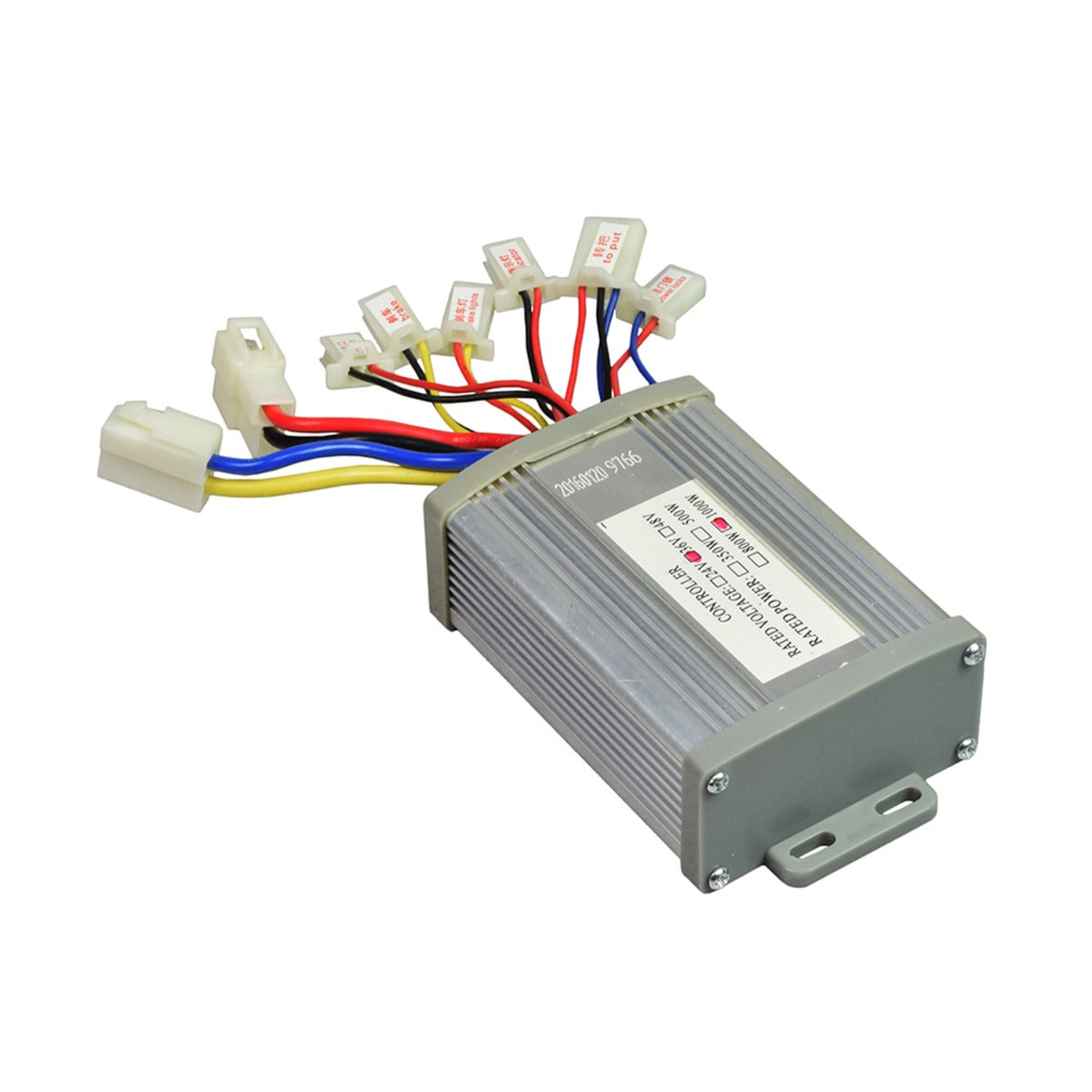

Electric Scooter Parts: 36 Volt 1000 Watt Universal Speed & Voltage Controller
$38.29
Unit price
/
Unavailable
Electric Scooter Parts: 36 Volt 1000 Watt Universal Speed & Voltage Controller is backordered and will ship as soon as it is back in stock.
Free Shipping
Free Shipping
- US domestic ship to addresses only.
- Does not include expedited shipping services.
Description
Description
36 Volt 1000 Watt universal voltage/speed controller for electric scooters, bikes, go karts, and mopeds. Compatible with most 36 volt products equipped with 600-1000 watt motors and other 36 volt electric scooter parts. Please note that you may need to cut and splice a few but not all of your old controller connectors.

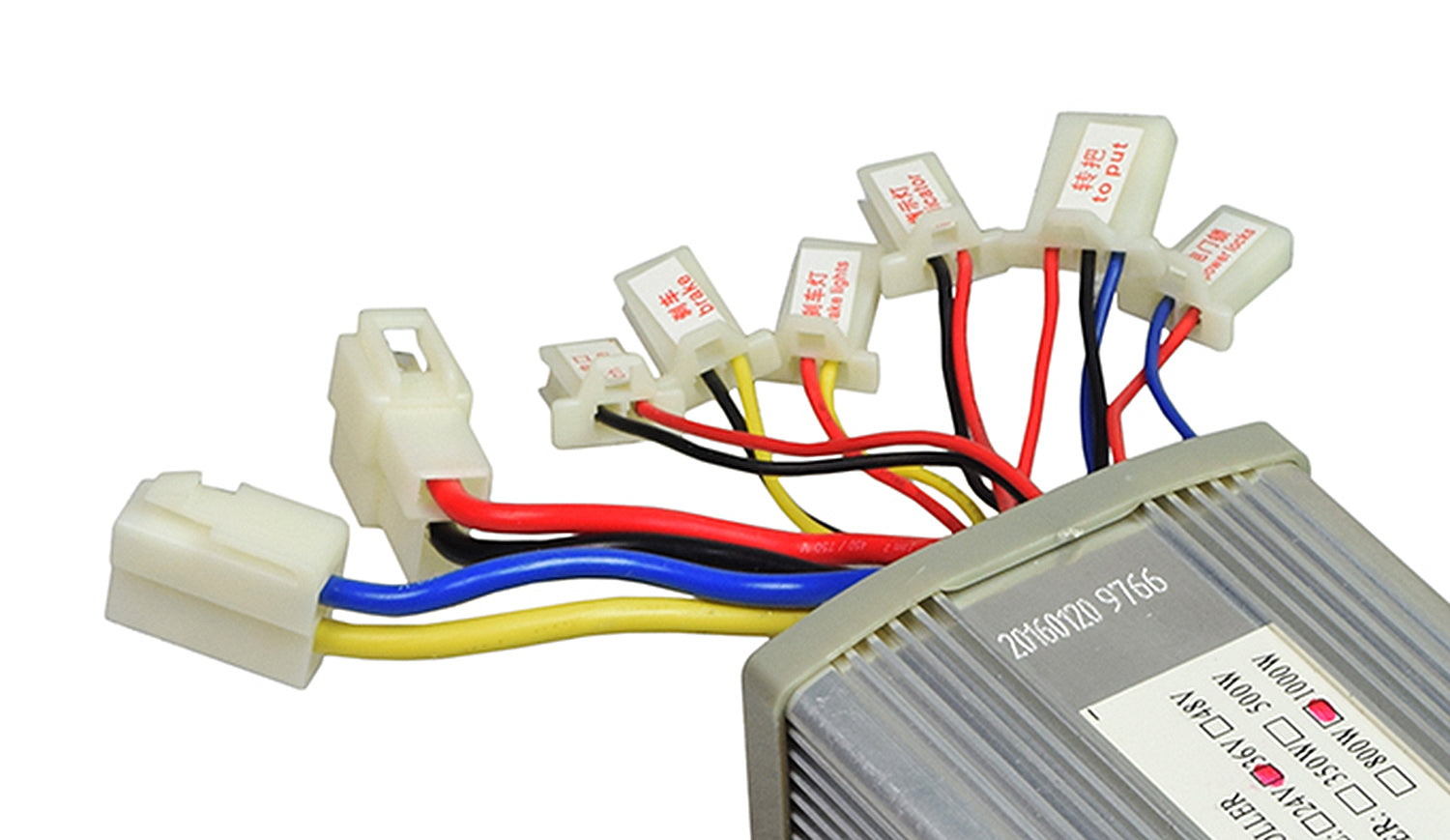

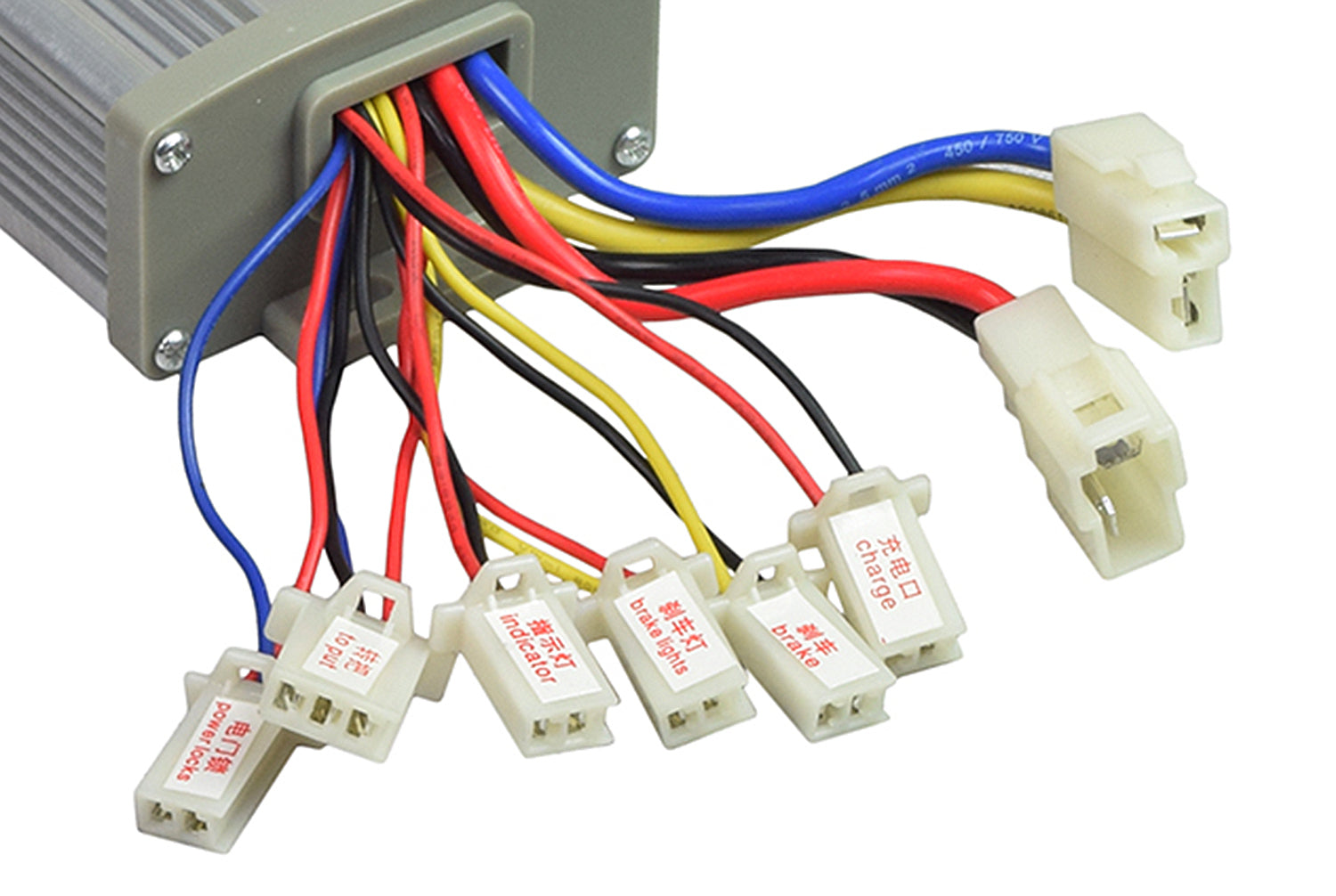

Controller connections as follows:
Battery Connector (Black & Red Wires, Thick)
Battery wiring. Same as OEM connector. Connect to your battery's connector. Black to Black, Red to Red.
Motor Connector (Blue & Yellow Wires, Thick)
Motor wiring. May be the same as the OEM connector, or may require cutting and splicing. Cut and splice (if necessary) to your existing controller motor connector or hard wire to your product’s wiring. Blue (controller) to Blue or Red or Orange (existing wiring), Yellow (controller) to Brown or Black or Green (existing wiring).
Indicator Connector (Black and Red Wires, Thin)
Battery charger connector, may be the same as the OEM connector, or may require cutting and splicing. Connect to your product’s “charge” connector.
Power Locks Connector (Blue & Red Wires, Thin)
Key switch connector, may be the same as the OEM connector, or may require cutting and splicing. Connect to your product’s “lock” connector, or hard wire to your key switch wiring.
To Put Connector (Red, Black, & Blue Wires, Thin)
Hand throttle connector, 3-wire. Plug your 3-wire hand throttle wires into the three prongs on this connector. Black to Black, Red to Red, Blue to the third wire on your hand throttle (Blue or Green or other). Your product's throttle wiring may be included in the existing 6 pin connector on your wiring harness. Not compatible with 4 wire or Currie 5-pin or 6-pin half grip throttles.
Brake Connector (Black & Yellow Wires, Thin)
Brake connector, may be the same as the OEM connector, or may require cutting and splicing. Connect your product’s brake wires to this connector. Your product's brake wires may be included in the existing 6 pin connector on your wiring harness.
PLEASE NOTE:
Due to the delicate nature of voltage controllers, and the care that must be taken when making wiring connections, it is Monster Scooter Parts company policy that all voltage and speed controller sales are final. Please ensure you are comfortable making delicate wiring connections and cutting and splicing wires prior to ordering. Our entire return policy can be viewed at the link below:
Monster Scooter Parts Return Policy
⚠ WARNING California Residents: Proposition 65 Warning
Controller connections as follows:
Battery Connector (Black & Red Wires, Thick)
Battery wiring. Same as OEM connector. Connect to your battery's connector. Black to Black, Red to Red.
Motor Connector (Blue & Yellow Wires, Thick)
Motor wiring. May be the same as the OEM connector, or may require cutting and splicing. Cut and splice (if necessary) to your existing controller motor connector or hard wire to your product’s wiring. Blue (controller) to Blue or Red or Orange (existing wiring), Yellow (controller) to Brown or Black or Green (existing wiring).
Indicator Connector (Black and Red Wires, Thin)
Battery charger connector, may be the same as the OEM connector, or may require cutting and splicing. Connect to your product’s “charge” connector.
Power Locks Connector (Blue & Red Wires, Thin)
Key switch connector, may be the same as the OEM connector, or may require cutting and splicing. Connect to your product’s “lock” connector, or hard wire to your key switch wiring.
To Put Connector (Red, Black, & Blue Wires, Thin)
Hand throttle connector, 3-wire. Plug your 3-wire hand throttle wires into the three prongs on this connector. Black to Black, Red to Red, Blue to the third wire on your hand throttle (Blue or Green or other). Your product's throttle wiring may be included in the existing 6 pin connector on your wiring harness. Not compatible with 4 wire or Currie 5-pin or 6-pin half grip throttles.
Brake Connector (Black & Yellow Wires, Thin)
Brake connector, may be the same as the OEM connector, or may require cutting and splicing. Connect your product’s brake wires to this connector. Your product's brake wires may be included in the existing 6 pin connector on your wiring harness.
PLEASE NOTE:
Due to the delicate nature of voltage controllers, and the care that must be taken when making wiring connections, it is Monster Scooter Parts company policy that all voltage and speed controller sales are final. Please ensure you are comfortable making delicate wiring connections and cutting and splicing wires prior to ordering. Our entire return policy can be viewed at the link below:
Monster Scooter Parts Return Policy
⚠ WARNING California Residents: Proposition 65 Warning
Reviews (0)
Reviews (0)
Specifications
Specifications
Voltage: 36 Volts
Current: 28 Amps maximum
