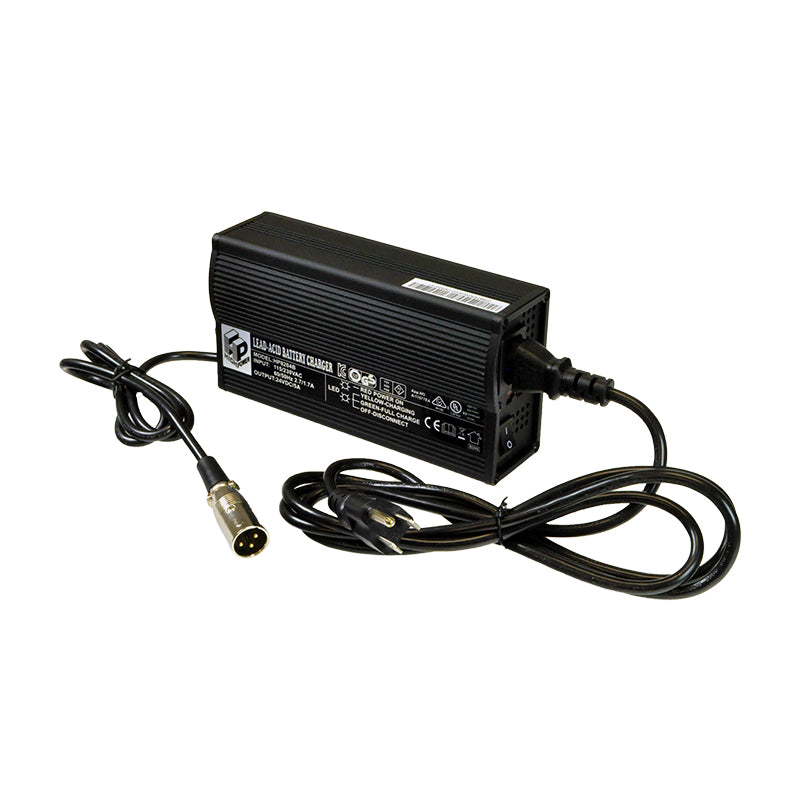

Electric Scooter Parts: 24 Volt 5.0 Amp XLR HP8204B Battery Charger

When you need a premium quality 24 volt 5.0 amp XLR battery charger for your mobility scooter or power chair, you might want to take a closer look at the High Power HP8204B (or HP-8204B as it is sometimes listed). So trusted are these These High Power HP8204B chargers that they are used as the original equipment (OEM) battery chargers by many mobility scooter and power wheelchair manufacturers.

This charger features a 115-volt input, 5.0 amp output, and an automatic shutoff when battery is charged. It also includes a 10 amp GMA fuse and an IEC power cord.

Underwriters Laboratories (UL) Listed. Dry location use only.

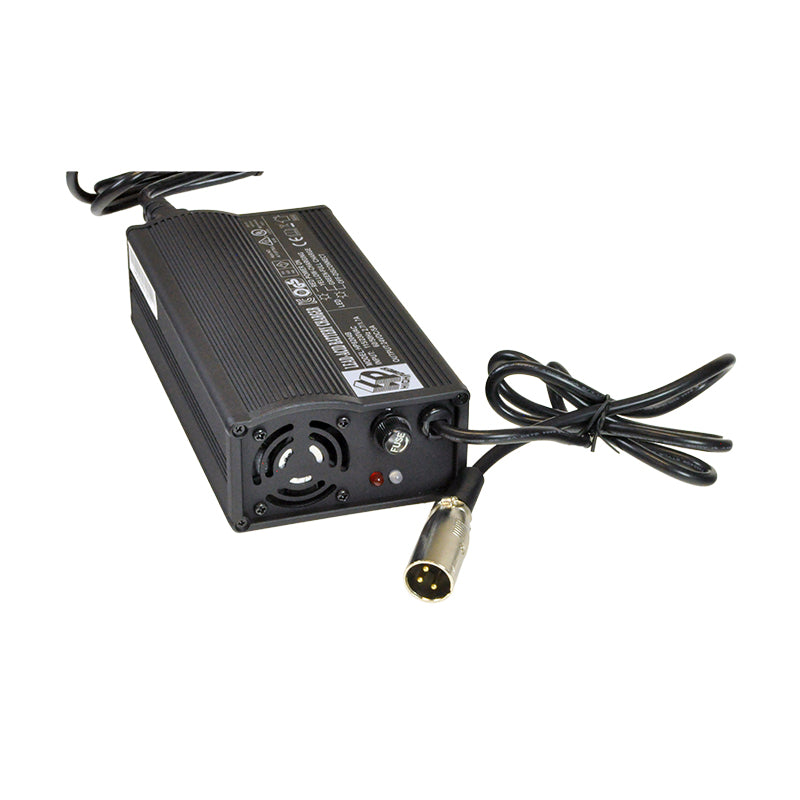

LED lights indicate battery charge level as follows:

Red - Power On

Yellow - Charging

Green - Full Charge

Off - Disconnect

High Power: HP8204B

⚠ WARNING California Residents: Proposition 65 Warning

High Power Model Number: HP8204B
Input: 115/230 VAC, 50/60Hz
Output: 24 VDC, 5.0A
Case Dimensions: 7.125" x 3.75" x 2.125"
DC Output XLR Cord Length: 3'

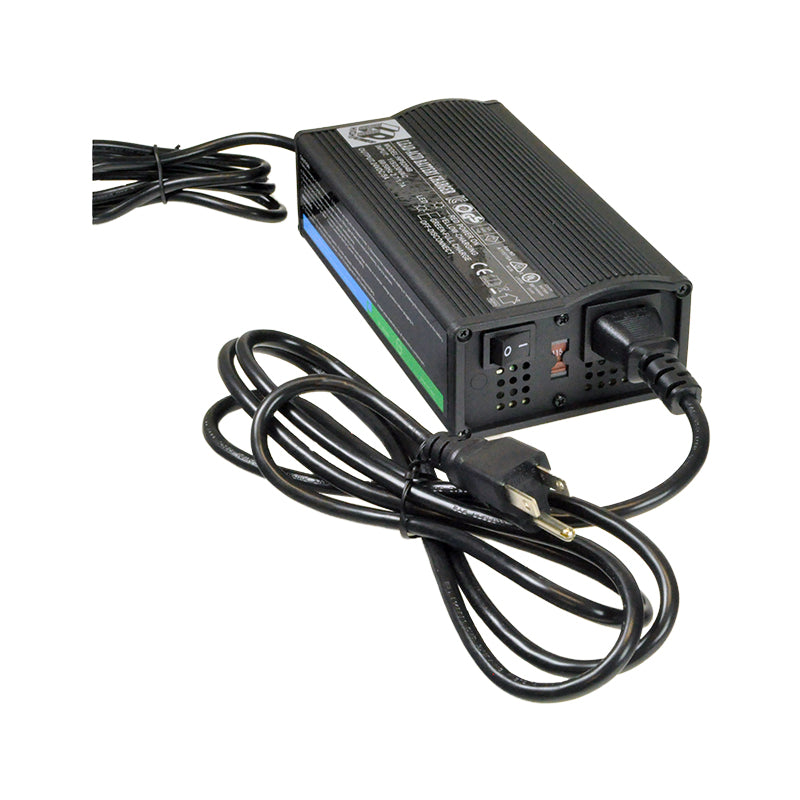

AC Input IEC Cord Length: 6'
Weight: 2.3 lbs.
