Currie Technologies  |  SKU: C80-8744  | Currie Technologies: SD-4007-2

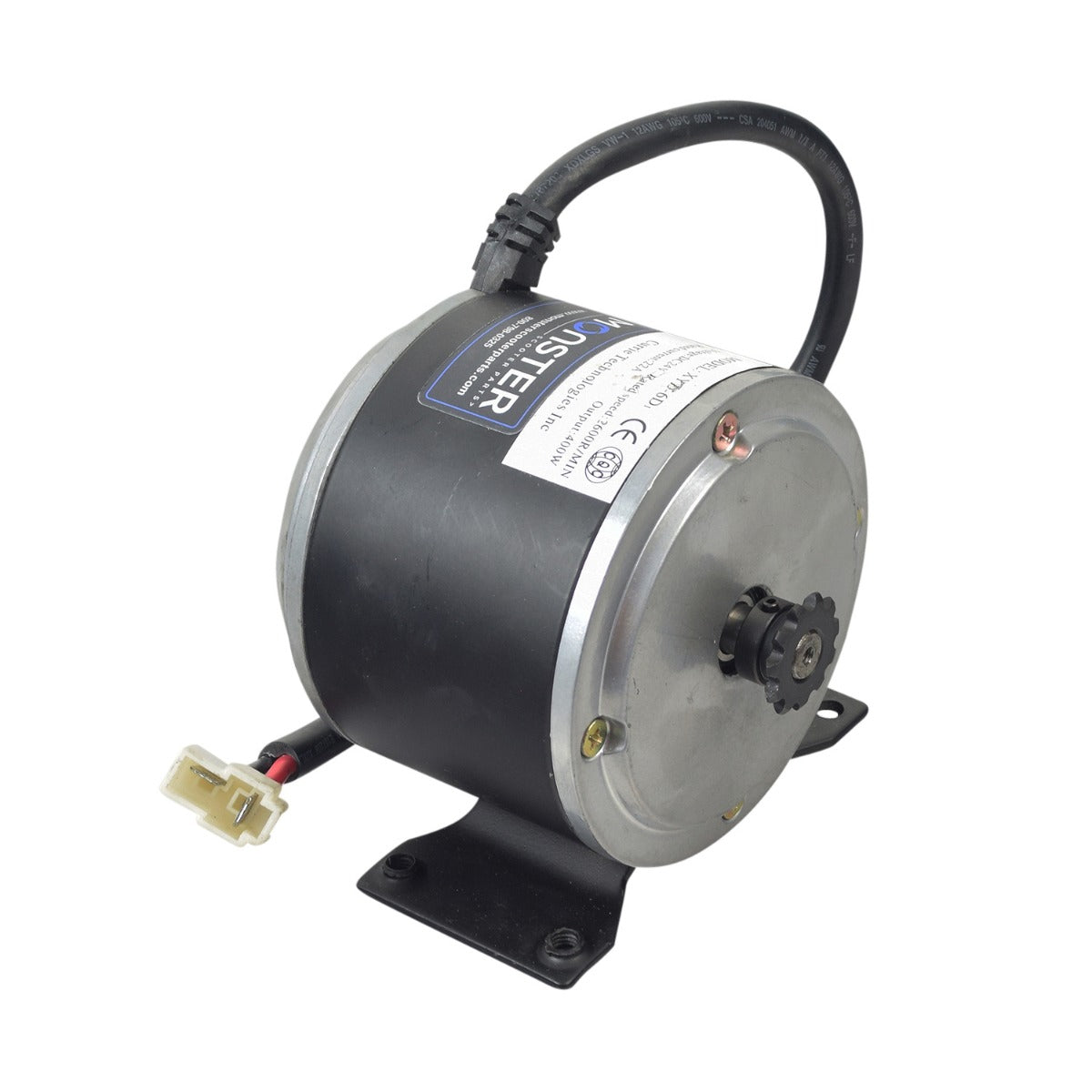

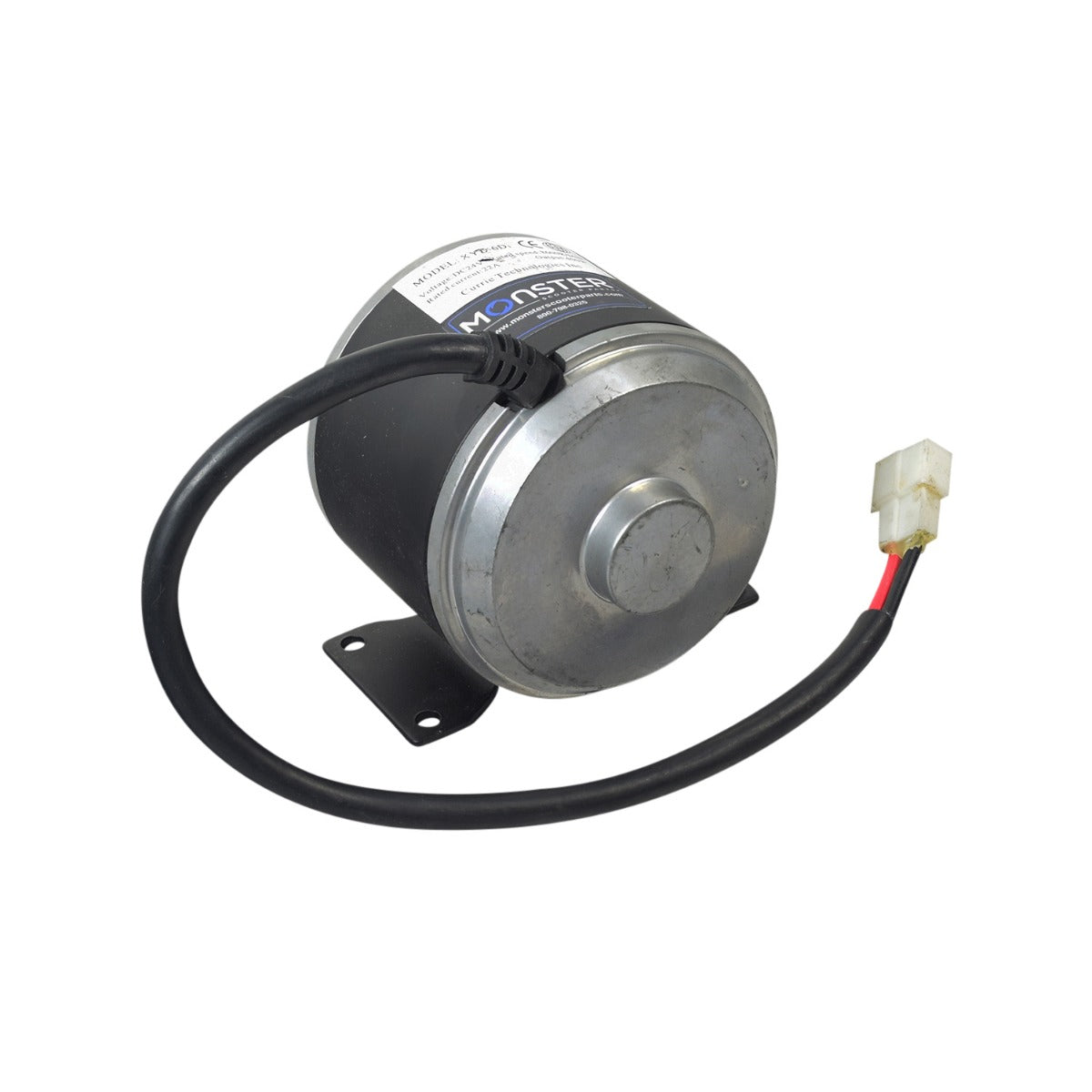

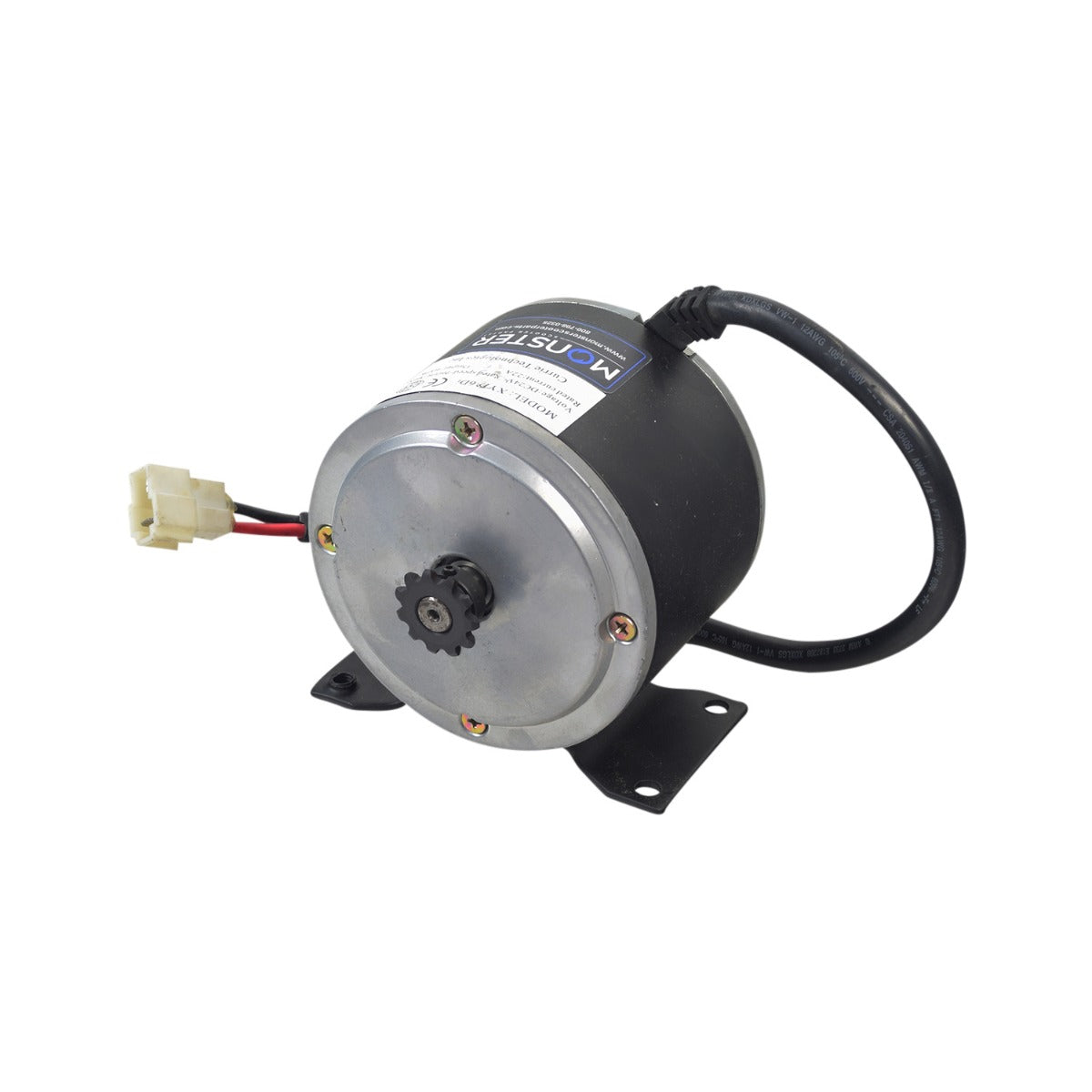

24 Volt 400 Watt XYD-6D Electric Motor with 11 Tooth #25 Chain Sprocket and Mounting Bracket

$72.29
This item has a 30 day warranty. Warranty Policy

Free Shipping
  • US domestic ship to addresses only.
  • Does not include expedited shipping services.
Key Features
  • 11 tooth #25 chain bracket
  • 350 watt
  • Bracket included
  • Left or right rotation by reversing wires
  • XYD-6D motor
  • 2600 RPM

Description
24 volt 400 watt XYD-6D electric motor with an 11 tooth #25 chain bracket from Currie Technologies. This is the motor that was used on the chain drive versions of the Schwinn 400 and IZIP 400 electric scooters.

This motor uses a universal mounting bracket, and it can be used on most 24 volt electric scooters factory equipped with 200 watt to 400 watt motors.

Note: This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires.

Currie Technologies: SD-4007-2

⚠ WARNING California Residents: Proposition 65 Warning

Reviews (0)

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Specifications

Model: XYD-6D Motor
Type: Brush
Voltage: 24 volt DC
Rated Speed: 2600 RPM
Rated Current: 22 amp

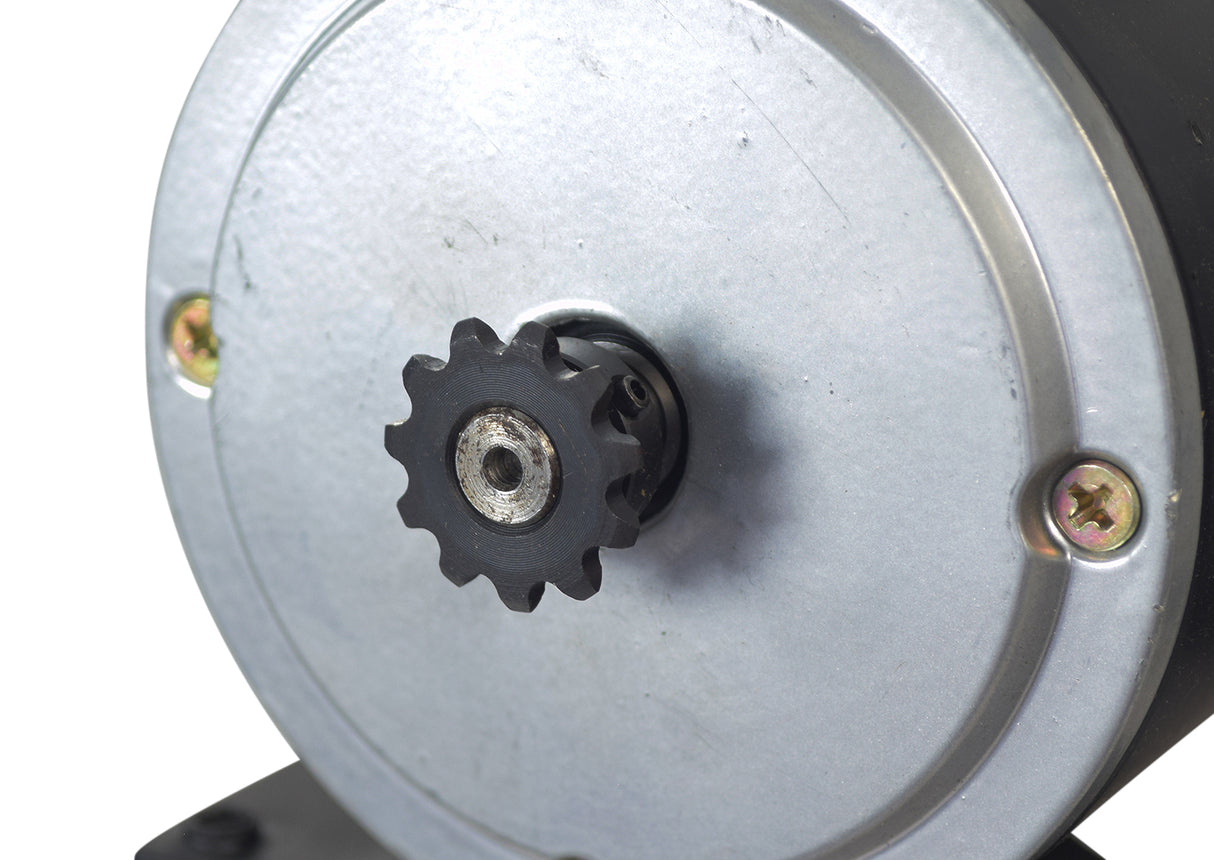

Sprocket: 11 tooth #25 chain sprocket
Output: 400 Watts
Case Length: 3-13/16" (97 mm)
Case Diameter: 3-15/16" (100 mm)
Drive Shaft Length: 3/8" (10 mm)
Drive Shaft Diameter: 3/8" (10 mm)
Bolt Hole Distance (Cross Bracket): 3-3/4" (95 mm)
Bolt Hole Distance (Adjacent): 1-5/8" (42 mm)
