Unite Motor | SKU:
C80-8742-X01

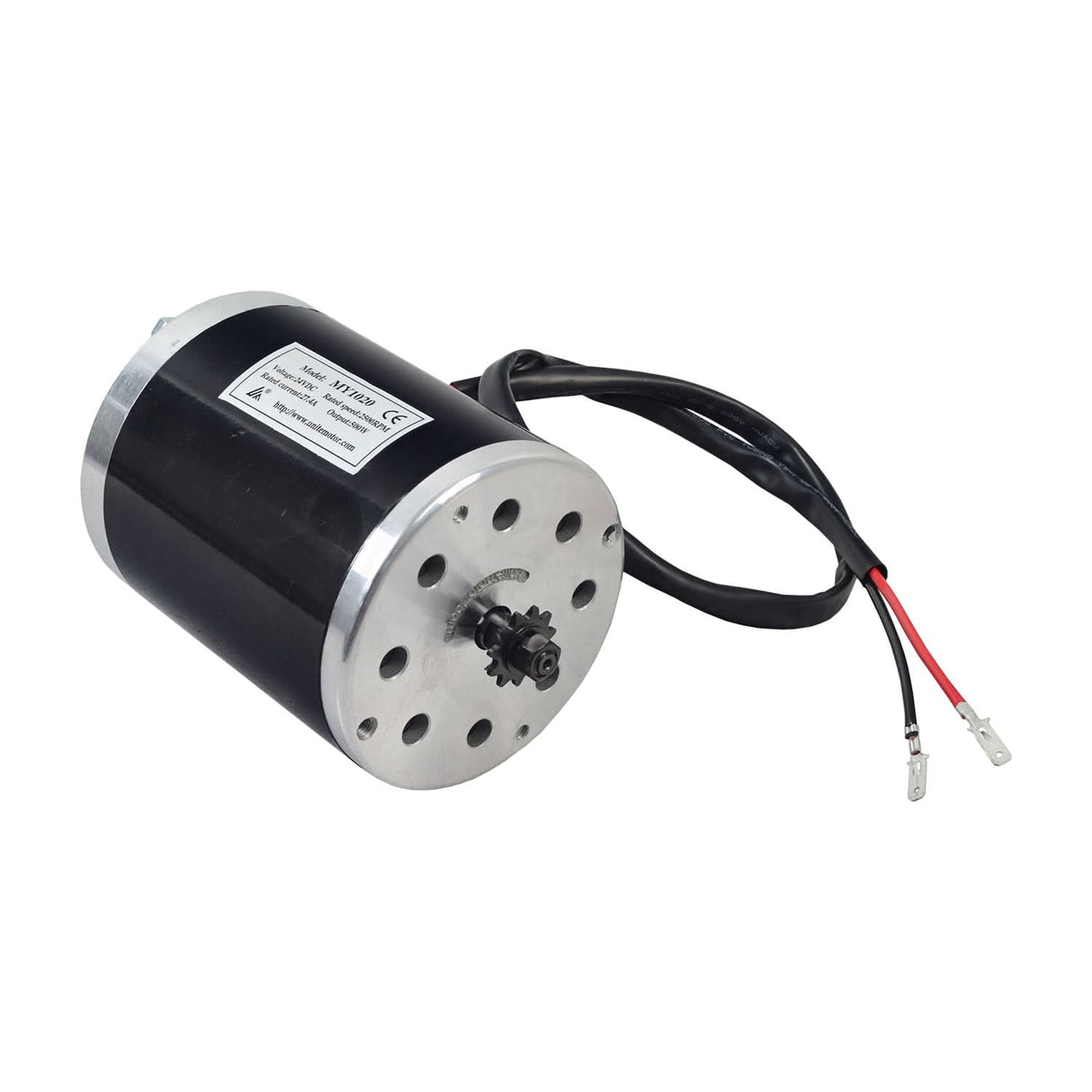

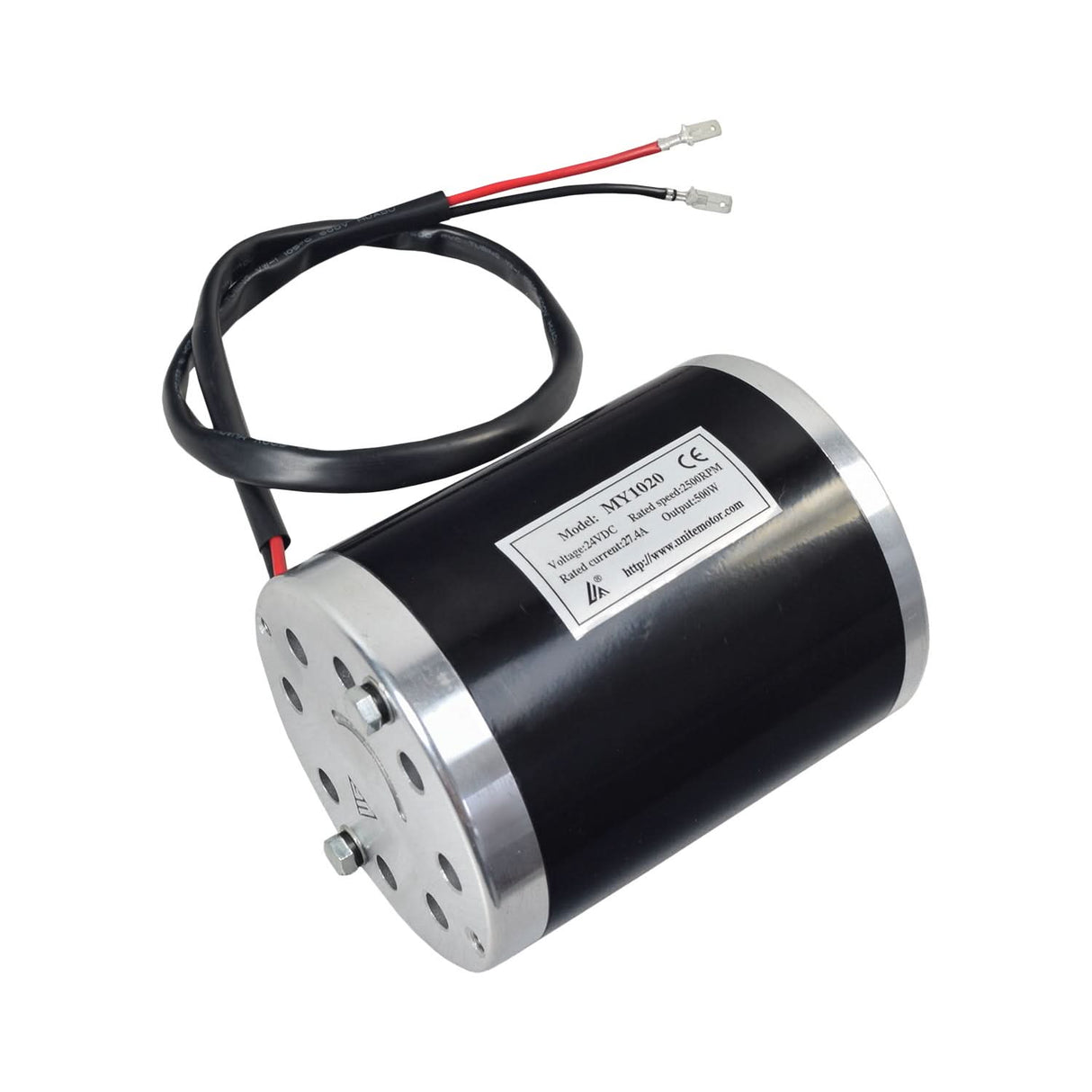

24 Volt 500 Watt MY1020 Electric Motor with 11 Tooth #25 Chain Sprocket (Missing Hardware)
$106.99
Unit price
/
Unavailable
24 Volt 500 Watt MY1020 Electric Motor with 11 Tooth #25 Chain Sprocket (Missing Hardware) is backordered and will ship as soon as it is back in stock.
This item is not returnable. Return Policy
Free Shipping
Free Shipping
- US domestic ship to addresses only.
- Does not include expedited shipping services.
Key Features
- 24 volt 500 watt

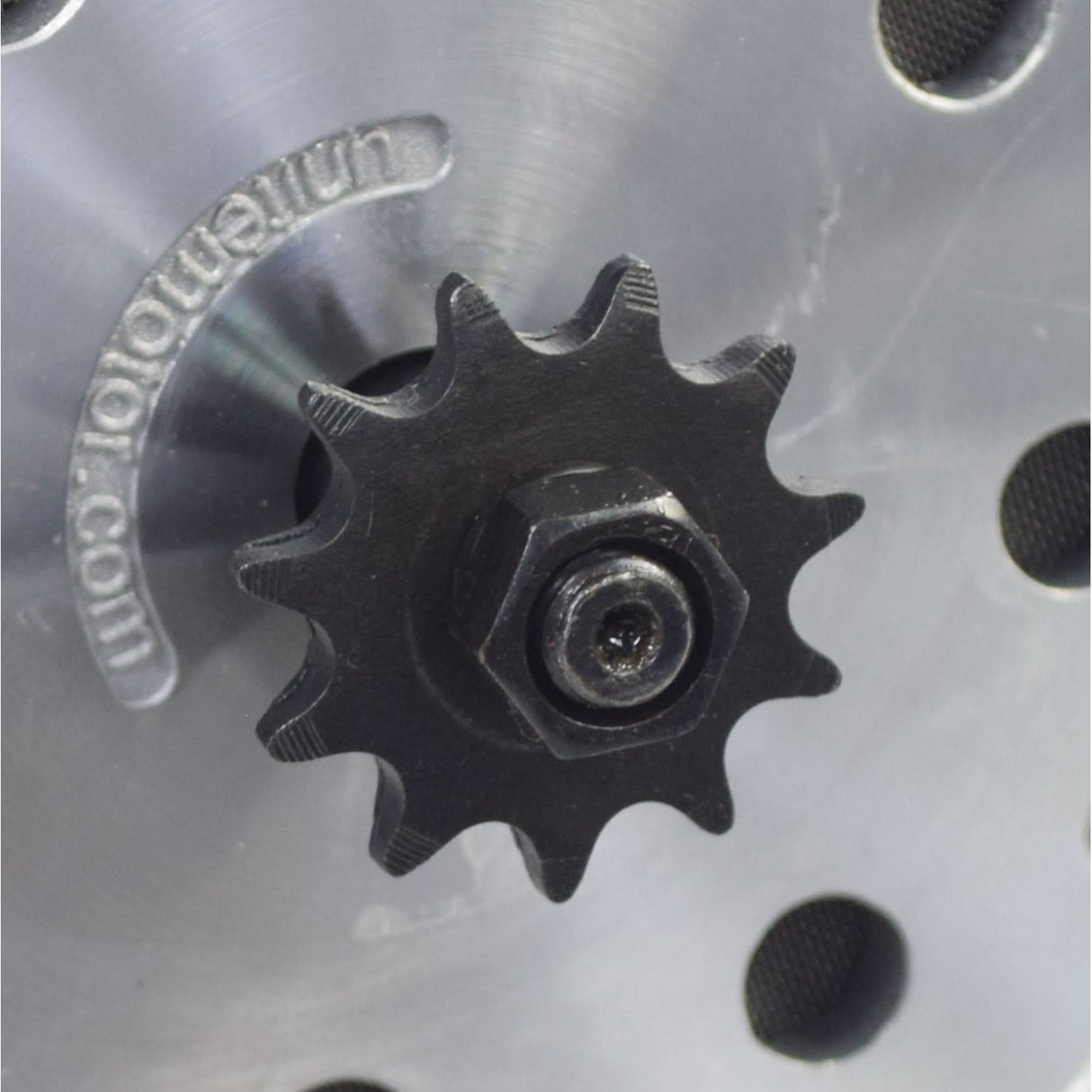

- 11 tooth #25 chain sprocket
- Left or right rotation by reversing wires
- MY1020 motor
- 2500 RPM
Description
Description
24 volt 500 watt MY1020 electric scooter and bike motor with an 11 tooth #25 chain sprocket. Two mounting holes on each front and rear face, four mounting holes total. Mounting hole center to center distance is 3-3/4".
Note: This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires.
.
⚠ WARNING California Residents: Proposition 65 Warning
Note: This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires.
.
⚠ WARNING California Residents: Proposition 65 Warning
Reviews (0)
Reviews (0)
Specifications
Specifications
Model: MY1020
Type: Brush
Voltage: 24 volt DC
Rated Speed: 2500 RPM
Torque: 1.90 N-m
Rated Current: 27.4 amp
Sprocket: #25 Chain 11 Tooth
Output: 500 watts
Case Length: 5-5/16" (135 mm)
Case Diameter: 4-1/4" (108 mm)
Drive Shaft Length: 1-1/8" (28 mm)
Drive Shaft Diameter: 5/16" (8 mm)
Mounting Hole Distance: 3-3/4" (95 mm)
