Unite Motor  |  SKU: C80-8760  | Minimoto: 15573-MIS-309, 23291-MIS-010, 23293-MIS-311

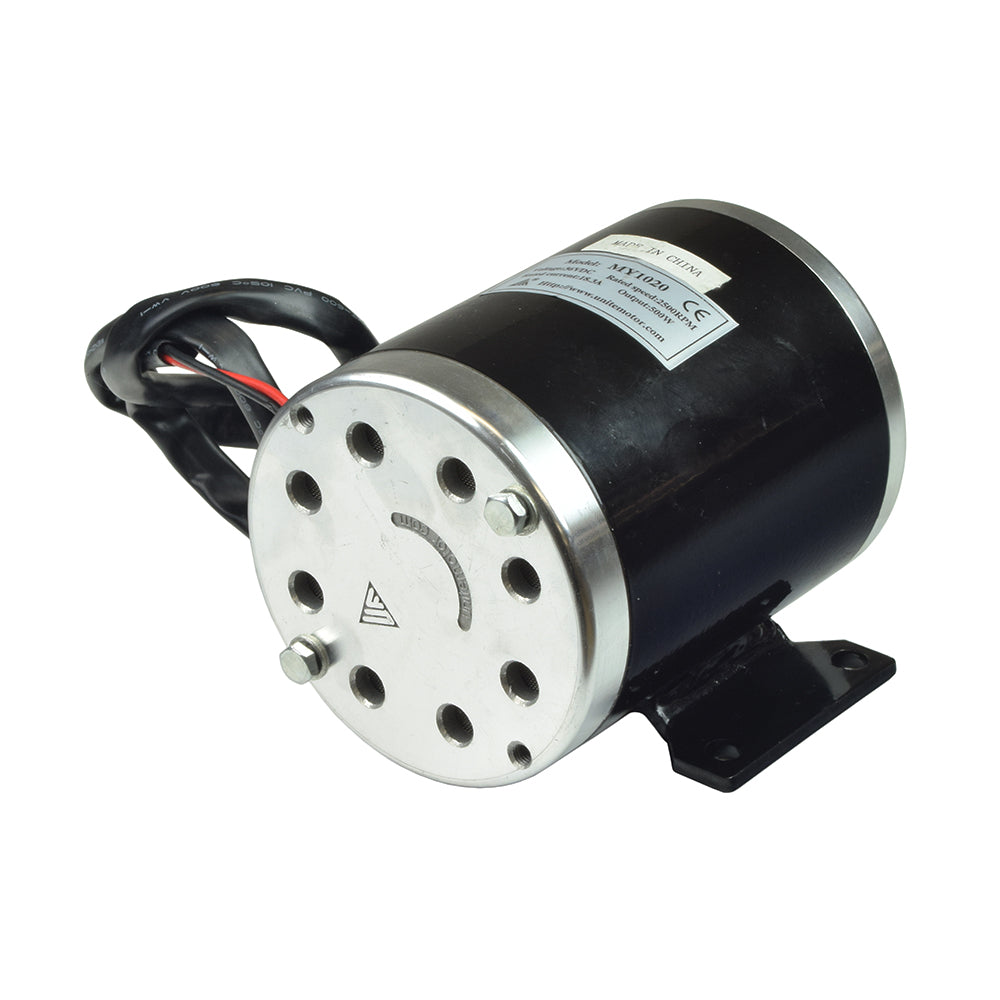

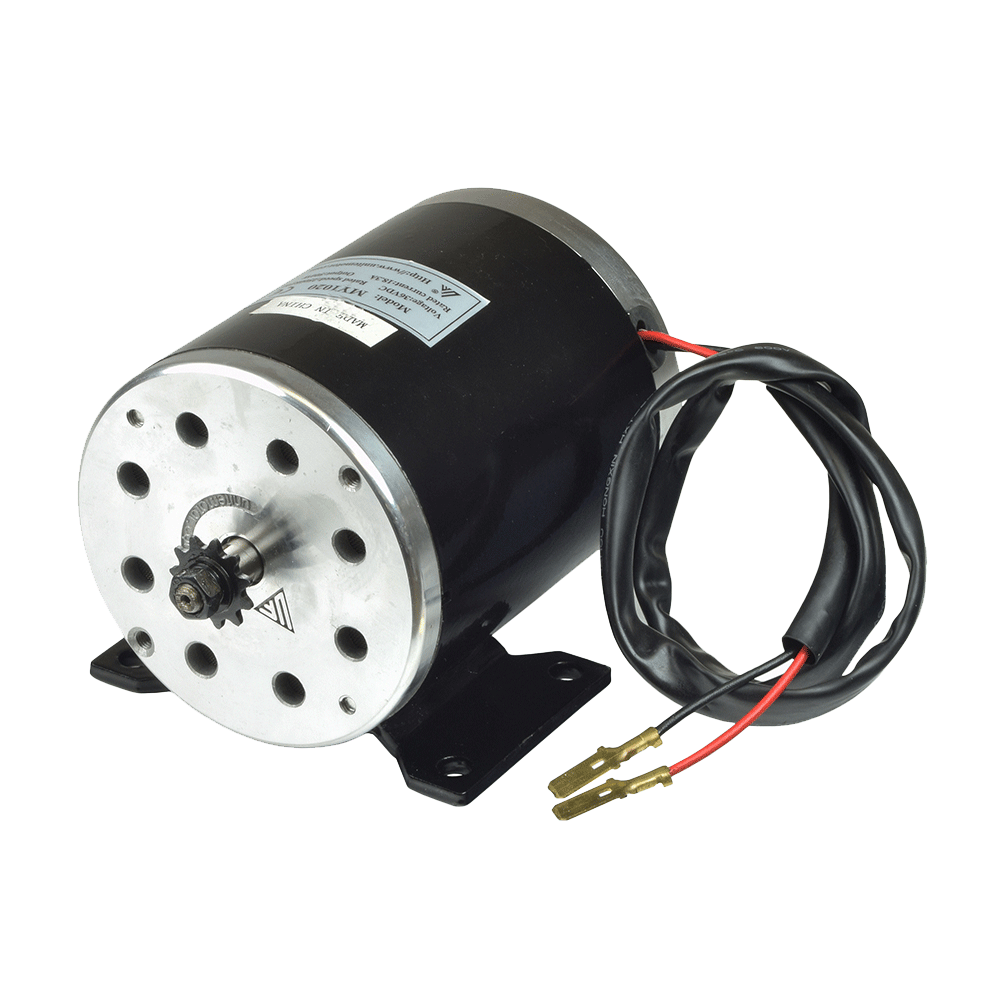

36 Volt 500 Watt MY1020 Electric Motor with 11 Tooth #25 Chain Sprocket & Bracket for Scooters & Bikes

$78.99

  • Save $5 on orders $50+ with coupon code: FIVE
  • Save $10 on orders $100+ with coupon code: TEN

    •
    This item has a 30 day warranty. Warranty Policy

    Free Shipping
    • US domestic ship to addresses only.
    • Does not include expedited shipping services.
    Key Features
    • 36 volt 500 watt
    • 11 Tooth #25 chain sprocket
    • Bracket incuded
    • MY1020 motor for scooters
    • 2500 RPM

    Description
    The 36 volt 500 watt MY1020 electric motor with mounting bracket and #25 chain sprocket works on a number of different models of Minimoto recreational scooters. Please see our compatibility list for more information.

    This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires.

    Note: Mounting hole spacing is approximately 4" x 2-1/4" (four threaded holes). These measurements do NOT line up with the Minimoto Maxii 400's original mounting holes. All customers will need to drill new holes in order to fit this motor.



    Minimoto: 15573-MIS-309, 23291-MIS-010, 23293-MIS-311

    ⚠ WARNING California Residents: Proposition 65 Warning

    Reviews (0)

    Specifications

    Model: MY1020
    Type: Brush
    Voltage: 36 volt
    Rated Speed: 2500 RPM
    Torque: 1.90 N-m
    Rated Current: 18.3 amp
    Sprocket: 11 tooth #25 chain sprocket
    Output: 500 Watts
    Case Length: 5-5/16" (135 mm)
    Case Diameter: 4-1/4" (108 mm)
    Drive Shaft Length: 1-3/16" (30 mm)
    Drive Shaft Diameter: 5/16" (8 mm)
    Bolt Hole Distance (Adjacent): 3-1/4" (83 mm)
    Bolt Hole Distance (Cross Bracket): 1-3/4" (45 mm)

    Compatibility
