Unite Motor | SKU:
C80-8837

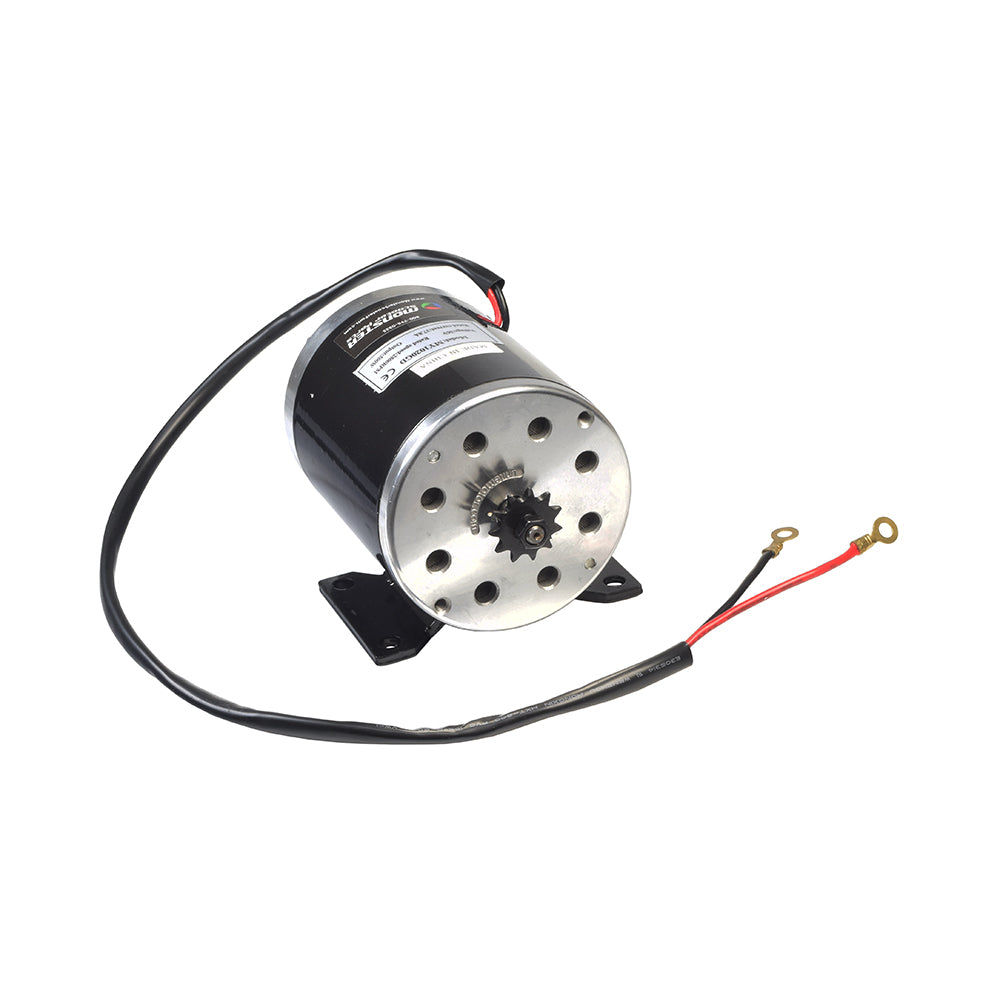

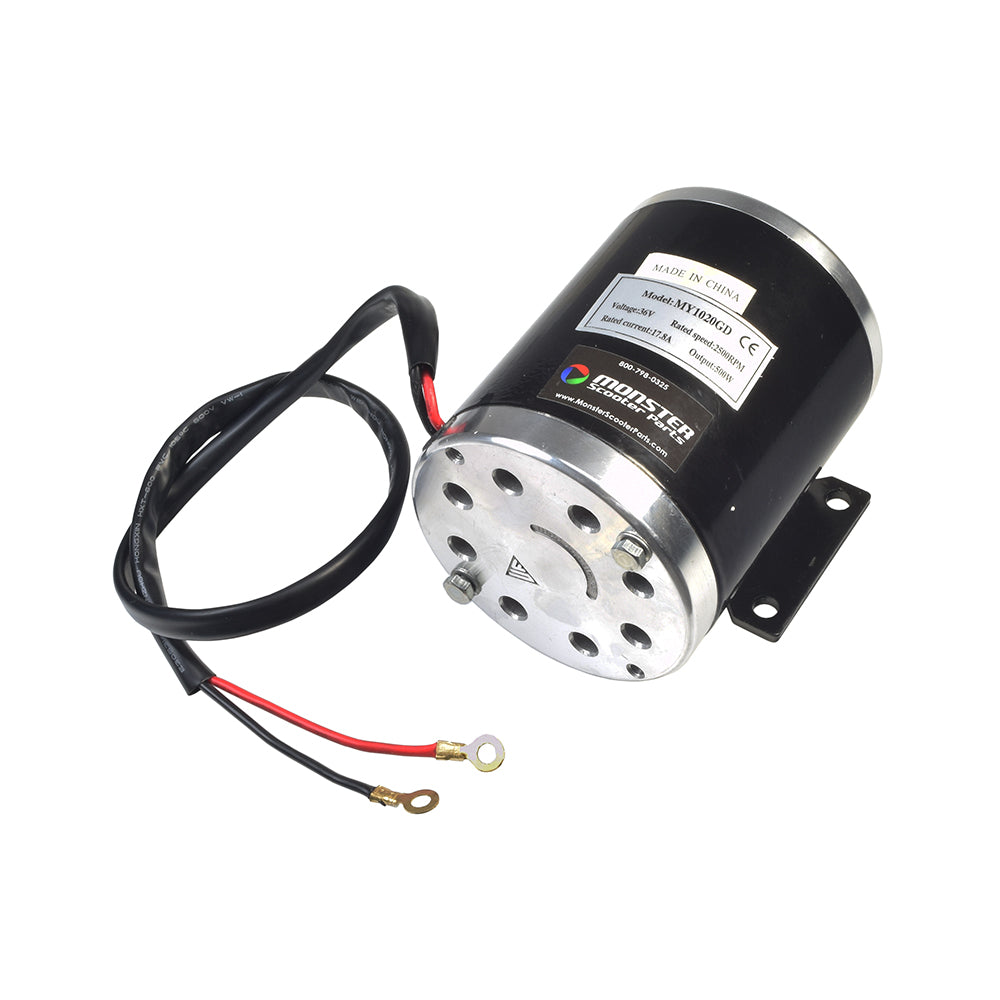

36 Volt 500 Watt MY1020 Electric Motor with 11 Tooth 8mm 05T Chain Sprocket & Bracket for Scooters, Bikes, & Go-Karts
$97.99
Unit price
/
Unavailable
36 Volt 500 Watt MY1020 Electric Motor with 11 Tooth 8mm 05T Chain Sprocket & Bracket for Scooters, Bikes, & Go-Karts is backordered and will ship as soon as it is back in stock.
Free Shipping
Free Shipping
- US domestic ship to addresses only.
- Does not include expedited shipping services.
Key Features
- Powerful 500 watt MY1020 electric motor for scooters
- 11-tooth 8mm 05T chain sprocket
- Bracket included
- Round eye connectors on wires
- 2500 RPM
Description
Description
The 36 volt 500 watt MY1020 electric motor with an 11-tooth 8mm 05T chain sprocket and bracket works on a number of different recreational scooters. Additionally, a high output 36 volt motor such as this one can be used in a wide range of custom applications and garage-build projects. Matched with three 12 volt batteries, a universal DC 36V motor controller, and matching hand throttle, and you will have the makings of a fine machine.
This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires.
Note: Mounting hole spacing is approximately 4" x 2-1/4" (four threaded holes).
⚠ WARNING California Residents: Proposition 65 Warning
This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires.
Note: Mounting hole spacing is approximately 4" x 2-1/4" (four threaded holes).
⚠ WARNING California Residents: Proposition 65 Warning
Reviews (0)
Reviews (0)
Specifications
Specifications
Model: MY1020GD
Type: Brush
Voltage: 36 volt
Rated Speed: 2500 RPM
Torque: 1.90 N-m
Rated Current: 17.8 amp
Sprocket: 11 tooth 8mm 05T chain sprocket
Output: 500 Watts
Case Length: 5-5/16" (135 mm)
Case Diameter: 4-1/4" (108 mm)
Drive Shaft Length: 1" (25.4 mm)
Drive Shaft Diameter: 1/2" (12.7 mm)
Bolt Hole Distance (Adjacent): 4" (102 mm)
Bolt Hole Distance (Cross Bracket): 2-1/4" (57 mm)
