36 Volt 1000 Watt MY1020 Electric Motor with 11 Tooth 8 mm 05T Chain Sprocket & Bracket for Scooters, Bikes, & Go-Karts
36 Volt 1000 Watt MY1020 Electric Motor with 11 Tooth 8 mm 05T Chain Sprocket & Bracket for Scooters, Bikes, & Go-Karts is backordered and will ship as soon as it is back in stock.
Free Shipping
Free Shipping
- US domestic ship to addresses only.
- Does not include expedited shipping services.
36 Volt 1000 Watt MY1020 Electric Motor with 11 Tooth 8 mm 05T Chai...
Key Features
- 36 volt 1000 watt

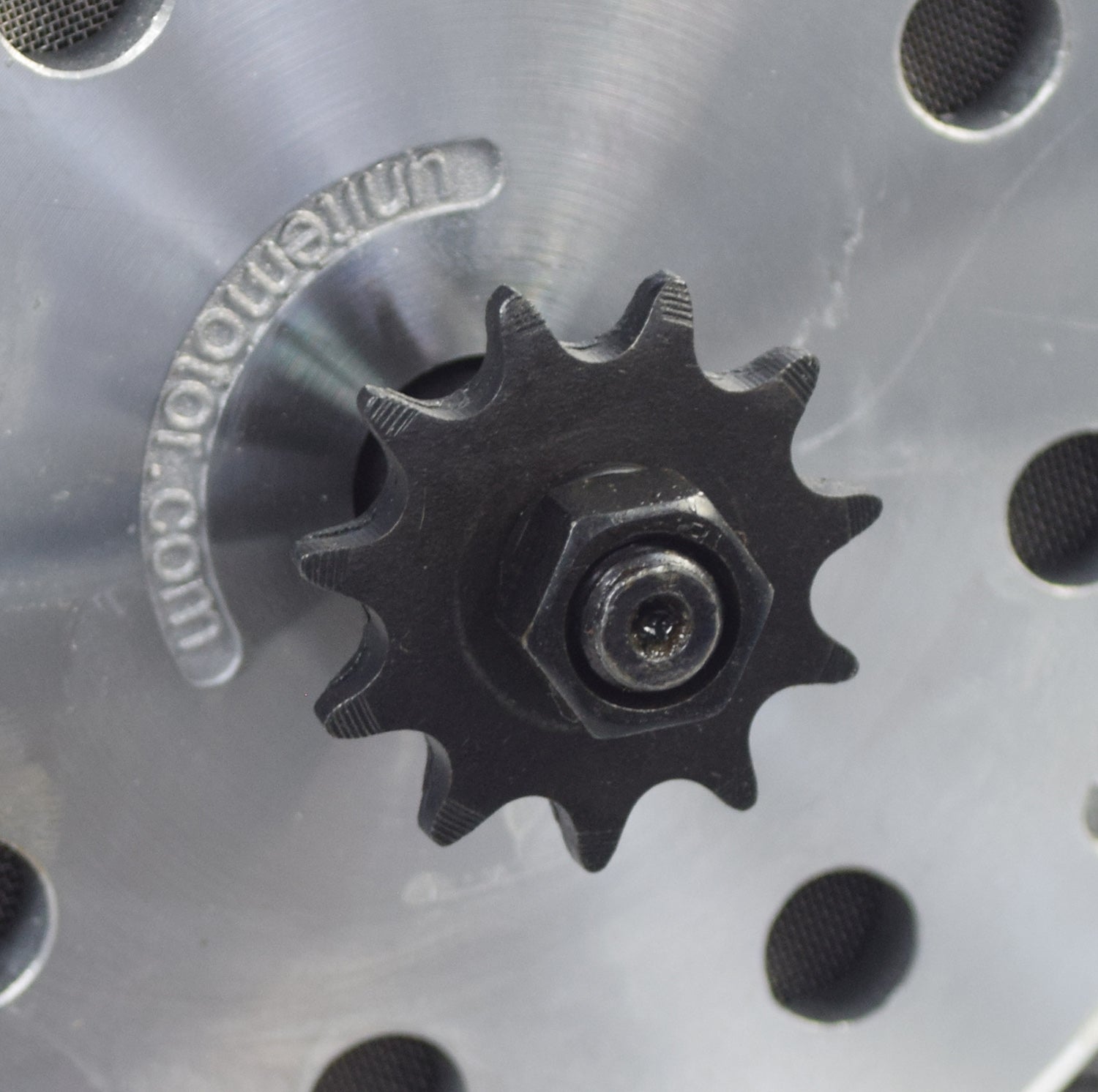

- 11 tooth 8 mm 05T chain sprocket
- Mounting bracket
- MY1020 motor for electric scooters
- 3000 RPM
Description
Description

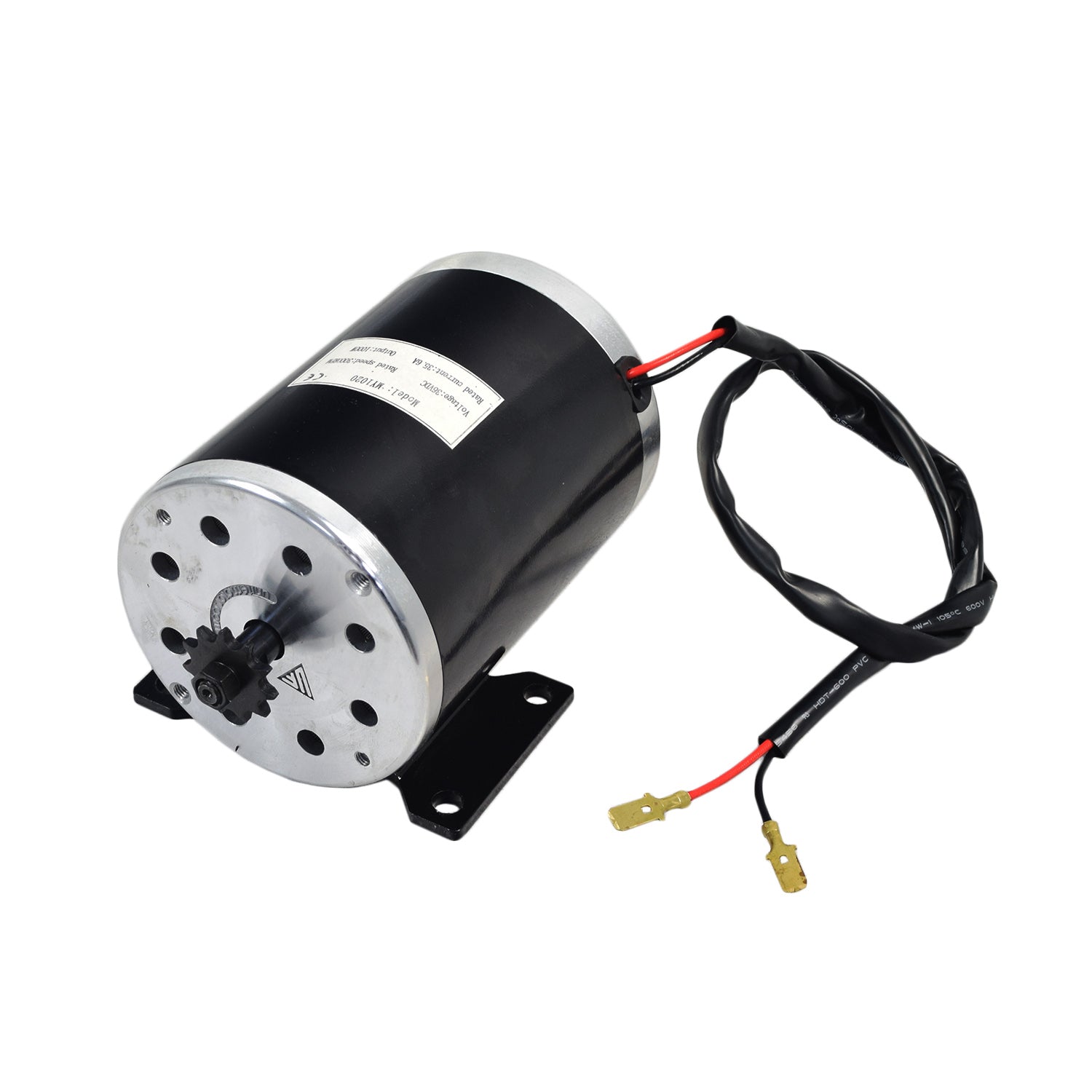

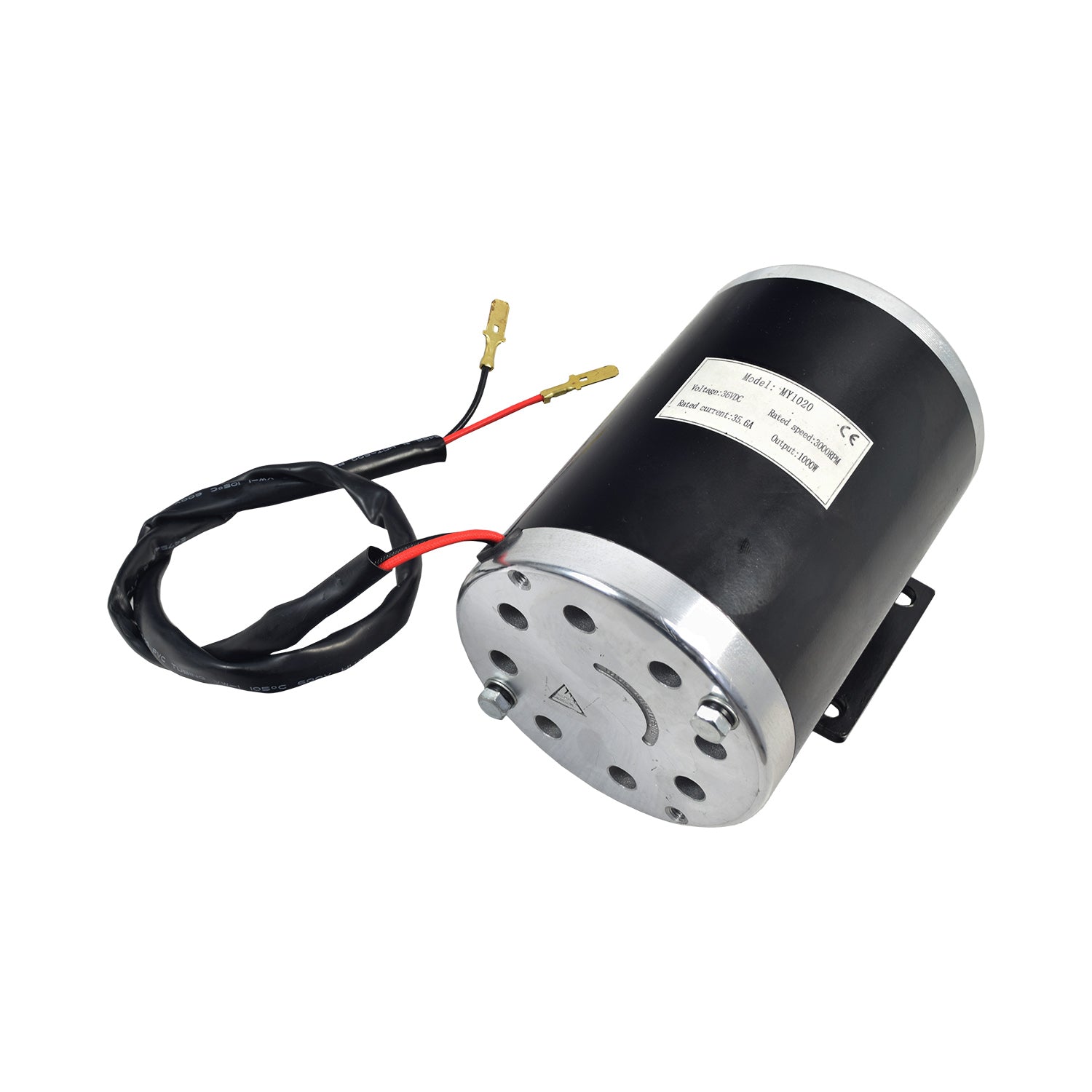

This 36 volt 1000 watt MY1020 electric motor comes with an 11 tooth 8 mm 05T chain sprocket and a mounting bracket. It is used on electric scooters such as the Super Turbo 1000 Elite, and it can also power electric bikes and go-karts.
The motor is rated at 3000 RPM. It can run clockwise or counterclockwise: reverse the motor's power wires to change the direction of rotation.
Check that your scooter uses a 36 volt system and an 05T chain before ordering.
⚠ WARNING California Residents: Proposition 65 Warning
Reviews (1)
Reviews (1)
Specifications
Specifications

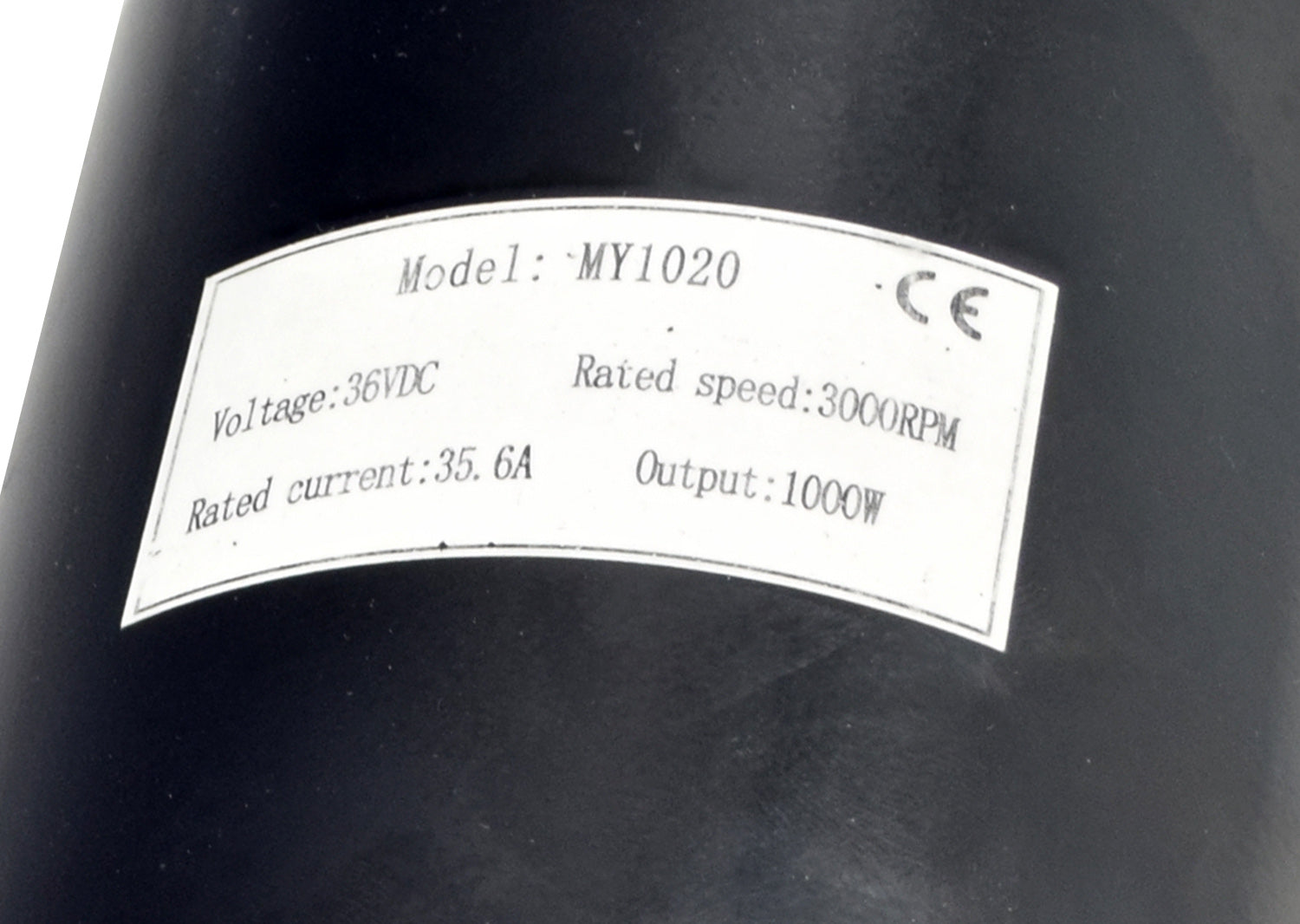

Model: MY1020
Type: Brush
Voltage: 36 Volt DC
Rated Speed: 3000 RPM
Rated Current: 35.6 Amp
Sprocket: 8 Mm 05T Chain
Output: 1000 Watts
Case Length: 5-7/8" (150 mm)
Case Diameter: 4-1/4" (108 mm)
Drive Shaft Length: 1" (25 mm)
Drive Shaft Diameter: 5/16" (8 mm)
Bolt Hole Distance (Adjacent): 2-1/4" (56 mm)
Bolt Hole Distance (Cross Bracket): 4" (102 mm)
