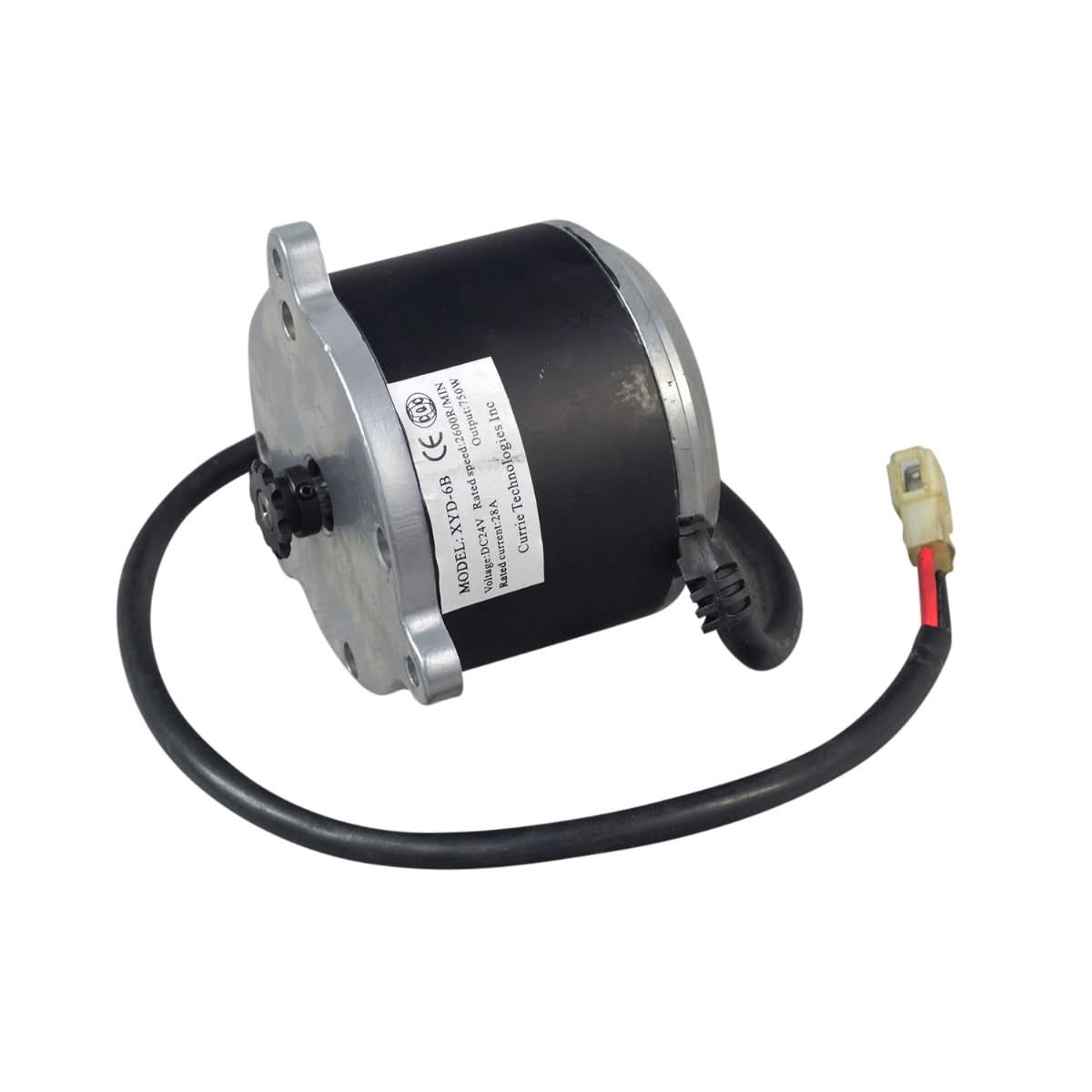

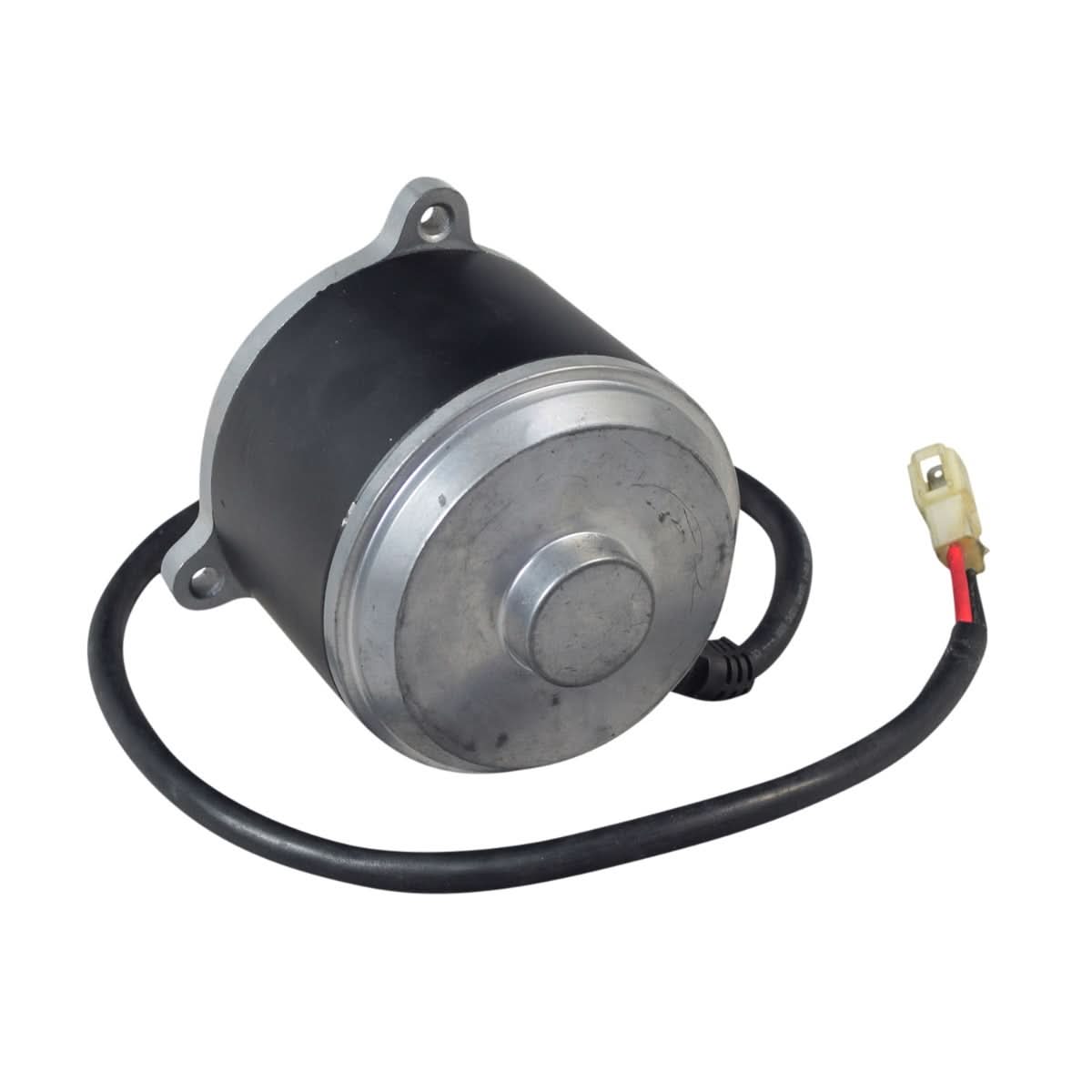

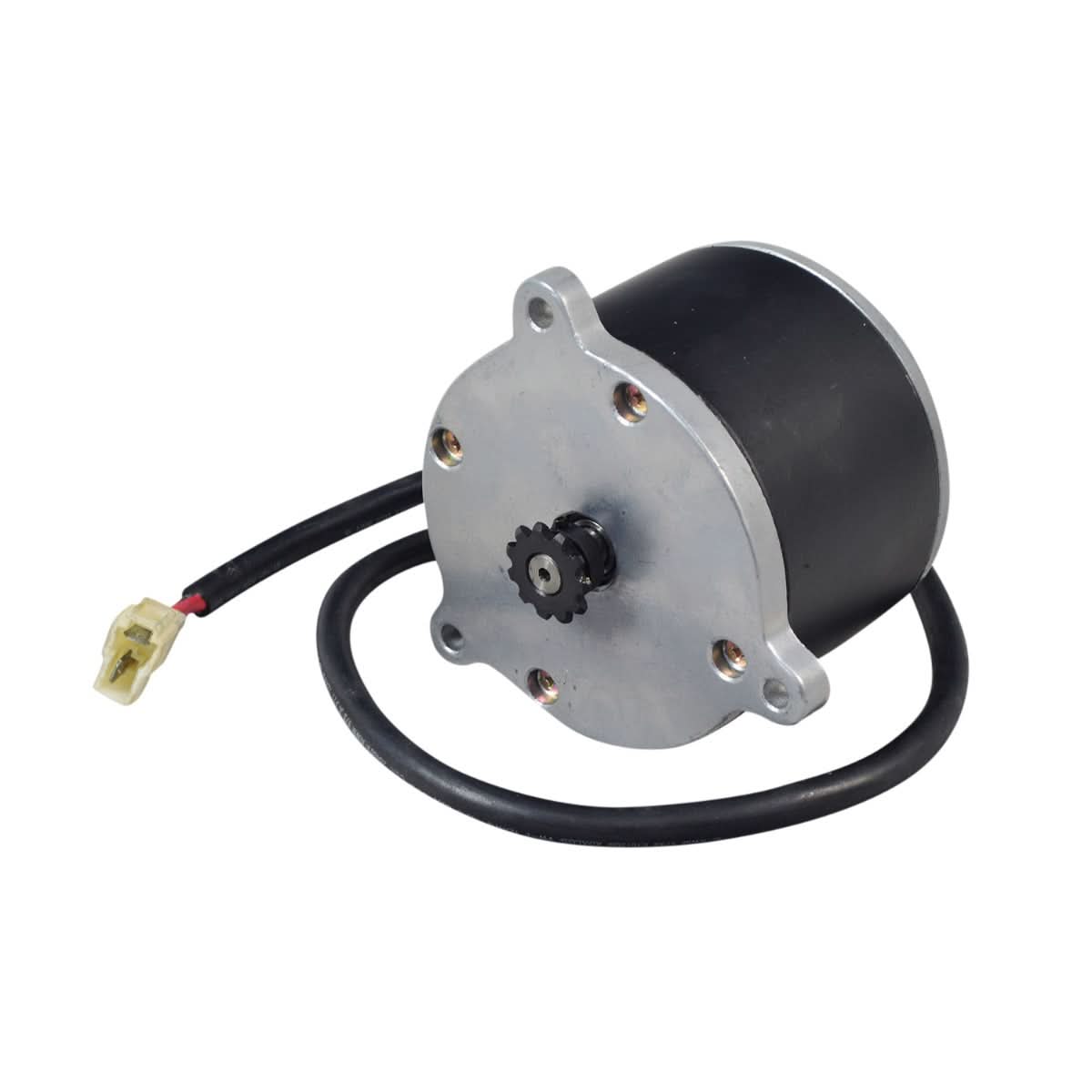

24 Volt 750 Watt XYD-6B Electric Motor with 11 Tooth #25 Chain Sprocket
$79.99
Unit price
/
Unavailable
24 Volt 750 Watt XYD-6B Electric Motor with 11 Tooth #25 Chain Sprocket is backordered and will ship as soon as it is back in stock.
Veterans Day Sale - Save 11% with Coupon Code: VET11
Free Shipping
Free Shipping
- US domestic ship to addresses only.
- Does not include expedited shipping services.
Key Features
- 24 volt 750 watt
- 11 tooth #25 chain sprocket
- XYD-6B motor
- 2600 RPM
Description
Description
This motor has great adaptability, it will work with all the Currie OEM and Currie compatible parts.
This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires.
Currie: MT-24750-001S
⚠ WARNING California Residents: Proposition 65 Warning
This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires.
Currie: MT-24750-001S
⚠ WARNING California Residents: Proposition 65 Warning
Reviews (0)
Reviews (0)
Specifications
Specifications
Model: XYD-6B Motor
Type: Brush
Voltage: 24 volt DC
Rated Speed: 2600 RPM
Rated Current: 28 amp
Output: 750 watts
Rotation: Reversible
Sprocket: 11 tooth #25 chain sprocket
Case Length: 3-3/4" (95 mm)
Case Diameter: 3-15/16" (100 mm)
Drive Shaft Length: 1/2" (13 mm)
Drive Shaft Diameter: 3/8" (10 mm)
Mounting Hole Distance: 3-15/16" (100 mm)
