Unite Motor | SKU:
M01-115

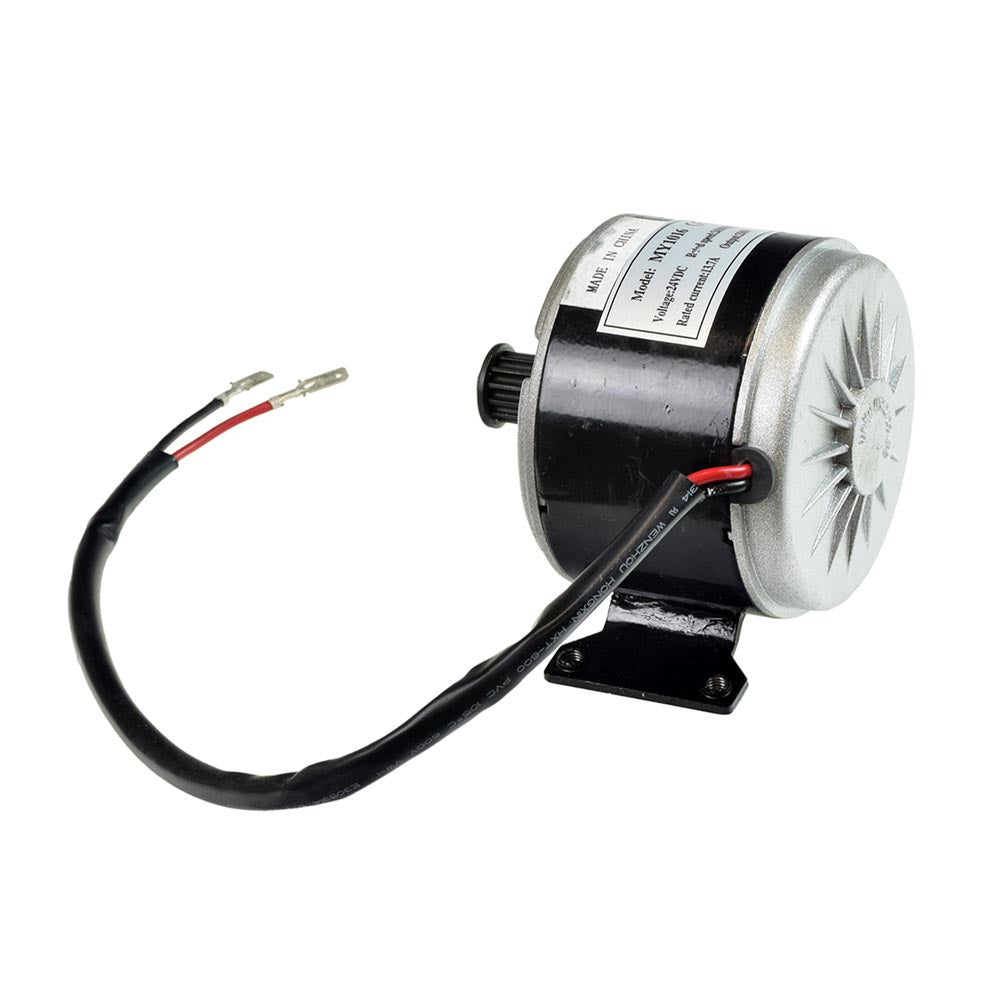

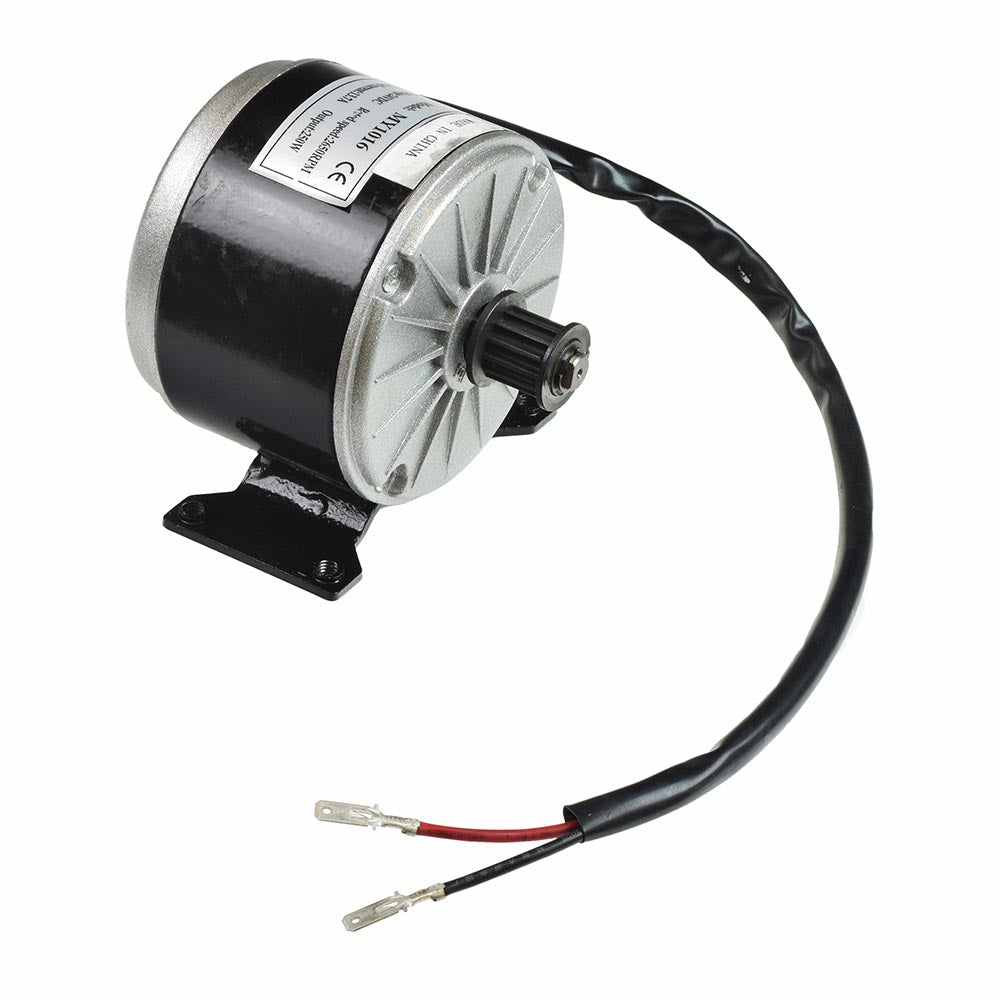

24 Volt 250 Watt MY1016 Electric Motor with 5M Belt Sprocket
$47.99
Unit price
/
Unavailable
24 Volt 250 Watt MY1016 Electric Motor with 5M Belt Sprocket is backordered and will ship as soon as it is back in stock.
Pre-Black Friday Sale - Save 15% with coupon code: PBF15
Free Shipping
Free Shipping
- US domestic ship to addresses only.
- Does not include expedited shipping services.
Key Features
- 24 volt 250 watt
- 5M belt sprocket
- MY1016 motor
- 2600-2850 RPM
- Includes bracket
Description
Description
24 volt 250 watt MY1016 electric motor with a 5M (5 mm) pitch belt sprocket. Please not this motor is not compatible with the Razor Ground Force Go-Kart. The early version of the Ground Force was equipped with a 3M belt sprocket, and the later versions are chain drive machines.
Note: This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires.
⚠ WARNING California Residents: Proposition 65 Warning
Note: This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires.
⚠ WARNING California Residents: Proposition 65 Warning
Reviews (1)
Reviews (1)
Specifications
Specifications
Model: MY1016
Voltage: 24 volt DC
Rated Speed: 2750 RPM
Rated Current: 13.5-13.7 amp
Motor torque: 0.86 N-m
Sprocket: 5M belt sprocket
Output: 250 watts
Case Length: 3-3/8" (85 mm)
Case Diameter: 3-15/16" (100 mm)
Bolt Hole Distance (Adjacent): 3-3/4" (96 mm)
Bolt Hole Distance (Cross Bracket): 1-5/8" (42 mm)
