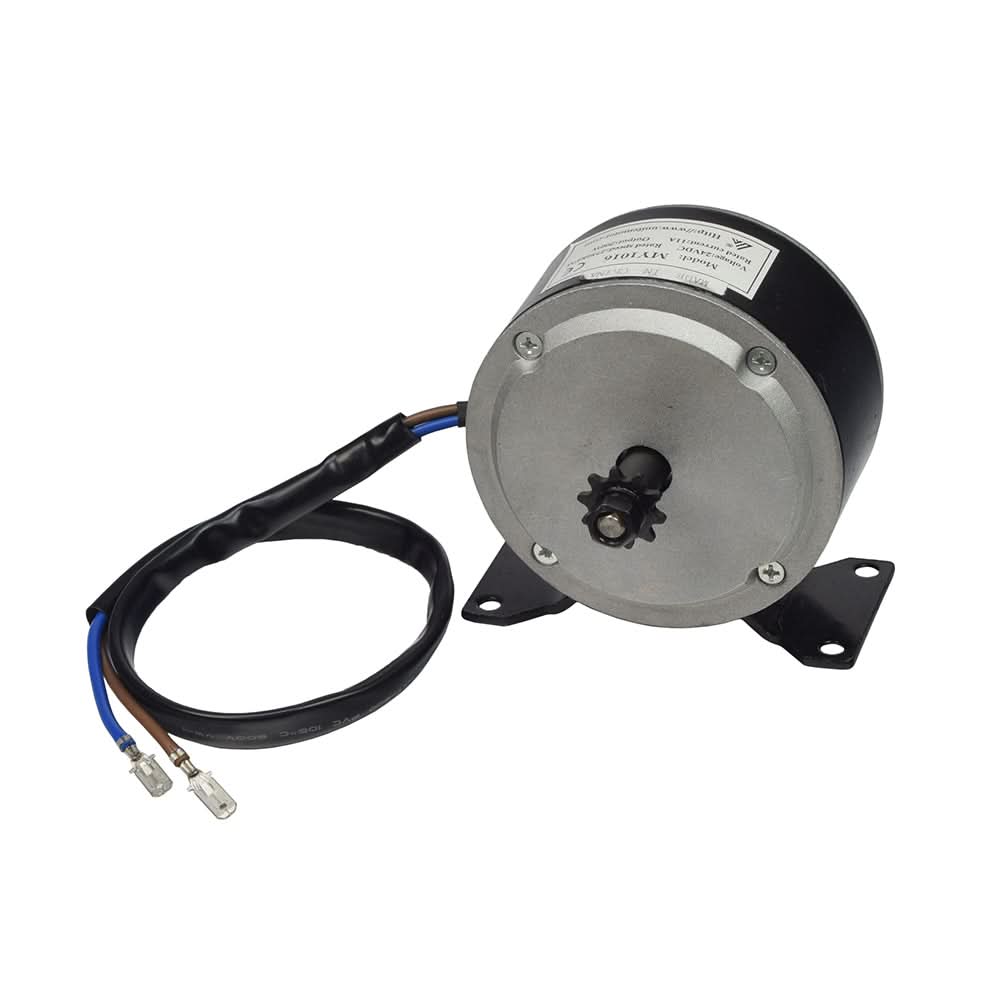

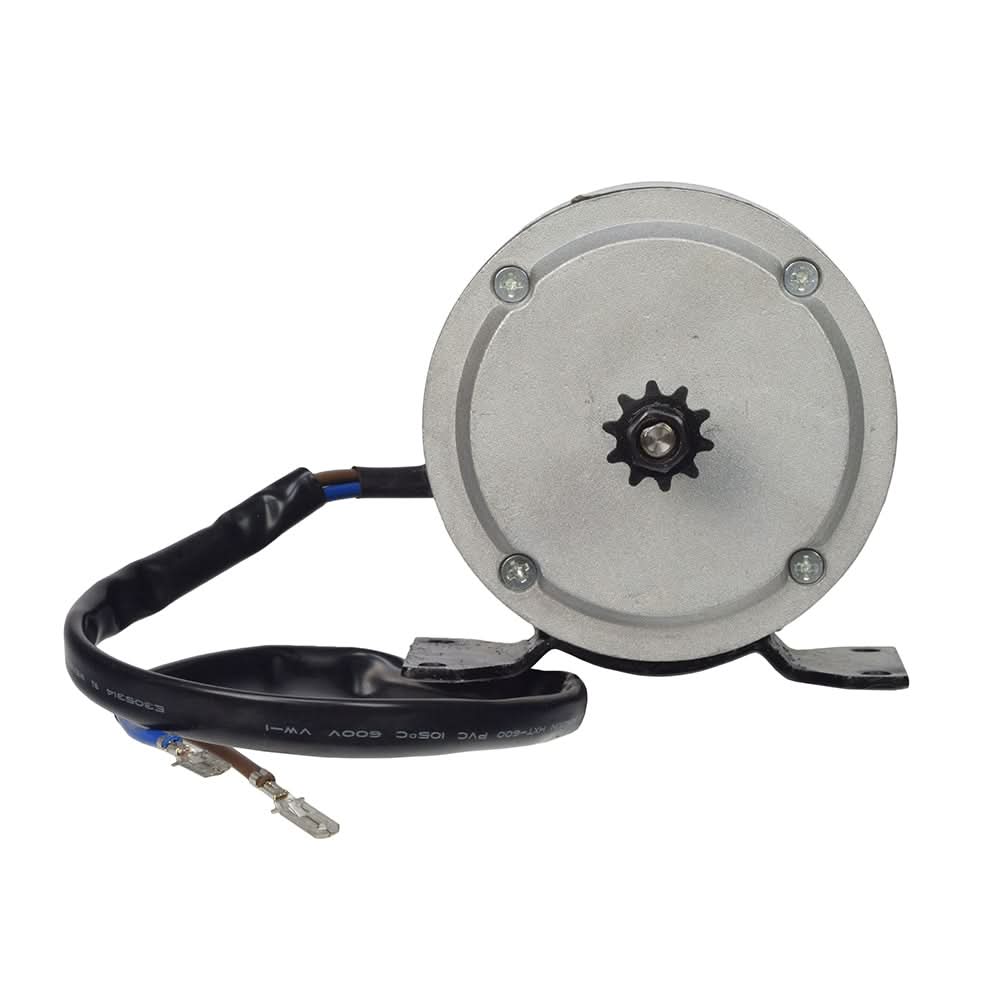

24 Volt 200 Watt MY1016 Electric Motor with 10 Tooth #25 Chain Sprocket
$26.59
$37.99
Unit price
/
Unavailable
24 Volt 200 Watt MY1016 Electric Motor with 10 Tooth #25 Chain Sprocket is backordered and will ship as soon as it is back in stock.
Veterans Day Sale - Save 11% with Coupon Code: VET11
Free Shipping
Free Shipping
- US domestic ship to addresses only.
- Does not include expedited shipping services.
Key Features
- 10 tooth #25 chain sprocket
- 200 watt
- 2750 RPM
- Left or right rotation by reversing wires
- MY1016 motor
Description
Description
The 24 volt 200 watt MY1016 electric motor with a 10 tooth #25 chain sprocket is a great motor for a custom scooter project. Most motors of this class sport a standard 11-tooth sprocket, but this little gem just rises above the herd with its 10-tooth chain pusher.
A good rule of thumb to use with scooter motors and their sprockets is: the fewer the teeth, the higher the top speed, but slower the initial acceleration. The more teeth, the faster the acceleration, but the slower the top speed.
This motor comes with the pre-installed mounting bracket, male tab wire connectors, and it is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires.
⚠ WARNING California Residents: Proposition 65 Warning
A good rule of thumb to use with scooter motors and their sprockets is: the fewer the teeth, the higher the top speed, but slower the initial acceleration. The more teeth, the faster the acceleration, but the slower the top speed.
This motor comes with the pre-installed mounting bracket, male tab wire connectors, and it is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires.
⚠ WARNING California Residents: Proposition 65 Warning
Reviews (0)
Reviews (0)
Specifications
Specifications
Model: MY1016
Type: Brush
Voltage: 24 volt DC
Torque: 0.68 N-m
Rated Speed: 2750 RPM +/- 5%
Rated Current: 11.0A
Sprocket: 10 tooth #25 chain sprocket
Output: 200 watts
