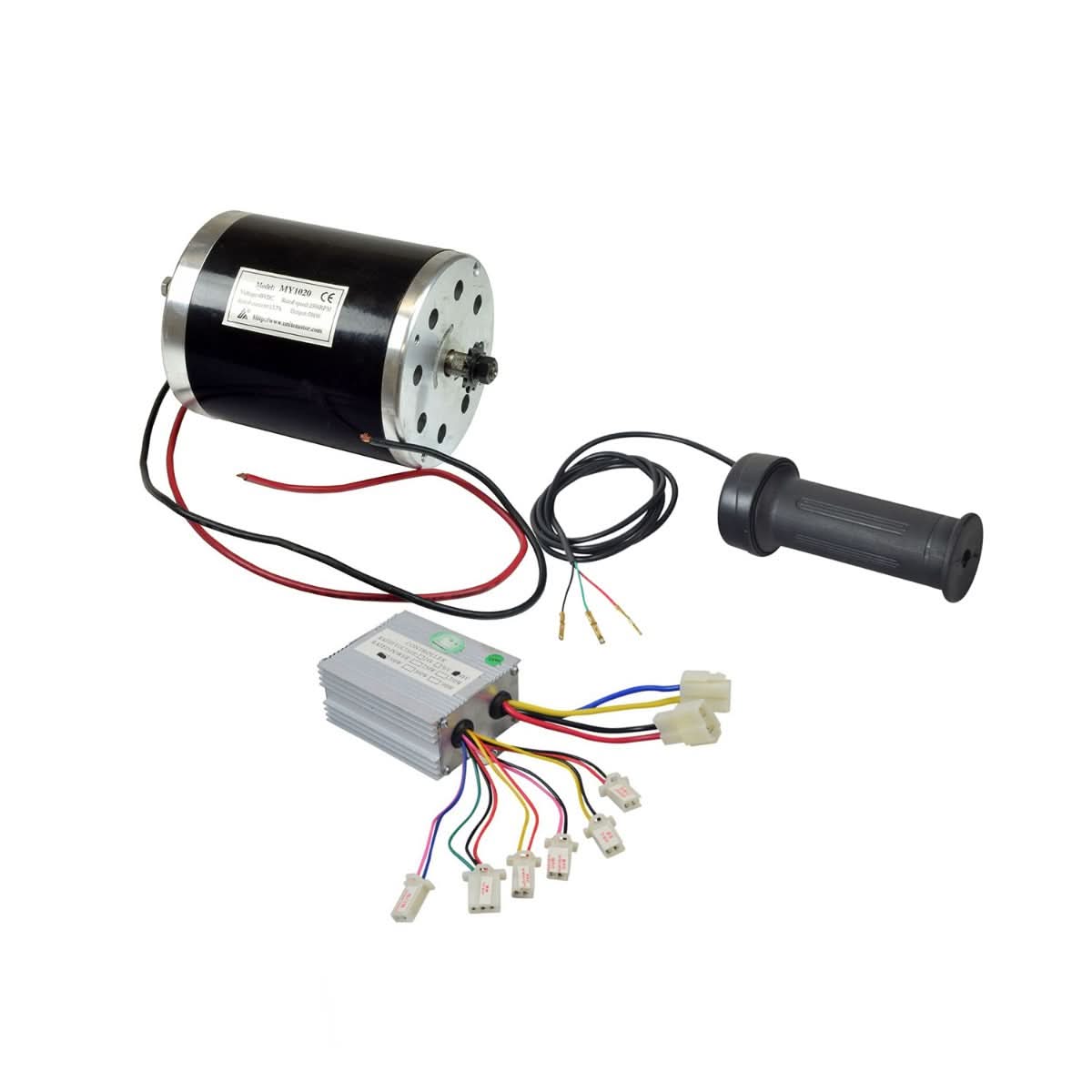

48 Volt 500 Watt Motor, Controller, & Throttle Kit for scooters & Bikes

Save some money when you purchase this great 48 Volt 500 Watt motor, controller, & throttle kit. All three items at one low price.

C80-8733

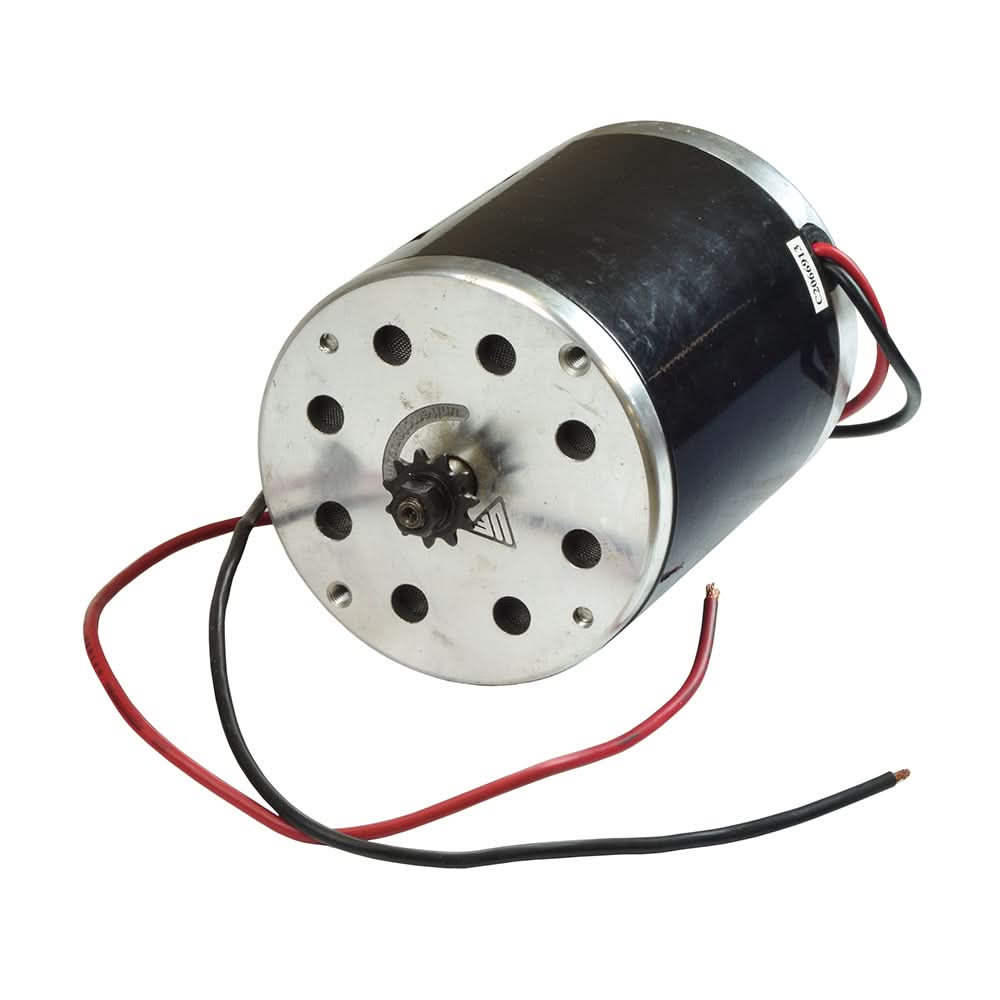

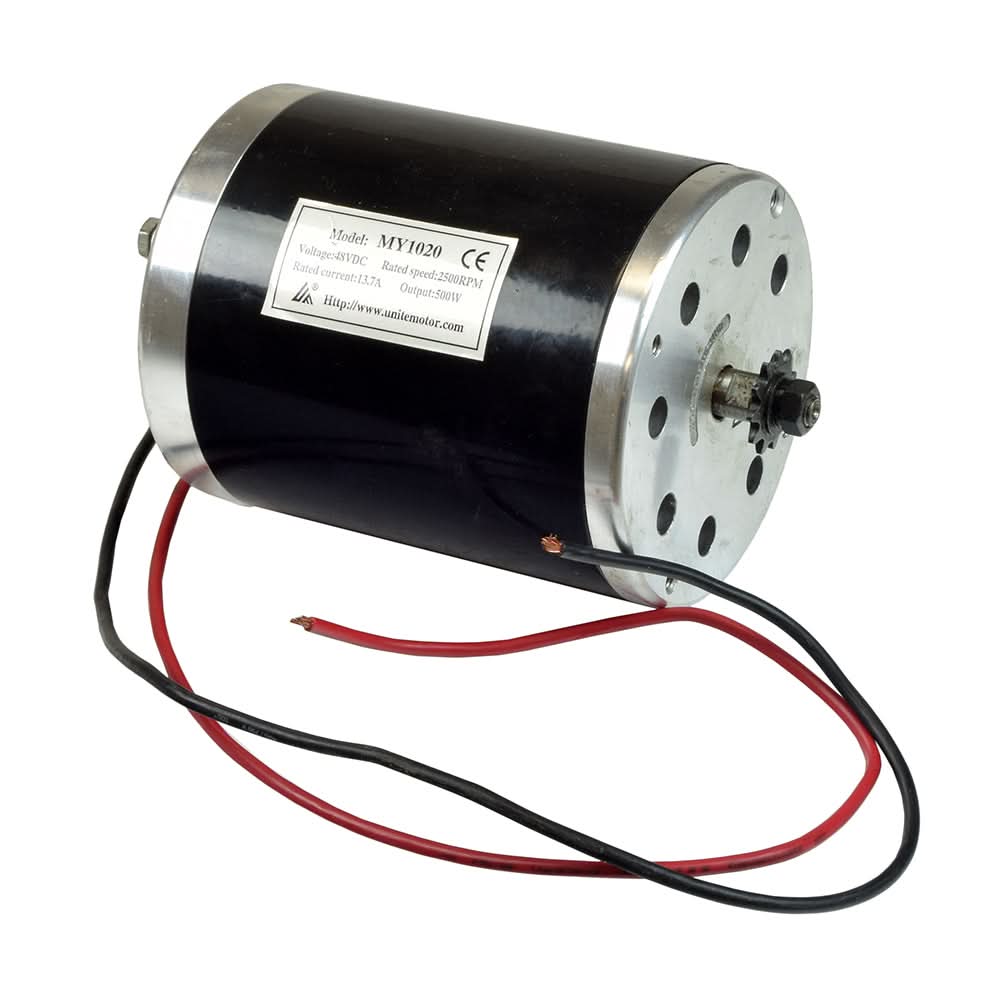

48 Volt 500 Watt Electric Motor with 11 Tooth 8 mm 05T Chain Sprocket (MY1020) Here is a great electric powerhouse for for electric scooters and bikes.

Note: This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires.

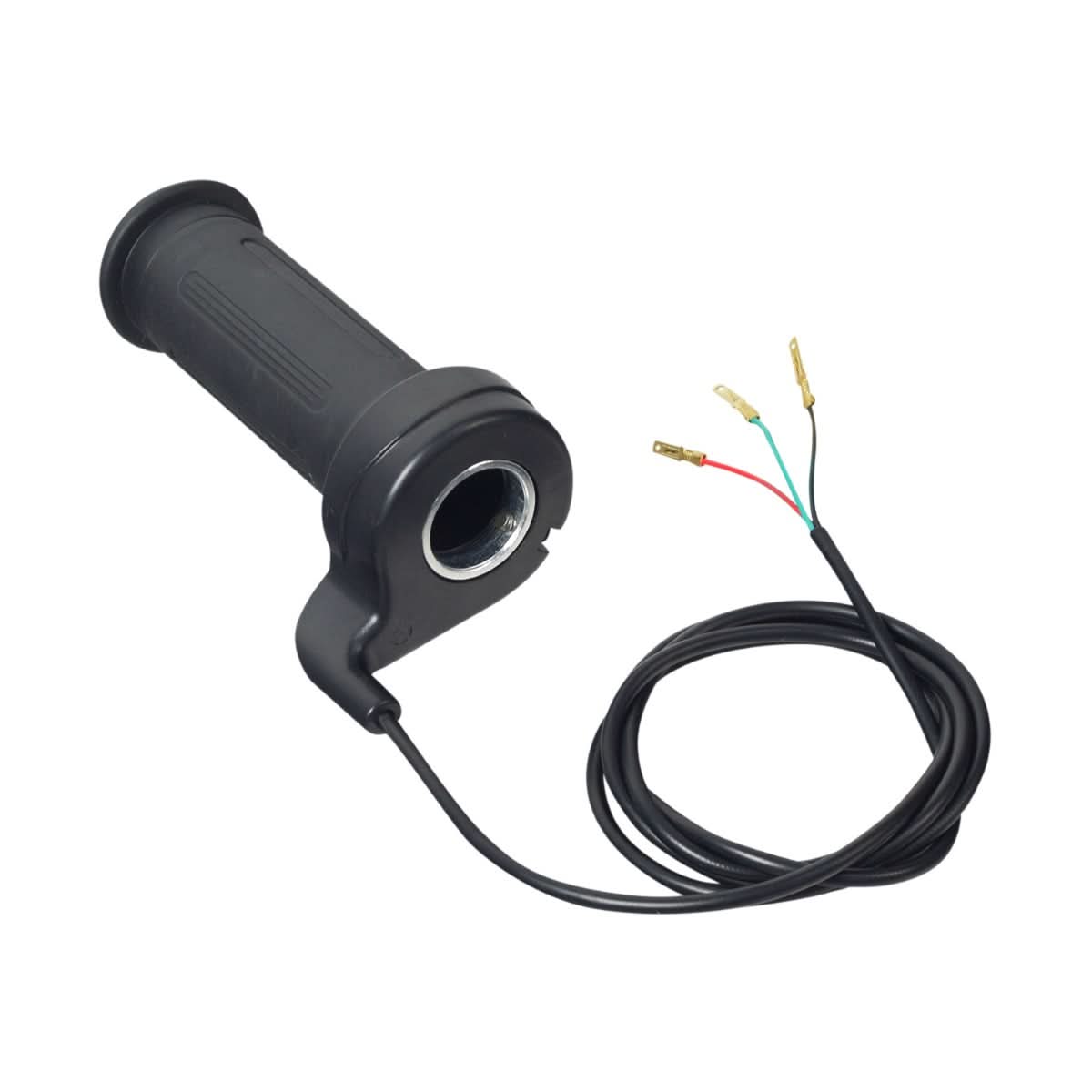

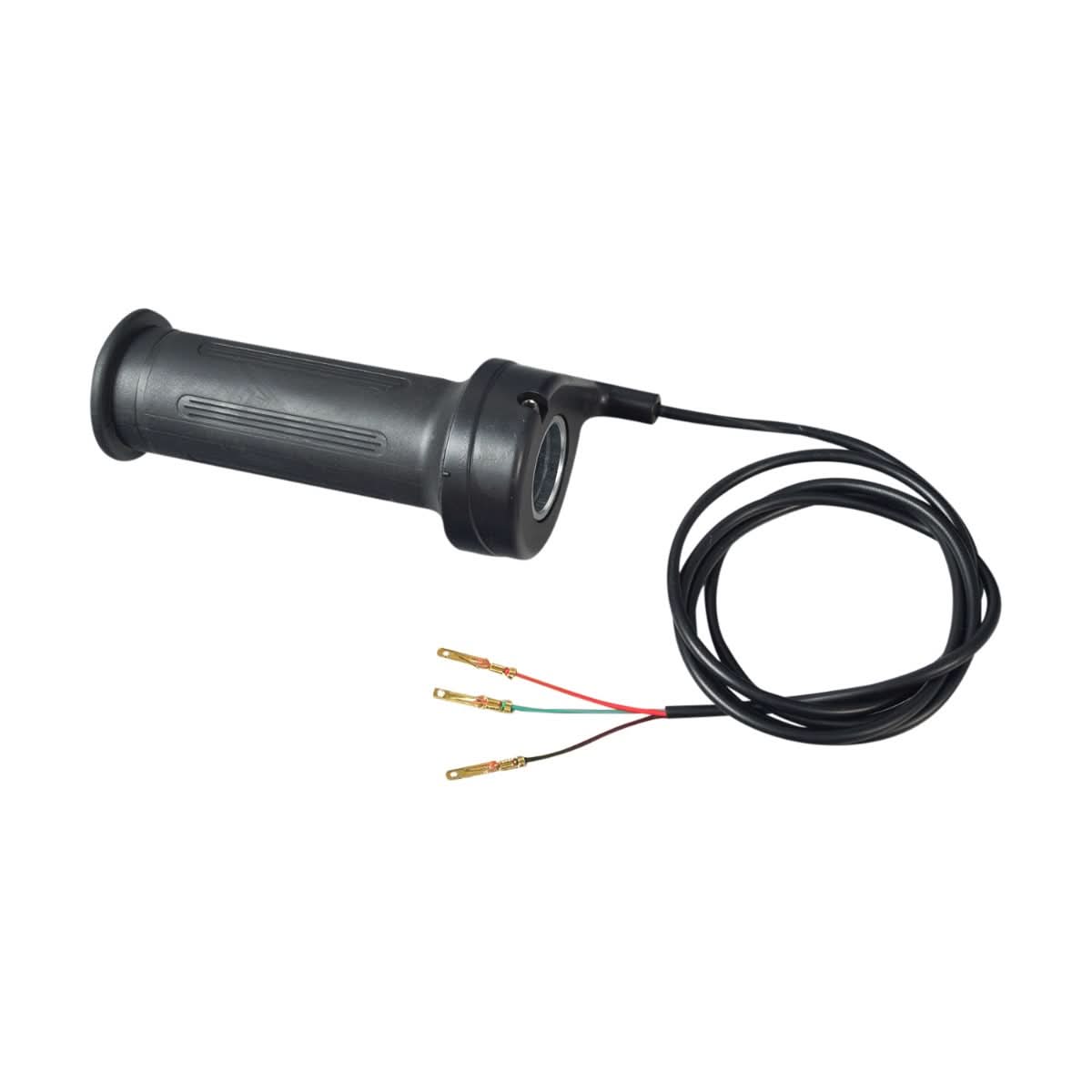

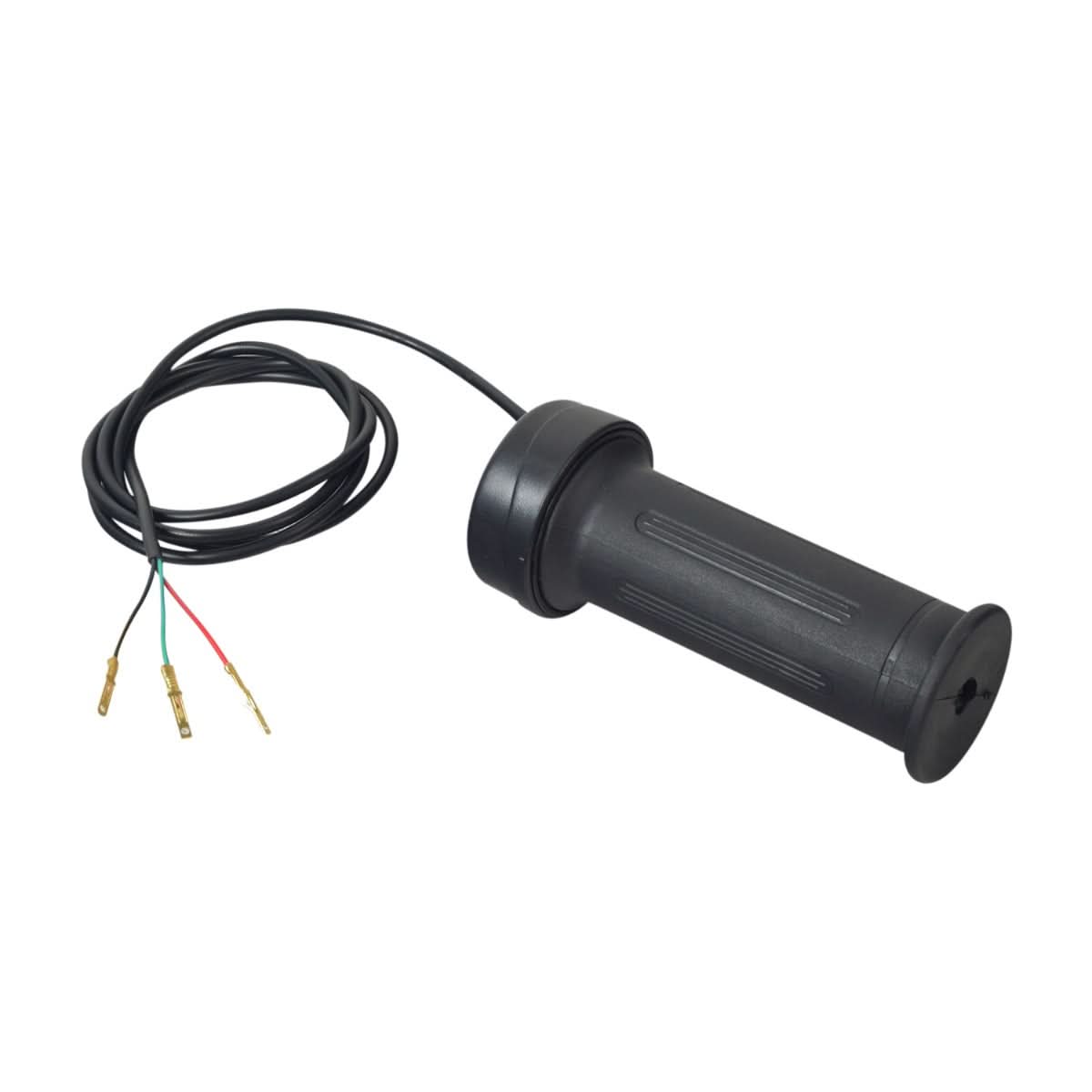

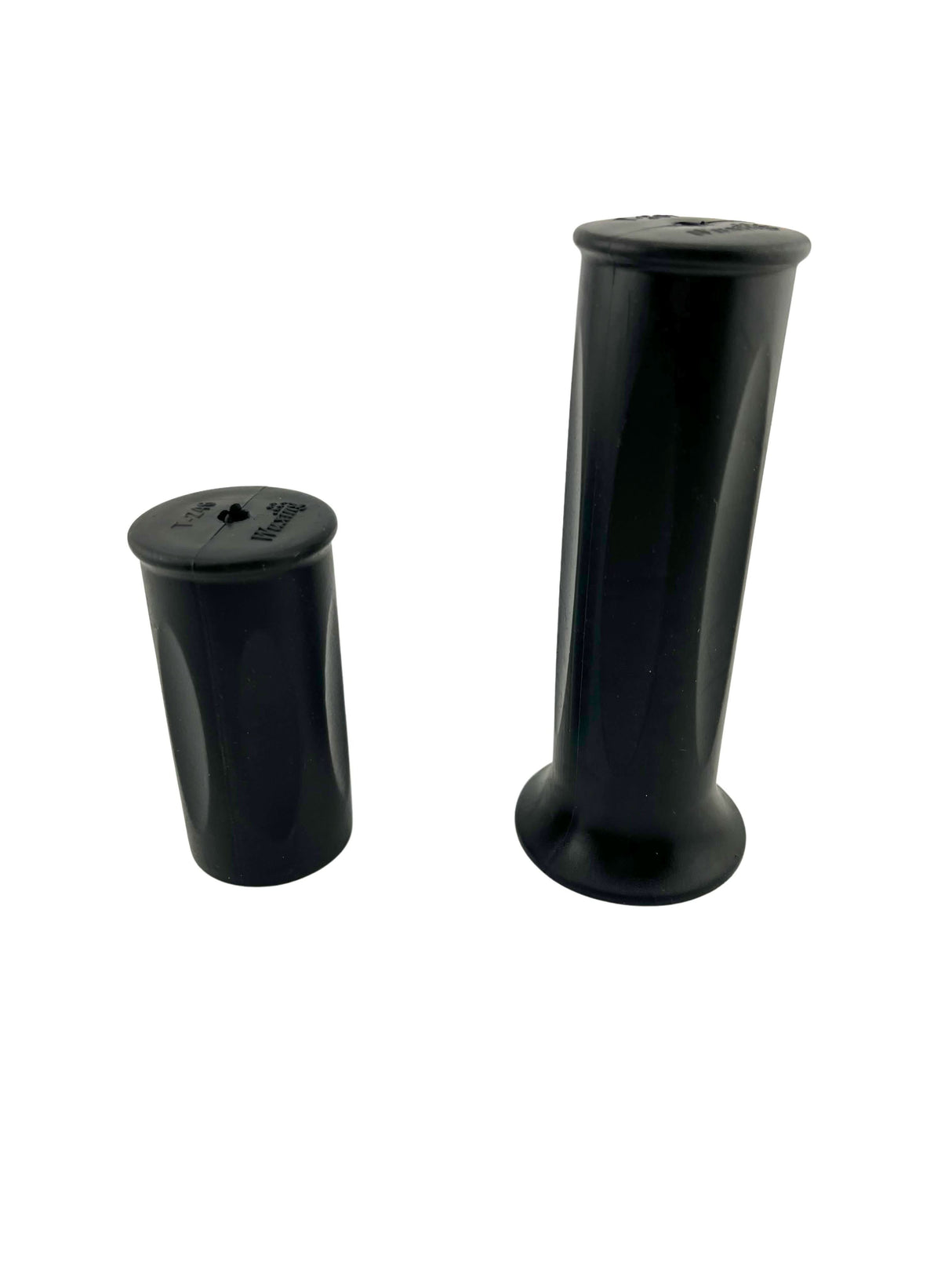

T53-6119 (Full Grip Throttle)
Hand Throttle with 3 Wires
Electric scooter, pocket bike, and dirt bike 3 wire hand throttle. This is the most common type of throttle used on electric scooters.

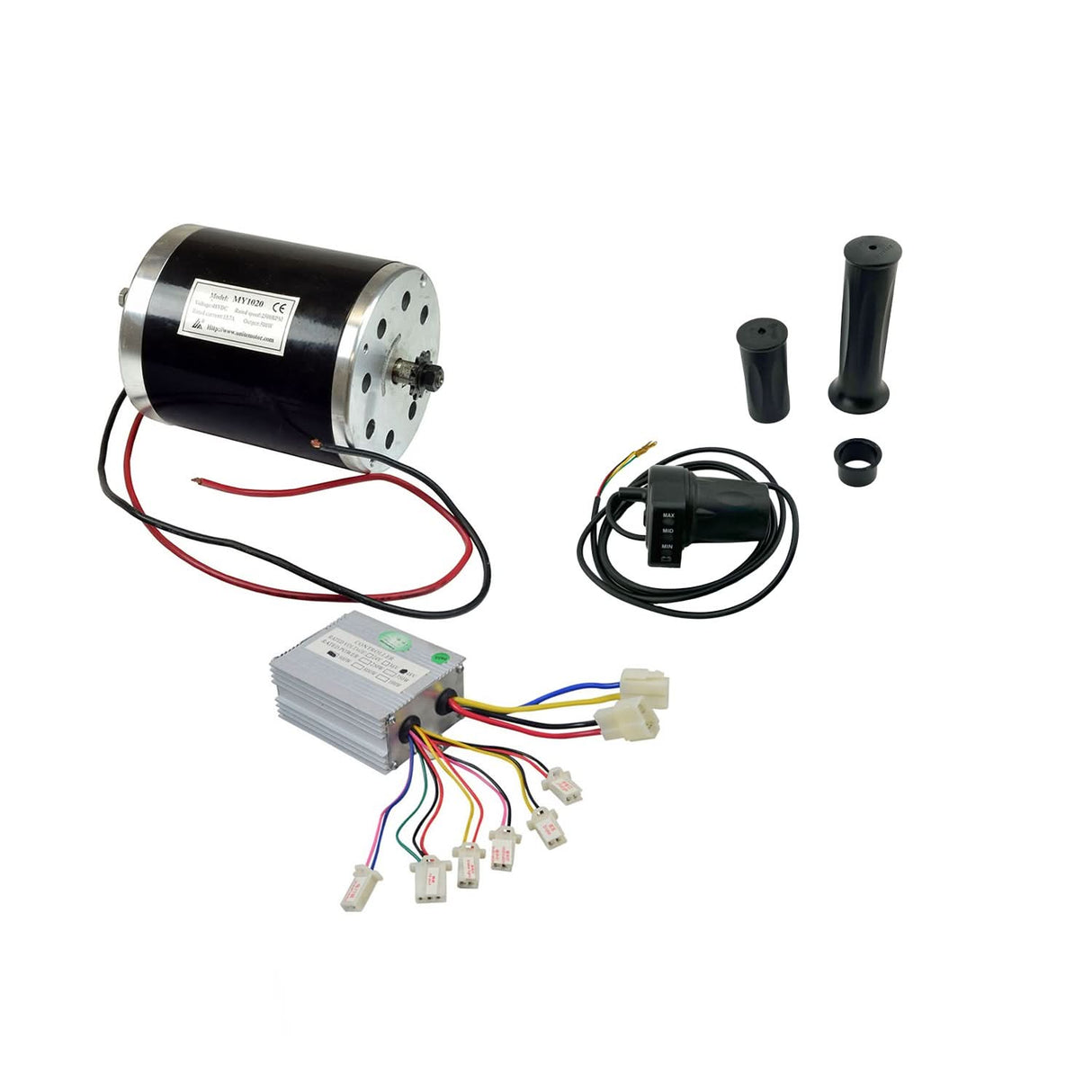

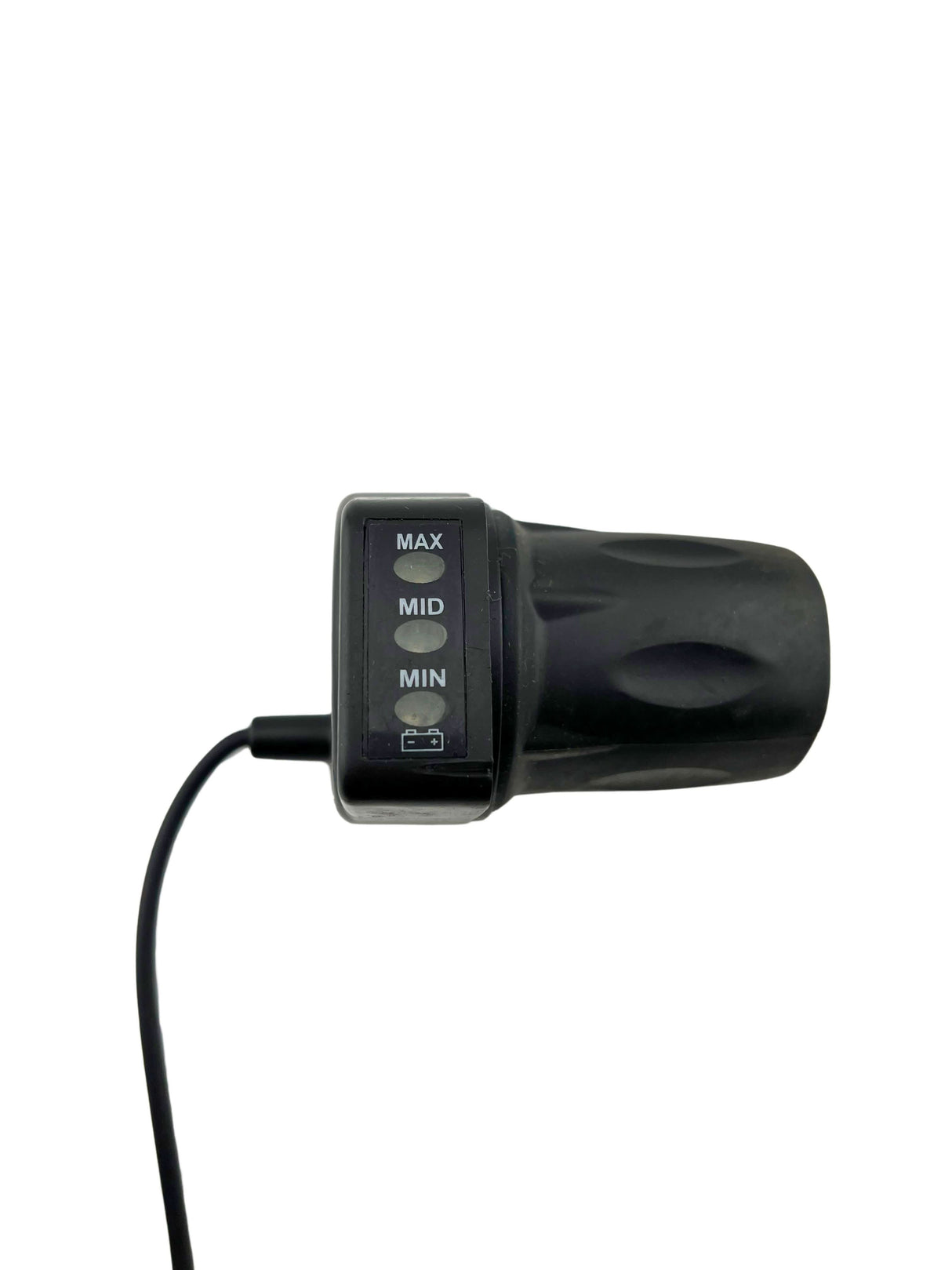

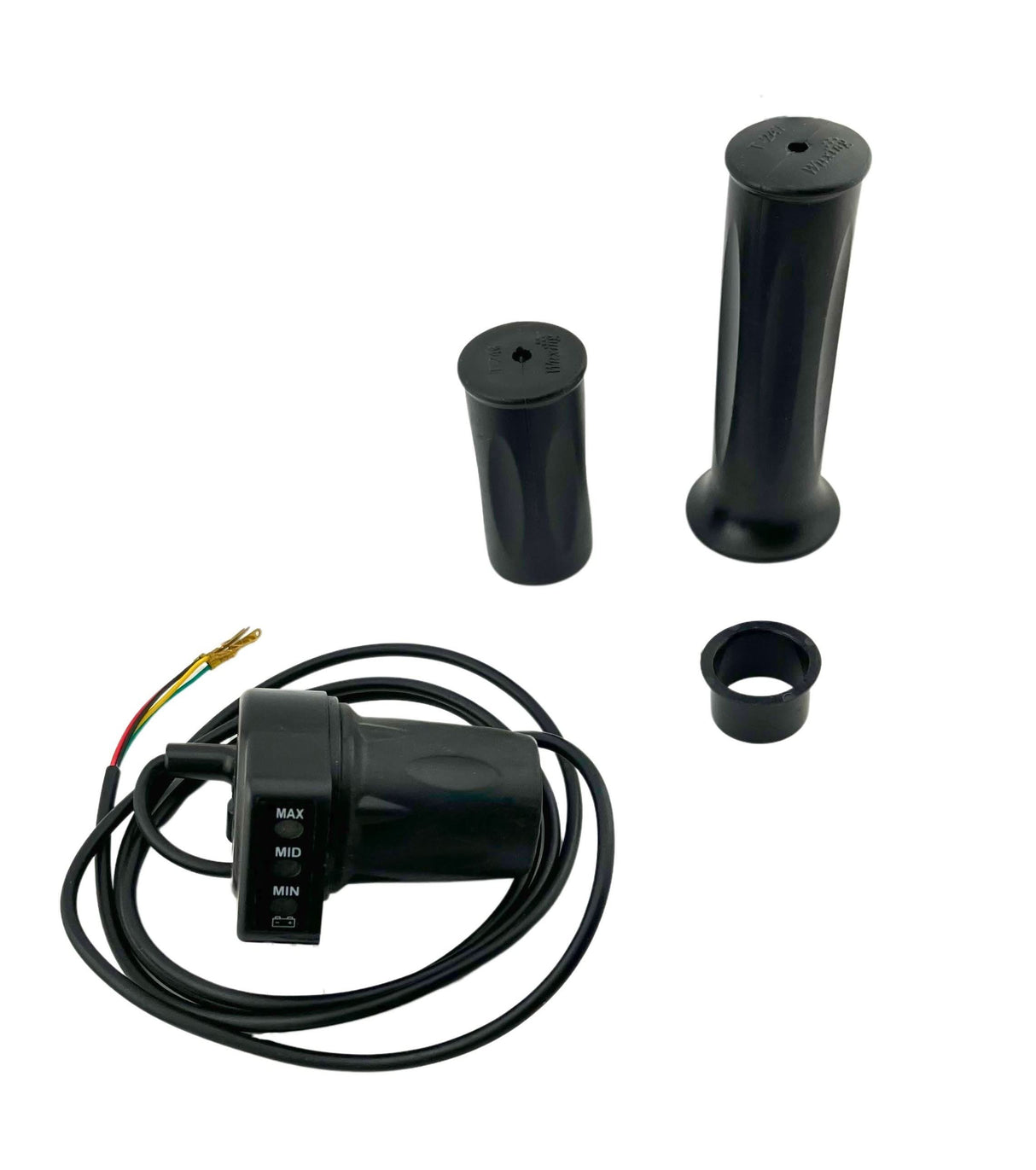

T53-6109 (Half Grip Throttle)

Like the full grip throttle listed above, this three-wire hand throttle is typically used in a variety of electric scooter, pocket bike, and dirt bike applications. For situations where a half grip throttle would be more appropriate, we recommend this version of the kit.

Z09-1689

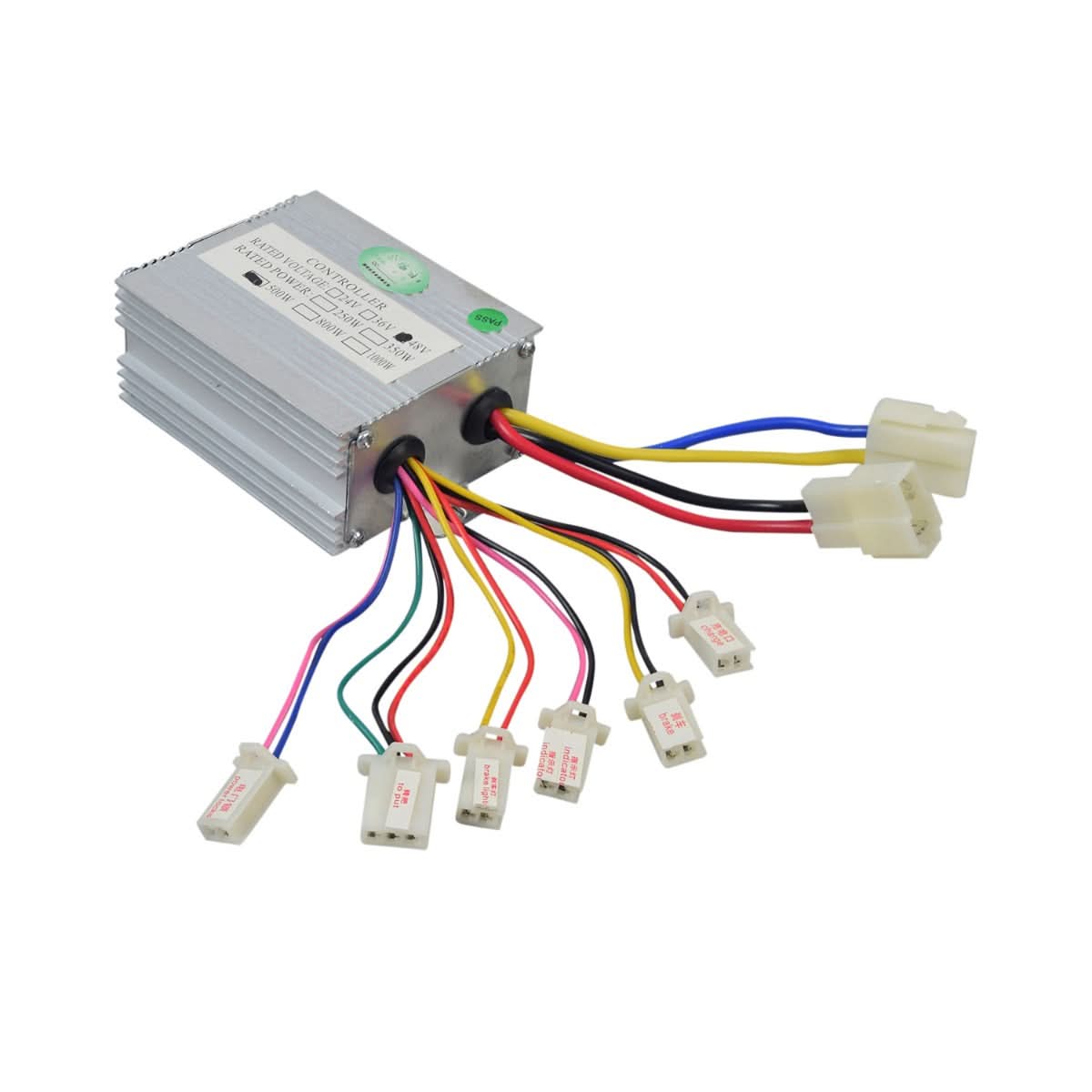

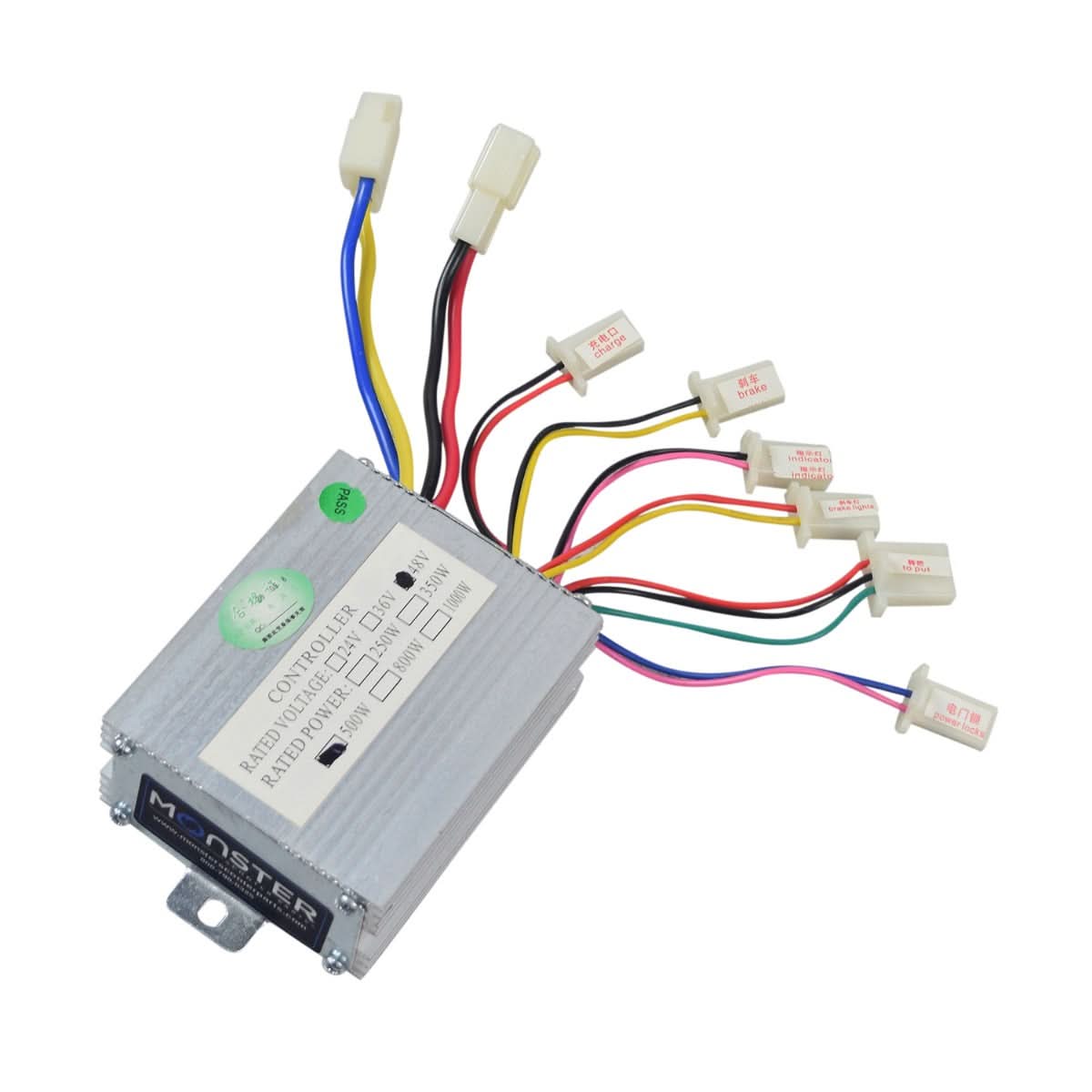

48 Volt 500 Watt Universal Speed & Voltage Controller

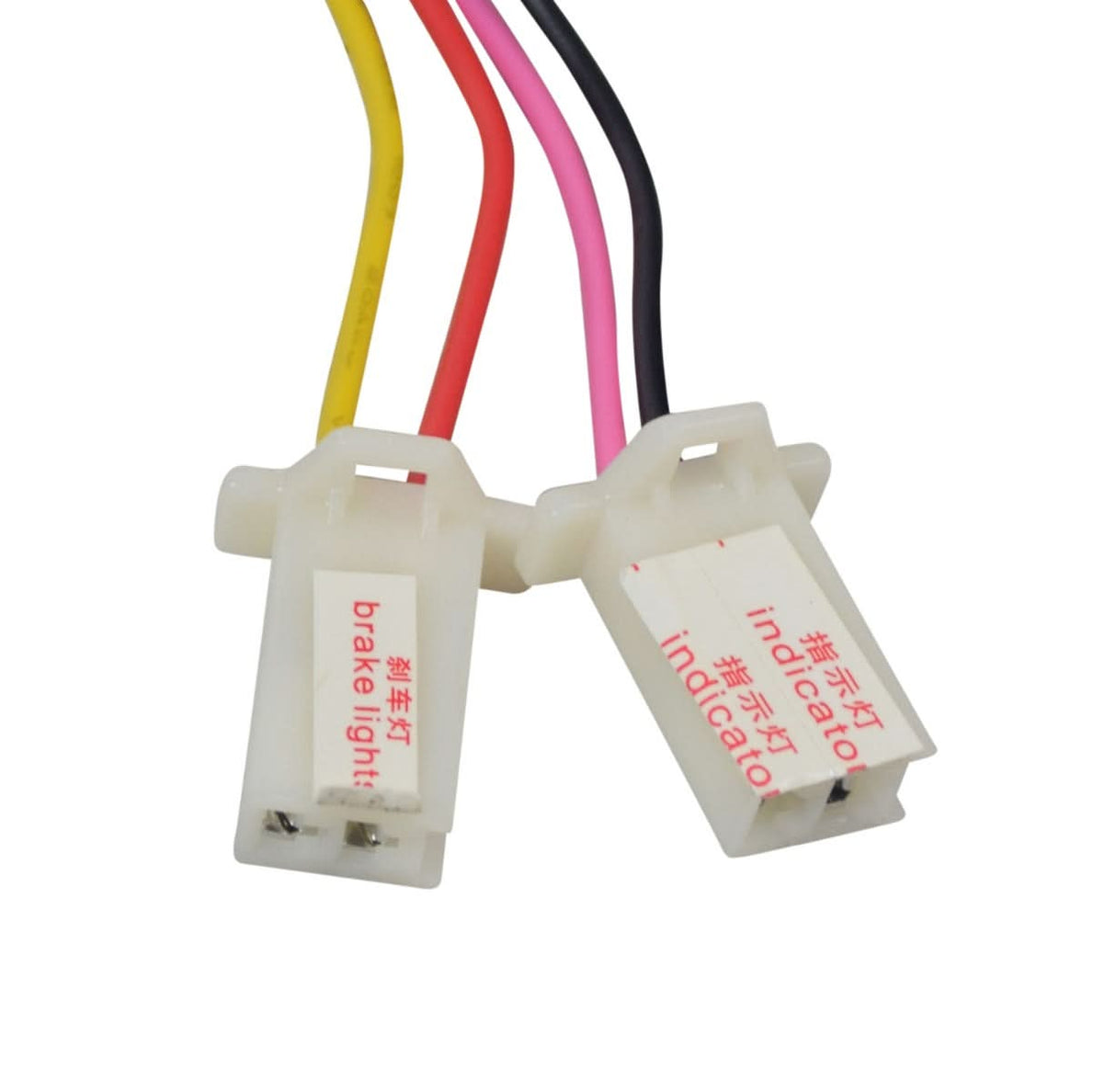

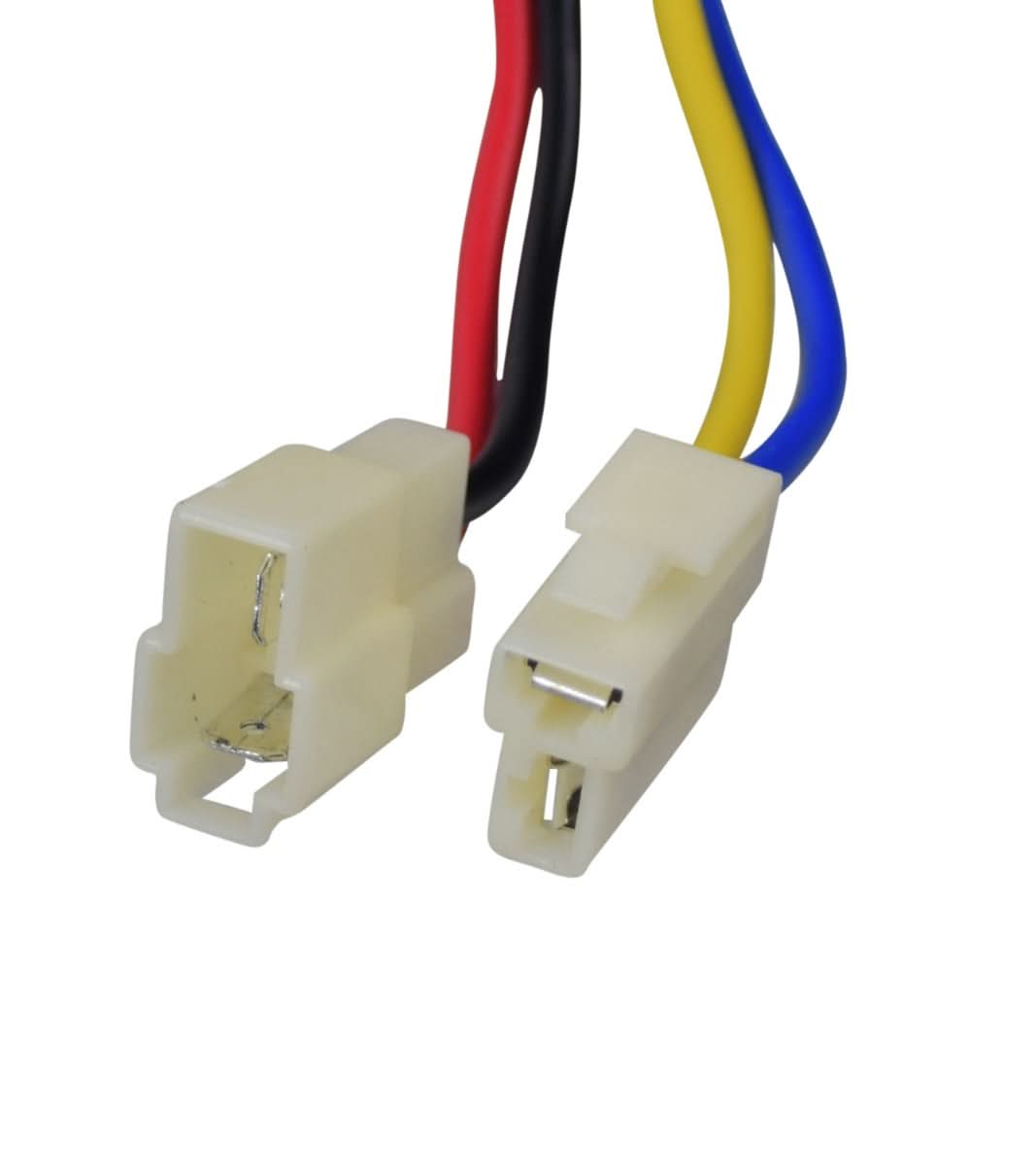

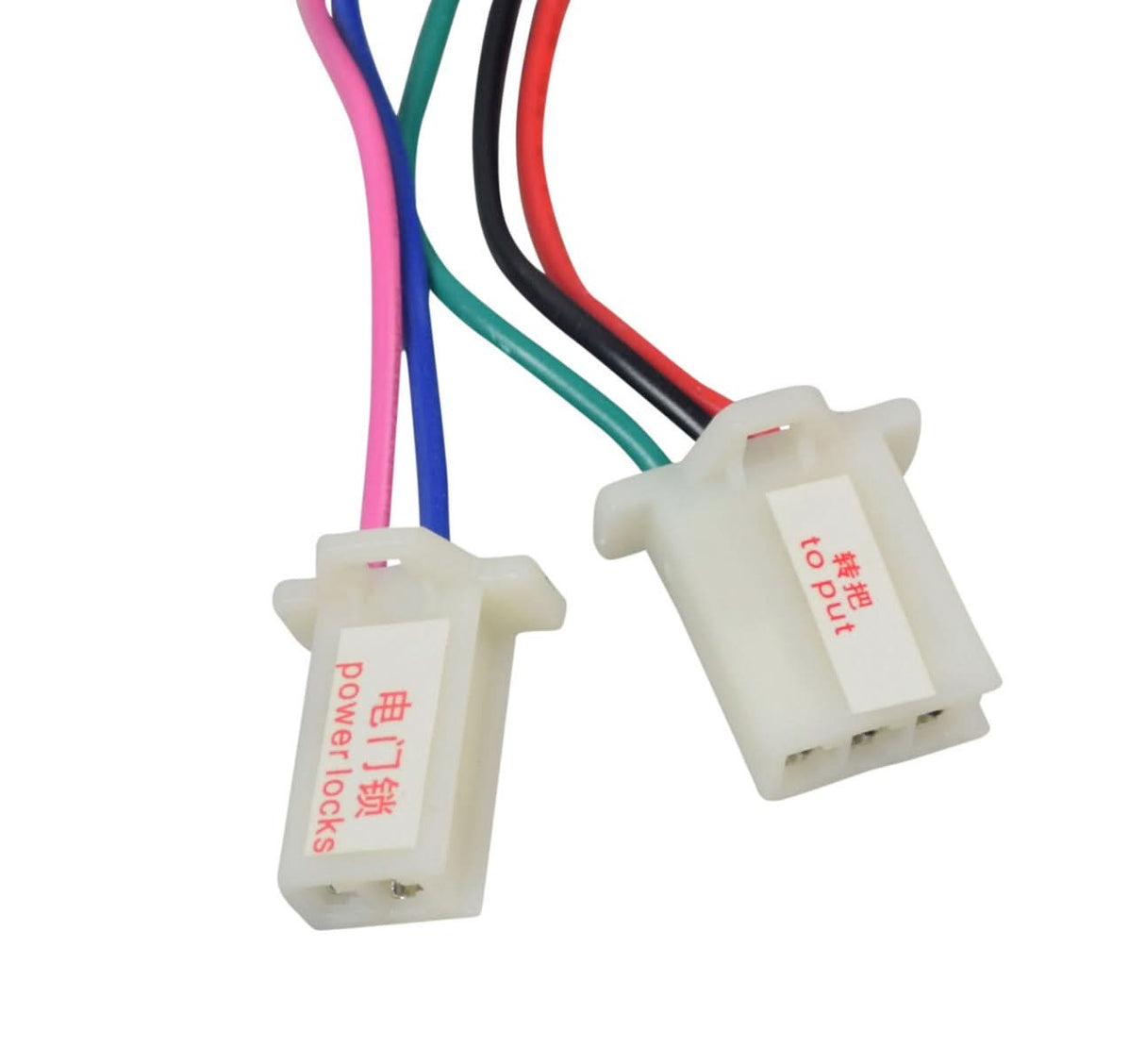

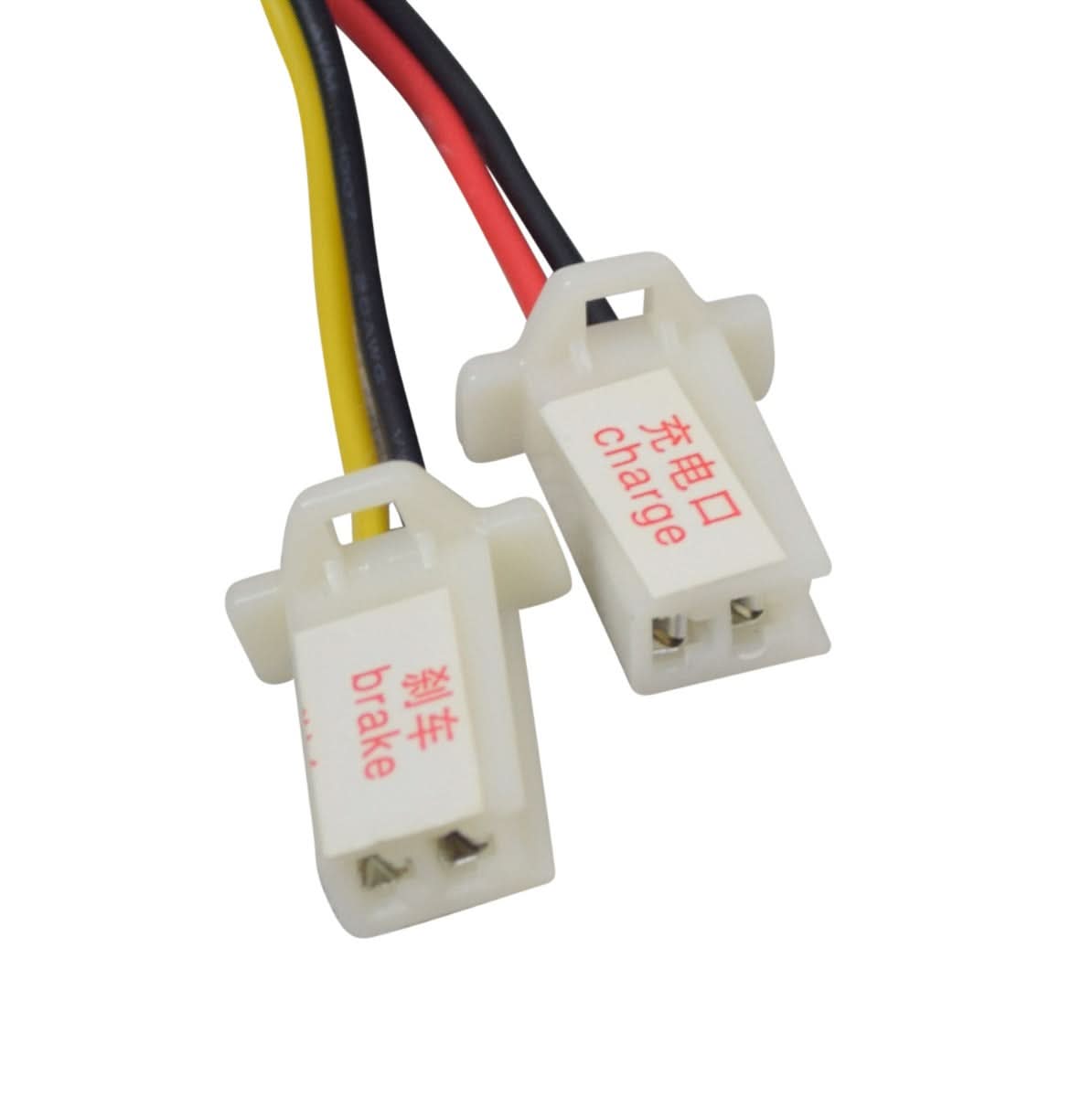

Seven connectors: motor, battery, indicator, to put, power locks, brake, and brake signal.

This controller comes with the most common wiring connections found on electric scooters. However, depending on your make and model, you may need to cut and splice a few but not all of the wires.



⚠ WARNING California Residents: Proposition 65 Warning

Motor:
MODEL: MY1020 Motor by Unite Motor Co. Ltd.
TYPE: Brush
VOLTAGE: 48 Volt DC
RATED SPEED: 2500-3000 RPM
RATED CURRENT: 13.4 Amp
SPROCKET: 8 mm O5T Chain
OUTPUT: 500 Watts
WEIGHT: 9.25 lb

Throttle:
INSIDE THROTTLE DIAMETER: 7/8"
WIRE LENGTH: 61"

Controller:
VOLTAGE: 48 Volts>
CURRENT: 25 Amps maximum>
