Monster Scooter Parts  |  SKU: X98-0615

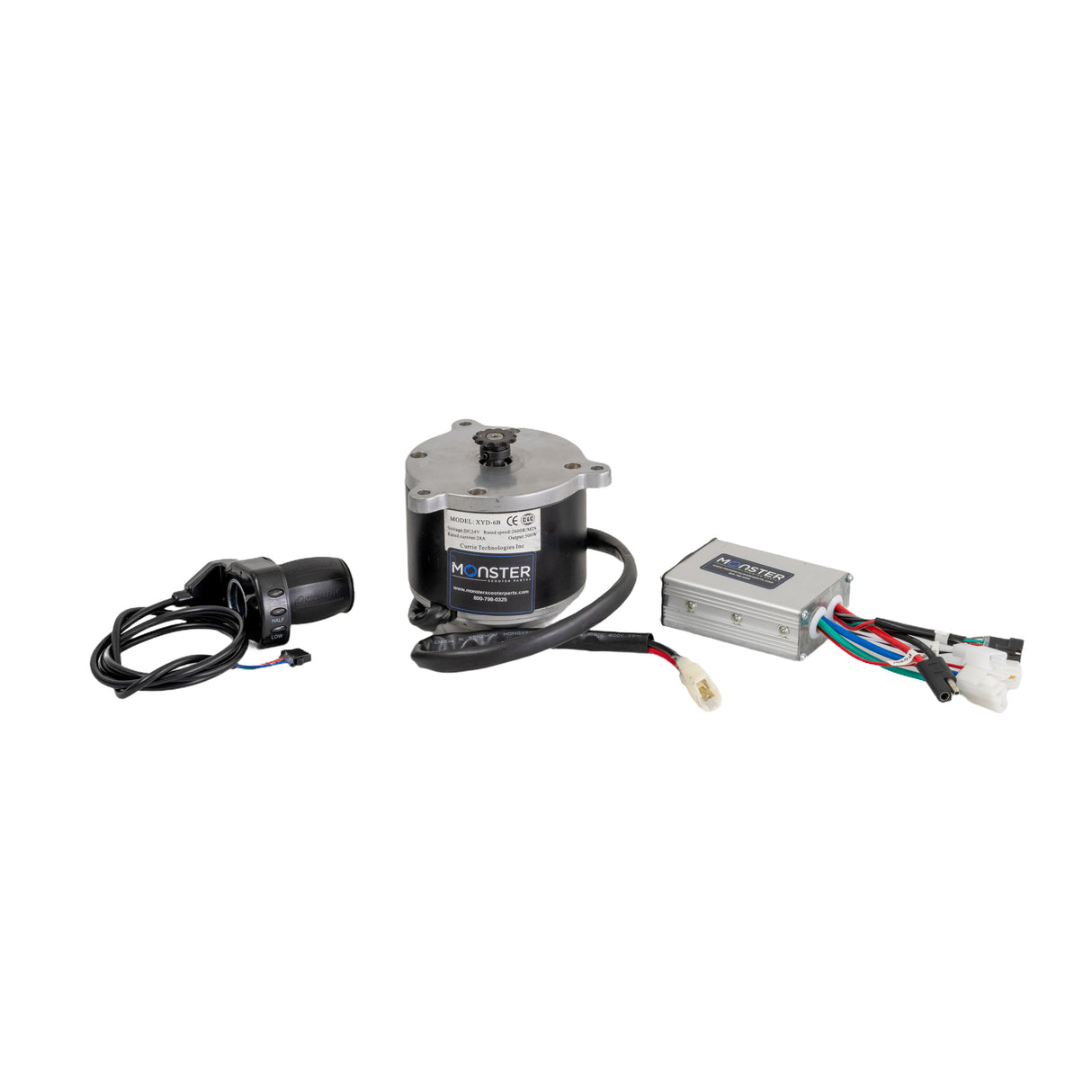

24 Volt 500 Watt Motor, 5-Pin Controller, & Throttle Kit for Electric Scooters

$199.99

  • Save $5 on orders $50+ with coupon code: FIVE
  • Save $10 on orders $100+ with coupon code: TEN
  • This item has a 30 day warranty. Warranty Policy

    Free Shipping

    • US domestic ship to addresses only.
    • Does not include expedited shipping services.
    Key Features
    • All-in-one electric motor kit
    • 500W electric motor, 5-pin controller, & twist-grip throttle
    • Compatible with a number of electric scooter models from eZip, IZIP, GT, Mongoose, Schwinn, and more
    • All three electric scooter components at one low price

    Description

    Our 24-volt 500-watt motor, 5-pin controller, and throttle kit is an all-in-one solution to rejuvenating an older eZip, Izip, or other Currie- electric scooter.

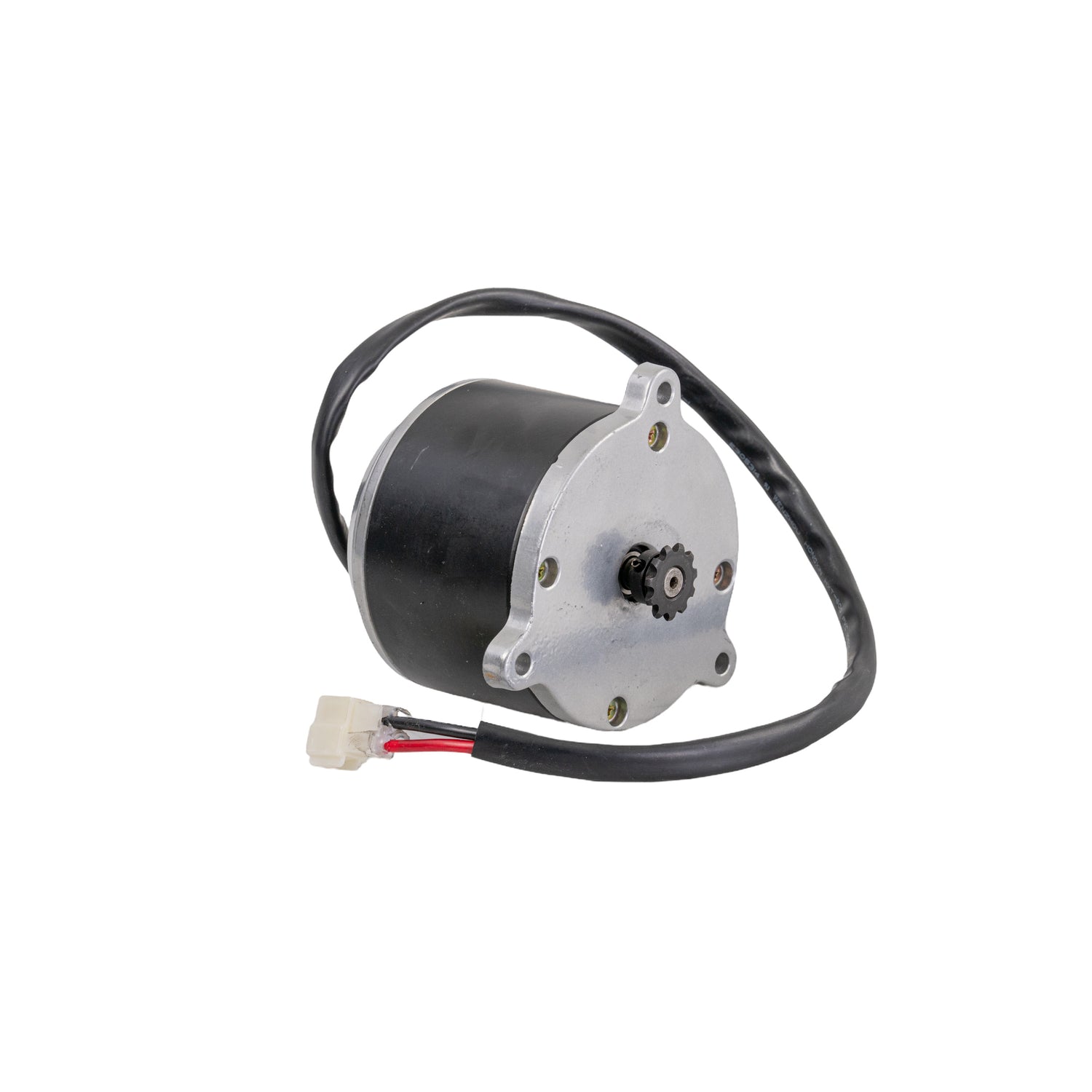

    24 Volt 500 Watt Electric Motor with 11 Tooth #25 Chain Sprocket (Currie Technologies)
    This brush-type motor is manufactured by Currie. Upgrade your stock 180W or 250W motor with a genuine Currie high-performance motor kit. Dramatically increase low-end torque and top-end speed. It is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires. Comes with a standard three hole mounting face plate that is used by most high-powered Currie Technologies scooters. Center-to-center mounting hole distances are approximately 3-7/8".

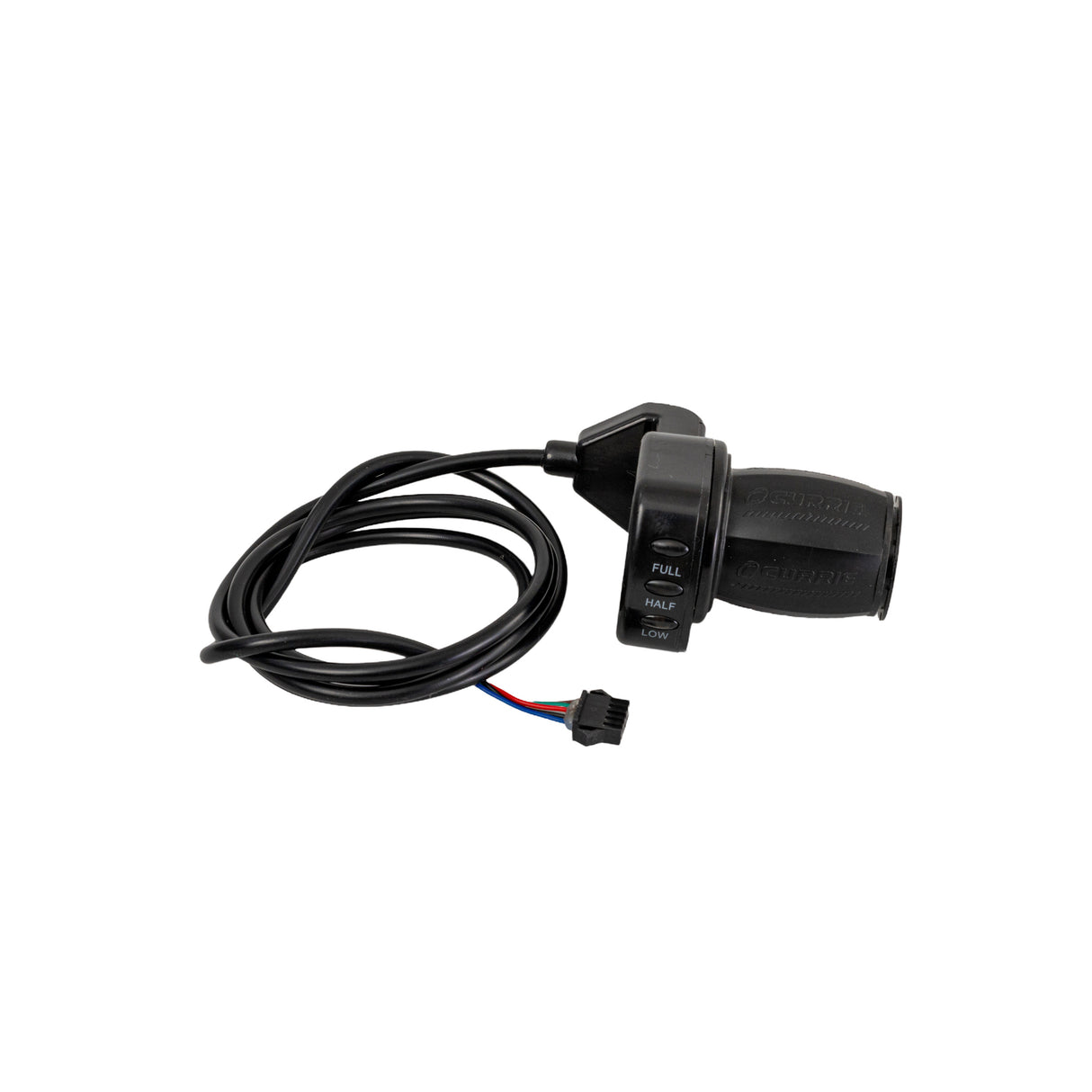

    Twist grip throttle:
    Currie 24 Volt 5 Pin Diagnostic Twist Grip Throttle for 2007 & Newer Schwinn, eZip, & IZIP Scooters
    Electric scooter 5 wire hand throttle. "5 Pin" refers to the number of pins in the rectangular connector that inserts into the controller. Not compatible with either 4-wire or 6-wire hand throttles.

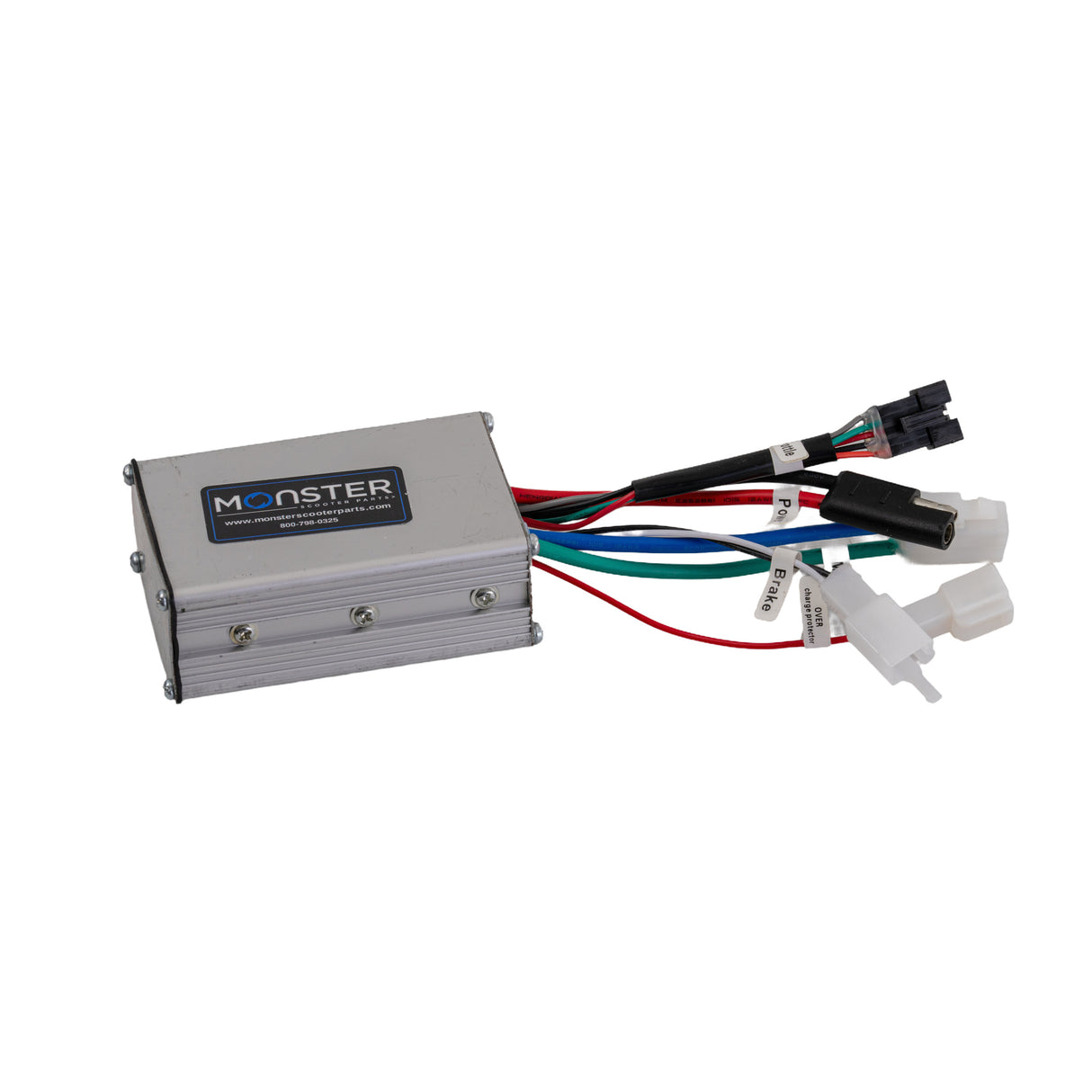

    Controller
    Currie 24 Volt 30A 5-Pin Controller for 400 Series eZip, IZIP, & Schwinn Scooters
    The 24-volt 30A 5-pin controller. comes with a brake inhibit power cut-off.

    Wiring Details:
    Red to Red
    Black to Black (or Yellow)
    Green (or Blue) to Green (or Blue or White)

    Note:
    All scooter controllers require a switch, (joined to the "Lock" connector on the controller wires), to complete the electrical circuit.



    ⚠ WARNING California Residents: Proposition 65 Warning

    Reviews (0)

    Specifications

    Motor:
    Model: XYD-6B motor
    Type: brush
    Voltage: 24V DC
    Rated speed: 2600 RPM
    Rated current: 28A
    Sprocket: #25 chain 11 tooth
    Output: 500W
    Case length: 3-7/8" (98 mm)
    Case diameter: 3-15/16" (100 mm)
    Drive shaft length: 1/2" (13 mm)
    Drive shaft diameter: 3/8" (10 mm)
    Mounting hole distance: 3-15/16" (100 mm)
    Rotation: reversible

    Throttle:
    Type: twist-grip
    Handlebar diameter: 7/8"
    Wire length: 45"

    Controller:
    Voltage: 24V
    Amperage: 30Ap
    Pins: 5
