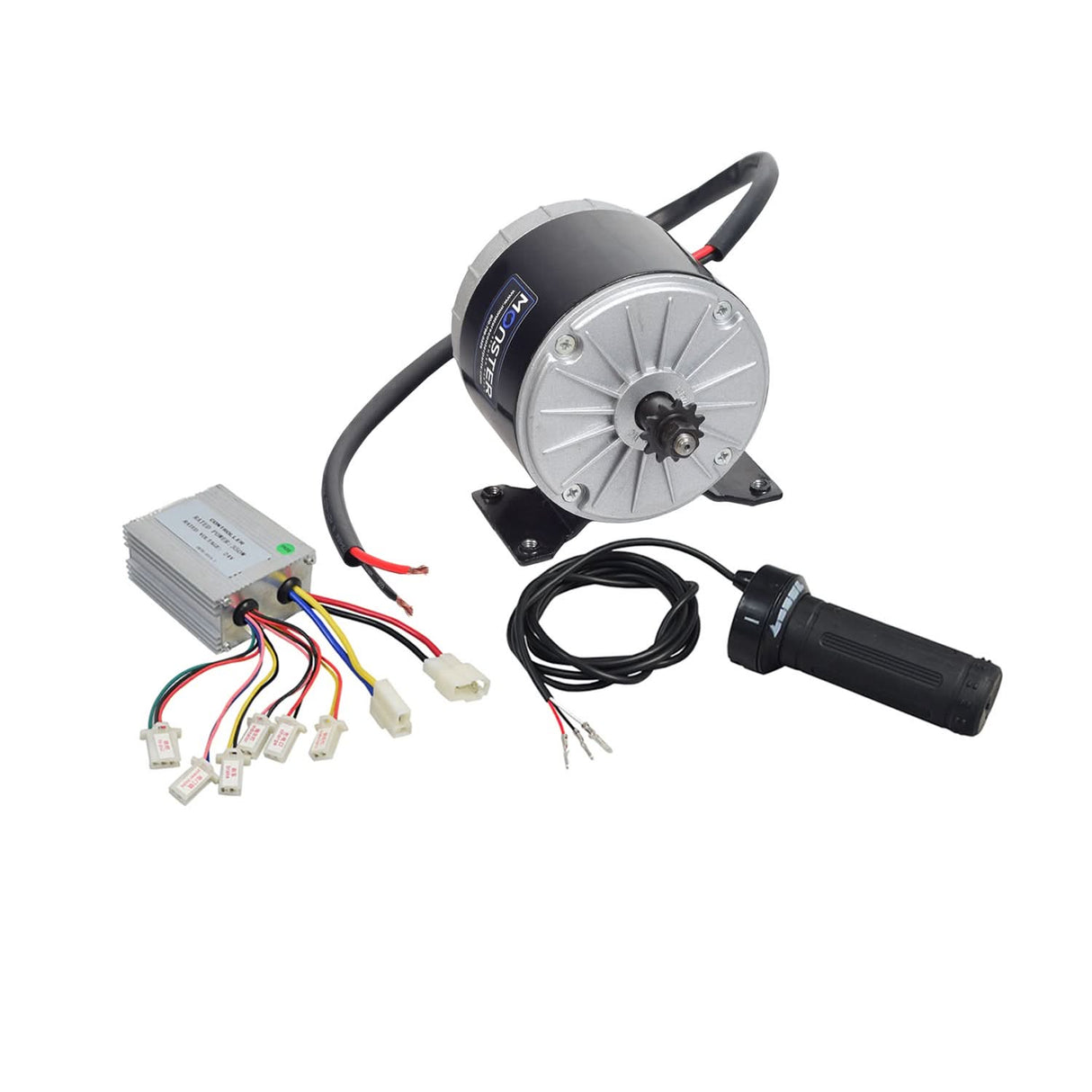

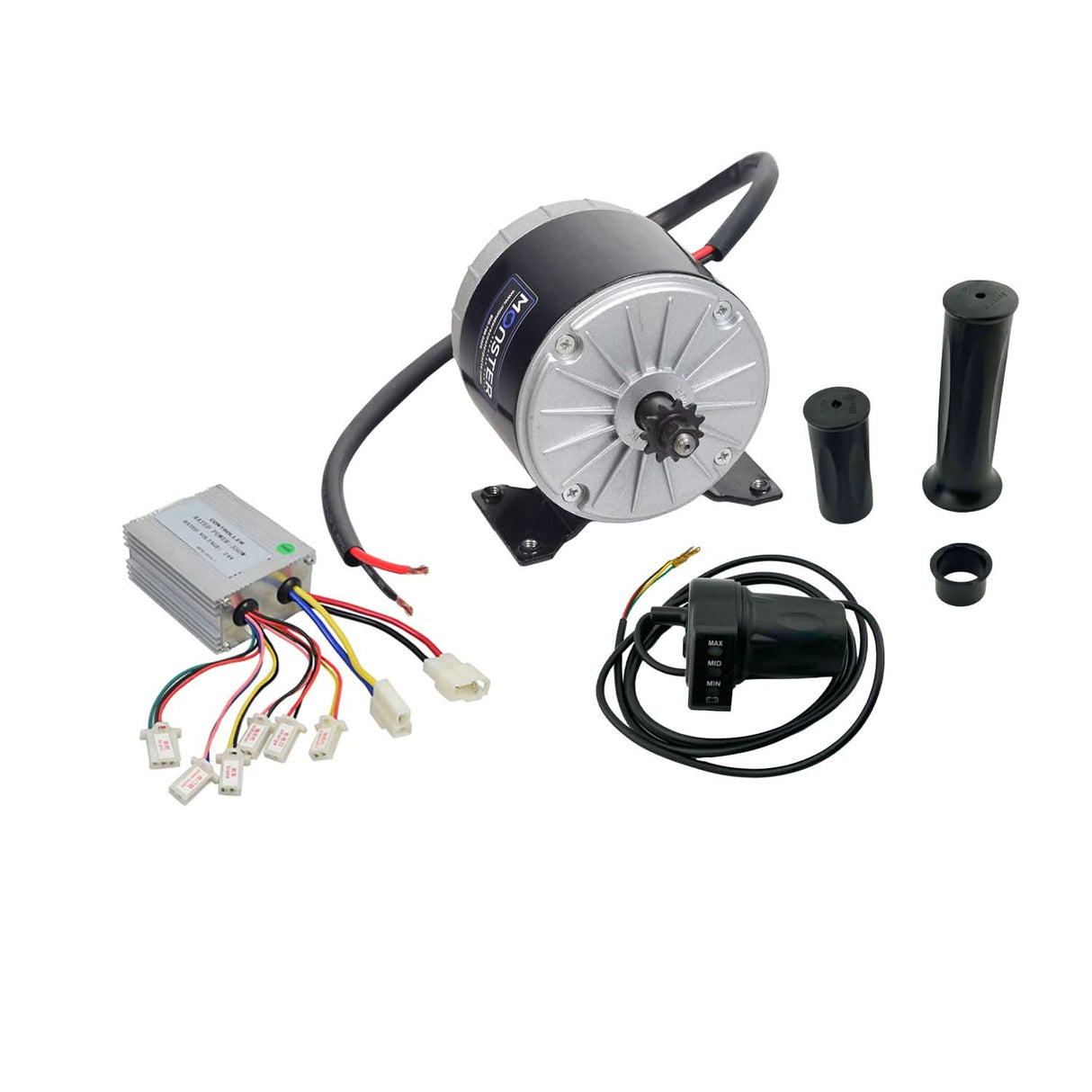

24 Volt 300 Watt Motor, Controller, & Throttle Kit

24 volt 300 watt motor, controller, & throttle kit.

M01-145

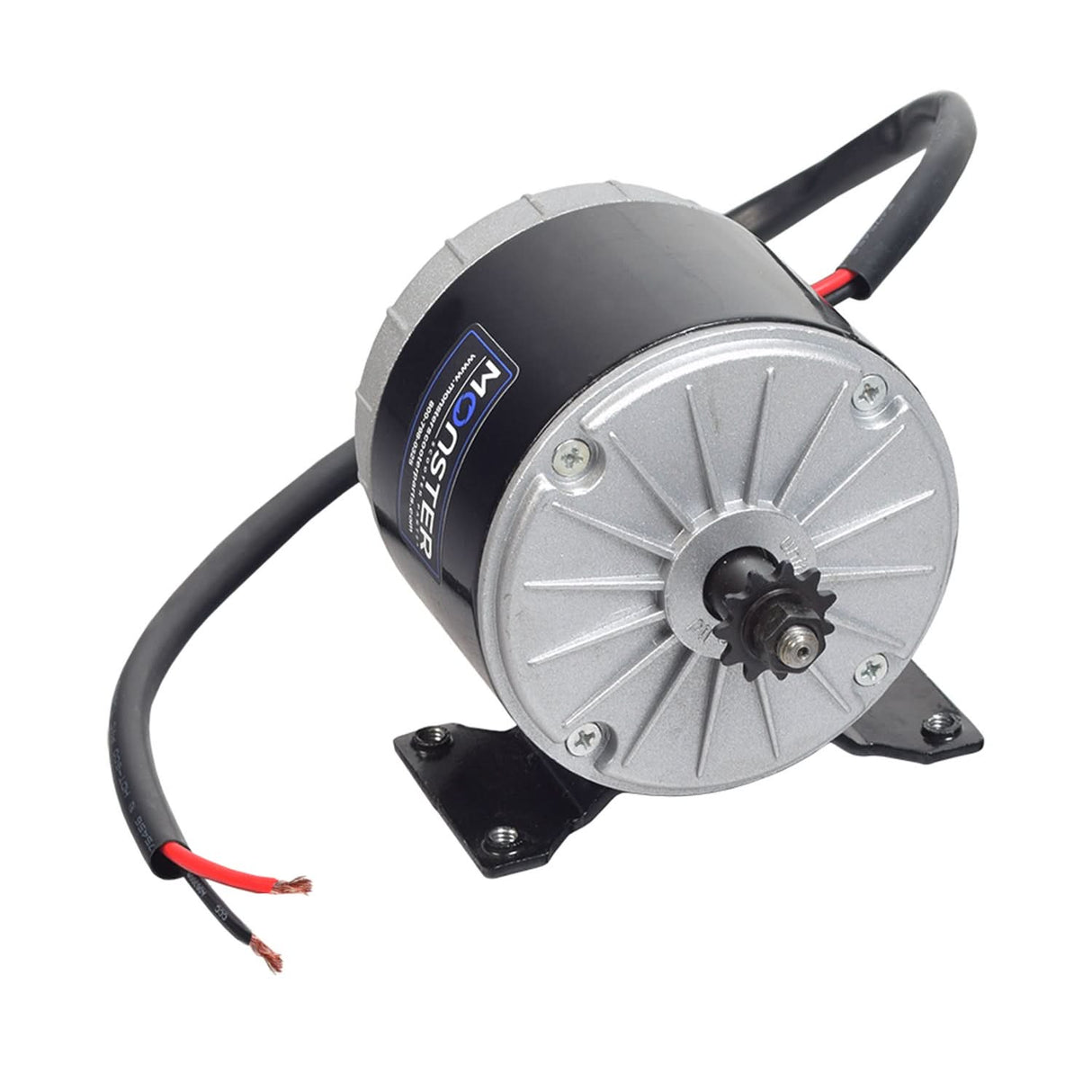

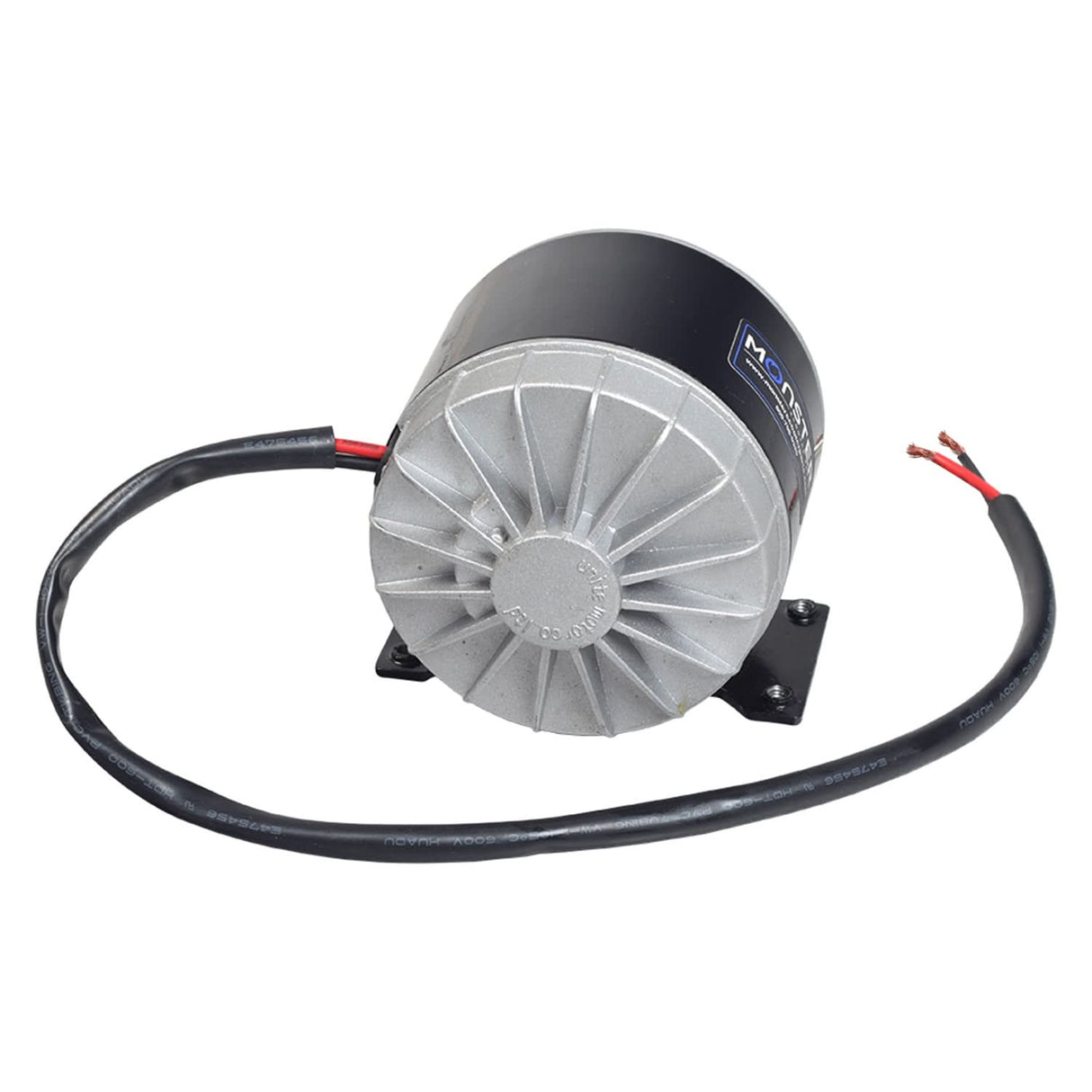

24 Volt 300 Watt Motor with 11 Tooth #25 Chain Sprocket (MY1016) This motor is manufactured by Unite Motor, model MY1016, and is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires.

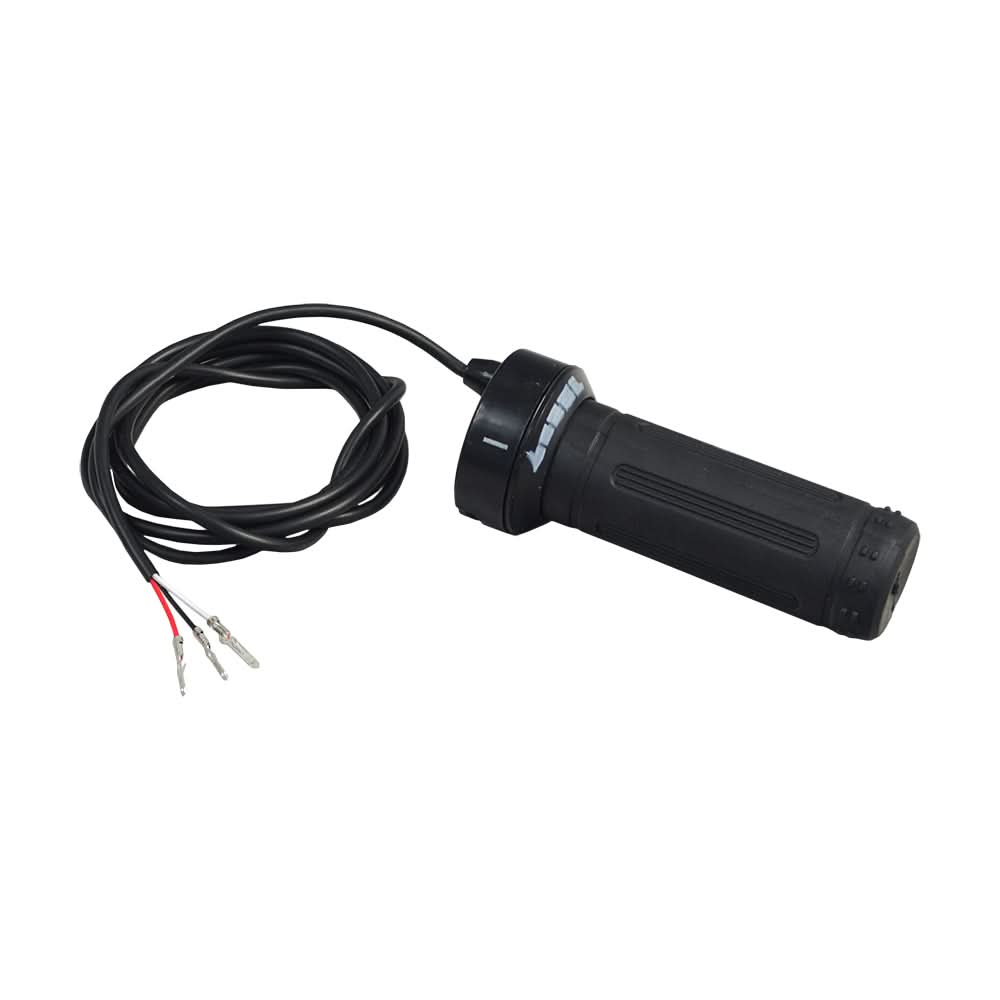

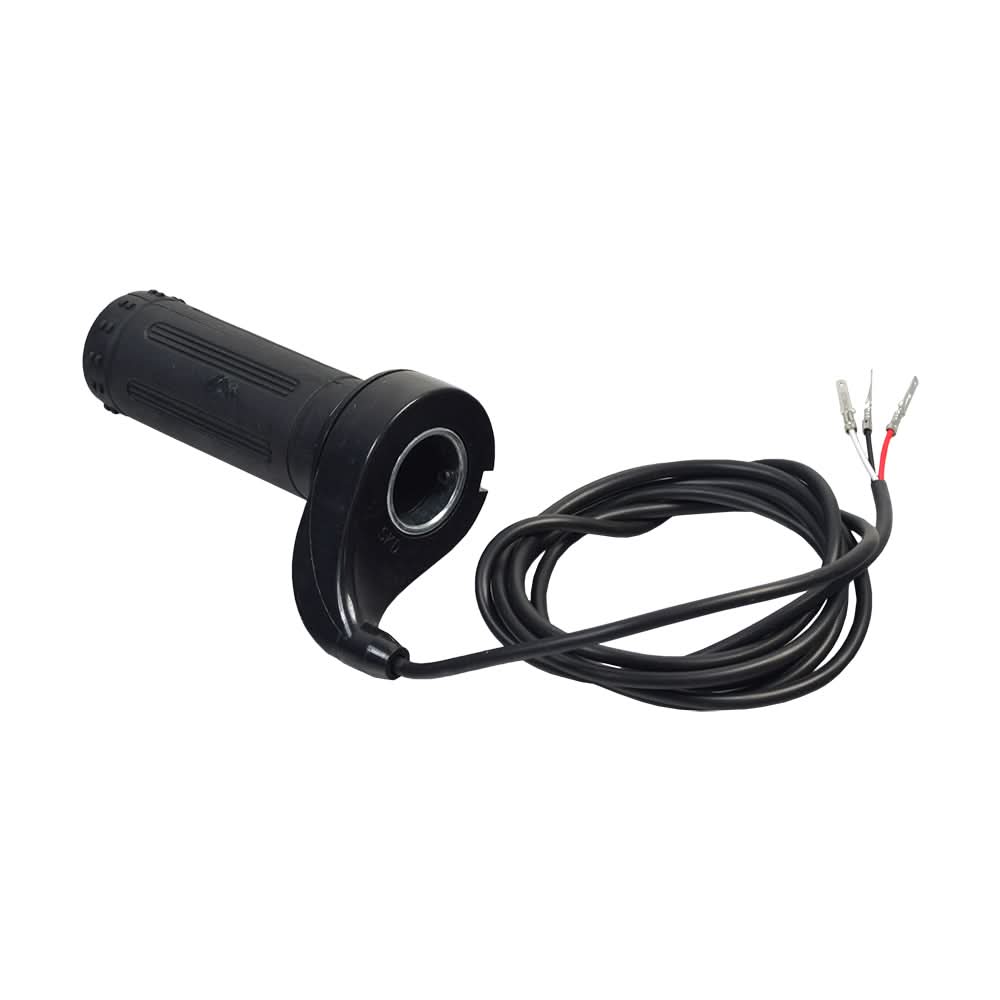

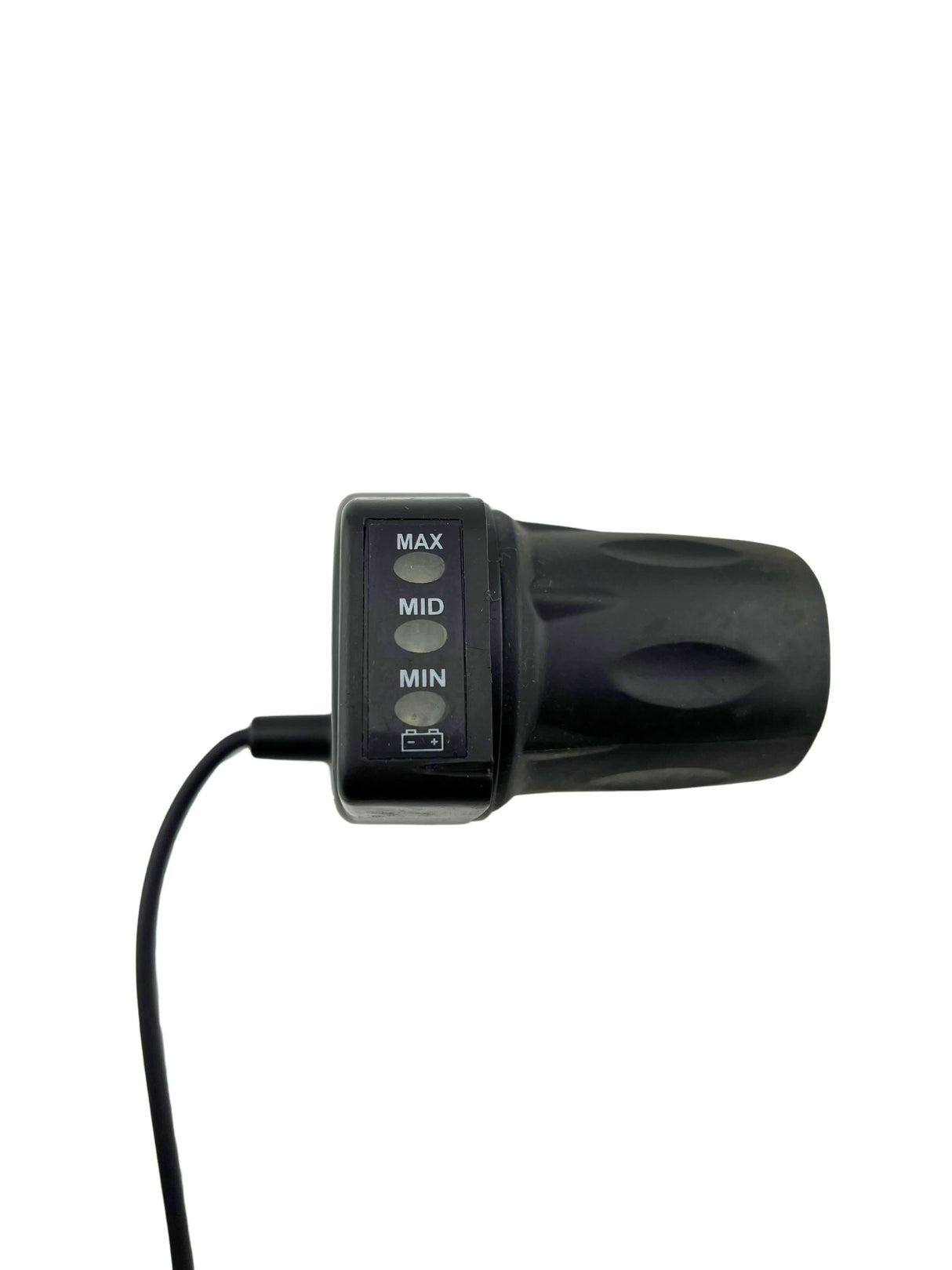

T53-6119 (Full Grip Throttle)
Hand Throttle with 3 Wires
Electric scooter, pocket bike, and dirt bike 3 wire hand throttle. This is the most common type of throttle used on electric scooters.

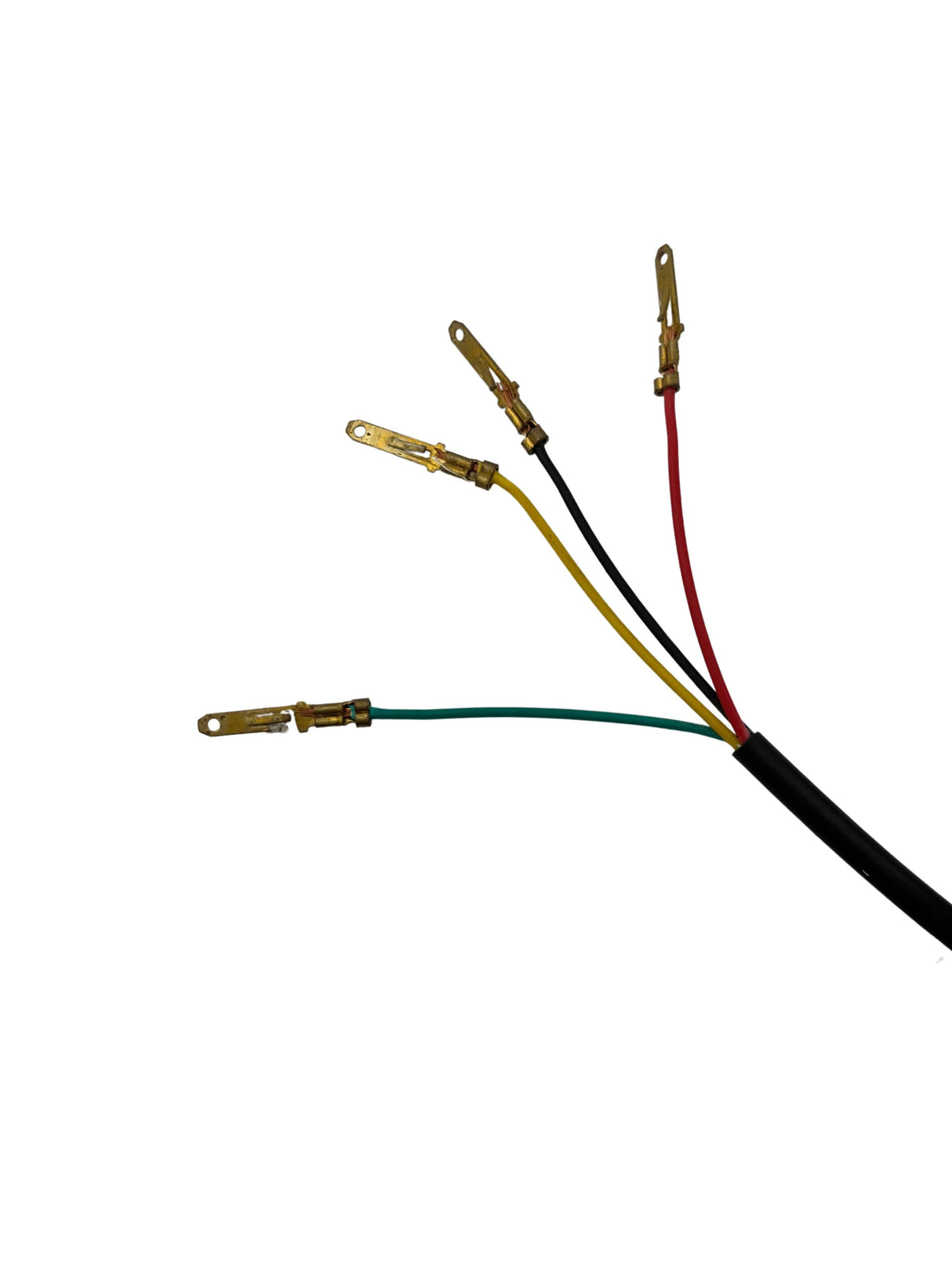

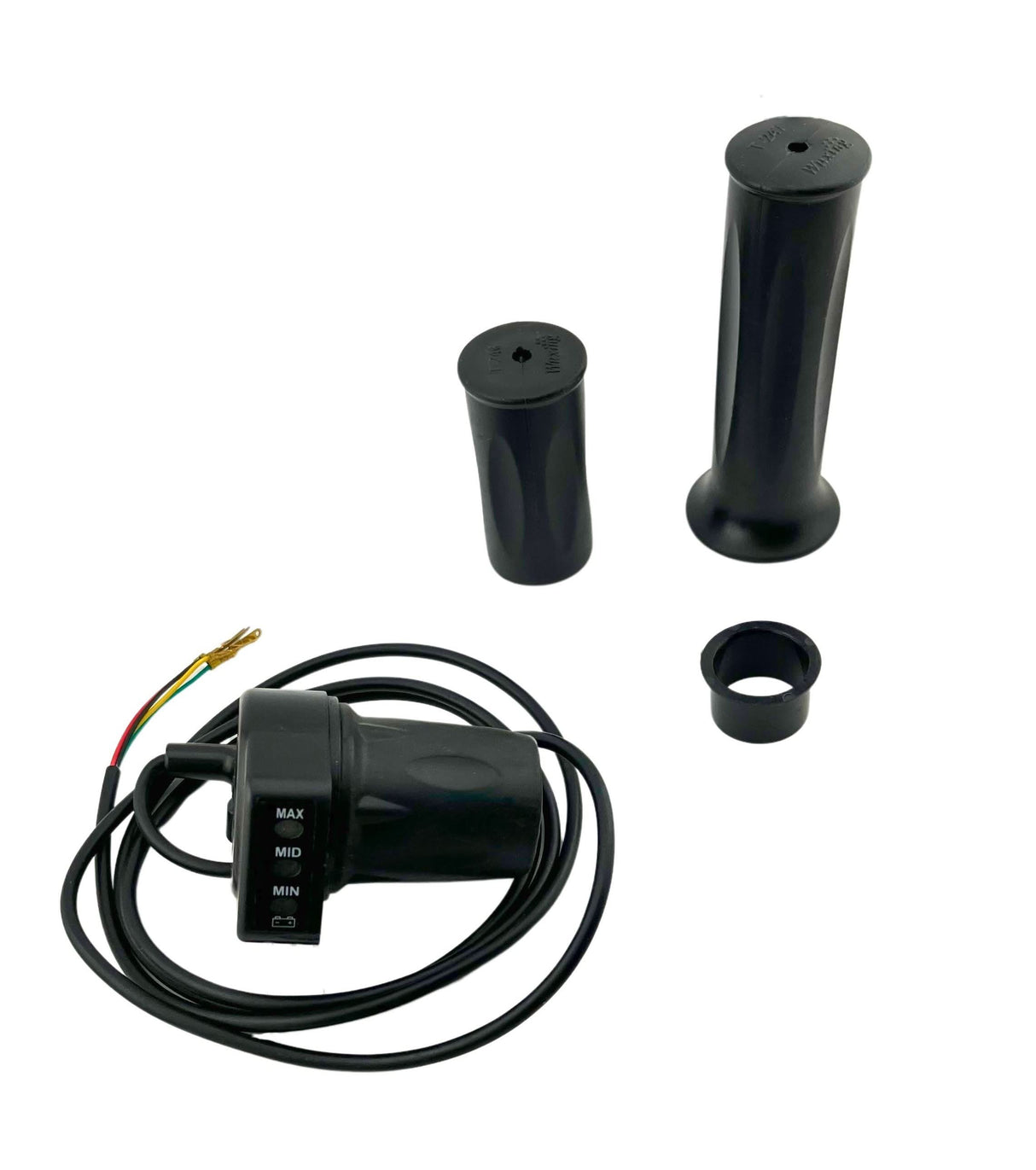

T53-6109 (Half Grip Throttle)

Like the full throttle listed above, this three-wire hand throttle is typically used in a variety of electric scooter, pocket bike, and dirt bike applications. For situations where a half throttle would be more appropriate, we recommend this version of the kit.

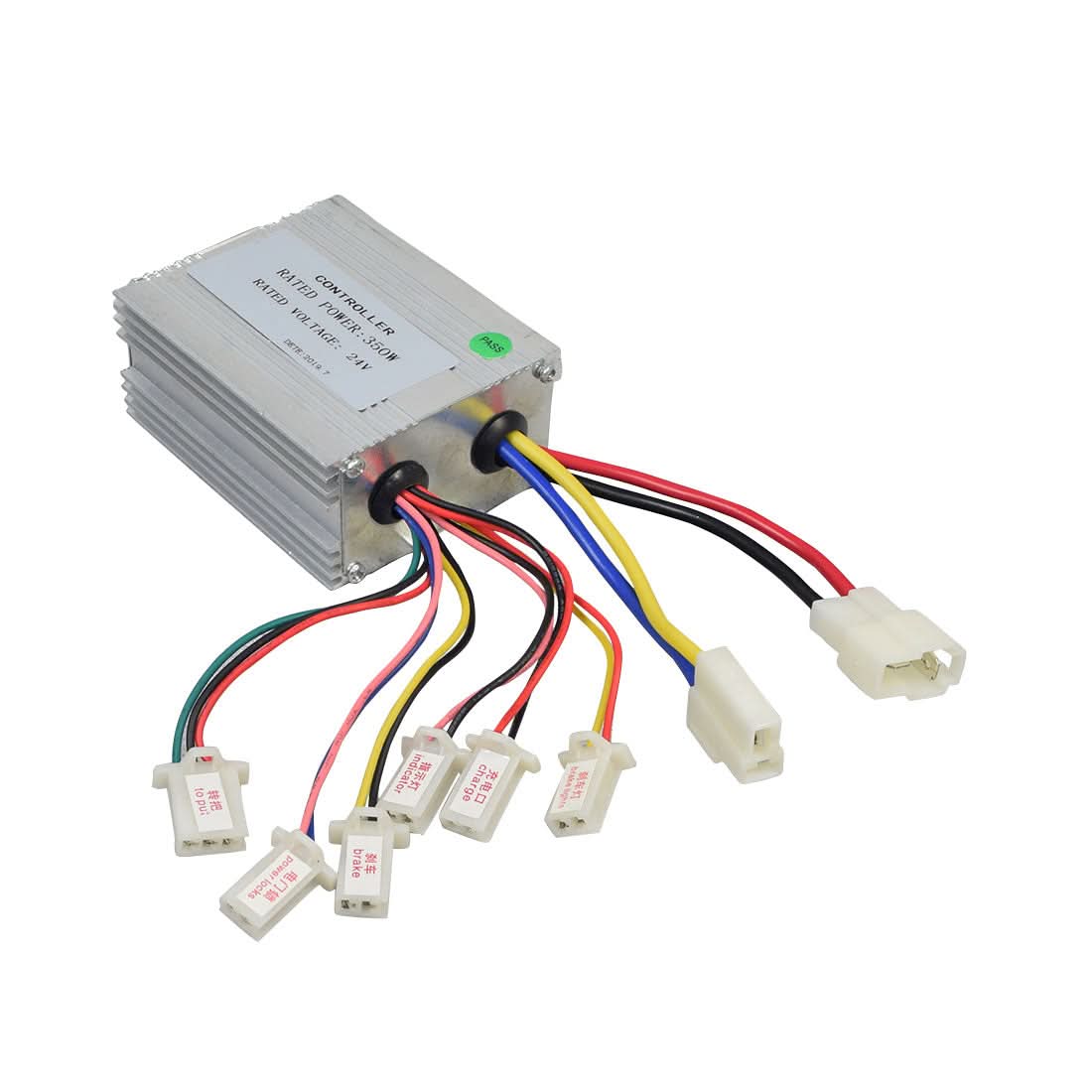

Z09-1684
24 Volt 350 Watt Universal Speed & Voltage Controller

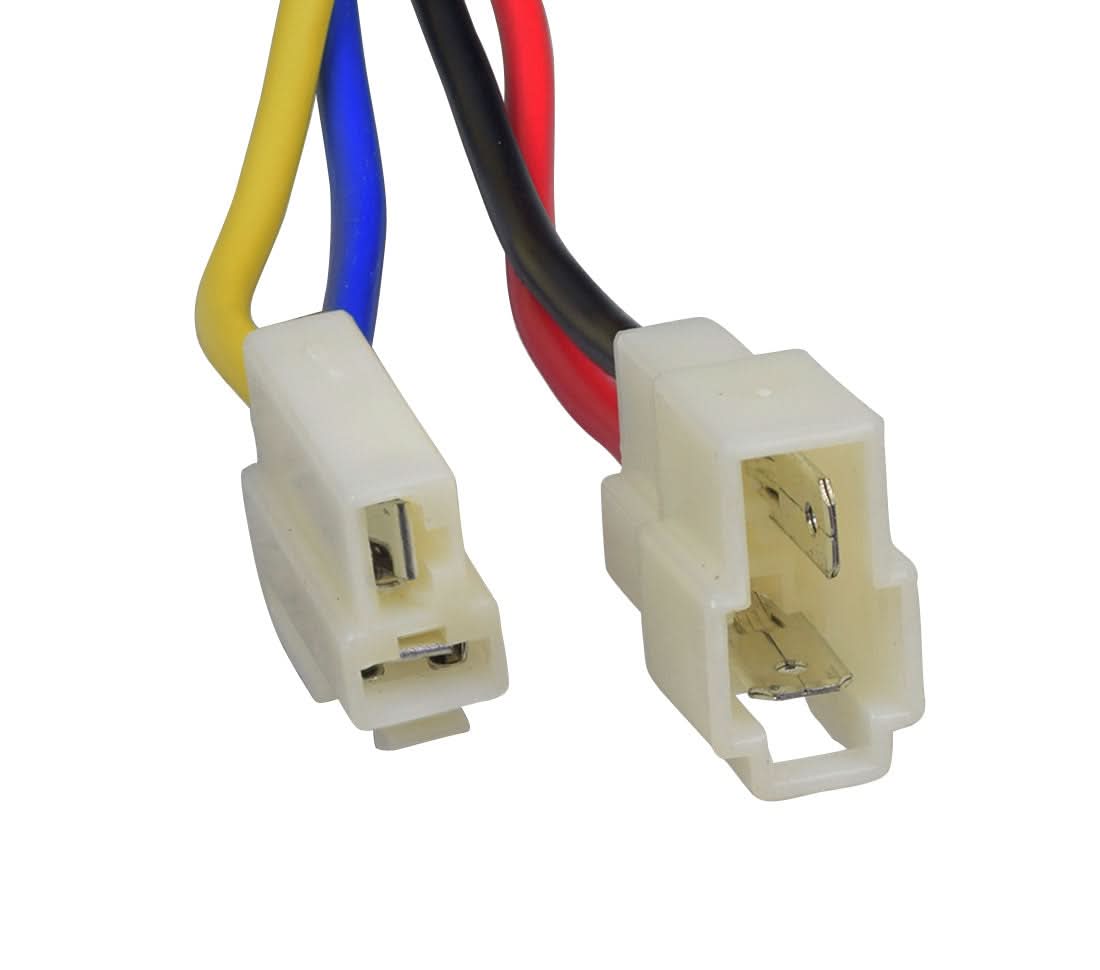

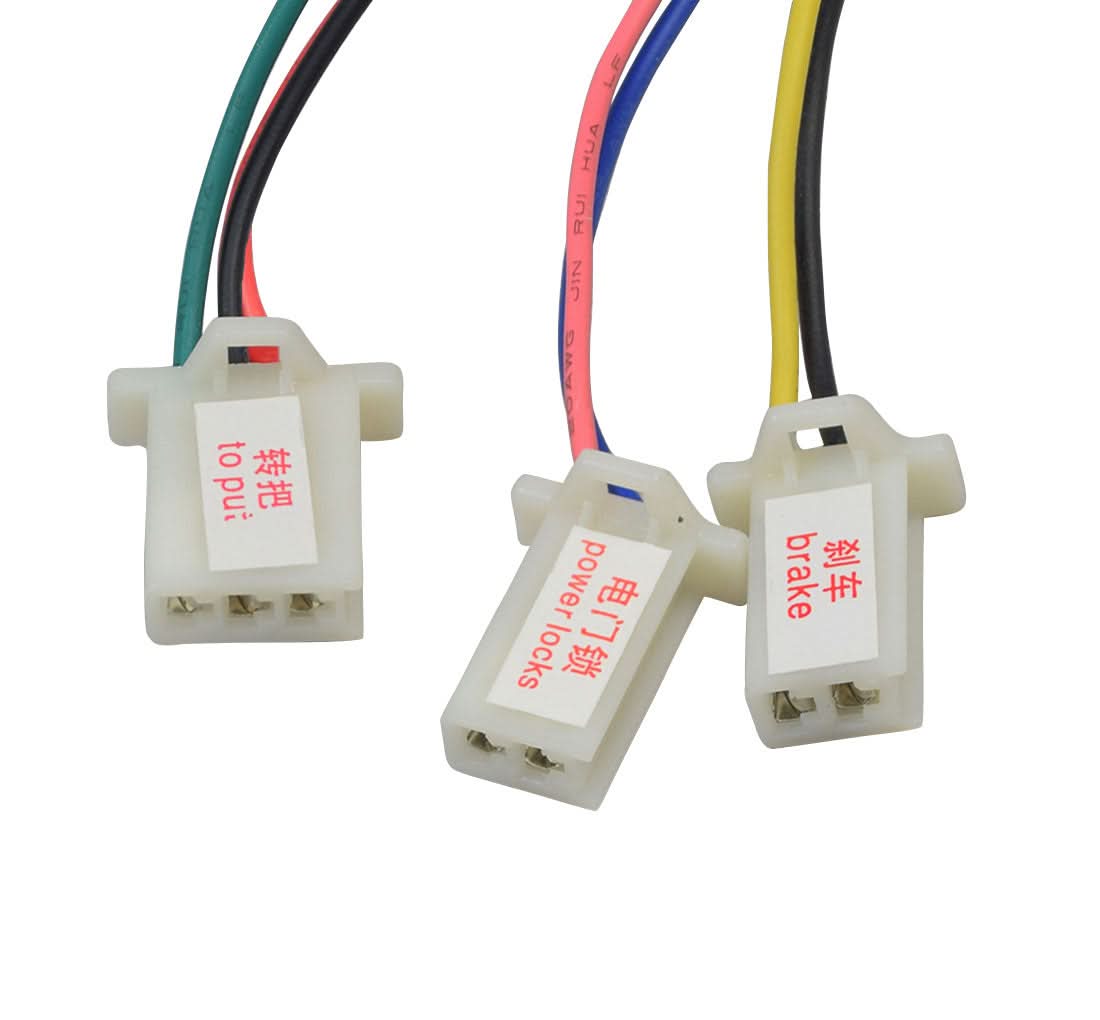

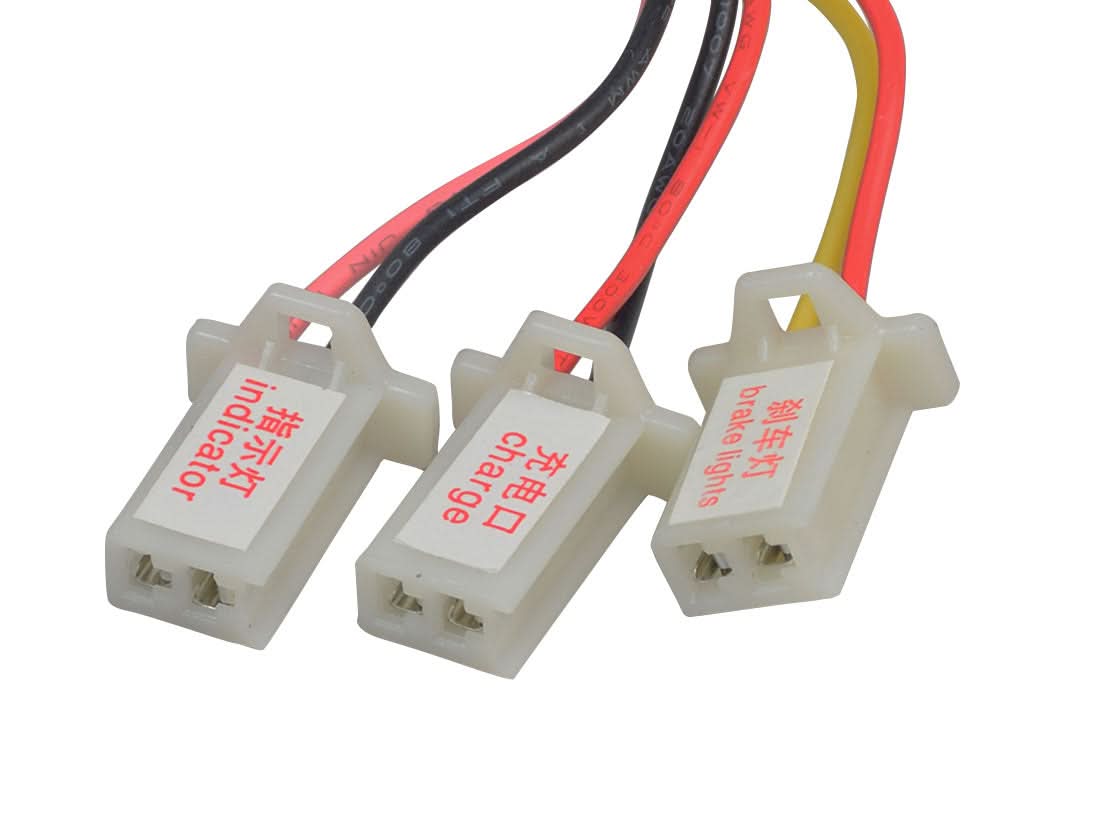

Wiring Details:
Red to Red
Black to Black (or Yellow)
Green (or Blue) to Green (or Blue or White)

Note: All scooter controllers require a switch, (joined to the "Lock" connector on the controller wires), in order to complete the electrical circuit.

⚠ WARNING California Residents: Proposition 65 Warning

Motor:
MODEL: MY1016
TYPE: Brush
VOLTAGE: 24 Volt DC
SPROCKET: #25 Chain
OUTPUT: 350 Watts

Throttle:

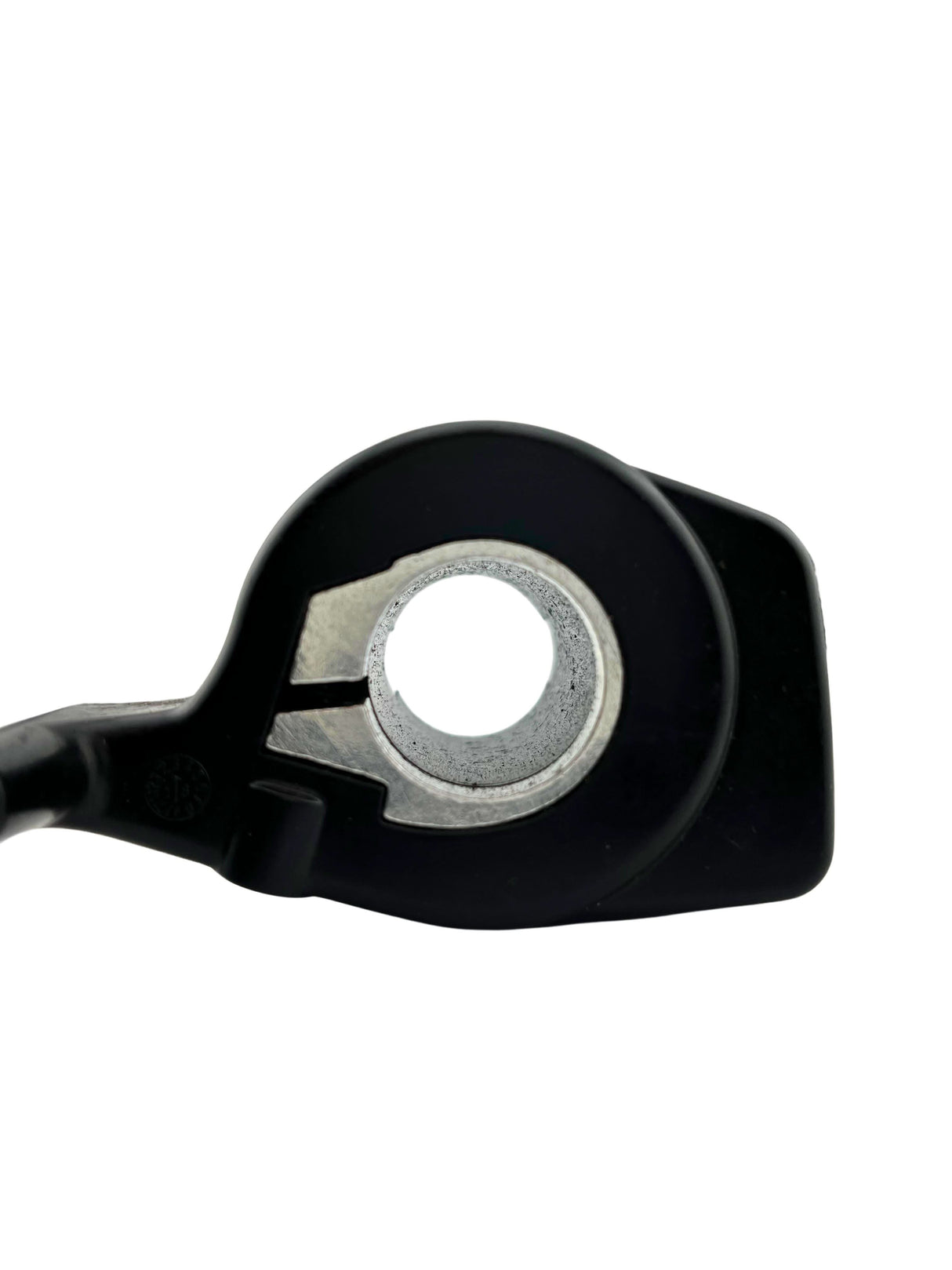

INSIDE THROTTLE DIAMETER: 7/8"
WIRE LENGTH: 61"

Controller:
Voltage: 24 Volts
Current: 21 Amps maximum
