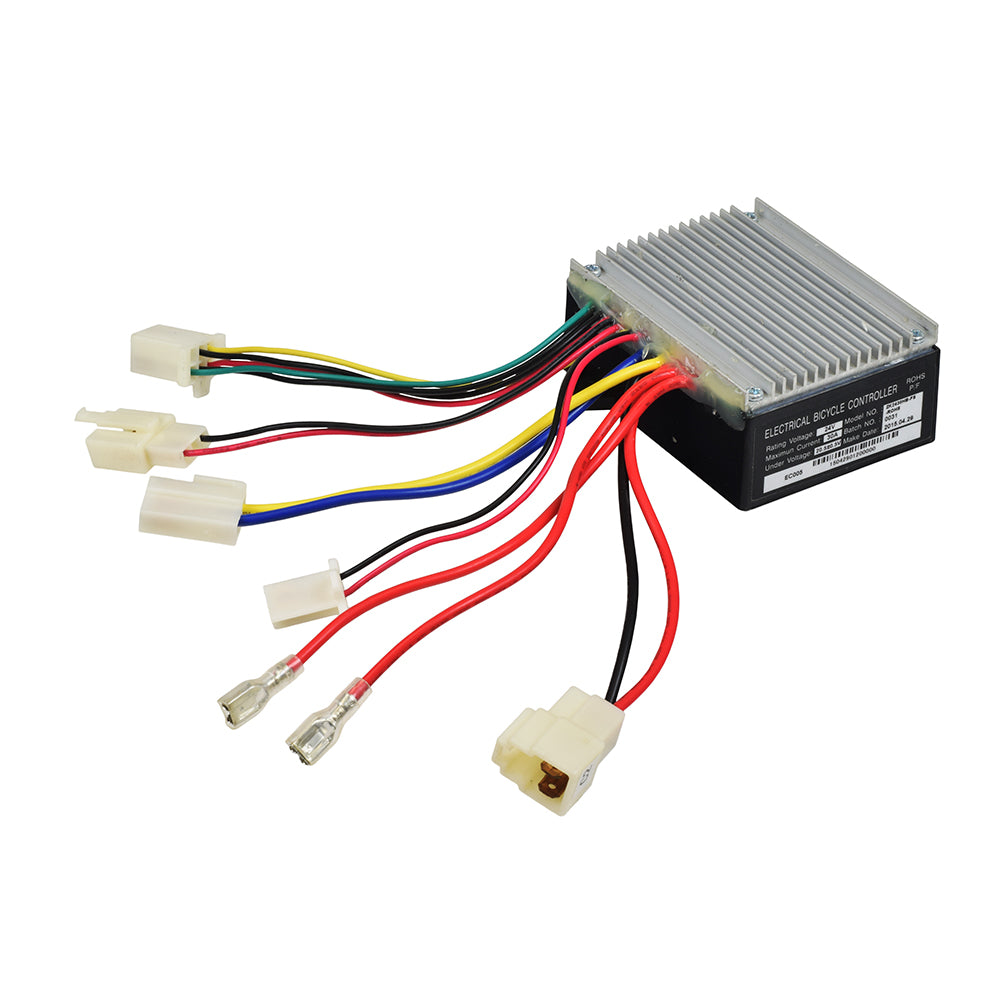

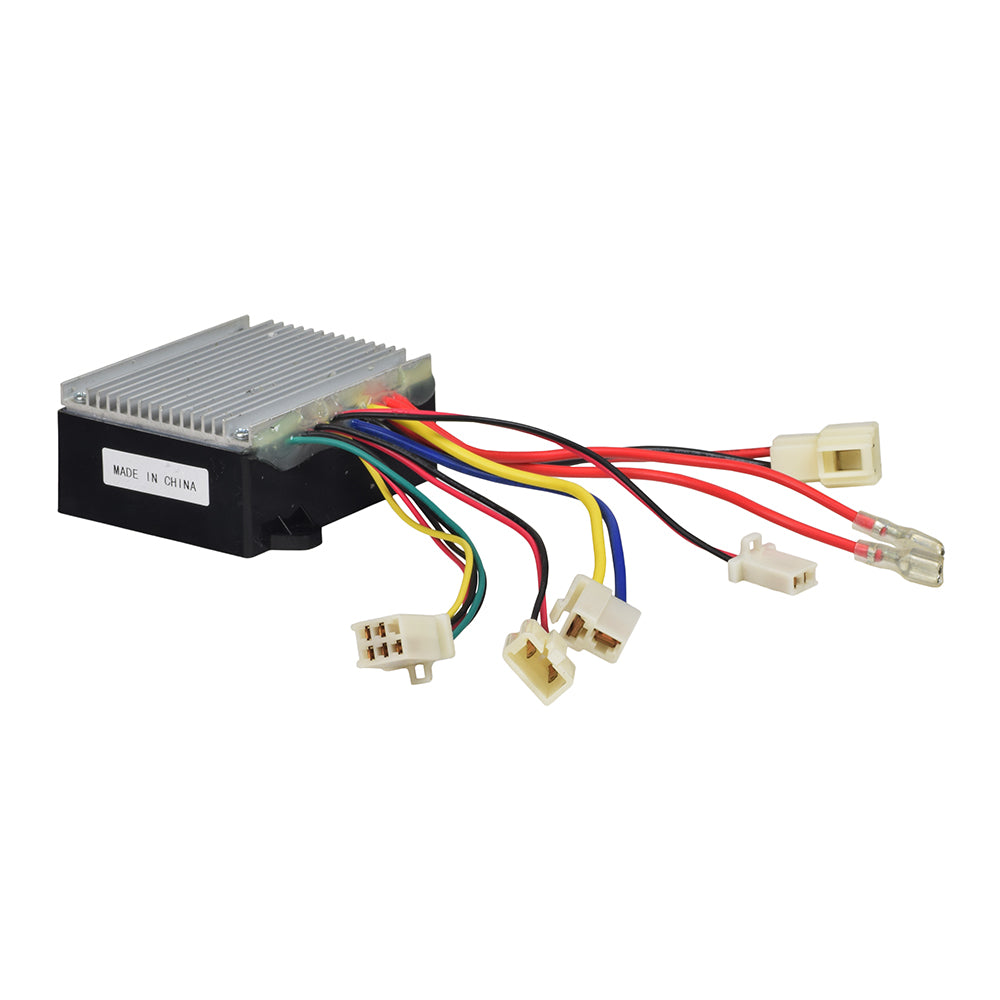

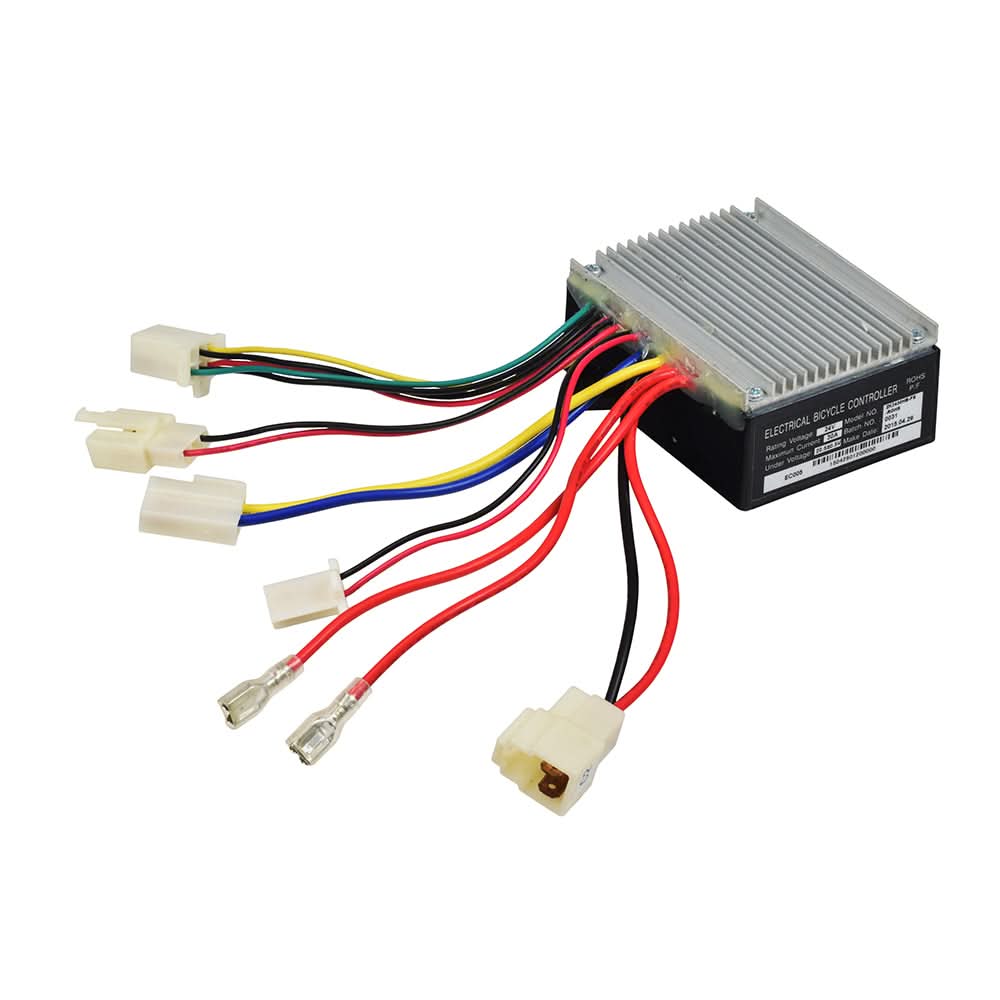

Razor E300 (Versions 11 & 13-19) ZK2430HB-FS Control Module with 5-Wire Throttle Connector

ZK2430HB-FS controller connects to throttles with 5 wires.

Compatible with versions 11 and 13-19 of the Razor E300.

The original wiring diagram for this part can be found at the following link:

Razor E300 Wiring Diagram (Versions 11 & 13-19)

Note: Model versions can be determined based on the product ID code on your Razor product. The product ID code can be found on the battery cover and/or on the bottom of the frame. The 7th and 8th numbers in your product ID code are the version number of your Razor product (e.g. "01" = Version 1, "02" = Version 2, etc.).
