Razor Variable Speed 4-Wire Thumb Throttle for Razor Dune Buggy, Versions 1-11
$12.74
$14.99
Unit price
/
Unavailable
Razor Variable Speed 4-Wire Thumb Throttle for Razor Dune Buggy, Versions 1-11 is backordered and will ship as soon as it is back in stock.
Free Shipping
Free Shipping
- US domestic ship to addresses only.
- Does not include expedited shipping services.
Description
Description

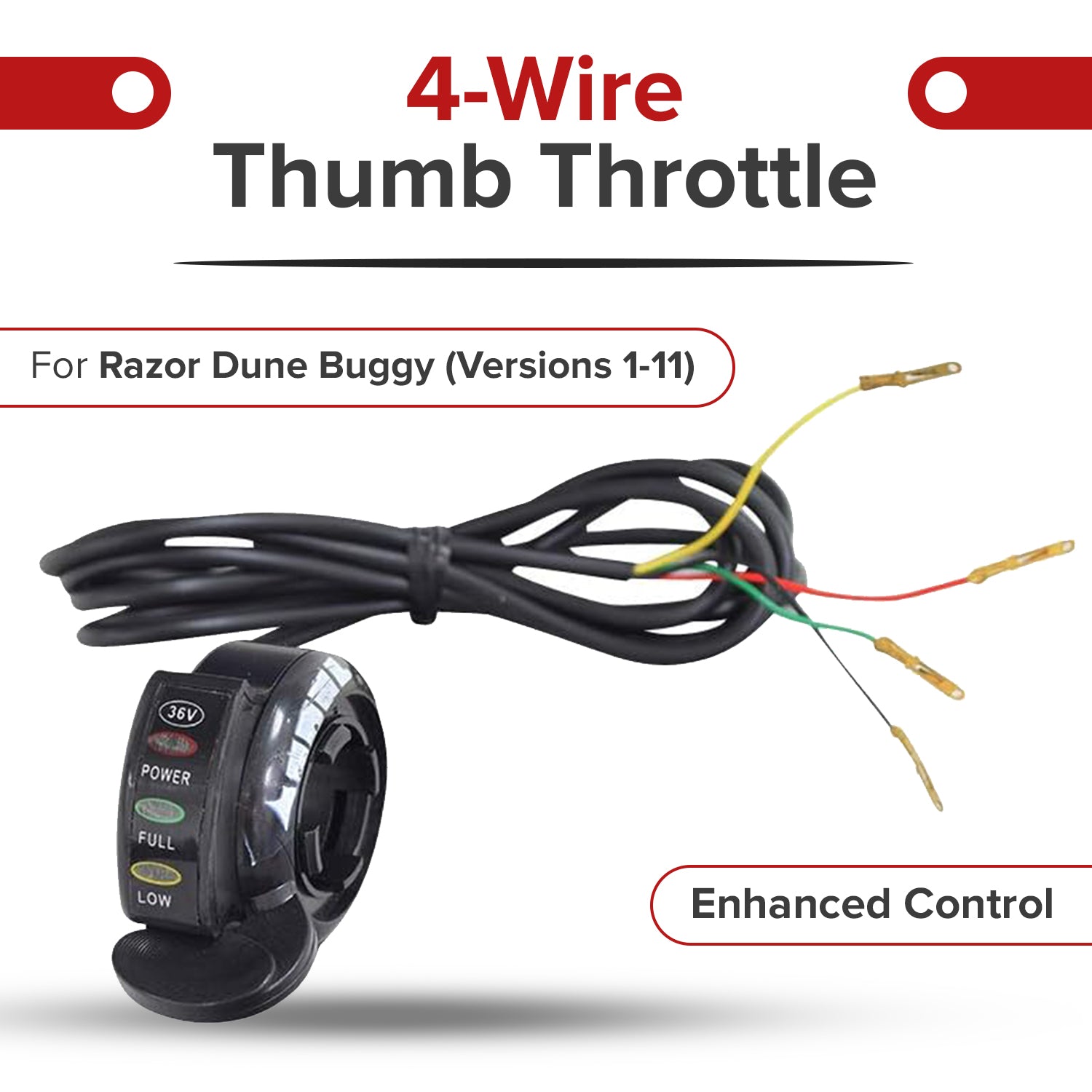

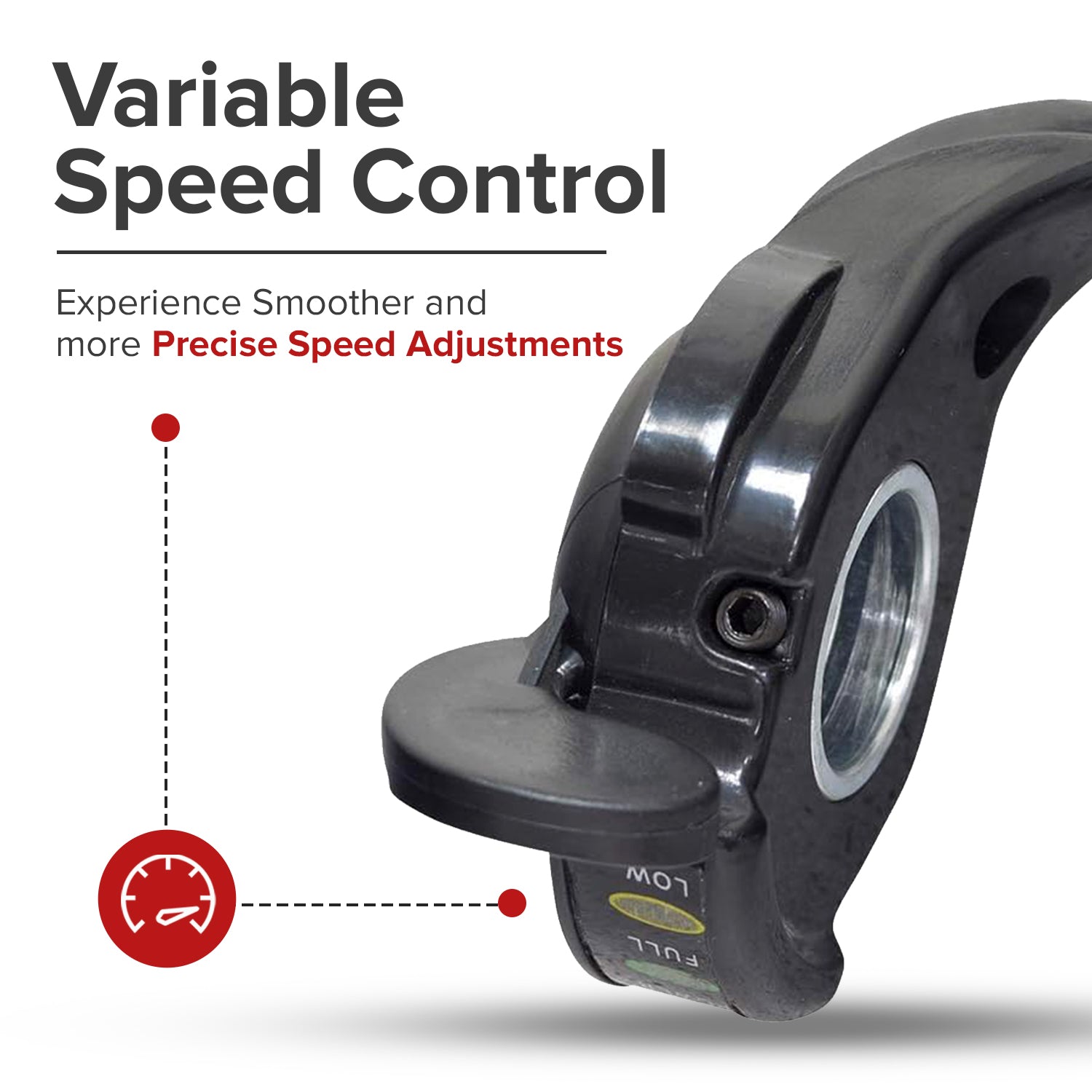

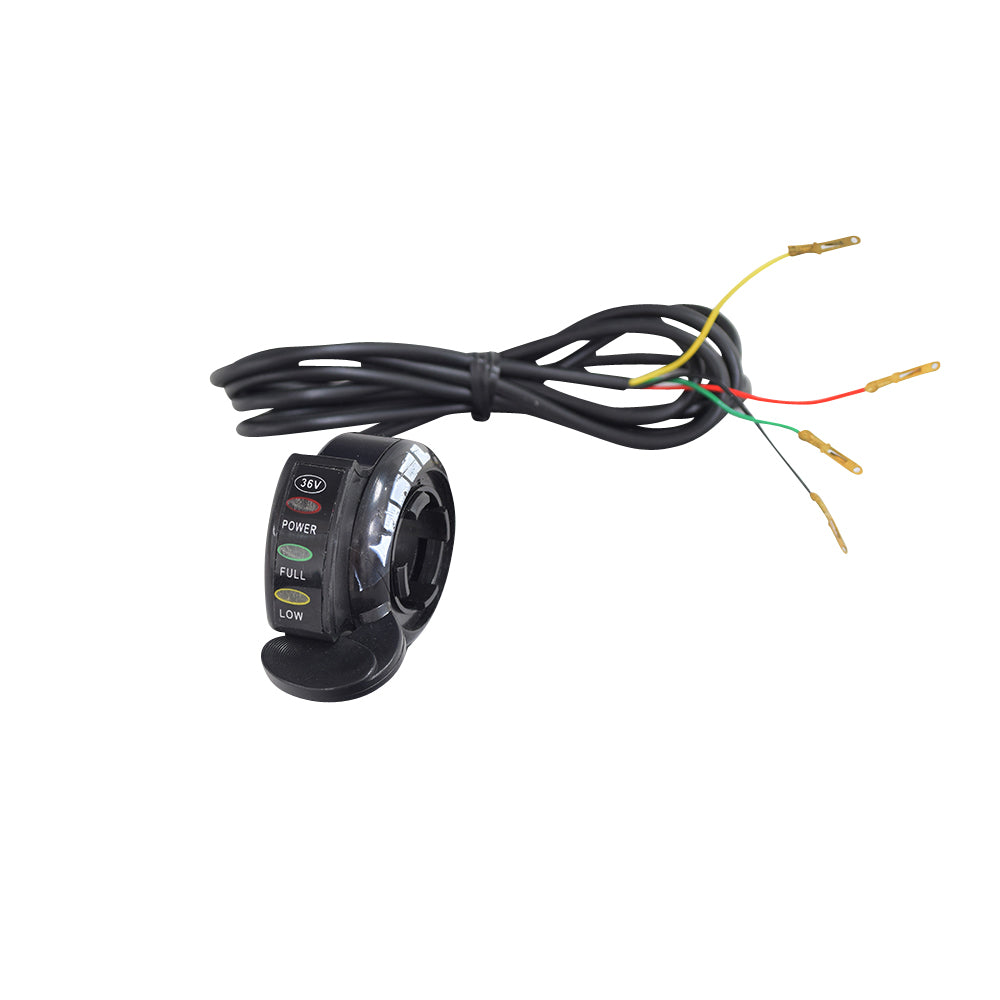

Razor variable speed 4-wire thumb throttle for the Razor Dune Buggy (versions 1-11) electric scooters.
Prior to ordering, make sure your controller's four throttle wires are red, black, green, and yellow. Also measure your controller's four wire throttle connector and verify you have 4.5 - 6.0 volts between the red and black wire. If you do not read this level of voltage this throttle is not compatible or your controller needs to be replaced.

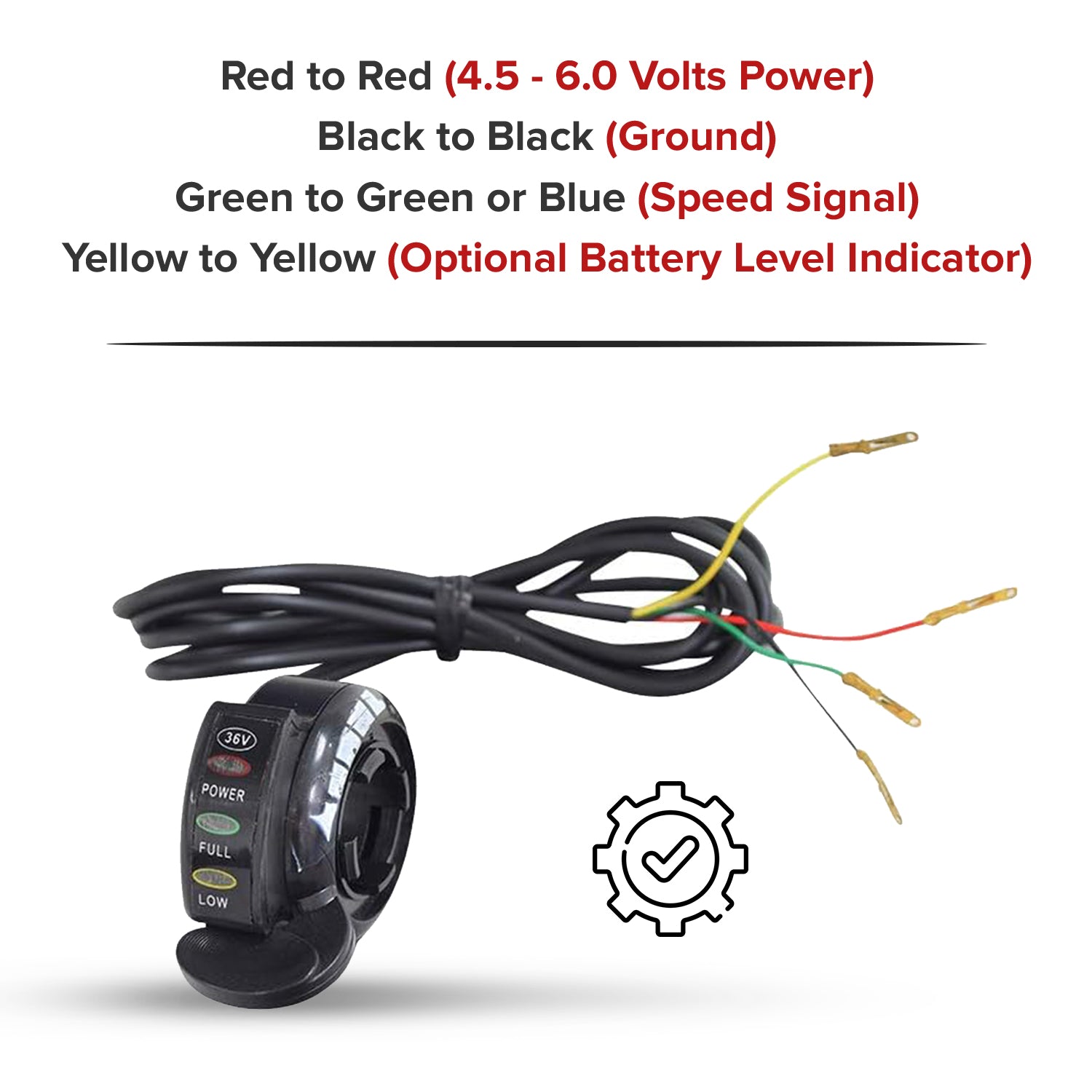

Throttle Wire Color to Controller Wire Color (Description)

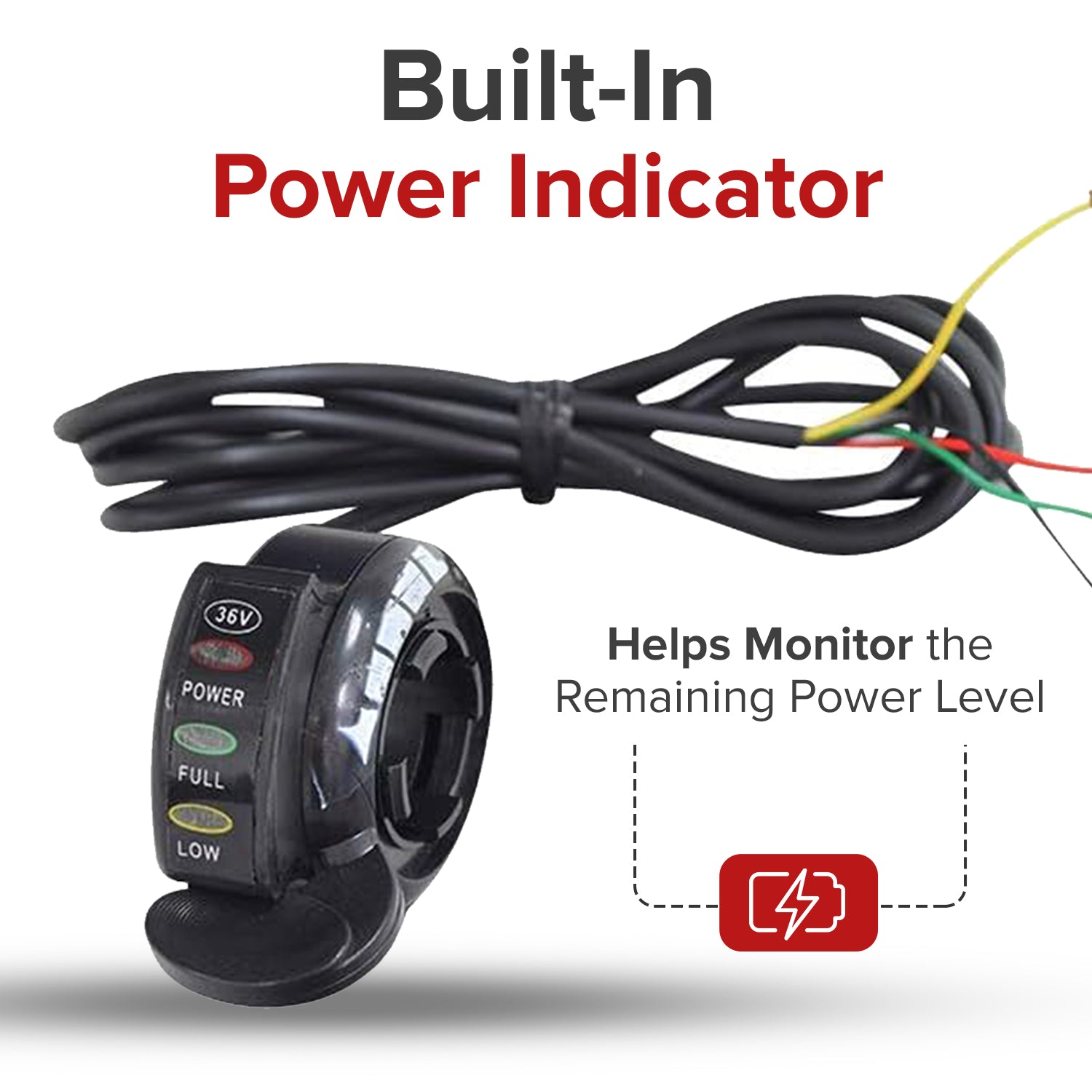

Red to Red (4.5 - 6.0 Volts Power) Black to Black (Ground) Green to Green or Blue (Speed Signal) Yellow to Yellow (Optional Battery Level Indicator)
Wiring diagrams for the Razor Dune Buggy can be found at the following links:
Razor Dune Buggy Wiring Diagram (Versions 1-11) Razor Dune Buggy Wiring Diagram (Versions 12+)

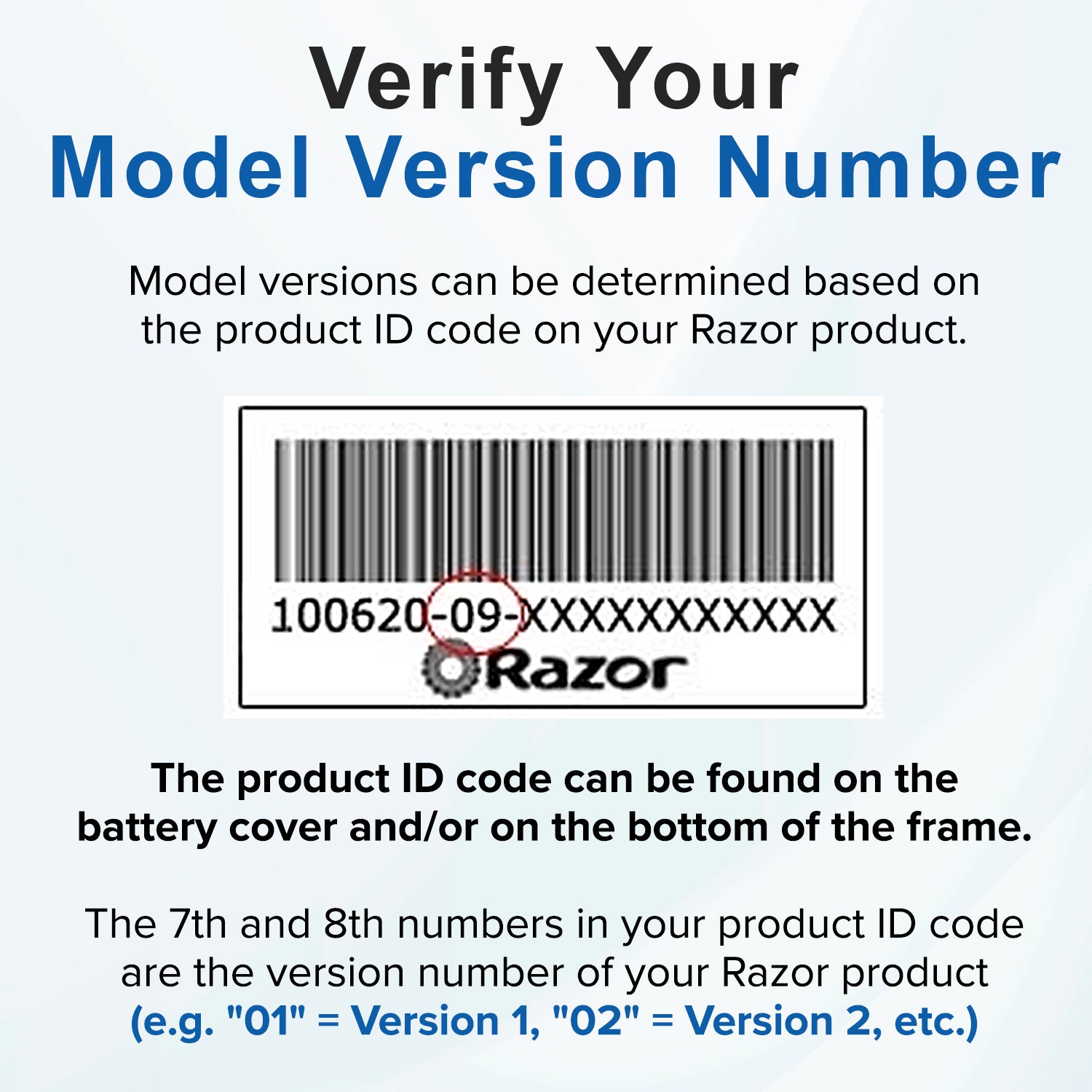

Note: Model versions can be determined based on the product ID code on your Razor product. The product ID code can be found underneath the frame, on the battery cover, on the original battery charger, or on the cardboard box in which your Dune Buggy came. The 7th and 8th numbers in your product ID code are the version number of your Razor product (e.g. "01" = Version 1, "02" = Version 2, etc.). The image below shows a product ID of a version 9 Razor model:
Razor: W13112099043-M
