Monster Scooter Parts | SKU:
Z09-1920

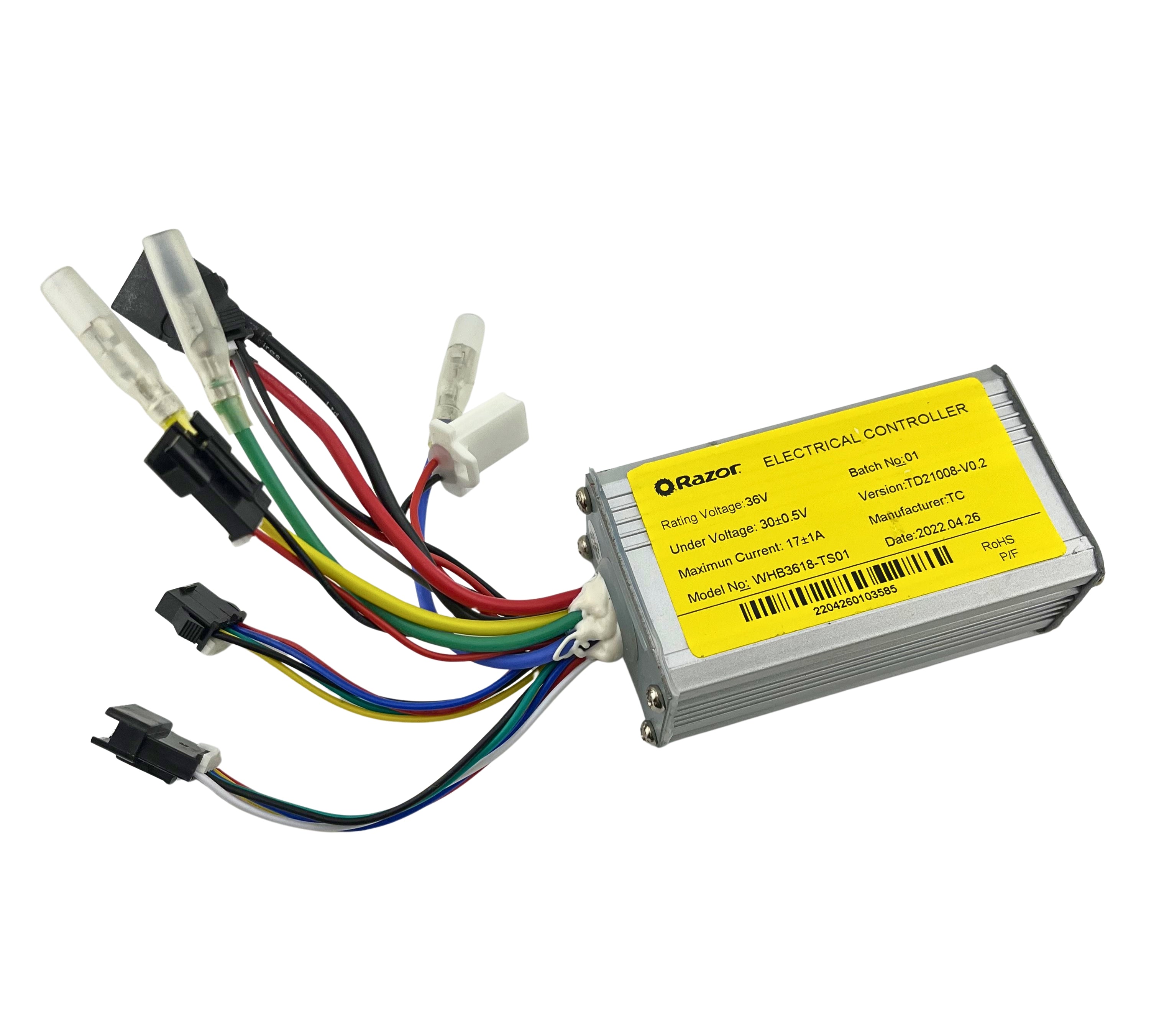

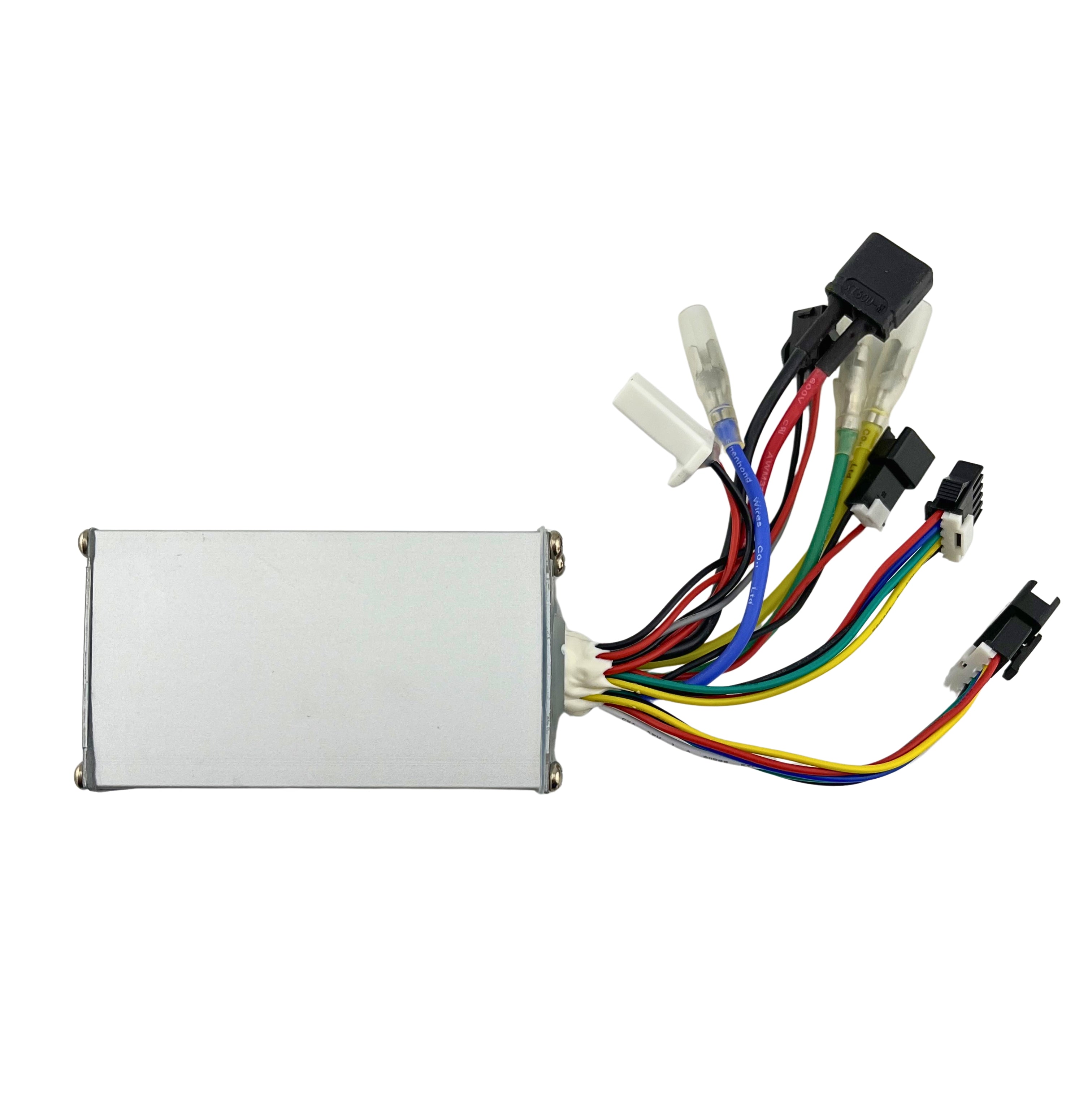

Control Module for the Razor C35 SLA Electric Scooter (V1+)
$34.99
Unit price
/
Unavailable
Control Module for the Razor C35 SLA Electric Scooter (V1+) is backordered and will ship as soon as it is back in stock.
Free Shipping
Free Shipping
- US domestic ship to addresses only.
- Does not include expedited shipping services.
Key Features
- 36 volt 16 amp controller
- Model WHB3618-TS01
Description
Description
The WHB3618-TS01 control module for the Razor C35 SLA electric scooter (version 1+) is the scooter's central electronics system where the current is routed to the scooter's electric components.
When your Razor refuses to budge the problem is often a malfunctioning control module. Although made to be durable, scooter control modules can be compromised by too much heat, moisture, dirt, dust, and other factors. Our top-notch replacement WHB3618-TS01 control module is a quick solution to the problem.
Note: Model versions can be determined based on the product ID code. Razor IDs can usually be found on the rectangular white sticker inside the seat compartment, on the battery cover, on the underside of the frame, or on the original battery charger. The 7th and 8th numbers in your product ID code are the version number of your Razor product (e.g. "01" = Version 1, "02" = Version 2, "09" = Version 9, etc.).
⚠ WARNING California Residents: Proposition 65 Warning
When your Razor refuses to budge the problem is often a malfunctioning control module. Although made to be durable, scooter control modules can be compromised by too much heat, moisture, dirt, dust, and other factors. Our top-notch replacement WHB3618-TS01 control module is a quick solution to the problem.
Note: Model versions can be determined based on the product ID code. Razor IDs can usually be found on the rectangular white sticker inside the seat compartment, on the battery cover, on the underside of the frame, or on the original battery charger. The 7th and 8th numbers in your product ID code are the version number of your Razor product (e.g. "01" = Version 1, "02" = Version 2, "09" = Version 9, etc.).
⚠ WARNING California Residents: Proposition 65 Warning
Reviews (0)
Reviews (0)
Specifications
Specifications

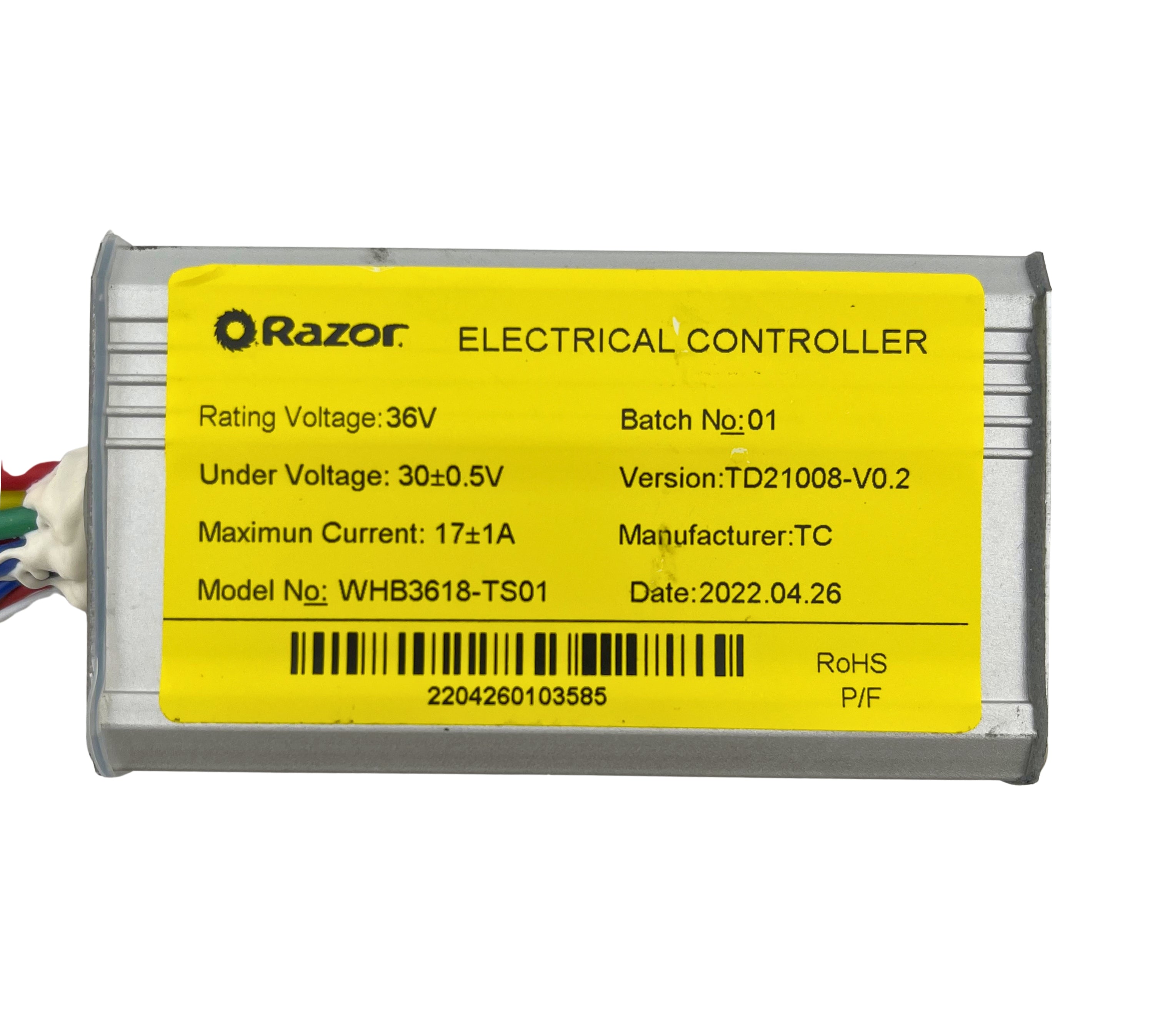

Model: WHB3618-TS01
Voltage: 36V
Low voltage protection: DC3V +/- 0.5V
Maximum current:17A +/- 1A
Wires: 23
Connectors: 9
Case length: 3-5/16"
Width: 1-7/8"
Height: 1-3/16"
