Pride Mobility  |  SKU: X98-9336-001  | Pride Mobility / Quantum: DRVASMB7110009 (left), DRVASMB7110010 (right)

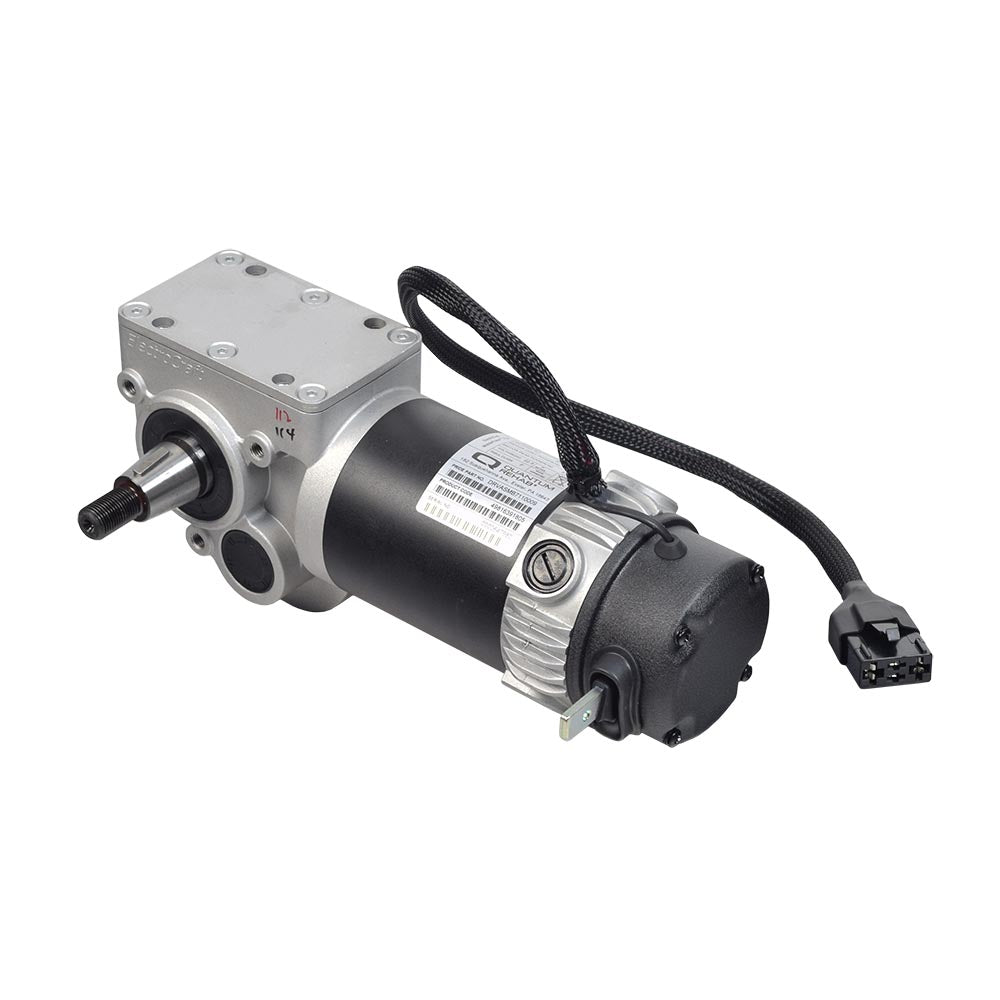

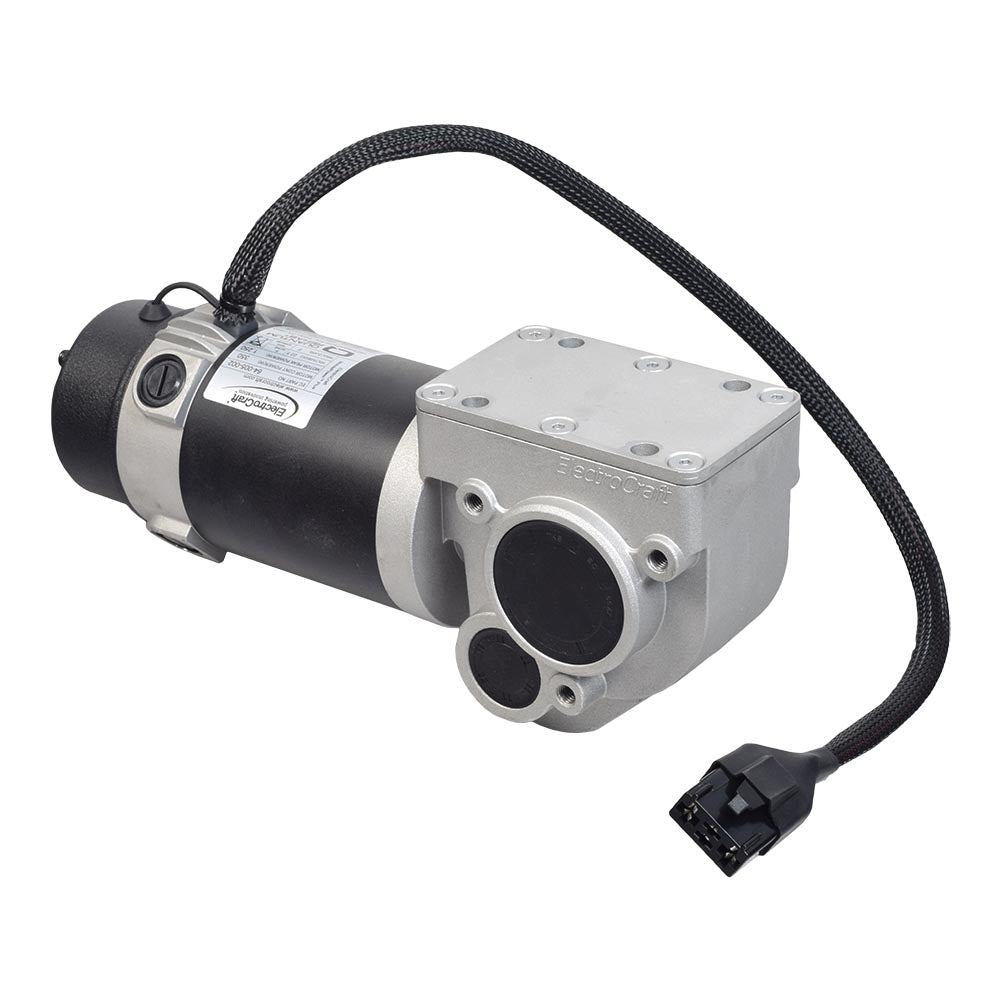

Motor Assembly for the Jazzy 1450, Quantum Q1450, & Quantum Q6 Edge HD

$1,066.99
Side

Veterans Day Sale - Save 11% with Coupon Code: VET11
This item has a 30 day warranty. Warranty Policy

Free Shipping
  • US domestic ship to addresses only.
  • Does not include expedited shipping services.
Key Features
  • 3800 RPM motor
  • 32.79:1 gear ratio
  • 116 RPM shaft output
  • 18-1/2" cable
  • Tapered shaft
  • Motor, electromechanicl brake, & gearbox
  • Available in left or right side configuration

Description
The 3800 RPM drive motor assembly for the Jazzy 1450, Quantum Q1450, and Quantum Q6 Edge HD power chairs includes the gearbox, electromechanical brake, and an 18-1/2" cable, with a Curtis connector. The gearbox has a 32.79:1 gear ratio and turns a tapered shaft.

Electric motor assemblies for power chairs may eventually wear out and need replacing. A new replacement drive motor is an economical solution for your Jazzy 1450, Quantum Q1450, or Quantum Q6 Edge HD power chair. These motor, brake, and gearbox assemblies are available in either a left side or a right side configuration, and you must specify which side when ordering.

Pride Mobility / Quantum: DRVASMB7110009 (left), DRVASMB7110010 (right)

⚠ WARNING California Residents: Proposition 65 Warning

Reviews (0)

Specifications

Motor: 64 Hammer II
Weight: 16.25 lbs. (each)
Motor RPM: 3800
Output RPM: 116
Gear ratio: 32.79:1
Cable length: 18-1/2"
