Monster Scooter Parts  |  SKU: P16-2366

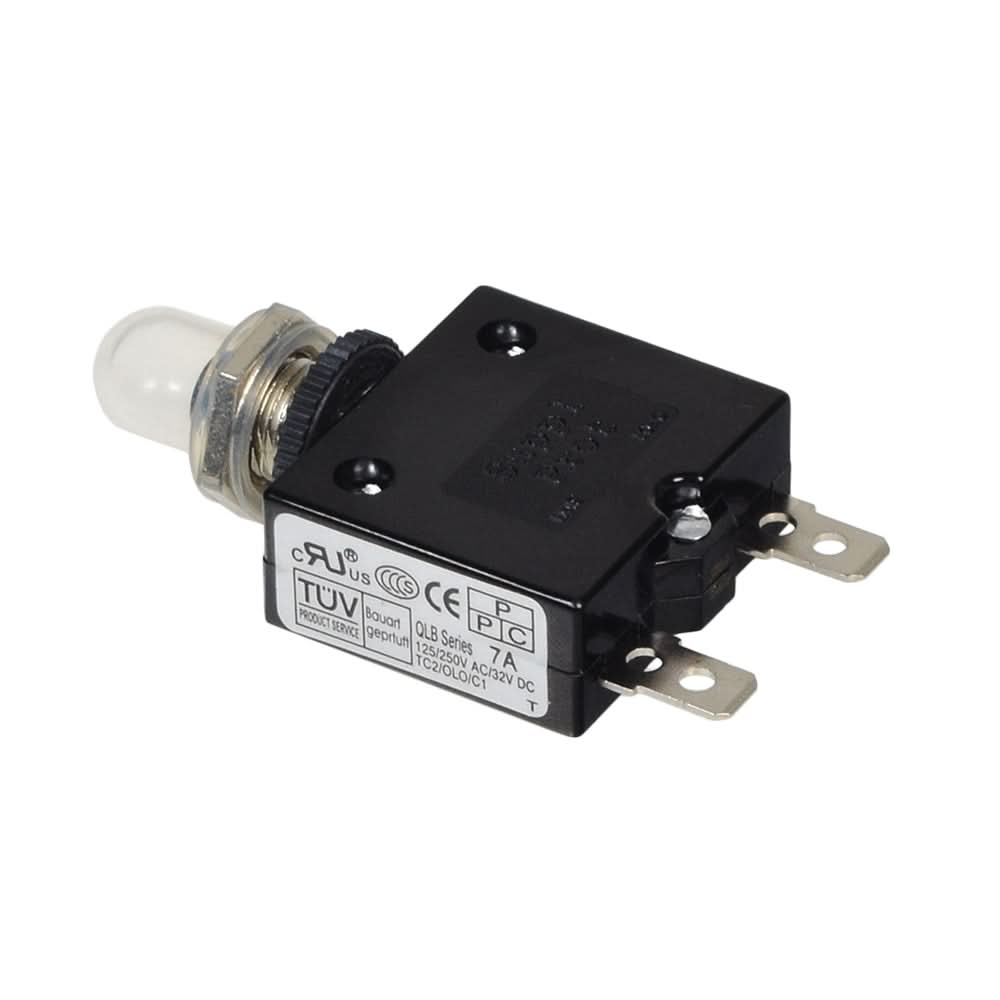

7 Amp (7A) 32VDC 125/250VAC Push-Button Reset Circuit Breaker with 1/4" Tab Terminals

$1.84 $3.49

  • Save $5 on orders $50+ with coupon code: FIVE
  • Save $10 on orders $100+ with coupon code: TEN

    •
    This item has a 30 day warranty. Warranty Policy

    Free Shipping
    • US domestic ship to addresses only.
    • Does not include expedited shipping services.

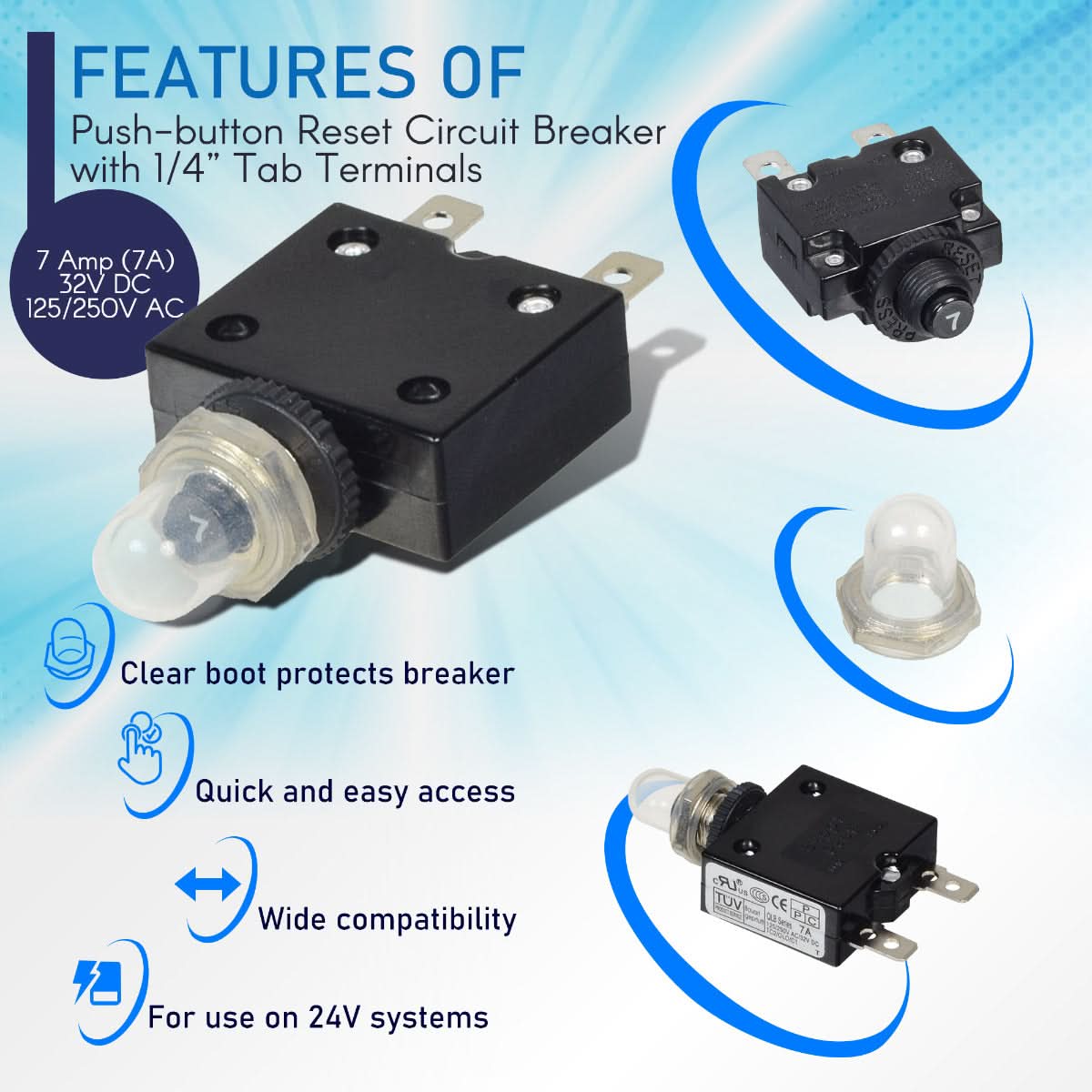

    Key Features
    • This 7 amp, 32 volt DC circuit breaker is for 24 volt electric systems.

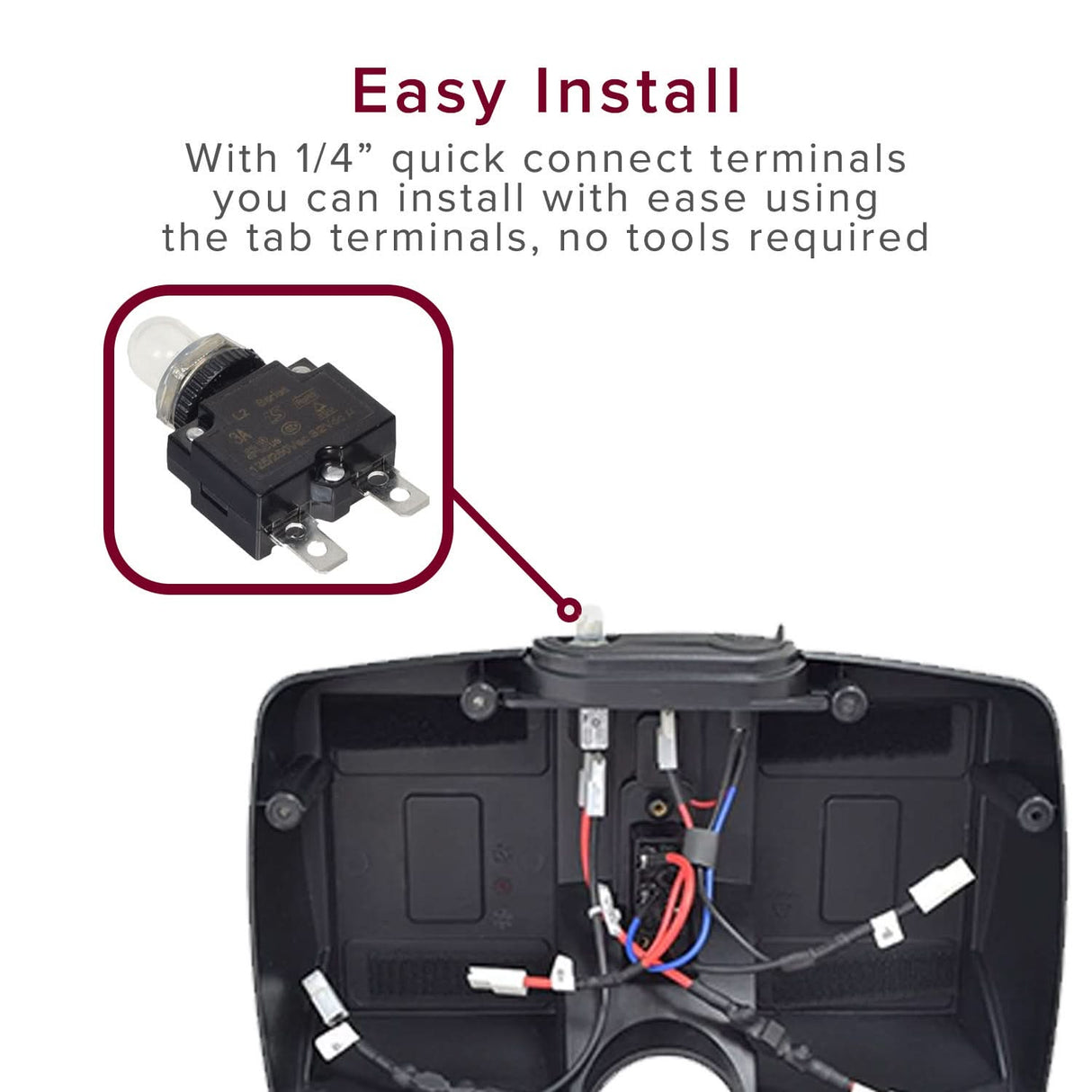

    • The push button style reset includes a threaded shaft & 1/4" tab terminals.

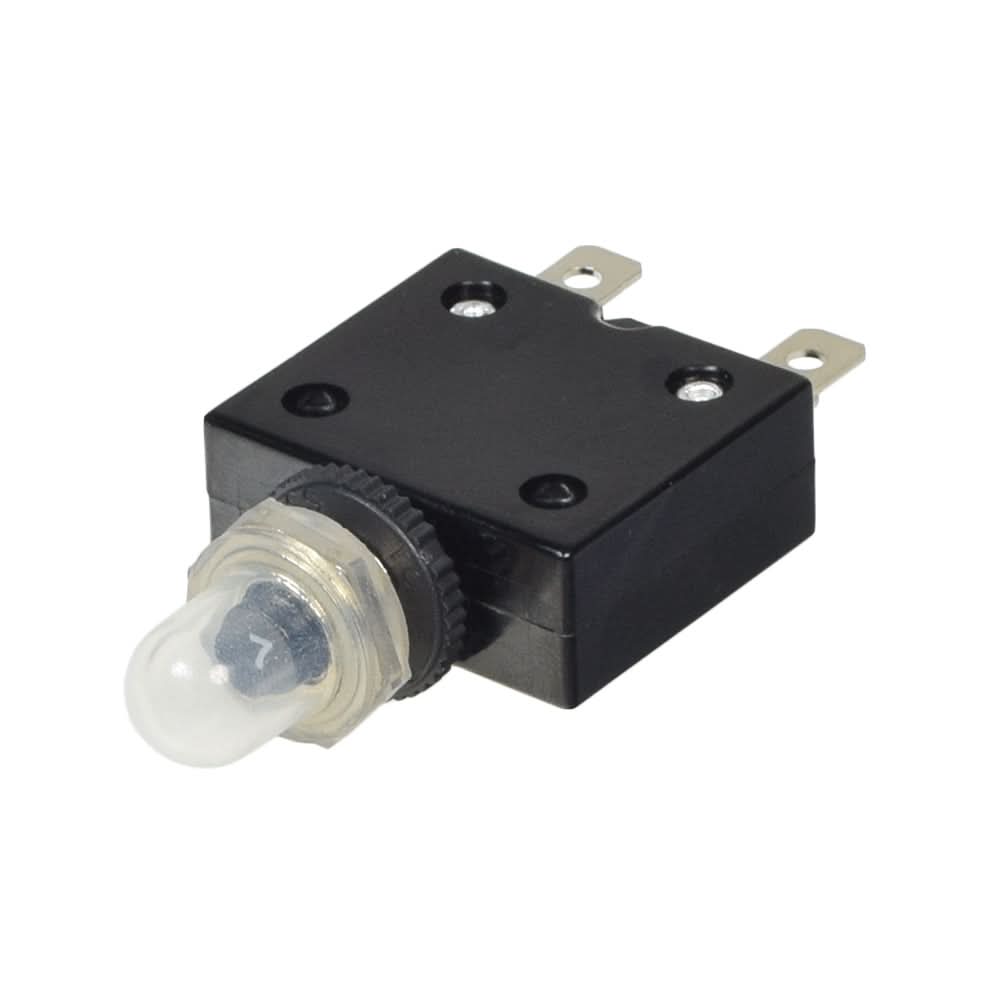

    • Each breaker comes with a clear plastic boot cover to protect it from dust & moisture.
    • The circuit breaker uses the panel mount design for quick & easy access.

    Description
    The 7amp (7A) 32VDC 125/250VAC push-button reset circuit breaker is compatible with a number of recreational electric scooters as well as some brands of mobility scooters and other electric-powered personal vehicles. This push button panel mount style breaker is suitable for use on all 24 volt systems. The breaker uses a dual D-style chamfered shaft designed to fit approximately 7/16" hole. These breakers are very easy to install or replace. Lead-free and RoHS compliant, our push-button circuit breakers are also Underwriters Laboratories (UL®) Listed.

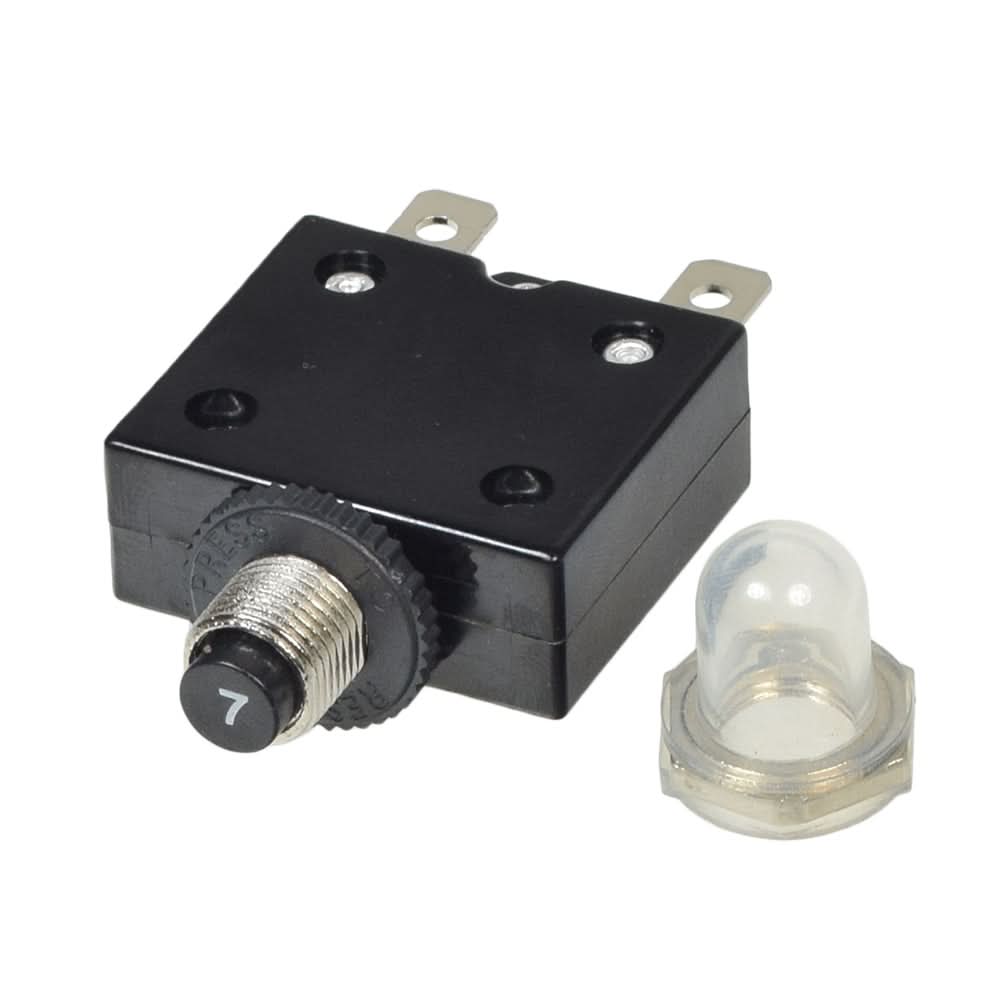

    In addition, our 7 amp 32 volt breaker includes a clear plastic boot that protects the button from dust and moisture.

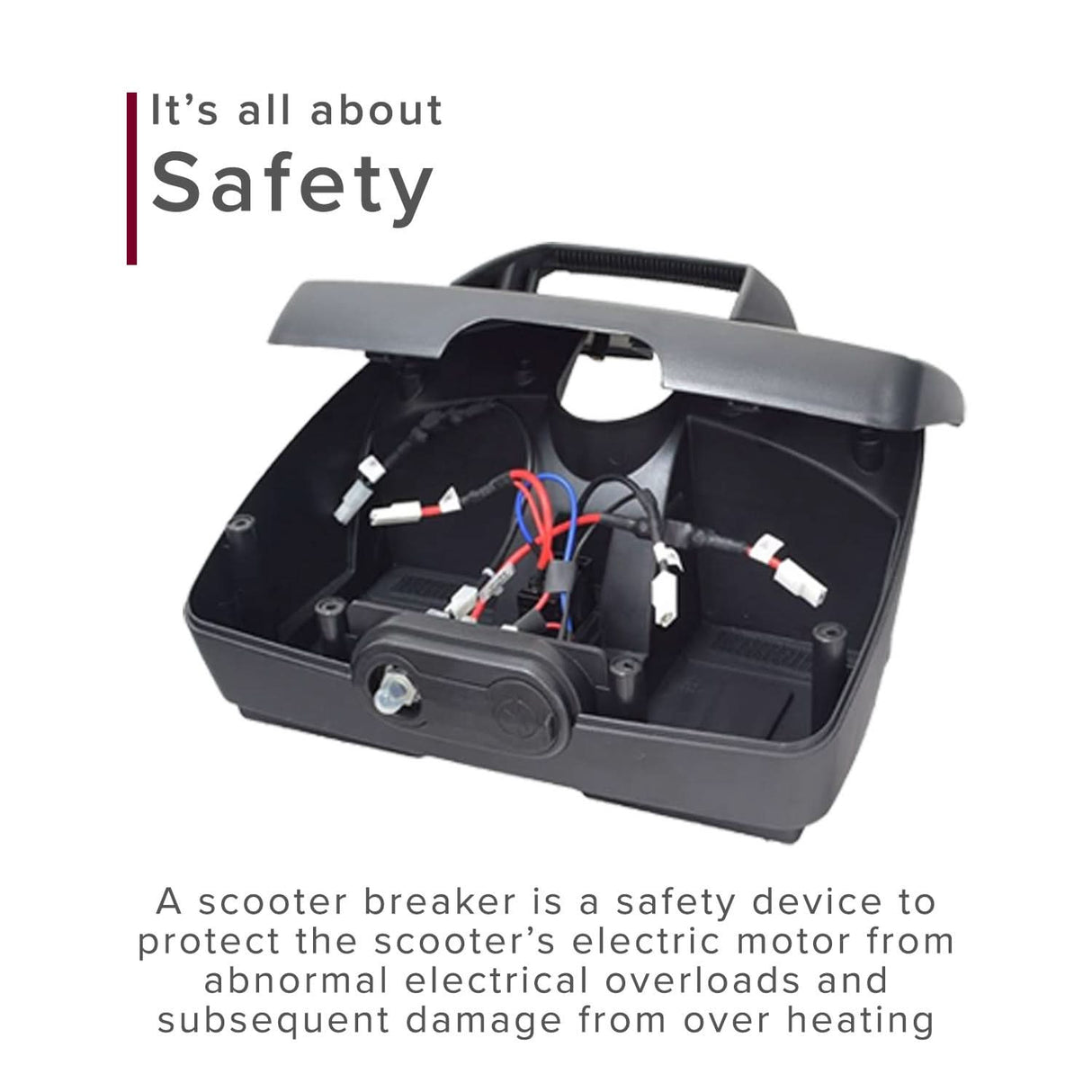

    A scooter breaker is a safety device to protect the scooter’s electric motor from abnormal electrical overloads and subsequent damage from overheating. Often overlooked but easy to install and relatively inexpensive, a push-button reset circuit breaker should be immediately replaced when broken, damaged, or corroded. Also referred to as the non-technical term of reset button by some electric scooter manufacturers.

    ⚠ WARNING California Residents: Proposition 65 Warning

    Reviews (0)

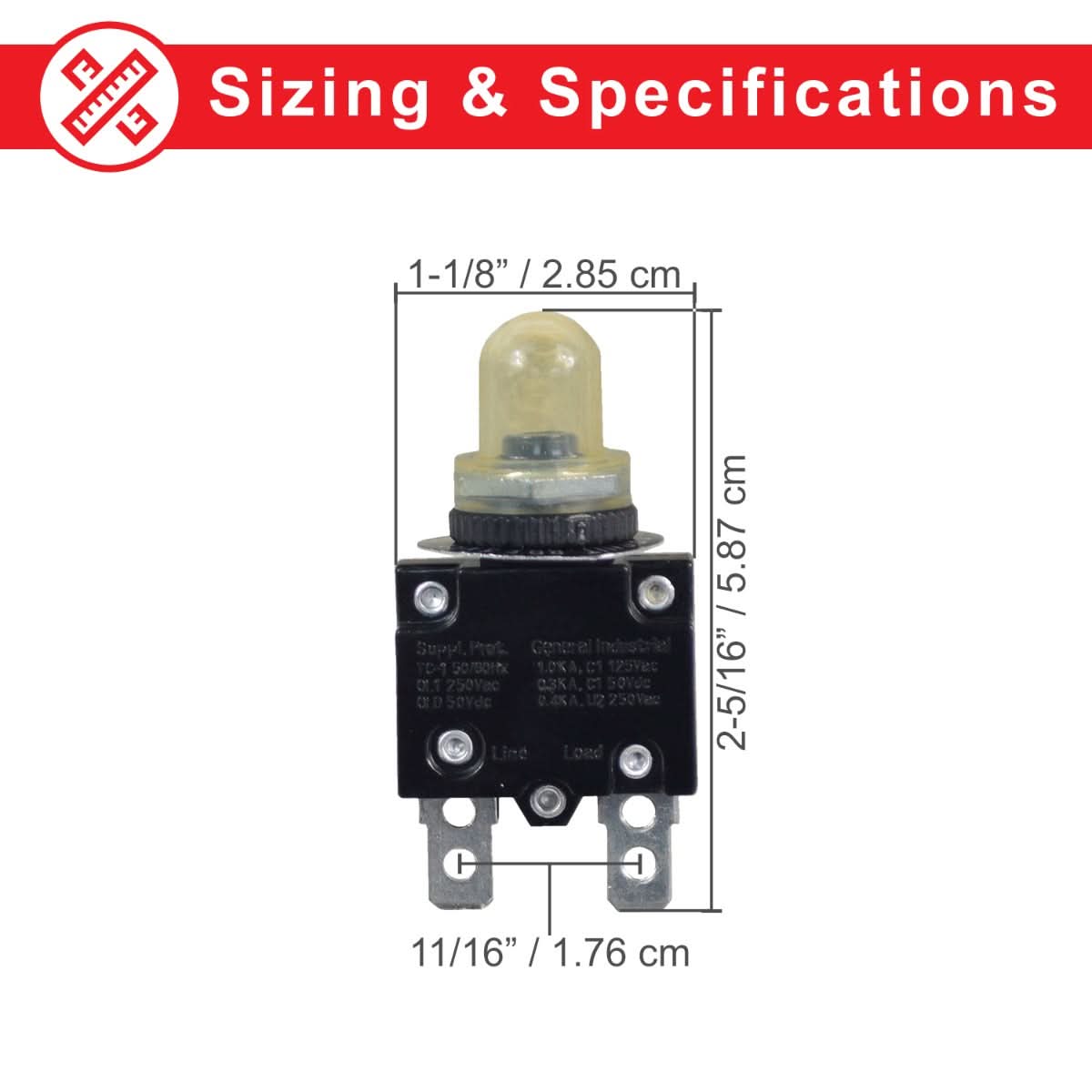

    Specifications

    Breaker Type: Thermal
    Voltage: 32VDC, 125/250VAC
    Current - Trip: 7A
    Number of Poles: 1
    Actuator Type: Push to Reset
    Mounting Type: Panel Mount
    Threaded Mounting Shaft Pitch: M11*1.0
    Threaded Mounting Shaft Diameter: 9.8 mm
    Terminals: 1/4" Tab

    Compatibility
