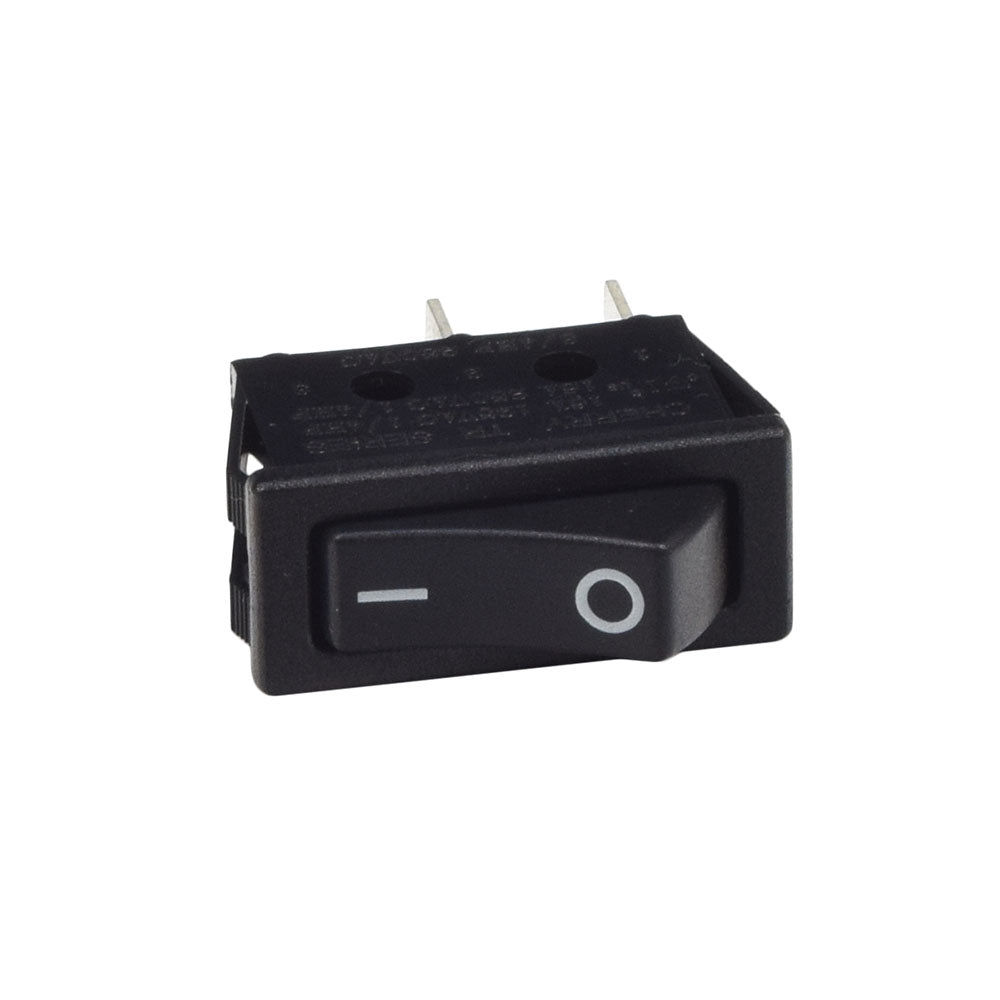

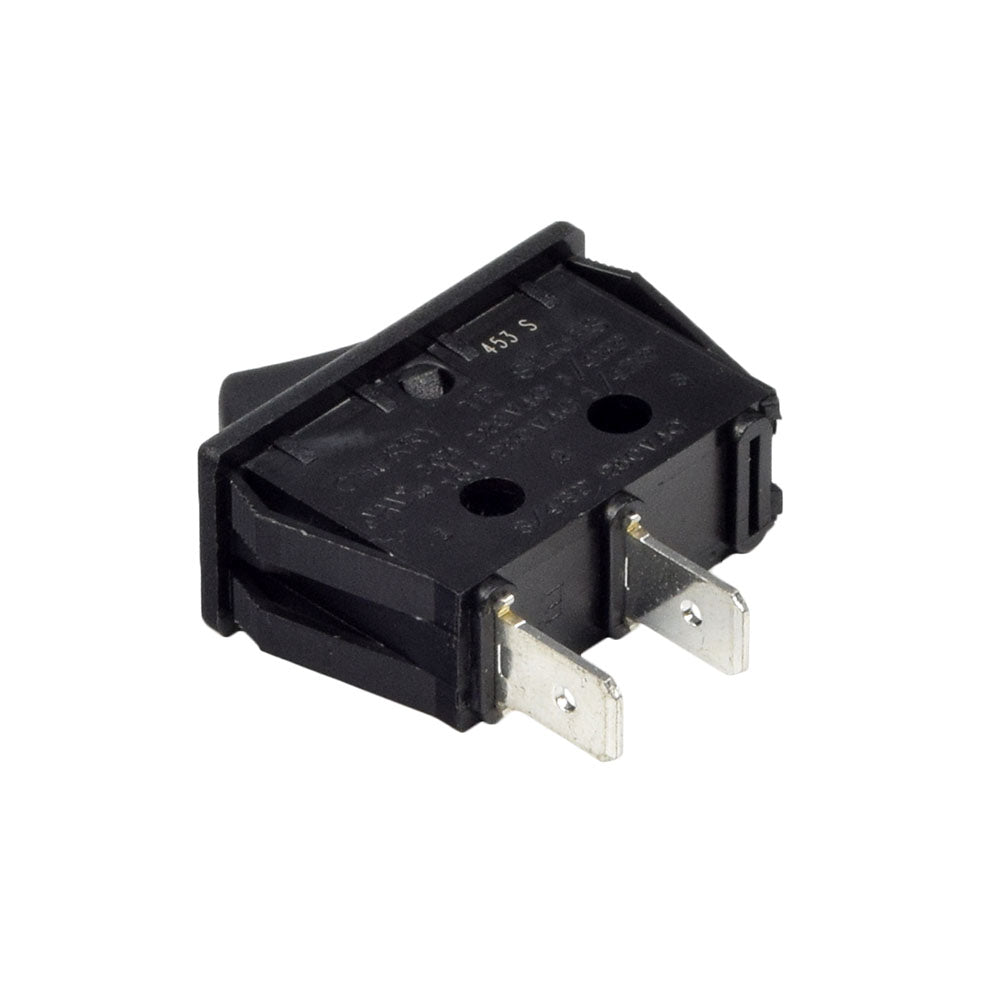

On/Off Switch for Pulse Scooters

This black on/off switch is a compatible replacement for many Pulse electric scooters including the Bolt, Charger, Lightning, Reverb, and Sonic.

Switch it on; switch it off!

⚠ WARNING California Residents: Proposition 65 Warning

Color, Button: Black
Contact Form: SPST
Current, Rating: 16 A
Dielectric Strength: 1000 VAC
Dimension, Depth: 30.5 mm (outside flange to ends of 1/4" terminals, does not include rocker height)
Dimensions, Backside: 27 mm x 10.9 mm
Dimensions, Outside Flange: 32 mm x 13.9 mm
Material, Body: Polycarbonate
Material, Contact: Silver Alloy
Mechanical Life: 50000 Operations
Mounting Type: Panel
Number of Poles: 1
Number of Positions: 2
Operation: On-Off
Resistance, Contact: 0.020 Ohms (Max.)
Resistance, Insulation: 10^8 Ohms (Min.) @ 500 VDC
Standards: UL Listed, CSA Certified, VDE Approved
Temperature, Operating, Maximum: 85 °C
Temperature, Operating, Minimum: -20 °C
Termination: Quick Connect
Type: Rocker
