Monster Scooter Parts  |  SKU: Z09-1723

12 Volt LBD8 Controller for the Avigo Extreme Scooter

$17.09

Save 10% with coupon code: CUPID10
This item has a 30 day warranty. Warranty Policy

Free Shipping
  • US domestic ship to addresses only.
  • Does not include expedited shipping services.

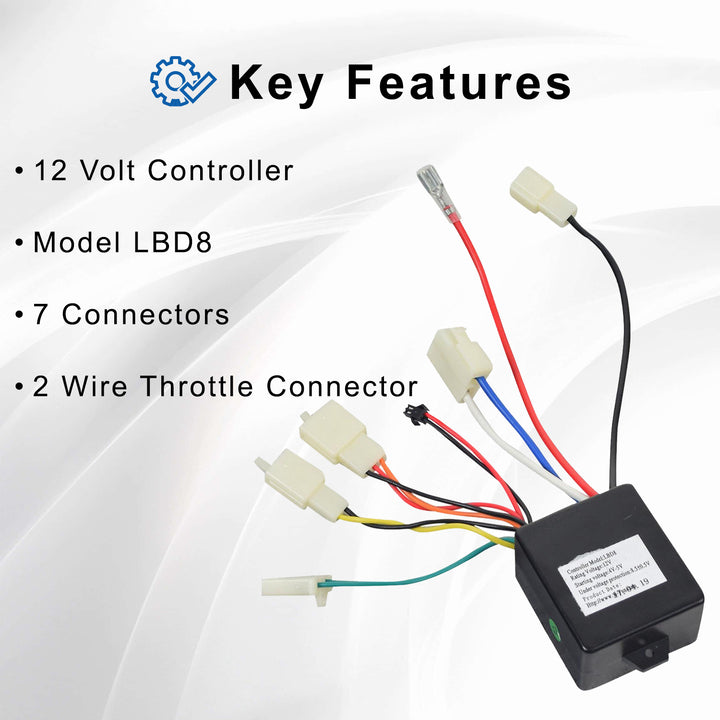

Key Features

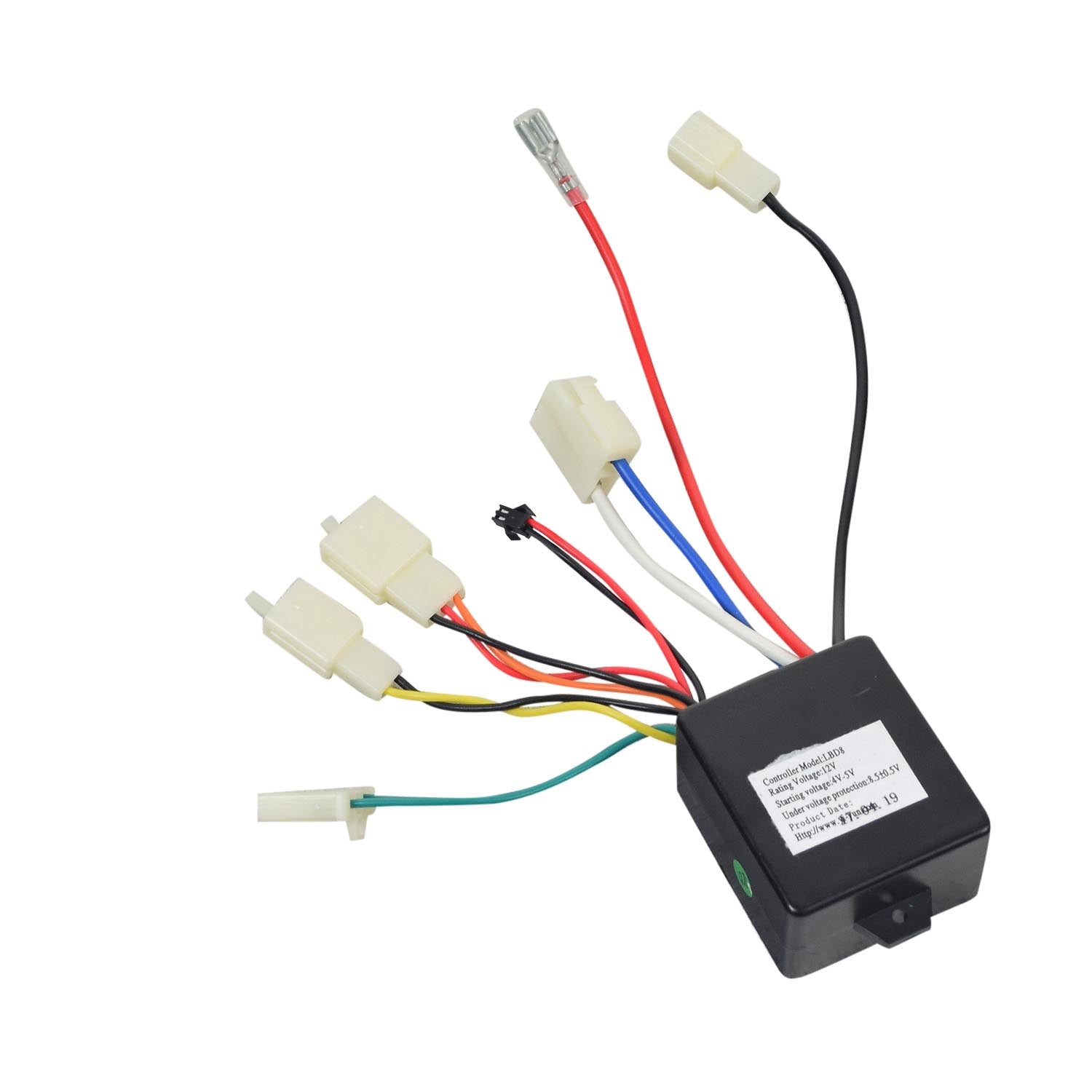

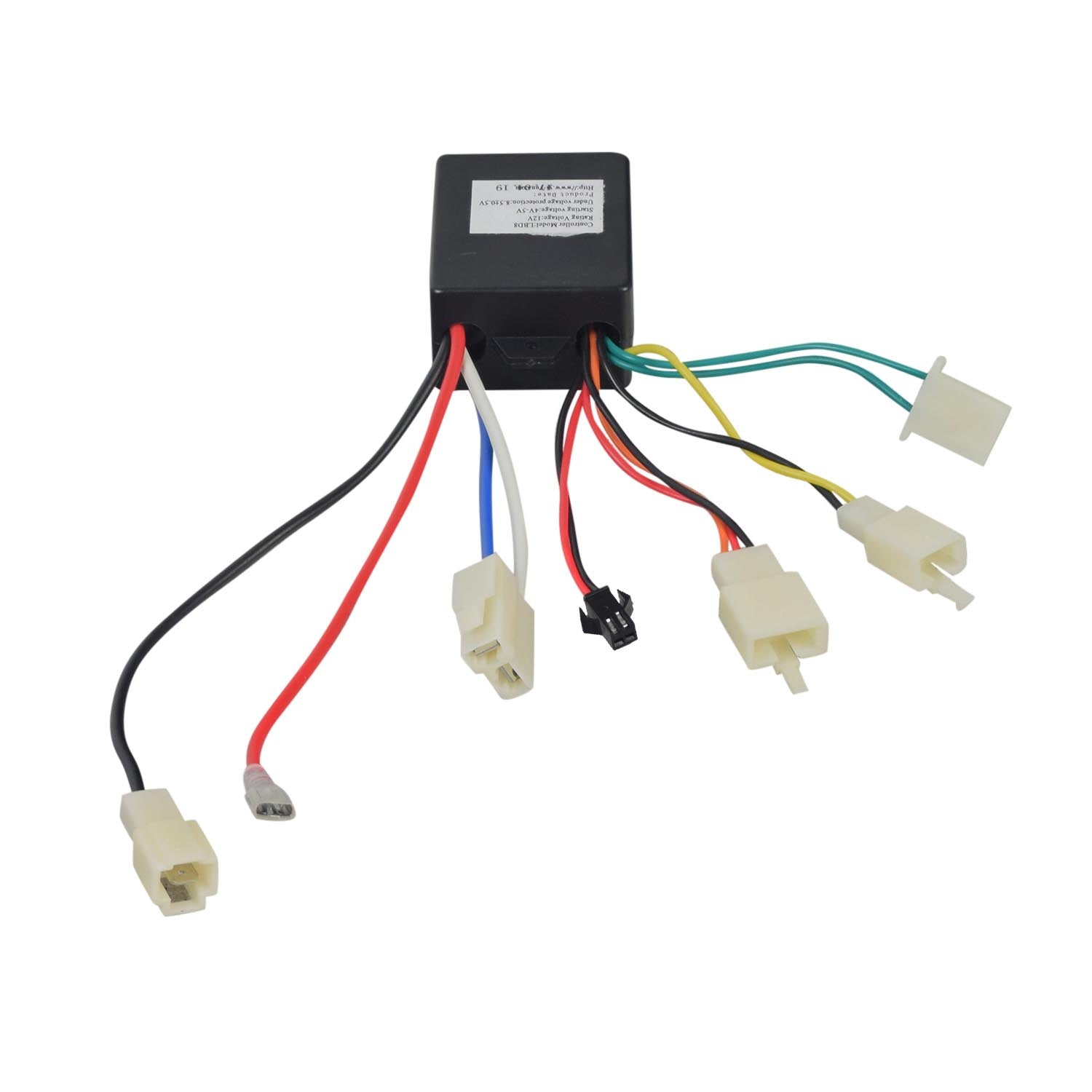

  • Controller - 12 Volt "LBD8" Speed Motor Control Module

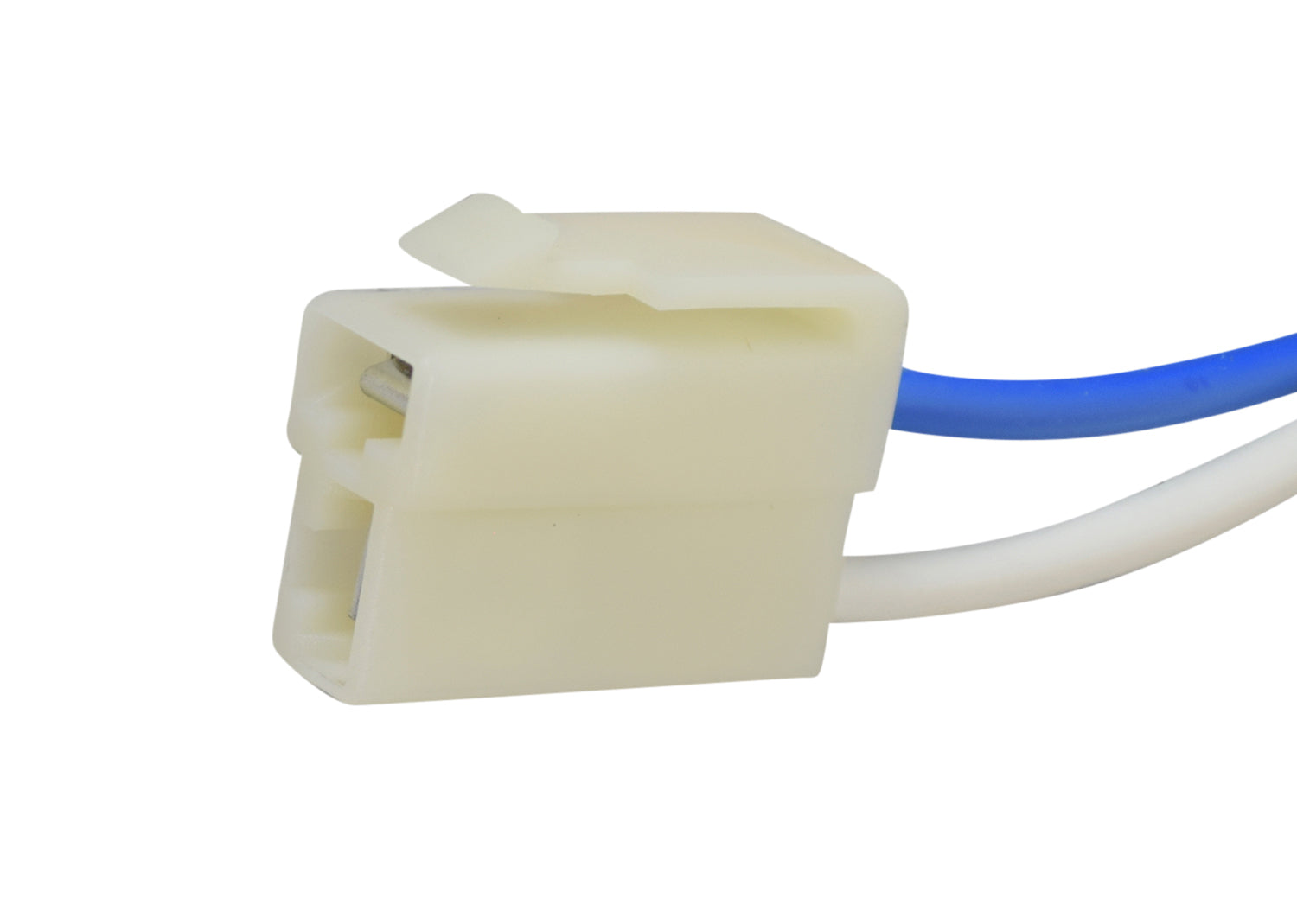

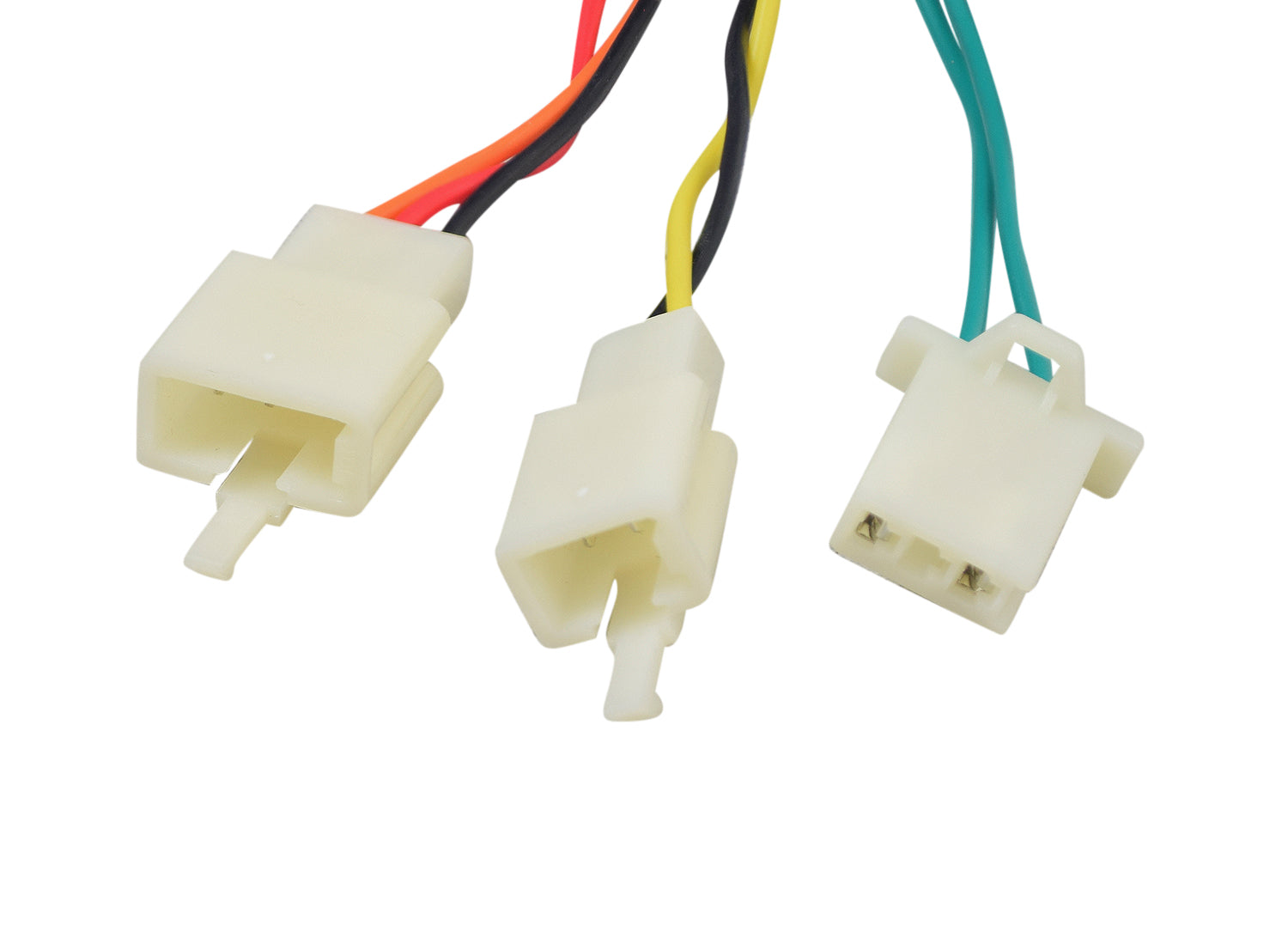

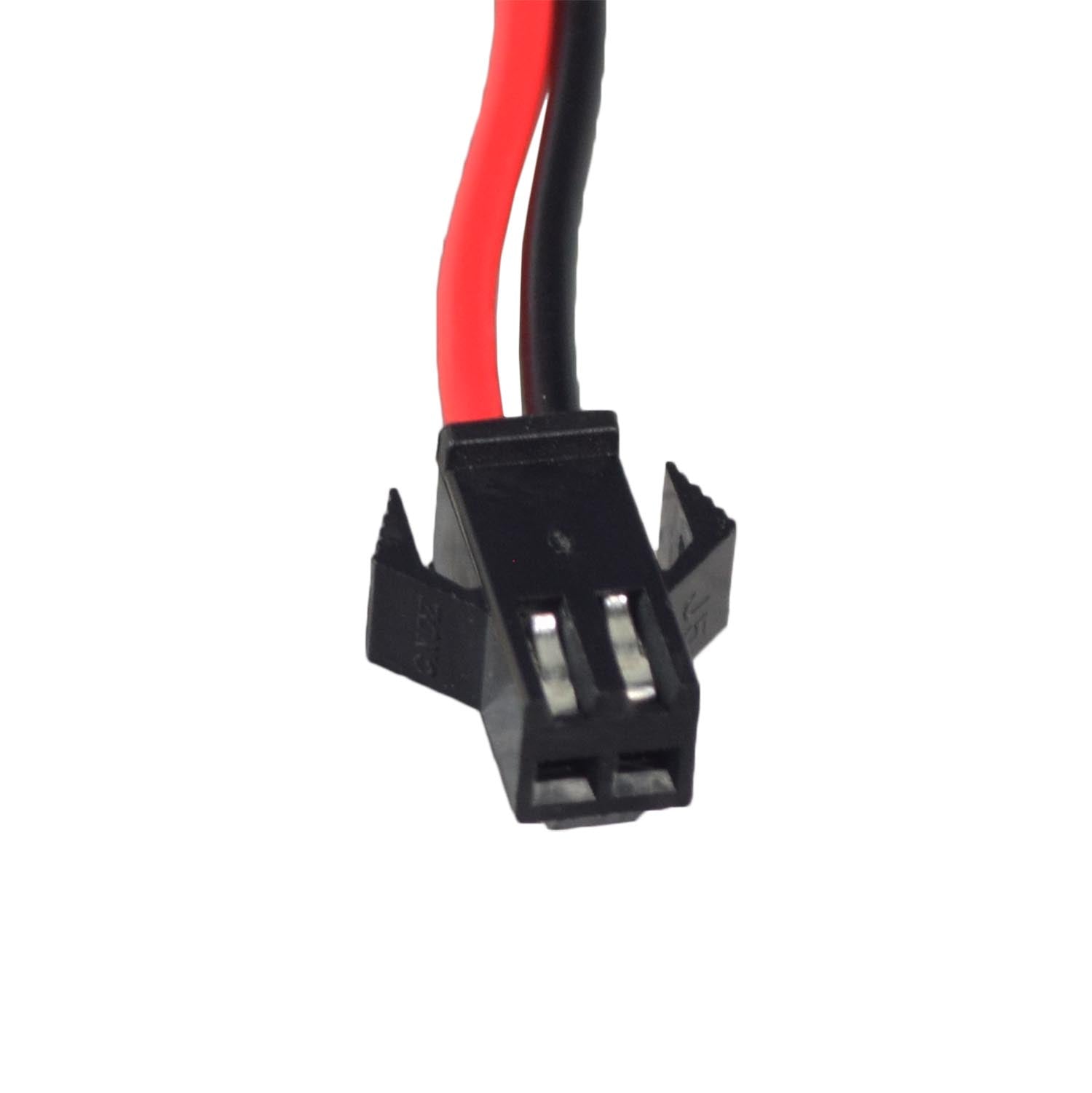

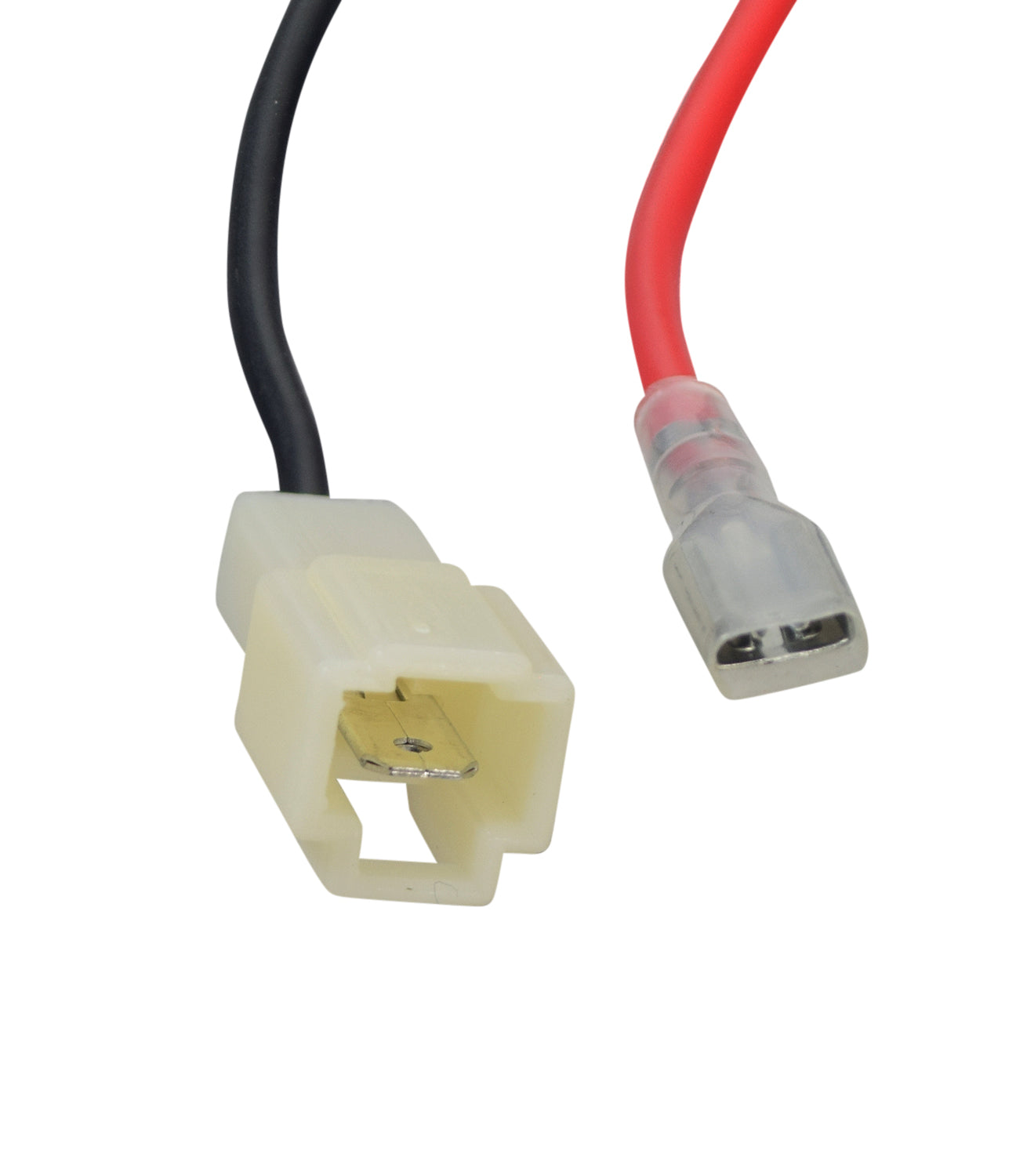

  • Wiring Harness – This controller comes with 7 connectors, including the 2-wire throttle connector

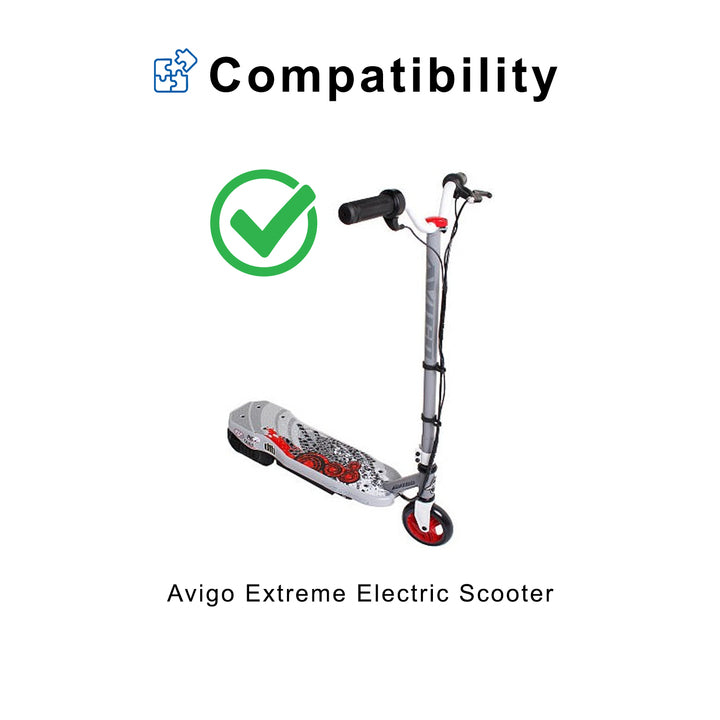

  • Compatibility - Compatible with the Avigo Extreme electric scooter
  • Incompatible - Will NOT work on the Avigo Extreme Motorcross Bike or Avigo Extreme Dirt Rider
  • NOT interchangeable with the LBD8-1, LBD8-2, or LBD8-3 models

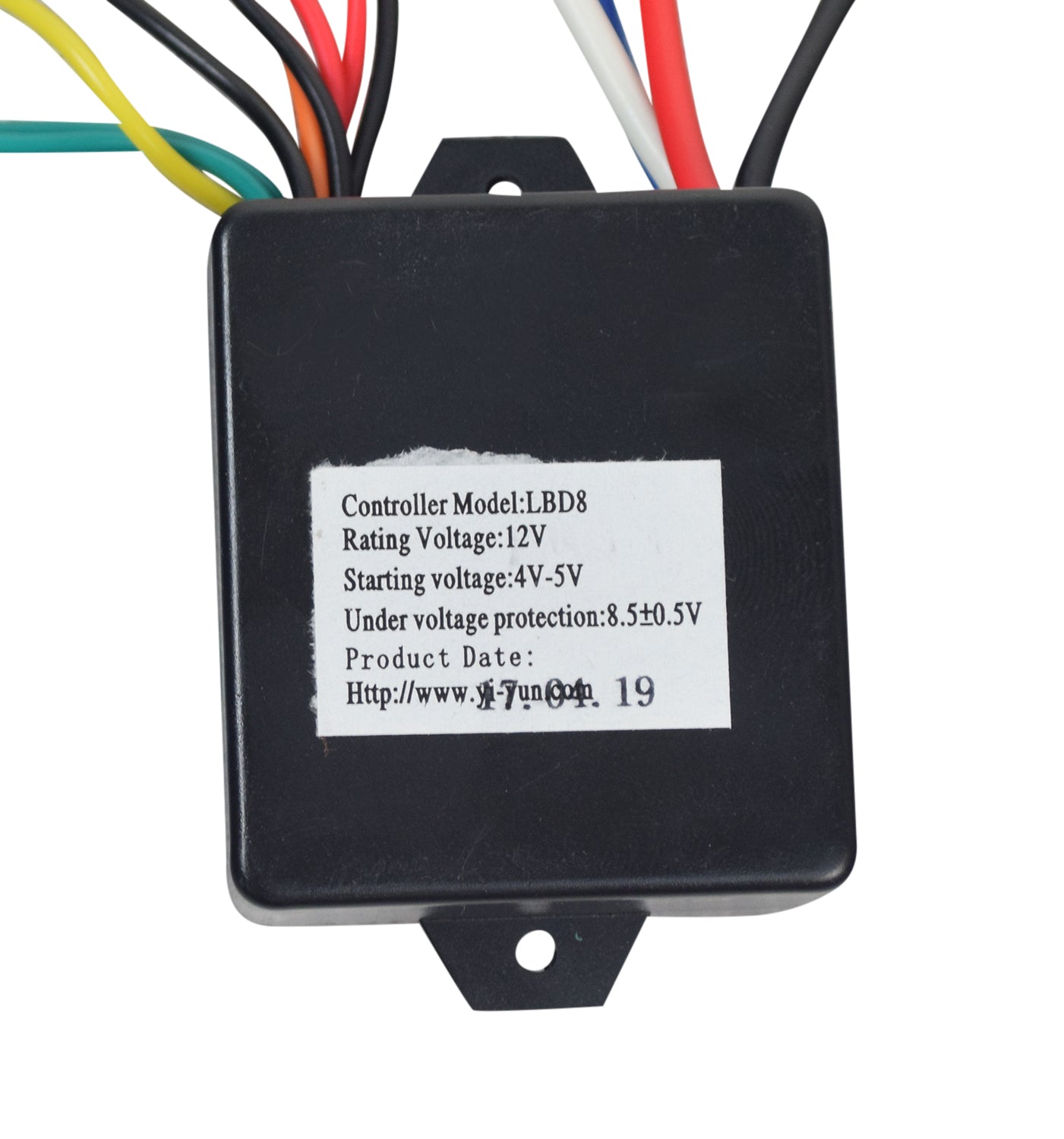

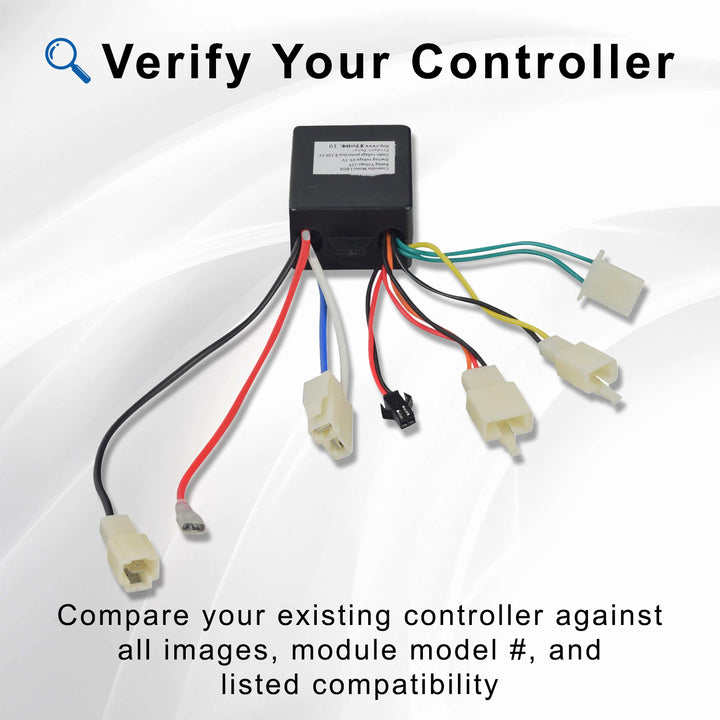

  • Controllers are Model Specific - Compare your model number to ensure correct controller prior to ordering. Check images to see if they match your existing controller
  • Due to the low wattage power of the motor, a kick start is needed before twisting the throttle to properly engage the motor. This is not an indication of a faulty controller or throttle
  • Trouble Shooting? - Issues are commonly caused by either faulty batteries, throttle, or controller

Description

This is the OEM replacement controller for Avigo Extreme scooters which are commonly sold at Toys 'R Us and other retailers. This is a 12-volt controller with model number LBD8 manufactured by Yiyun Tech.

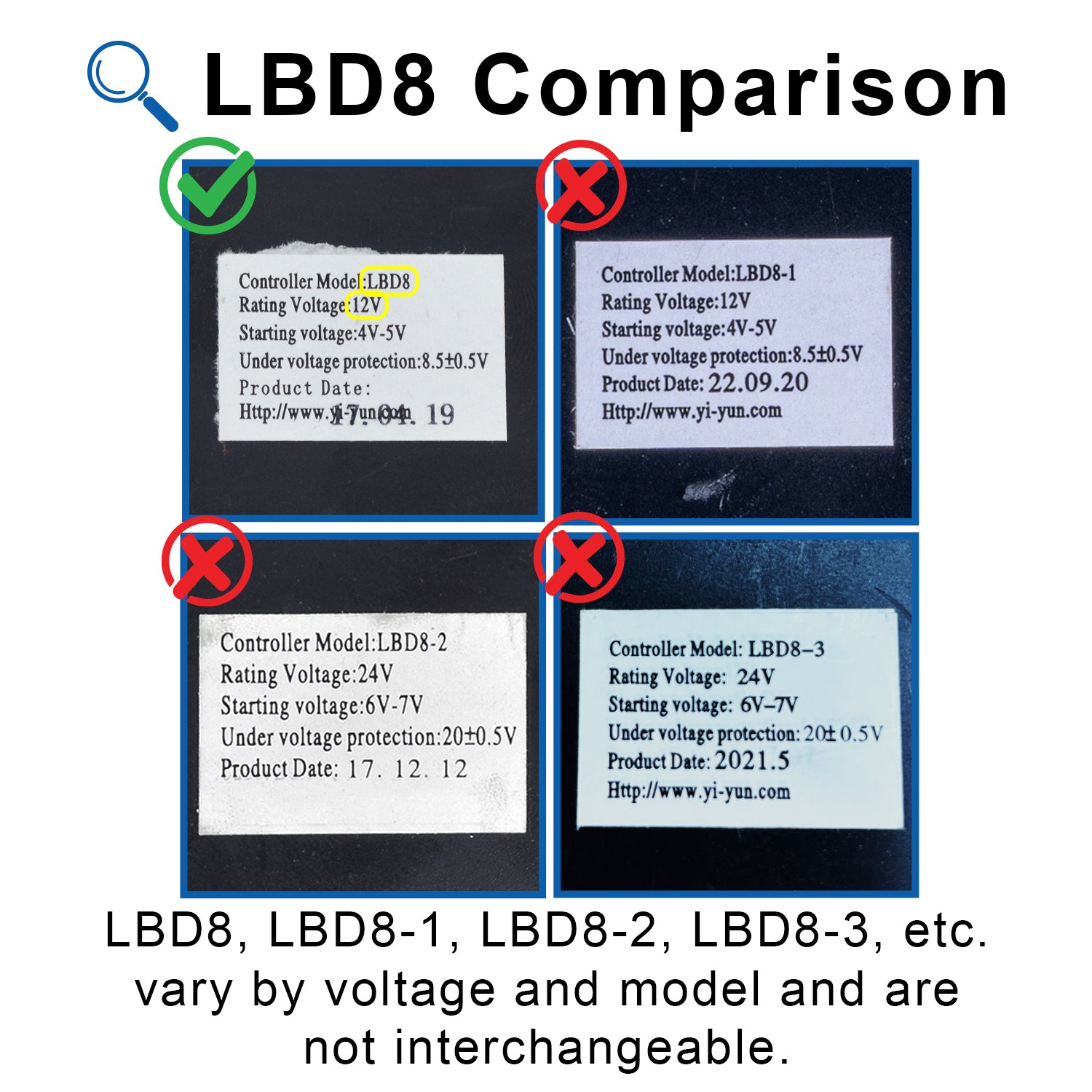

Note on Controller models: These are NOT interchangeable with the 12V LBD8-1, 24V LBD8-2, 24V LBD8-3, or with any other controller versions.

If your Avigo Extreme electric scooter just won't scoot, you may need a new controller. Parts for the Avigo Extreme are easy to find at Monster Scooter Parts.



⚠ WARNING California Residents: Proposition 65 Warning

Reviews (2)

Customer Reviews

Based on 2 reviews
0%
(0)
0%
(0)
100%
(2)
0%
(0)
0%
(0)
C
Charles D

It did not engage the motor. All the input apprear to be correct. The motor runs when you apply voltage to it. Got any suggestions?

Thank you for your feedback! A common quirk with these lower wattage scooters is that they do require some assistance to start up, often they need to be kick started before the motor will engage. On the bench, if you spin the rear wheel at 3 miles per hour and then twist the throttle, the motor should engage. In addition, you may consider getting your batteries load tested to make sure they are working at full capacity. If you have any questions, please feel free to email us or give us a call at 800-798-0325.

J
Jamal S

ok

Specifications

Model: LBD8
Rated volts: 12
Starting volts: 4 - 5
