Pulse | SKU: Z09-1737

24 Volt TRE2423V Controller for the Pulse ATV Quad Ride-On

Name: 24 Volt TRE2423V Controller for the Pulse ATV Quad Ride-On
Brand: Pulse
SKU: Z09-1737
Price: 31.89 USD
Availability: InStock

$31.89

Most in-stock parts ship within 1 business day from our Colorado warehouse.

Delivery typically takes 2–5 business days depending on your location.

Need it faster? Expedited shipping options available at checkout.

This item has a 30 day warranty. Warranty Policy

Free Shipping

US domestic ship to addresses only.
Does not include expedited shipping services.

Key Features

Controller - 24 Volt "TRE2423V" Speed Motor Control Module
Wiring Harness – This controller comes with 7 connectors with a 2-wire throttle connector
Compatibility - Compatible with the Pulse ATV Quad
Incompatible - Will NOT work on the Pulse Super-C, Pulse Sonic, Pulse Sonic XL, Pulse Chopster, Pulse RF-200
NOT interchangeable with the TRE1201, TRE1215, TRE2415A, TRE2421, TRE2424 models
Controllers are Model Specific - Compare your model number to ensure correct controller prior to ordering. Check images to see if they match your existing controller
Due to the low wattage power of the motor, a kick start is needed before twisting the throttle to properly engage the motor. This is not an indication of a faulty controller or throttle
Trouble Shooting? - Issues are commonly caused by either faulty batteries, throttle, or the controller

Description

The 24 volt TRE2423V controller is the control module for the Pulse ATV Quad ride-on. If your quad has stopped driving because of a failed controller, this HangZhou Hebao TRE2423V unit is the replacement.

To confirm it is the part you need, check the label on your old controller for the model number and voltage. It should read 24 volt TRE2423V. The controller has 7 connectors, including a 2-wire throttle connector.

Note: This controller is not interchangeable with the TRE1201, TRE1215, TRE2415A, TRE2421, TRE2424 or any other controller version, and it does not fit the Pulse Super-C, Sonic, Sonic XL, Chopster or RF-200.

Compatible Models

Pulse ATV Quad Ride-On

⚠ WARNING California Residents: Proposition 65 Warning

Reviews (5)

The controller got my grandson’s electric 4

The controller got my grandson’s electric 4 wheeler going again thanks

Please include wiring diagrams.

Please include wiring diagrams with controllers, batteries and throttles.

I guess it is working as it is new

I guess it is working as it is new. I have a problem with the wheels turning fast when directly hooked to the batteries but when turning the throttle it goes real slow or stops. I ordered a new motor and got the same results. I have now ordered a new throttle and maybe that will solve the problem.

Exactly what I needed

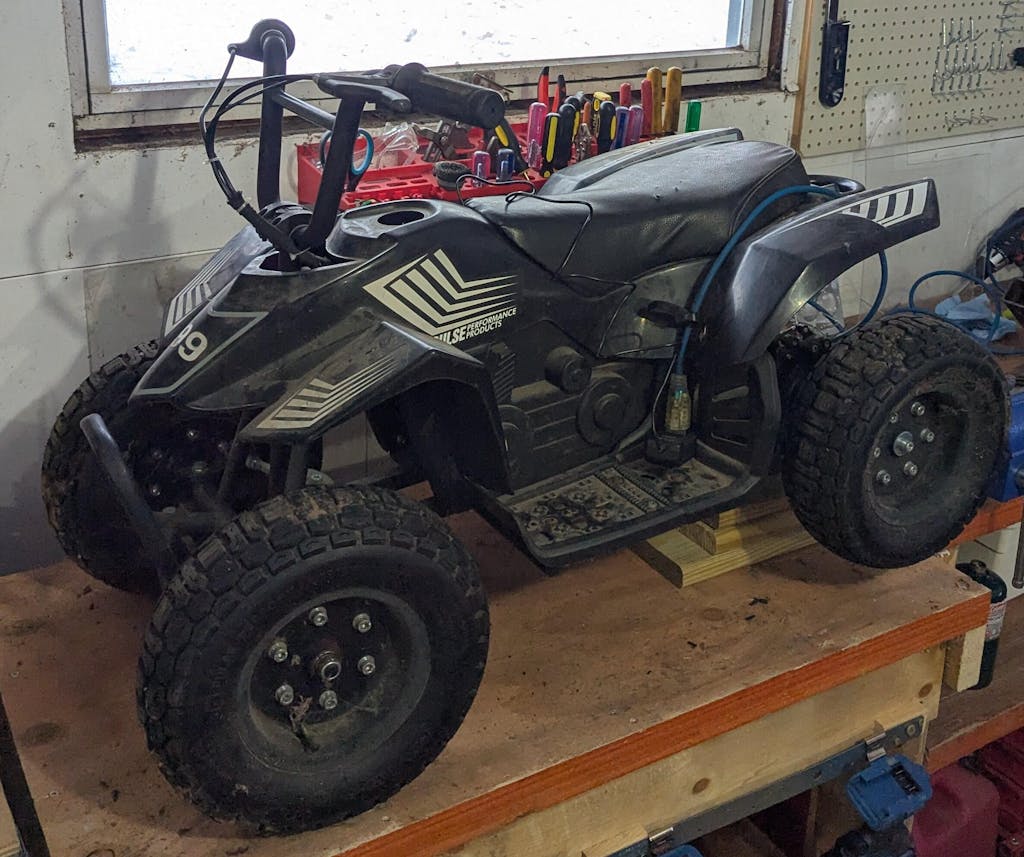

This was a perfect match for my 24v pulse performance ATV. Shipping was reasonably quick. Package arrived undamaged. And prices were on the low end of average. Highly recommend!

In addition to the controller, I also purchased a throttle. The grandkids quad is up and running.

Specifications

Compatibility

Pulse ATV Quad
