Monster Scooter Parts | SKU:
P16-2365

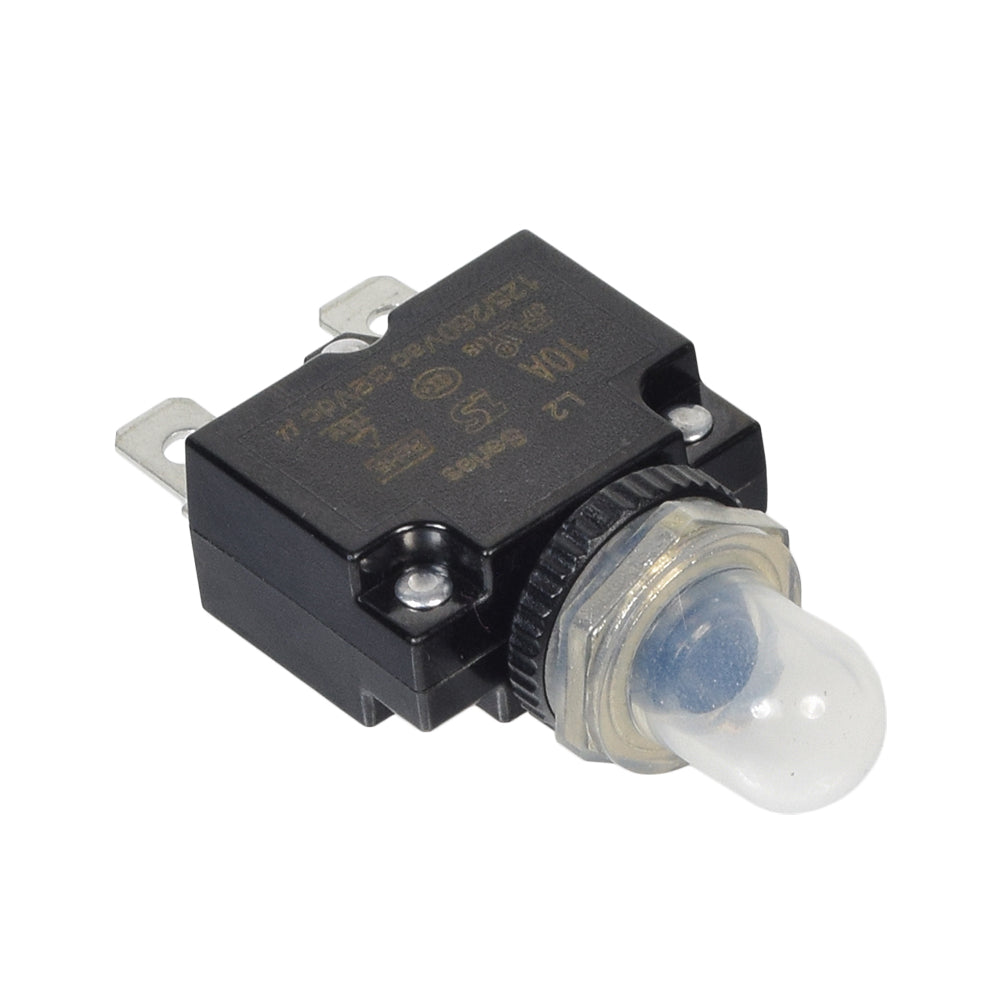

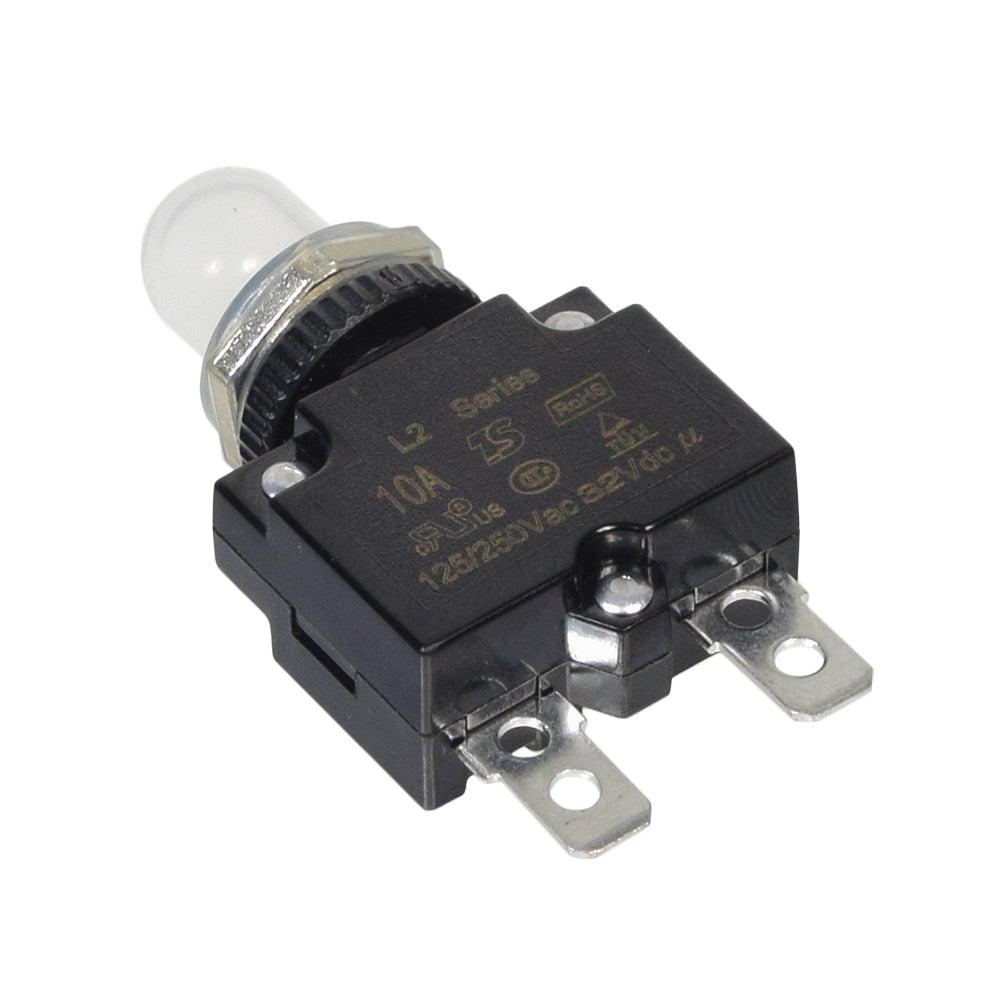

10 Amp (10A) 32VDC 125/250VAC Push-Button Reset Circuit Breaker with 1/4" Tab Terminals
$2.97
$3.49
Unit price
/
Unavailable
10 Amp (10A) 32VDC 125/250VAC Push-Button Reset Circuit Breaker with 1/4" Tab Terminals is backordered and will ship as soon as it is back in stock.
Free Shipping
Free Shipping
- US domestic ship to addresses only.
- Does not include expedited shipping services.

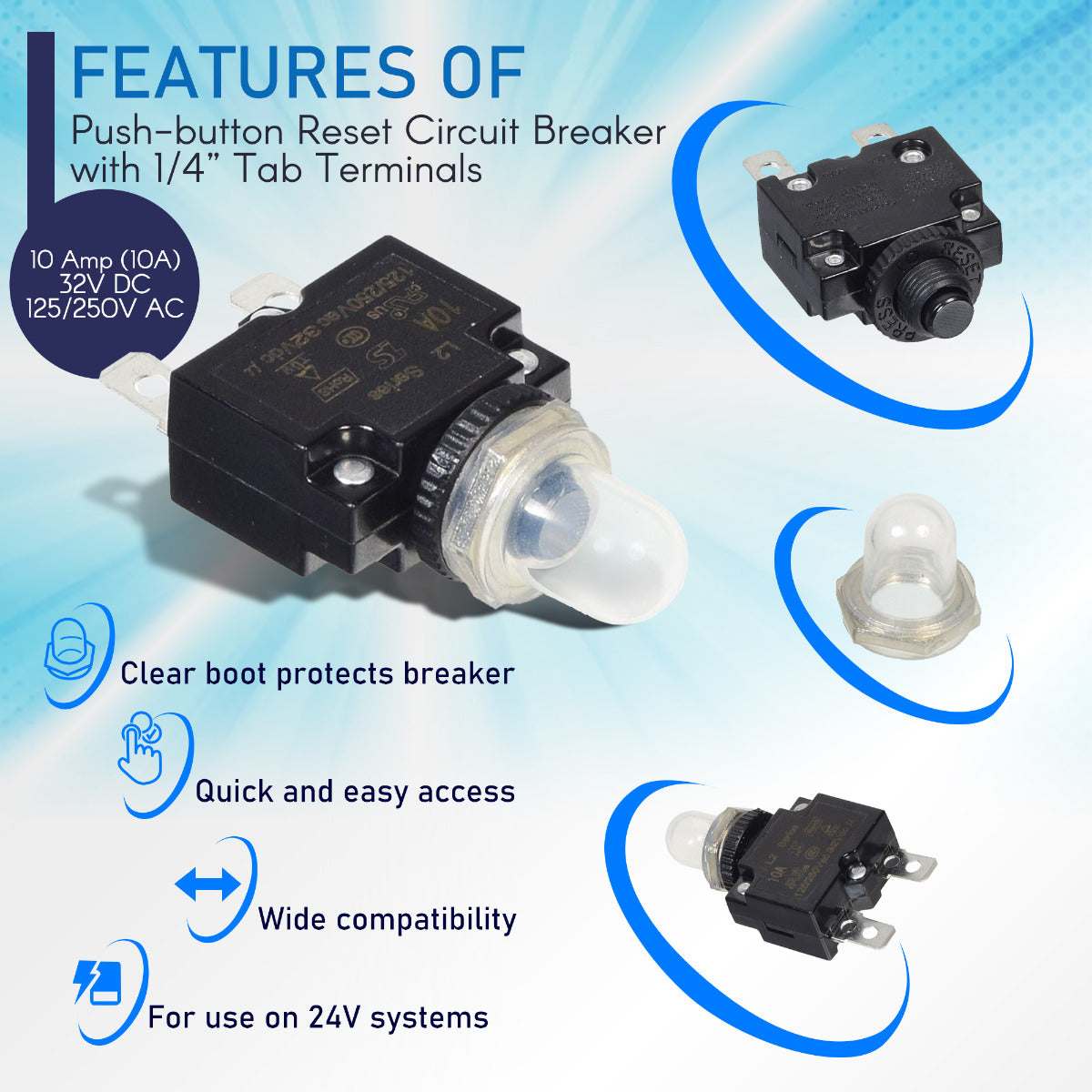

Key Features
- This 10 amp, 32 volt DC circuit breaker is for 24 volt electric systems.
- The push button style reset includes a threaded shaft & 1/4" tab terminals.
- Each breaker comes with a clear plastic boot cover to protect it from dust & moisture.
- The circuit breaker uses the panel mount design for quick & easy access.
Description
Description

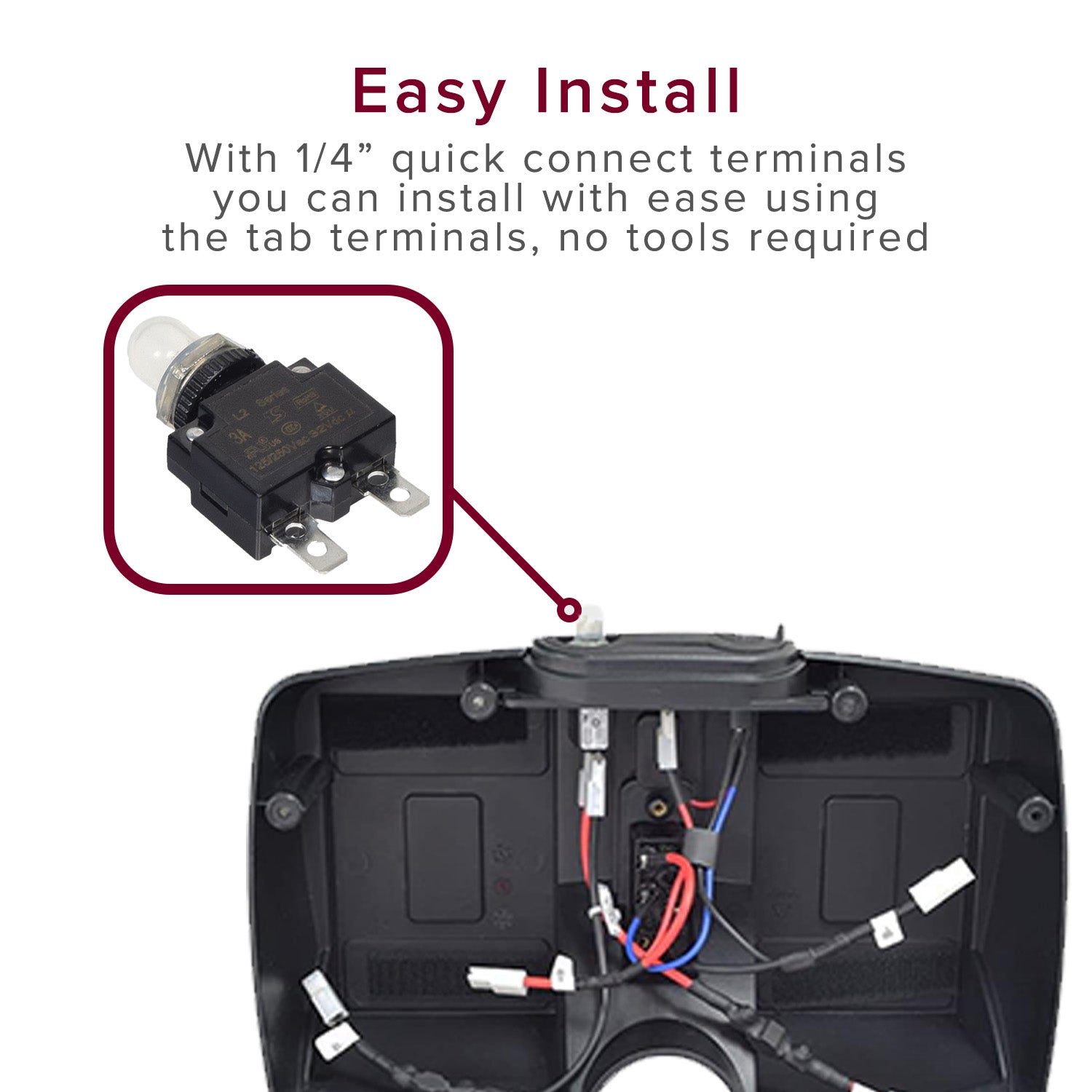

The 10 amp (10A) 32VDC 125/250VAC push-button reset circuit breaker is compatible with a number of recreational electric scooters as well as some brands of mobility scooters and other electric-powered personal vehicles. This push button panel mount style breaker is suitable for use on all 24 volt systems. The breaker uses a dual D-style chamfered shaft designed to fit approximately 7/16" hole. These breakers are very easy to install or replace. Lead-free and RoHS compliant, our push-button circuit breakers are also Underwriters Laboratories (UL®) Listed.

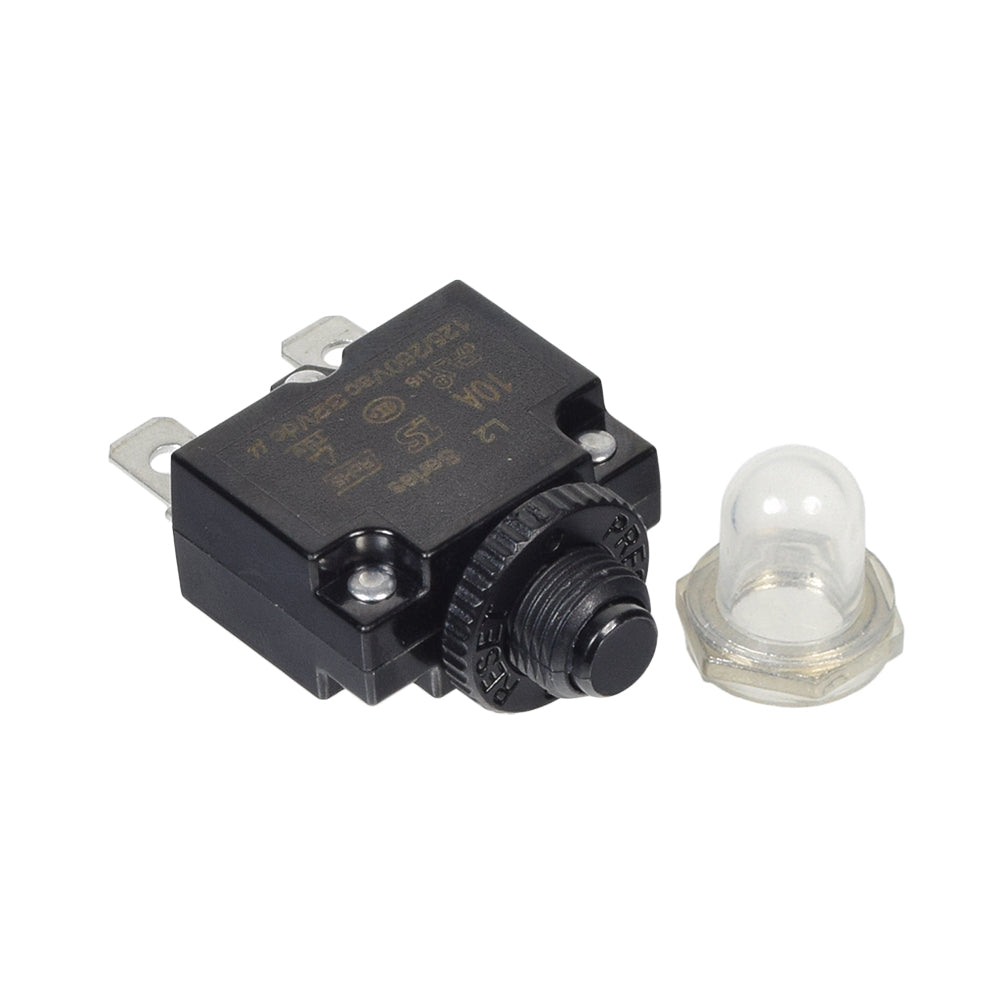

In addition, our 10 amp 32 volt breaker includes a clear plastic boot that protects the button from dust and moisture.

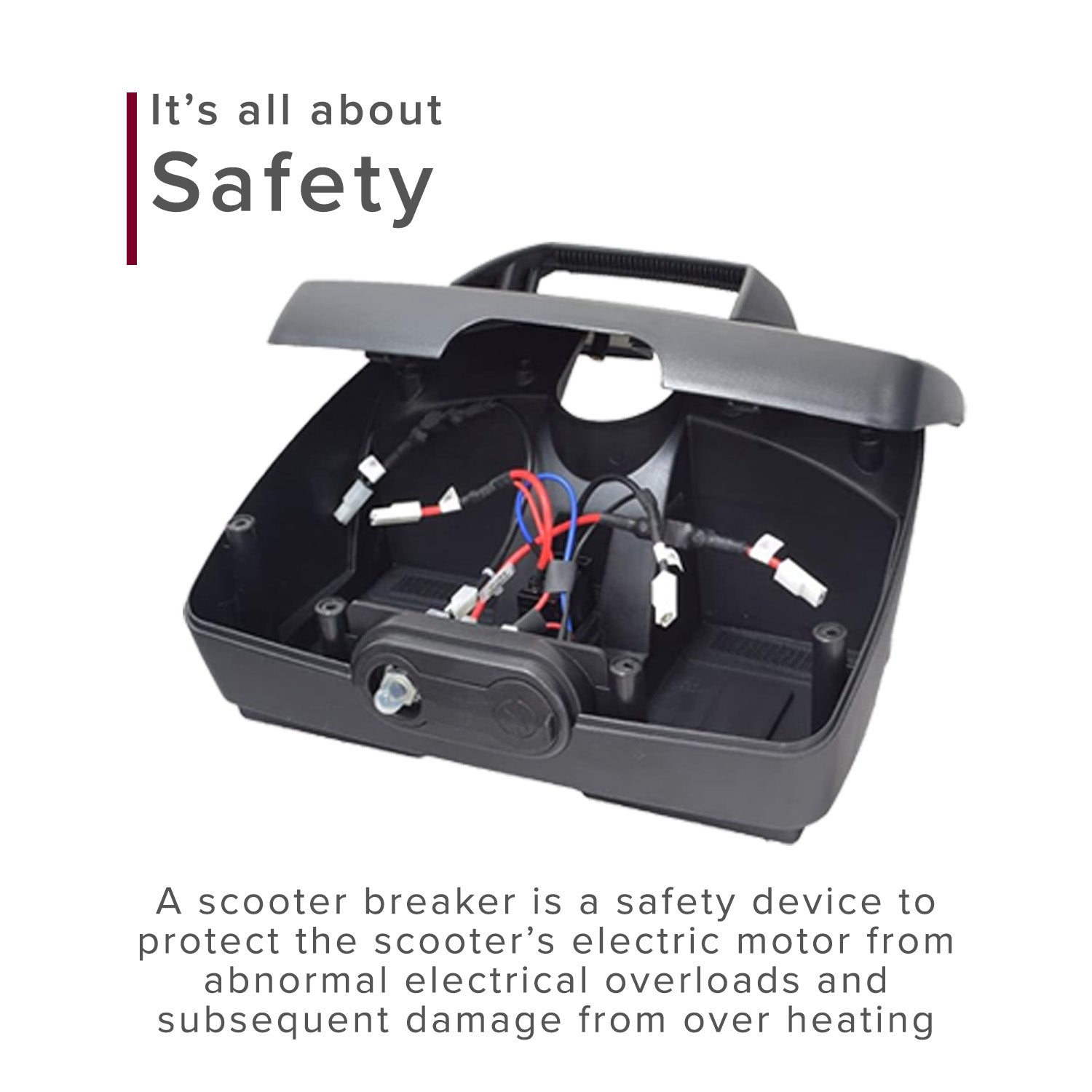

A scooter breaker is a safety device to protect the scooter’s electric motor from abnormal electrical overloads and subsequent damage from overheating. Often overlooked but easy to install and relatively inexpensive, a push-button reset circuit breaker should be immediately replaced when broken, damaged, or corroded. Also referred to as the non-technical term of reset button by some electric scooter manufacturers.
⚠ WARNING California Residents: Proposition 65 Warning
In addition, our 10 amp 32 volt breaker includes a clear plastic boot that protects the button from dust and moisture.
A scooter breaker is a safety device to protect the scooter’s electric motor from abnormal electrical overloads and subsequent damage from overheating. Often overlooked but easy to install and relatively inexpensive, a push-button reset circuit breaker should be immediately replaced when broken, damaged, or corroded. Also referred to as the non-technical term of reset button by some electric scooter manufacturers.
⚠ WARNING California Residents: Proposition 65 Warning
Reviews (0)
Reviews (0)

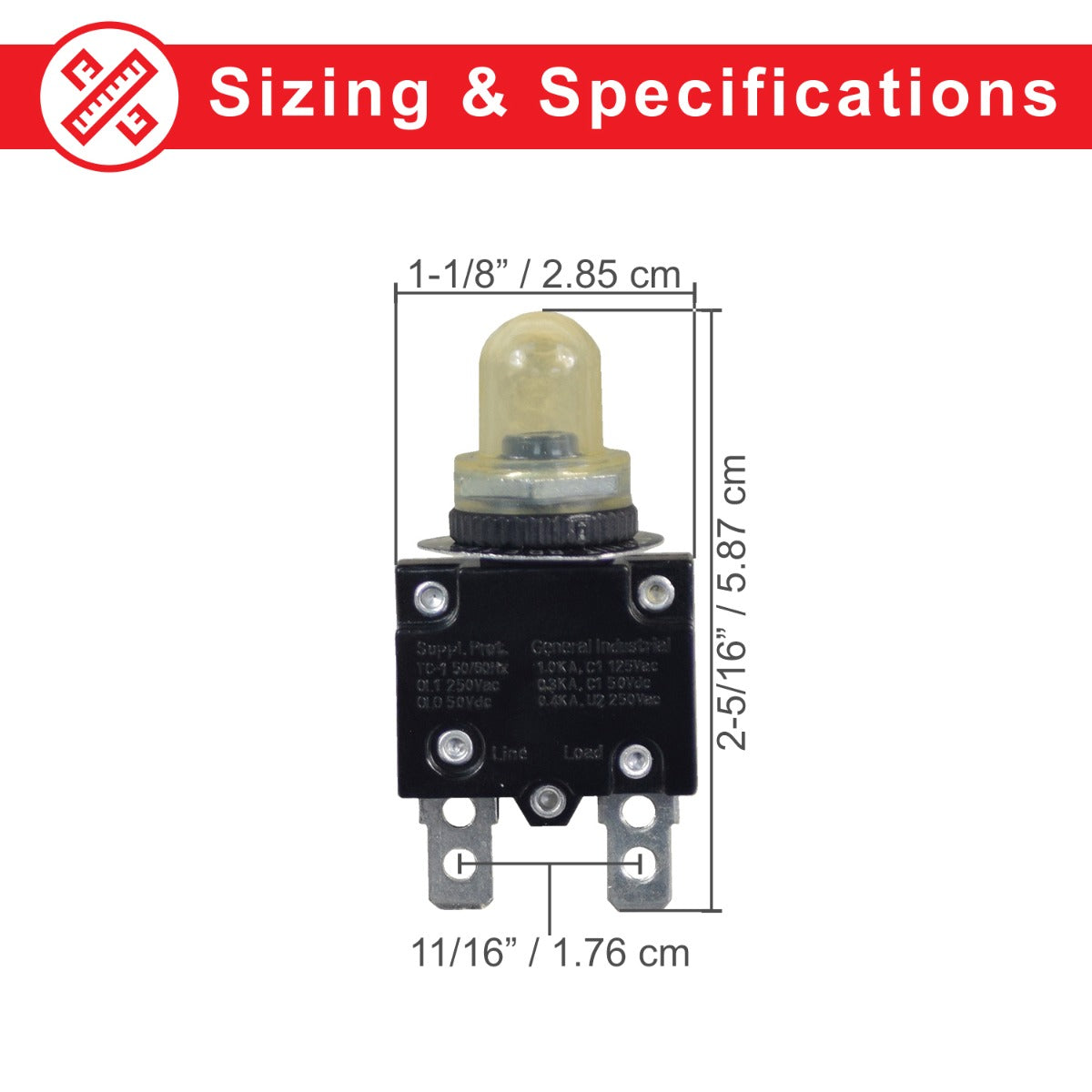

Specifications
Specifications
Breaker Type: Thermal
Voltage: 32VDC, 125/250VAC
Current - Trip: 10A
Number of Poles: 1
Actuator Type: Push to Reset
Mounting Type: Panel Mount
Threaded Mounting Shaft Pitch: M11*1.0
Threaded Mounting Shaft Diameter: 9.8 mm
Terminals: 1/4" Tab
