Monster Scooter Parts | SKU:
X98-1001

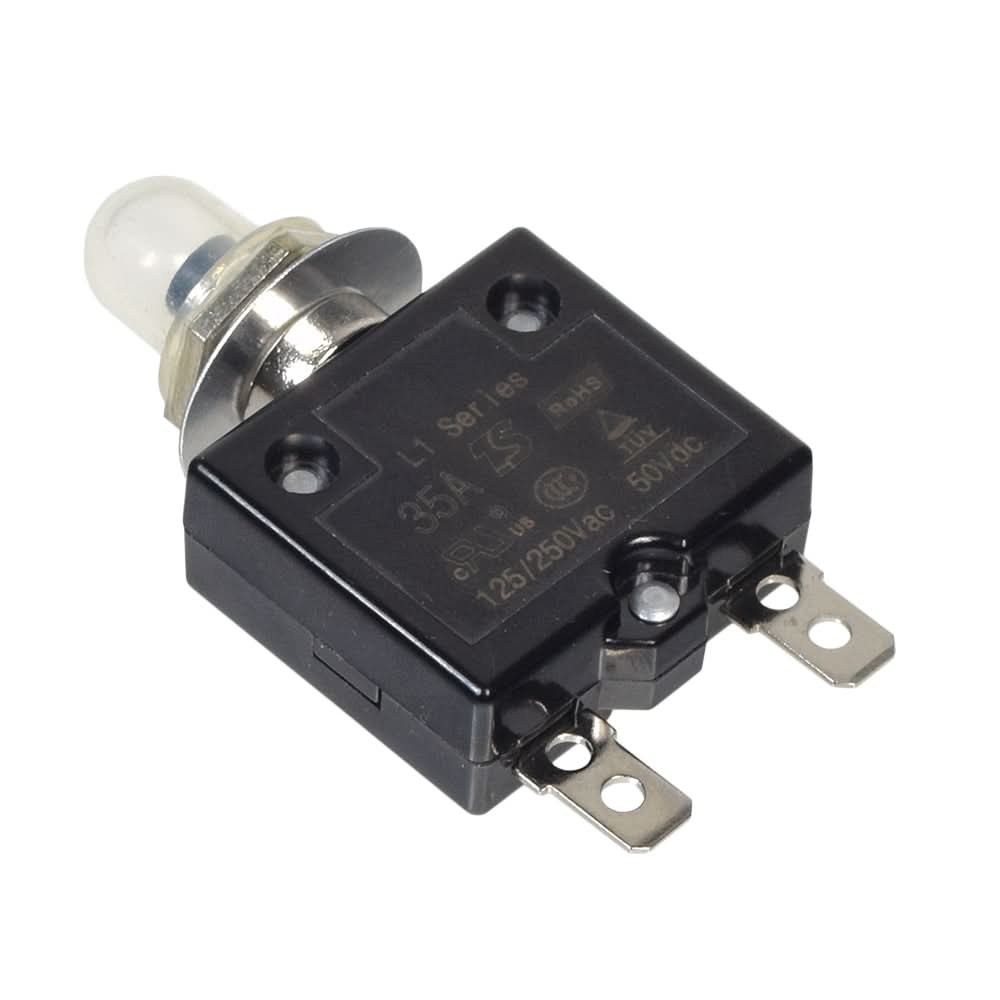

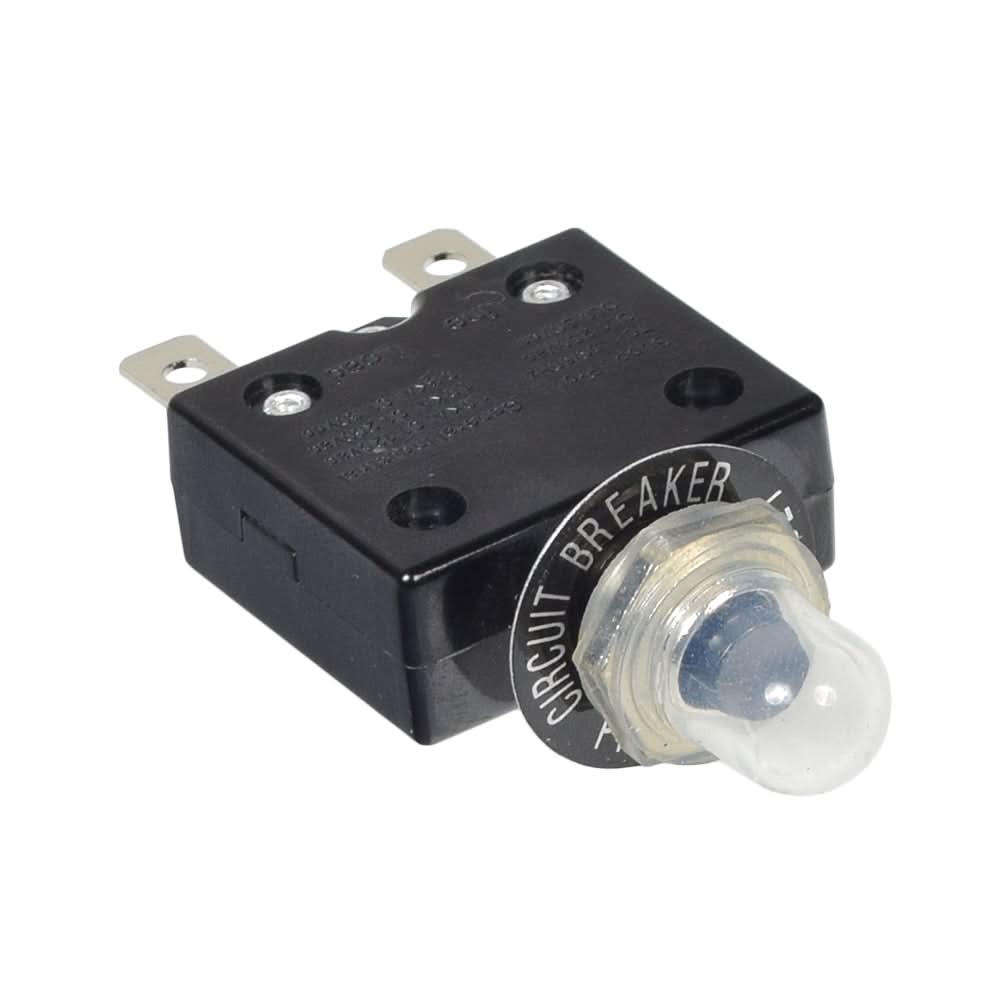

Premium 35 Amp (35A) 50VDC 125/250VAC Push-Button Reset Circuit Breaker with Metal Threaded Collar for Mobility Scooters
$2.79
$3.99
Unit price
/
Unavailable
Premium 35 Amp (35A) 50VDC 125/250VAC Push-Button Reset Circuit Breaker with Metal Threaded Collar for Mobility Scooters is backordered and will ship as soon as it is back in stock.
Pre-Black Friday Sale - Save 15% with coupon code: PBF15
Free Shipping
Free Shipping
- US domestic ship to addresses only.
- Does not include expedited shipping services.
Premium 35 Amp (35A) 50VDC 125/250VAC Push-Button Reset Circuit Bre...
$2.79
$3.99
Unit price
/
Unavailable
Key Features
- 35 amp 50VDC 125/250VAC
- Suitable for 24 volt & 36 volt systems
- Also called a reset button
- Panel mount for quick access

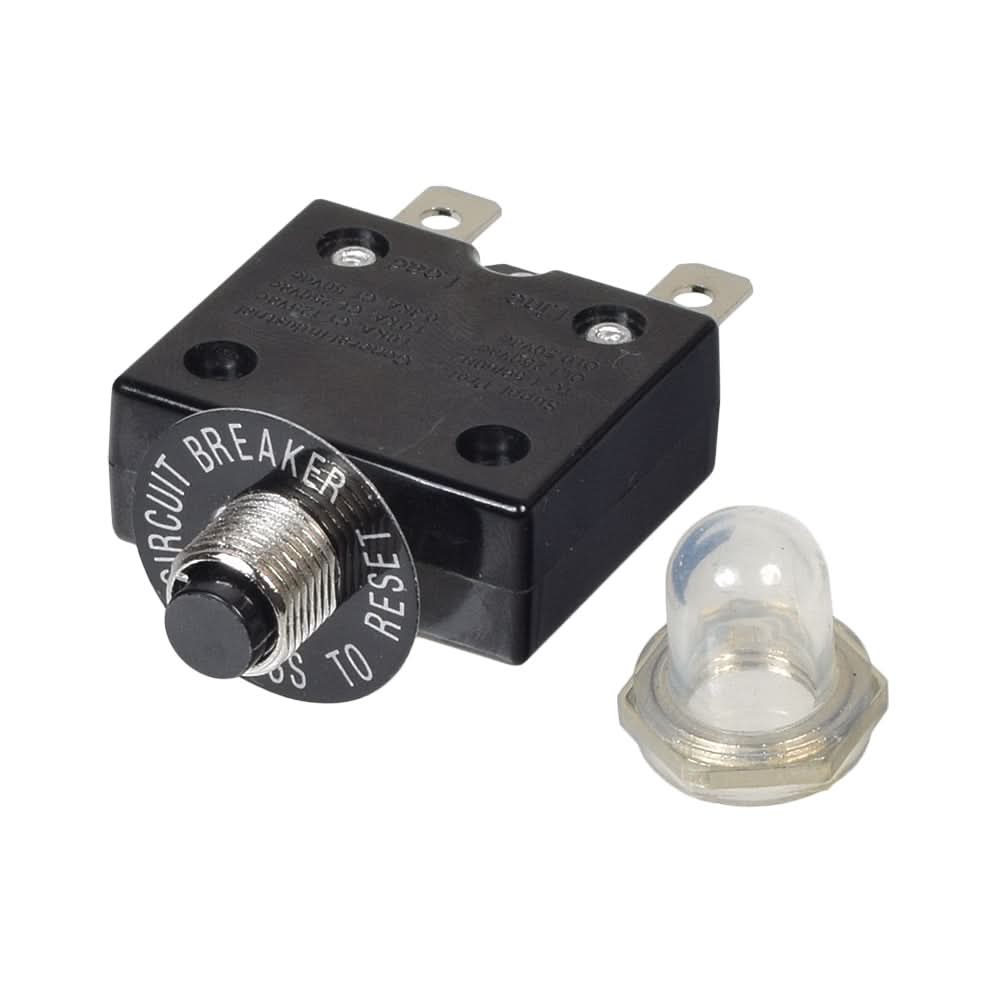

- Threaded metal shaft, threaded collar, & boot cover included
Description
Description
Our premium quality 35 amp, 50 volt DC 125/250VAC push-button reset circuit breaker for mobility scooters and power chairs features a threaded metal shaft, threaded collar, ring, and clear plastic boot cover. A wide range of mobility scooters and electric wheelchairs (aka power chairs) protect their electronics with this 35A breaker. This push button style breaker is suitable for use on all 24 volt systems.
Our breakers use a dual D-style chamfered shaft designed to fit approximately 7/16" hole. These breakers are very easy to install or replace and are Underwriters Laboratories (UL®) Listed.
A scooter breaker is a safety device to protect the scooter’s electric motor from abnormal electrical overloads and subsequent damage from overheating. Often overlooked but easy to install and relatively inexpensive, a push-button reset circuit breaker should be immediately replaced when broken, damaged, or corroded. Also referred to as the non-technical term of reset button by some electric scooter manufacturers.
⚠ WARNING California Residents: Proposition 65 Warning
Our breakers use a dual D-style chamfered shaft designed to fit approximately 7/16" hole. These breakers are very easy to install or replace and are Underwriters Laboratories (UL®) Listed.
A scooter breaker is a safety device to protect the scooter’s electric motor from abnormal electrical overloads and subsequent damage from overheating. Often overlooked but easy to install and relatively inexpensive, a push-button reset circuit breaker should be immediately replaced when broken, damaged, or corroded. Also referred to as the non-technical term of reset button by some electric scooter manufacturers.
⚠ WARNING California Residents: Proposition 65 Warning
Reviews (0)
Reviews (0)
Specifications
Specifications
Rated amps: 35
Breaker type: thermal
Voltage: 50VDC, 250VAC
Actuator Type: Push to Reset
Mounting Type: Panel Mount
Threaded Mounting Shaft Pitch: M11*1.0
Threaded Mounting Shaft Diameter: 9.8 mm
Current - Trip: 35A
Terminals: 1/4" Tab
