24BC5000T-4 - 24 Volt 5.0 Amp XLR AGM/Gel Battery Charger for the Pride Victory 10 LX with CTS Suspension (S710LX) (CPC)
24BC5000T-4 - 24 Volt 5.0 Amp XLR AGM/Gel Battery Charger for the Pride Victory 10 LX with CTS Suspension (S710LX) (CPC) is backordered and will ship as soon as it is back in stock.
Free Shipping
Free Shipping
- US domestic ship to addresses only.
- Does not include expedited shipping services.
Key Features
- 24 volt 5.0 amp
- For gel cell or AGM batteries
- Underwriters Laboratories (UL) Listed

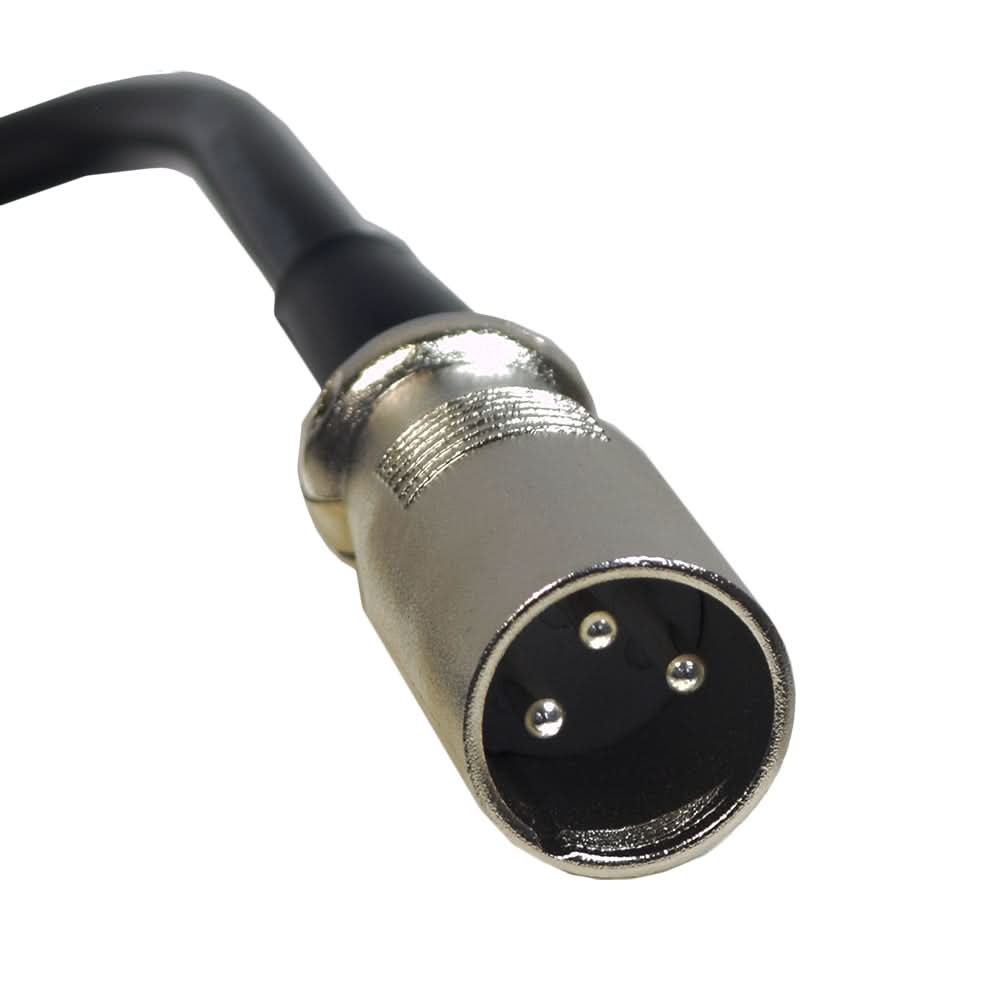

- XLR connector
Description
Description
This 24 volt 5.0 amp XLR battery charger from Universal Power Group (UPG) fits the Pride Victory 10 LX with CTS Suspension (S710LX) and the Victory LX Sport (S710LXW). It charges both AGM and gel batteries, with a selector switch that must be set to GEL or AGM to match your batteries.
Gel batteries last longer but are more sensitive to overcharging, so an AGM-only charger should never be used on gel batteries. This charger is optimized for gel batteries with a 28.8 volt output, which is also safe for AGM. The instructions may say "suitable for lead acid batteries only"; AGM and gel are both sealed lead acid batteries, so it works with either.
It is a fan-cooled, 3-stage charger (bulk, absorption and float) that shuts off automatically and can stay connected to maintain a full charge. It has short circuit, reverse polarity and low voltage protection, and three LEDs show power on, charging and charged. The charger is UL listed for dry locations only and comes with a 1-year warranty.
Universal Power Group part number: 24BC5000T-4 (replaces 24BC5000TFG-1)
⚠ WARNING California Residents: Proposition 65 Warning
Reviews (3)
Reviews (3)
Specifications
Specifications
UPG Model Number: 24BC5000T-4 (replaces 24BC5000TFG-1)
Input Voltage: 100-240 VAC +/- 10%
Input Frequency: 47-63 Hz
Output Voltage Fast Charge (Bulk): DC 28.8V +/- 0.5V
Output Voltage Float: DC 26.4V +/- 0.5V
Output Current: 5.0A (Fast Charge Bulk)
Recommended Battery Capacity: 15-50 Ah
Operating Temperature: +32℉ to +104℉ (0℃ to 40℃)
Storage Temperature: -4℉ to +140℉ (-20℃ to +60℃)

AC Power Present
Charging Stage
Charging Complete
