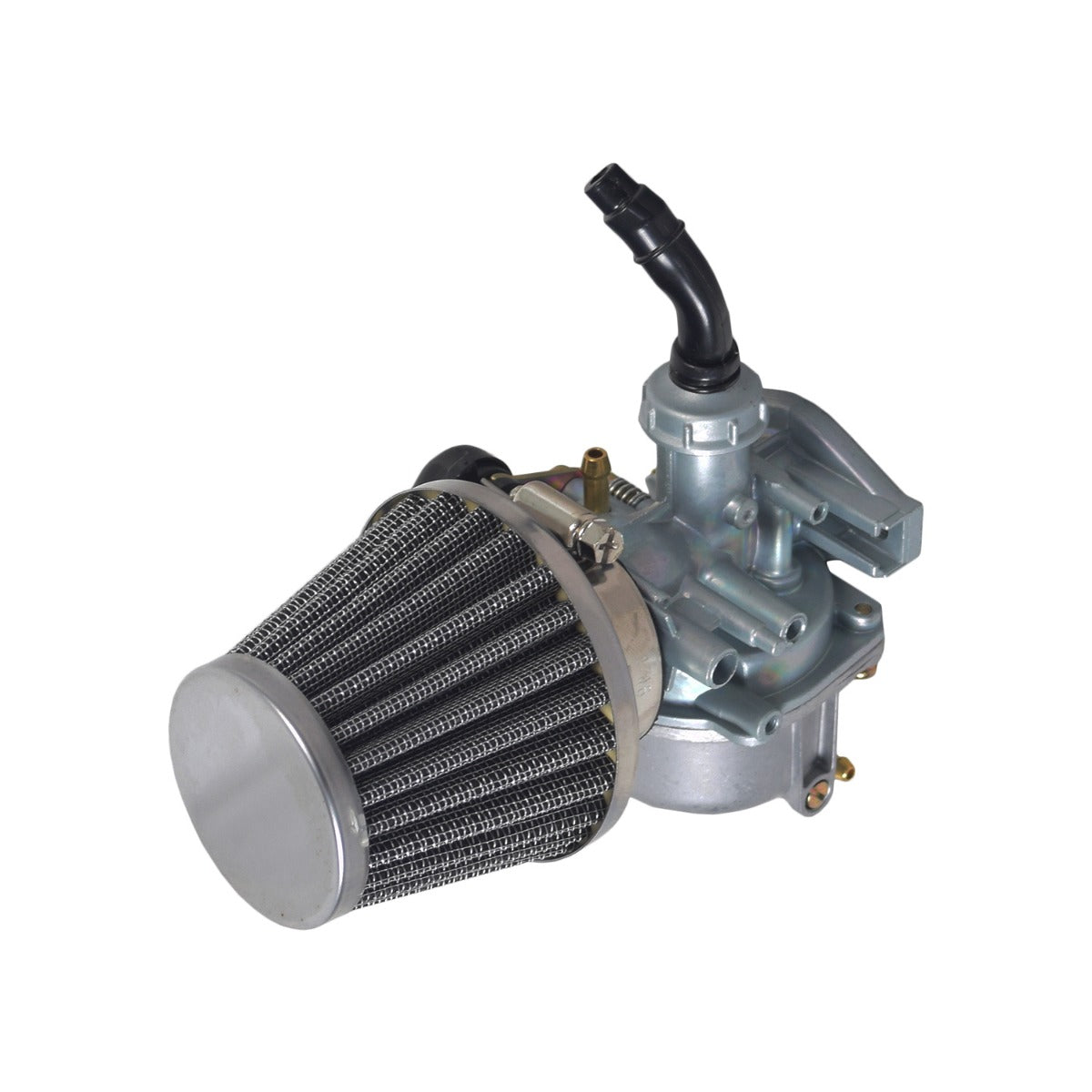

70cc Carburetor for the Motovox MVX70 Pit Bike

Here is the replacement PZ19 70cc carburetor for the Motovox MVX70 pit bike. This 70cc dirt bike carb is widely used in the small engine sizes dirt bikes. Please check the images and specifications for compatibility.

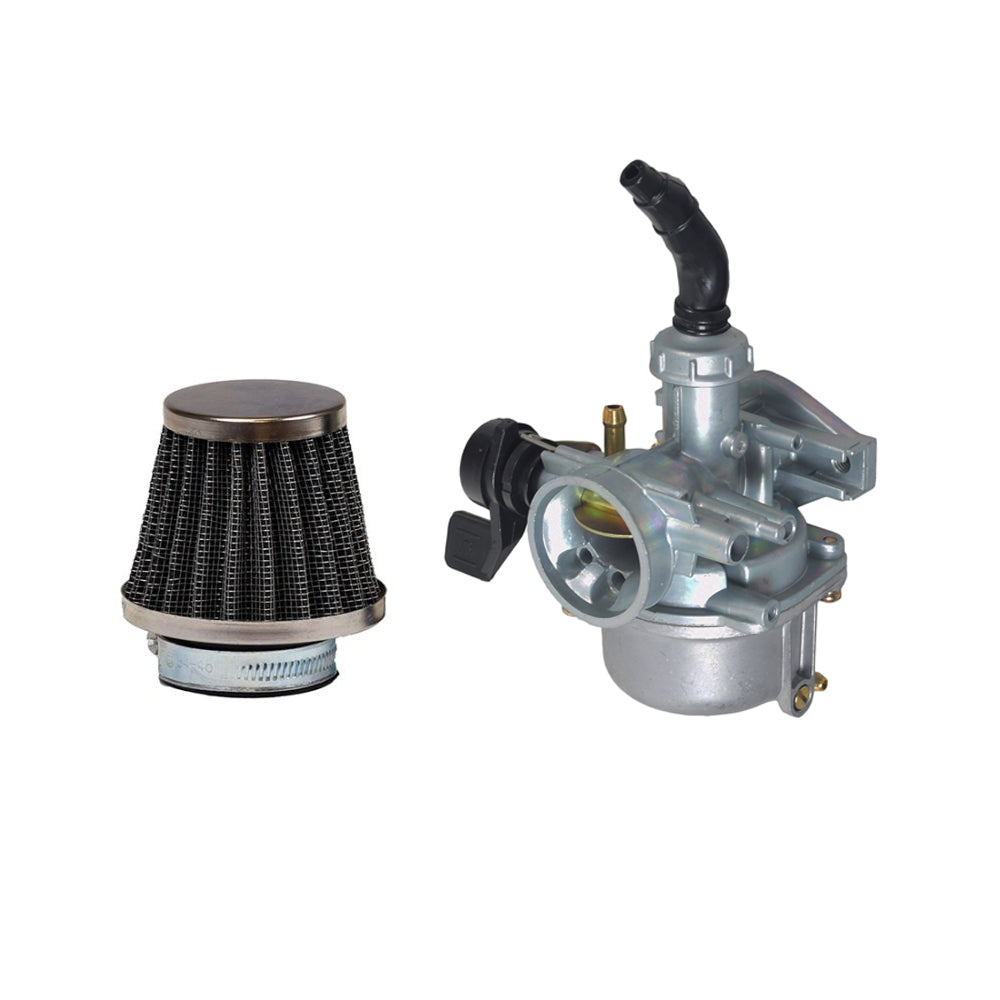

But that's not all! Monster Scooter Parts gives you a choice of configurations for this carb. You can order it either with or without a 35mm Air Filter. Just select your filter option when ordering and save some money.

Motovox: 10001

⚠ WARNING California Residents: Proposition 65 Warning

Engine Size(s): 50cc; 70cc; 90cc; 110cc; 125cc

Engine Intake Inner Diameter: 19 mm

Air Intake Outer Diameter: 36 mm

Air Intake Inner Diameter: 32 mm

Overall Depth: 7.1 cm

Overall Width: 9 cm

Overall Height: 14.5 cm

Center to Center Mounting Hole Distance:: 48 mm

Mounting Holes Diameter: 6 mm

Choke: Manual

Choke Location: Left

Vacuum Hose Length: 24 cm +/-

Vacuum Hose Inner Diameter: 4 mm

Vacuum Hose Outer Diameter: 8 mm

Drain: No

Fuel Shutoff: No
